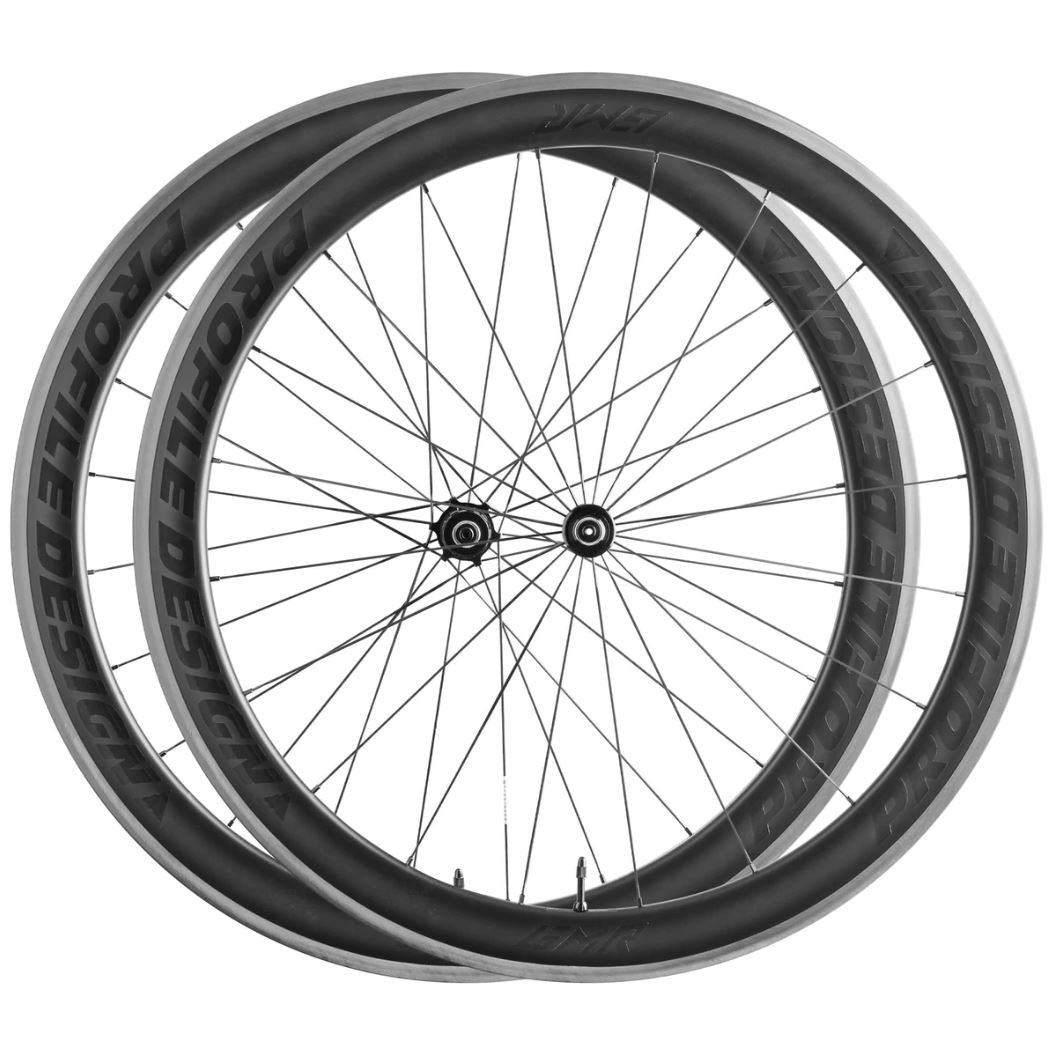

Profile Design GMR 50 Carbon Tubeless Rim Brake Wheelset

• 50mm rim depth offers good aerodynamics without creating too much side profile
• High-temperature resin for consistent braking on long descents.
• Extra stiff hub shell design.
• Proprietary precision machined alloy hubs.
• Sapim CX-Ray spokes with Sapim Polyax double square nipples.
• Sealed cartridge bearings.
• Hand-built assembly.
• Clincher, Tubeless Ready.
• Rim brake.

Front Wheel

• Weight:  675g
• Diameter: 700c
• Hub: 6061-T6 Alloy
• Bearing Size: 6901
• Hub Compatibility: QR
• Rim Depth: 50mm
• Rim Width (Outside): 26mm
• Rim Width (Inside): 19mm
• Color: UD Carbon
• Spokes: Sapim® CX-Ray Aero Spoke
• Spoke Shape: Straight Pull, Bladed
• Spoke Count: 20
• Spoke Pattern: Radial
• Spoke Length:  260mm
• Nipples: 7075 Alloy Polyax Double Square
• External Nipples: Yes
• Tire Compatibility: Tubles Ready (TLR) / Clincher
• Max Tire Pressure: 70-100psi (also refer to Tire sidewall)
• Tire Width: 700c x 28-38mm

Rear Wheel

• Weight: 866g
• Diameter: 700c
• Hub: 6061-T6 Alloy
• Bearing Size: 6802
• Cassette Compatibility: Shimano/SRAM: 9/10sp, 11sp
• Hub Compatibility: QR
• Rim Depth: 50mm
• Rim Width (Outside): 26mm
• Rim Width (Inside): 19mm
• Color: UD Carbon
• Spokes: Sapim® CX-Ray Aero Spoke
• Spoke Shape: Straight Pull, Bladed
• Spoke Count: 24
• Spoke Pattern Non-Drive: Radial
• Spoke Pattern Drive: 2 cross
• Spoke Length Non Drive: 261mm
• Spoke Length Drive: 268mm
• Nipples: 7075 Alloy Polyax Double Square
• External Nipples: Yes
• 11-Speed Compatible Hub: Yes
• 12-Speed Compatible Hub: Yes w/ (Aftermarket XDR Freehub purchase)
• Tire Compatibility: Tubles Ready (TLR) / Clincher
• Max Tire Pressure:  70-100psi (also refer to Tire sidewall)
• Tire Width: 700c x 28-38mm

Wheelset

• Set Weight: 1541g
• Max Recommended Rider Weight (lbs):  220lbs

• Tubeless valves Stems.
• Tubeless Rim Strip(s)
• Profile Design quick-release skewers.
• Profile Design Carbon-Specific P220 GMR Series brake pads.
