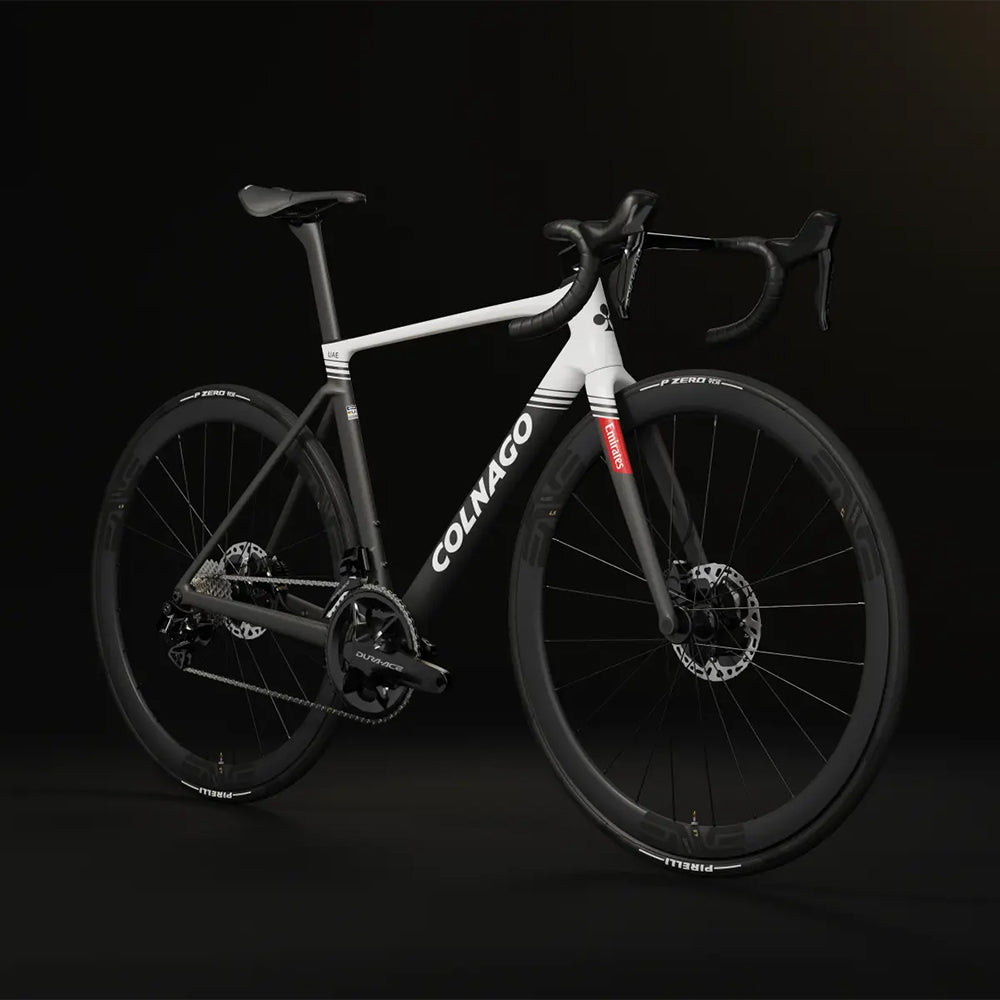

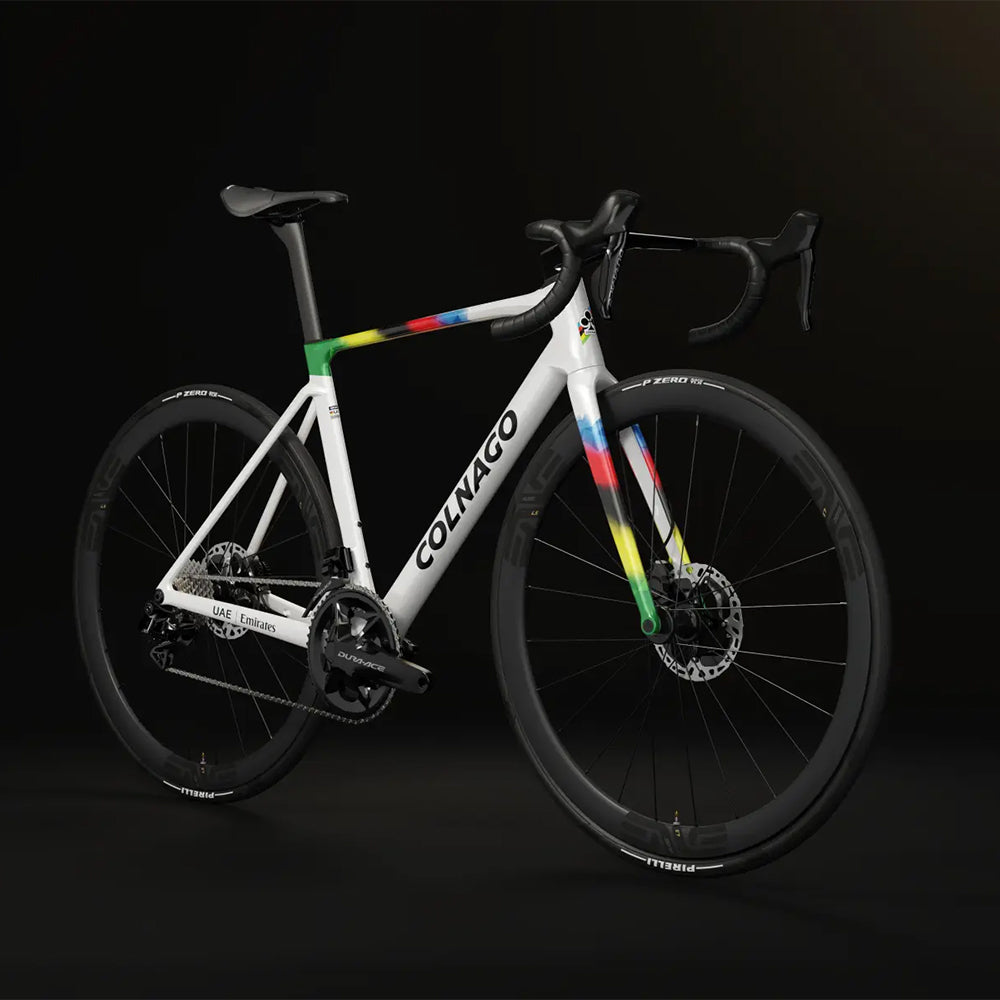

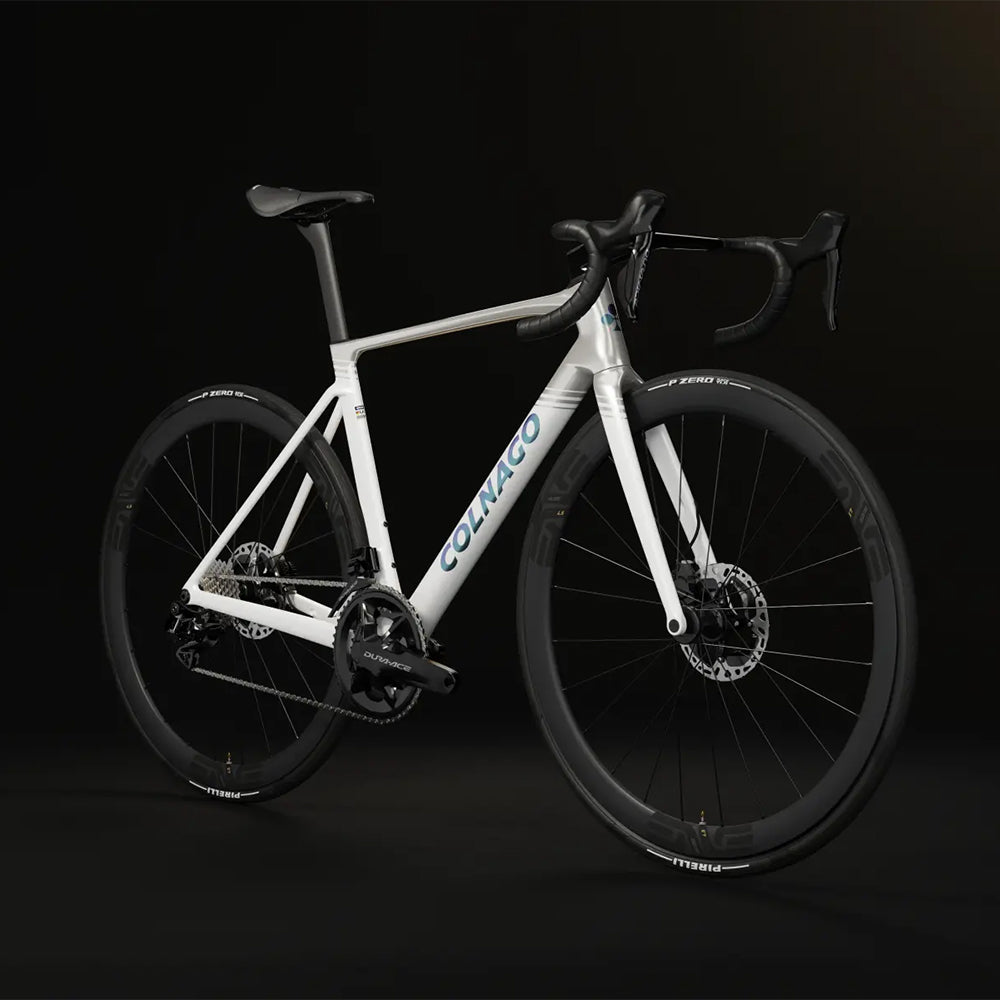

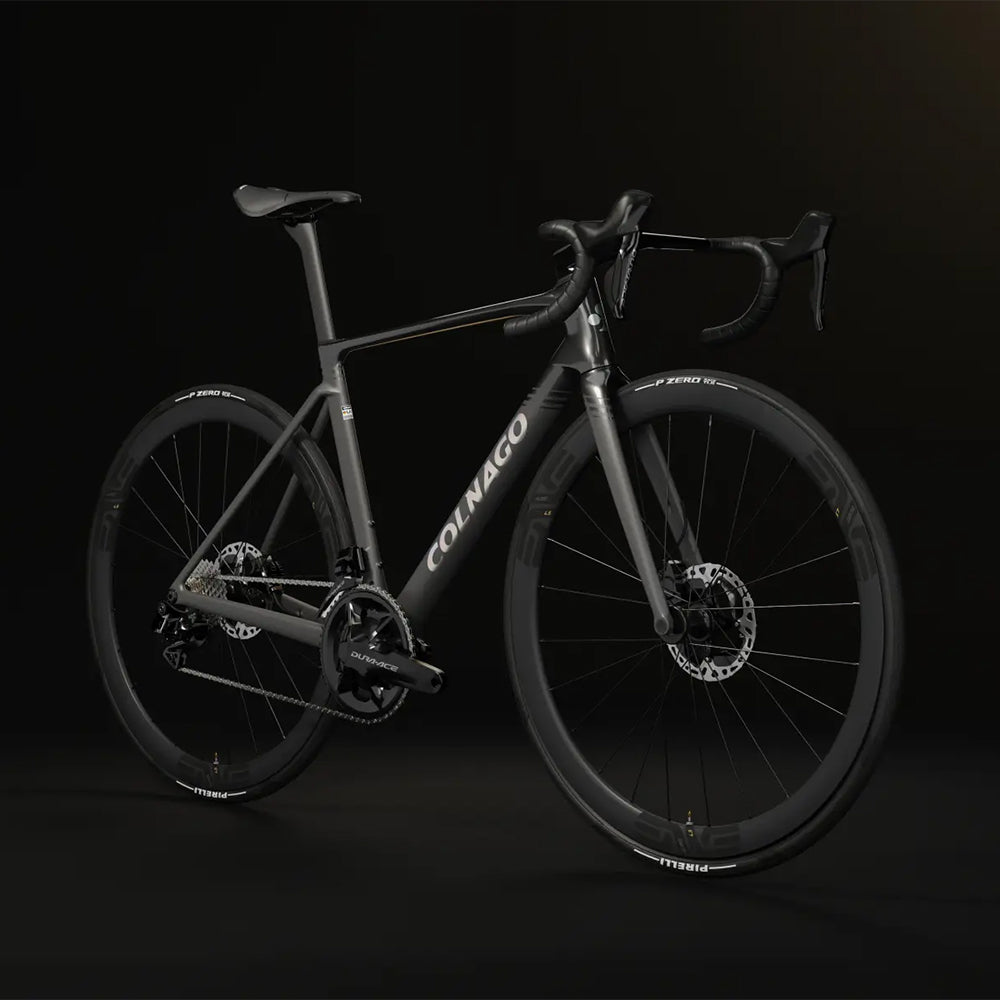

Colnago V5Rs Ultegra Di2 Vision Road Bike

The V5Rs is the latest evolution of the Colnago V Series. Even lighter and more aerodynamic, the V5Rs is the ultimate all-round racing bike, designed to continue dominating the WorldTour with Pogačar and his team-mates.

To obtain a winning bike, several factors must be balanced. It's not just a question of lightness, but also of aerodynamics, responsiveness and handling. The V5Rs is the result of the perfect balance of these elements - all performed with a single objective: to win.

The lightest Colnago ever: The V5Rs is the lightest Colnago ever built, with a ready-to-paint frame weighing in at 685 grams. The frame kit weighs 12.5% less than its predecessor, without compromising rigidity.

Thinner profiles: The experience gained with the Y1Rs has allowed us to refine the design of the V5Rs, which uses thin, high-performance profiles. In the wind tunnel, its aerodynamic performance is close to that of the best aero frames.

Narrow frontal area
The frontal area of the V5Rs measures 250 cm², 13% less than its predecessor. The evolution of the head tube - now narrower - helps reduce air resistance and save watts.

Stiff and responsive
The V5Rs combines lightness and aerodynamics without compromising stiffness and responsiveness, guaranteeing performance suited to the needs of the professional riders of the UAE teams.

More precise steering
The V5Rs has a new fork that is lighter and more precise. The tyre clearance of 32 mm allows the use of wider tyres: more grip, better handling and speed on uneven terrain.

Absolute carbon quality.
Thanks to new lamination techniques, the arrangement of carbon fibres is studied and controlled in every area of the frame. The result is a lightweight, resistant and long-lasting structure.

• Series: V Series

• Model: V5Rs

• Weight: Size 485 unpainted frame: 685g

• Weight limit: This model has an overall maximum limit (combined weight of bicycle, rider and load) of 120 kg

• Frame (material): Colnago V5Rs Monocoque carbon frame

• Fork (material, section notes): Carbon fork for disc brakes, integrated cables, Semi-Circular section.

• Headset: 1"1/8  and 1"1/4 - SLT Treated Bearings

• Seatpost: Standard Option Carbon seatpost, 15mm offset- Sold separately Carbon seatpost, 0 mm offset

• Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)

• Shifting system: Shimano Ultegra R8170 Di2 Disc - 12v

• Front derailleur: Shimano FD-R8150

• Rear derailleur: Shimano Shadow RD-R8150

• Chain: Shimano CN-M8100 12V

• Chainrings: Option 1 (Default): 52-36T/ Option 2: 50-34T

• Cassette: Option 1 (Default): 11-30T/ Option 2: 11-34T

• Bottom bracket: T47 Shimano with Steel Bearings

• Crank length: Option 1 (Standard for sizes 420 - 485) 170 mm

• Option 2 (Standard for sizes 510 - 530) 172.5 mm

• Option 3 (Standard for sizes 550 - 570) 175 mm

• Brakes: Shimano Ultegra R8170, 160 mm Front / 140 mm Rear, RT-CL900 rotors

• Disc size: 160 mm Front/ 140 mm Rear - RT-CL800 rotors

• Brake lever: Shimano ULTEGRA ST-R8170

• Brake caliper: Standard Flat Mount

• Wheels: Option 1: Fulcrum Racing Wind 420 DB/ Option 2: Fulcrum Racing 600 DB

• Material: Fulcrum Wind 420 DB Carbon (FF80)/ Fulcrum Racing 600 DB: Alluminium

• Rim height: Fulcrum Wind 420 DB 42 mm

• Fulcrum Racing 600 DB: 24 mm

• Internal channel width: Fulcrum Wind 420 DB 23 mm

• Fulcrum Racing 600 DB: 20 mm

• Hubs: Fulcrum Wind 420 DB- Aluminum, Low flanges. Sealed bearing, Adjustable

• Fulcrum Racing 600 DB: Aluminum, Aluminum flanges Sealed cartridge bearings

• Through axles: Front: HH12-100 - Rear: HH12-142

• Tyres: Fulcrum Wind 420 DB- Pirelli PZero Race 700x28/ Fulcrum Racing 600 DB- Pirelli P7 Sport 700x28

• Saddle: Prologo Scratch M5 Tirox/ Selle Italia Novus Boost EVO TI316 Superflow (subject to stock availability)

• Handlebar: Colnago CC.01 integrated Cockpit - regular geometry.

• Stem: CC01 integrated cockpit

• Handlebar Tape: Colnago Grip Black or Colnago WT23 (for WT24 color scheme only)

• Bottle cage: Colnago Matt Black (1x)

• Other accessories: Cockpit integrated multitool.
