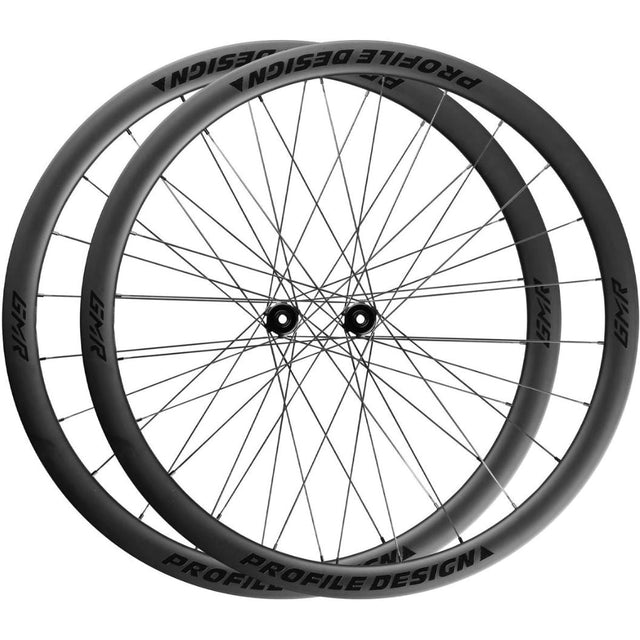

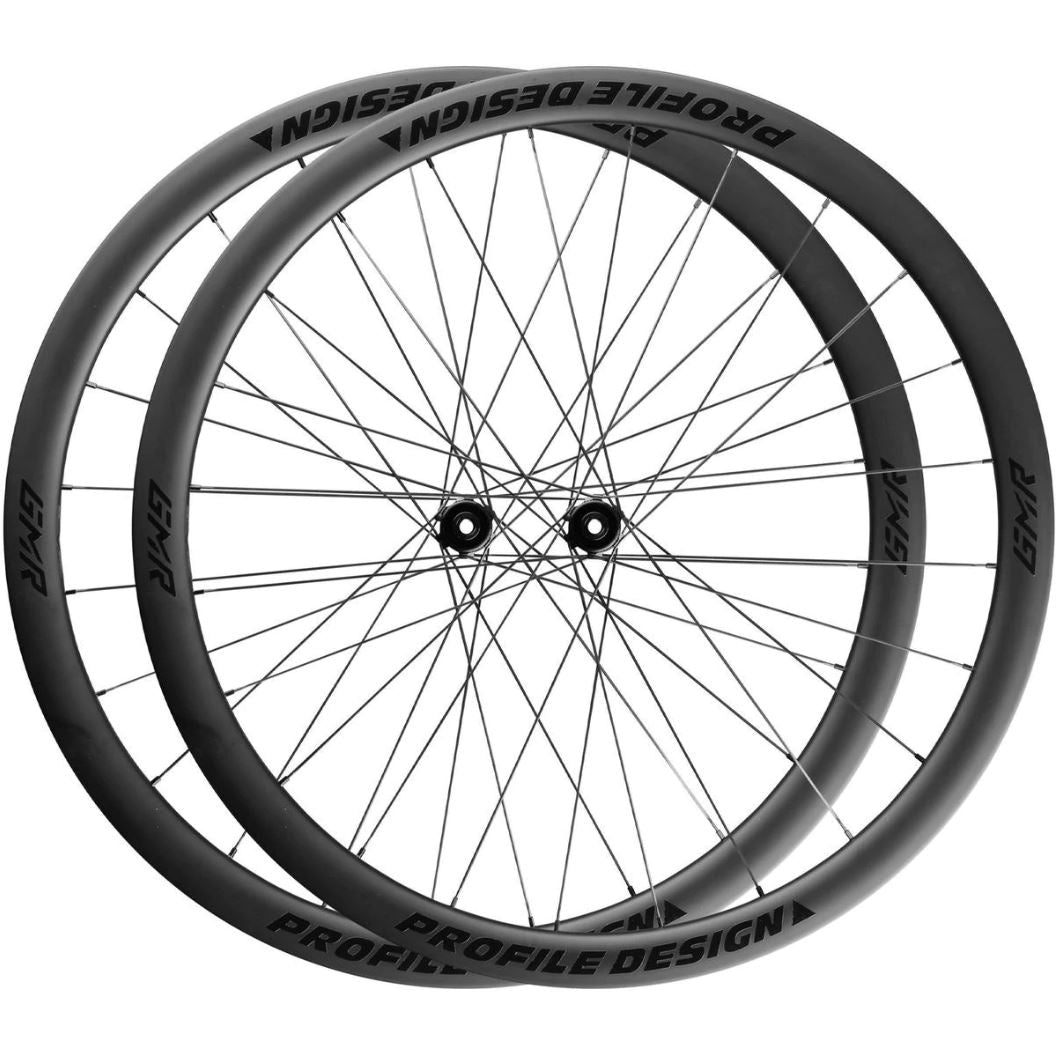

The GMR 38mm rim depth makes for a great all rounder. If you’re looking for a wheelset for every day use, particularly if your riding conditions are often windy, this is the one. The 38mm height offers a great aero boost over a standard alloy wheelset but doesn’t add so much side area that the wind can push you around.
Of course, the shallower rim is also lighter, so it’s well suited to hilly terrain.
The GMR 38 Tubeless Dis-Brake is optimized for wide tires with lower tire pressure to meet the performance needs of modern riders in search of low rolling resistance and high compliance. With an internal width of 19mm, the wheelset is well suited for rough roads and tests fastest with a 28mm tire in the majority of wind angles.
SPECIFICATIONS
38mm rim depth for a balance between aerodynamics and control.
Centrelock disc rotor mount
Extra stiff hub shell design.
Proprietary precision machined alloy hubs.
Sapim CX-Ray spokes with Sapim Polyax double square nipples.
Sealed cartridge bearings.
Hand-built assembly.
Clincher, Tubeless Ready.
Disc brake.
Read more
- TECH SPEC
- WHATS INCLUDED
Front Wheel
- Weight: 680g
- Diameter: 700c
- Hub: 6061-T6 Alloy
- Bearing Size: 6901
- Hub Compatibility: 12 x 100mm (Through-Axle)
- Rotor Compatibility: Center Lock
- Rim Depth: 38mm
- Rim Width (Outside): 26mm
- Rim Width (Inside): 19mm
- Color: UD Carbon
- Spokes: Sapim® CX-Ray Aero Spoke
- Spoke Shape: Straight Pull, Bladed
- Spoke Count: 20
- Spoke Pattern Non-Drive: 2 cross
- Spoke Pattern Drive: 2 cross
- Spoke Length Non Drive: 283mm
- Spoke Length Drive 282mm
- Nipples: 7075 Alloy Polyax Double Square
- External Nipples: Yes
- Tire Compatibility: Tubles Ready (TLR) / Clincher
- Max Tire Pressure: 70-100psi (also refer to Tire sidewall)
- Tire Width: 700c x 28-38mm
REAR WHEEL
- Weight: 920g
- Diameter: 700c
- Hub: 6061-T6 Alloy
- Bearing Size: 6802
- Hub Compatibility: 12 x 142mm (Through-Axle)
- Rotor Compatibility: Center Lock
- Cassette Compatibility: Shimano/SRAM: 9/10sp, 11sp
- Rim Depth: 38mm
- Rim Width (Outside): 26mm
- Rim Width (Inside): 19mm
- Color: UD Carbon
- Spokes: Sapim® CX-Ray Aero Spoke
- Spoke Shape: Straight Pull, Bladed
- Spoke Count: 24
- Spoke Pattern Non-Drive: 3 cross
- Spoke Pattern Drive: 3 cross
- Spoke Length Non Drive: 288mm
- Spoke Length Drive: 287mm
- Nipples: 7075 Alloy Polyax Double Square
- External Nipples: Yes
- 11-Speed Compatible Hub: Yes
- 12-Speed Compatible Hub: Yes w/ (Aftermarket XDR Freehub purchase)
- Tire Compatibility: Tubles Ready (TLR) / Clincher
- Max Tire Pressure: 70-100psi (also refer to Tire sidewall)
- Tire Width: 700c x 28-38mm
WHEELSET
- Set Weight: 1600g
- Max Recommended Rider Weight (lbs): 220lbs
- Tubeless valves Stems.
- Tubeless Rim Strip(s)
Front Wheel
- Weight: 680g
- Diameter: 700c
- Hub: 6061-T6 Alloy
- Bearing Size: 6901
- Hub Compatibility: 12 x 100mm (Through-Axle)
- Rotor Compatibility: Center Lock
- Rim Depth: 38mm
- Rim Width (Outside): 26mm
- Rim Width (Inside): 19mm
- Color: UD Carbon
- Spokes: Sapim® CX-Ray Aero Spoke
- Spoke Shape: Straight Pull, Bladed
- Spoke Count: 20
- Spoke Pattern Non-Drive: 2 cross
- Spoke Pattern Drive: 2 cross
- Spoke Length Non Drive: 283mm
- Spoke Length Drive 282mm
- Nipples: 7075 Alloy Polyax Double Square
- External Nipples: Yes
- Tire Compatibility: Tubles Ready (TLR) / Clincher
- Max Tire Pressure: 70-100psi (also refer to Tire sidewall)
- Tire Width: 700c x 28-38mm
REAR WHEEL
- Weight: 920g
- Diameter: 700c
- Hub: 6061-T6 Alloy
- Bearing Size: 6802
- Hub Compatibility: 12 x 142mm (Through-Axle)
- Rotor Compatibility: Center Lock
- Cassette Compatibility: Shimano/SRAM: 9/10sp, 11sp
- Rim Depth: 38mm
- Rim Width (Outside): 26mm
- Rim Width (Inside): 19mm
- Color: UD Carbon
- Spokes: Sapim® CX-Ray Aero Spoke
- Spoke Shape: Straight Pull, Bladed
- Spoke Count: 24
- Spoke Pattern Non-Drive: 3 cross
- Spoke Pattern Drive: 3 cross
- Spoke Length Non Drive: 288mm
- Spoke Length Drive: 287mm
- Nipples: 7075 Alloy Polyax Double Square
- External Nipples: Yes
- 11-Speed Compatible Hub: Yes
- 12-Speed Compatible Hub: Yes w/ (Aftermarket XDR Freehub purchase)
- Tire Compatibility: Tubles Ready (TLR) / Clincher
- Max Tire Pressure: 70-100psi (also refer to Tire sidewall)
- Tire Width: 700c x 28-38mm
WHEELSET
- Set Weight: 1600g
- Max Recommended Rider Weight (lbs): 220lbs
- Tubeless valves Stems.
- Tubeless Rim Strip(s)
