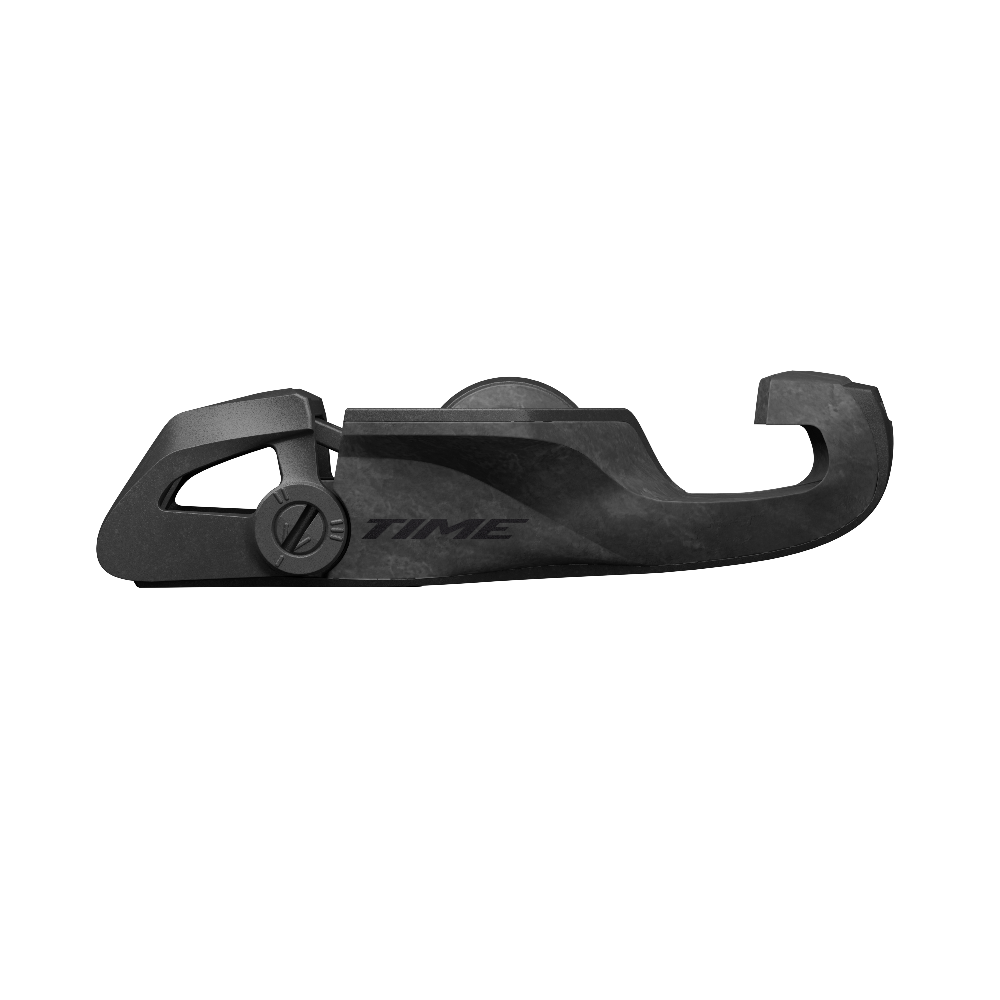

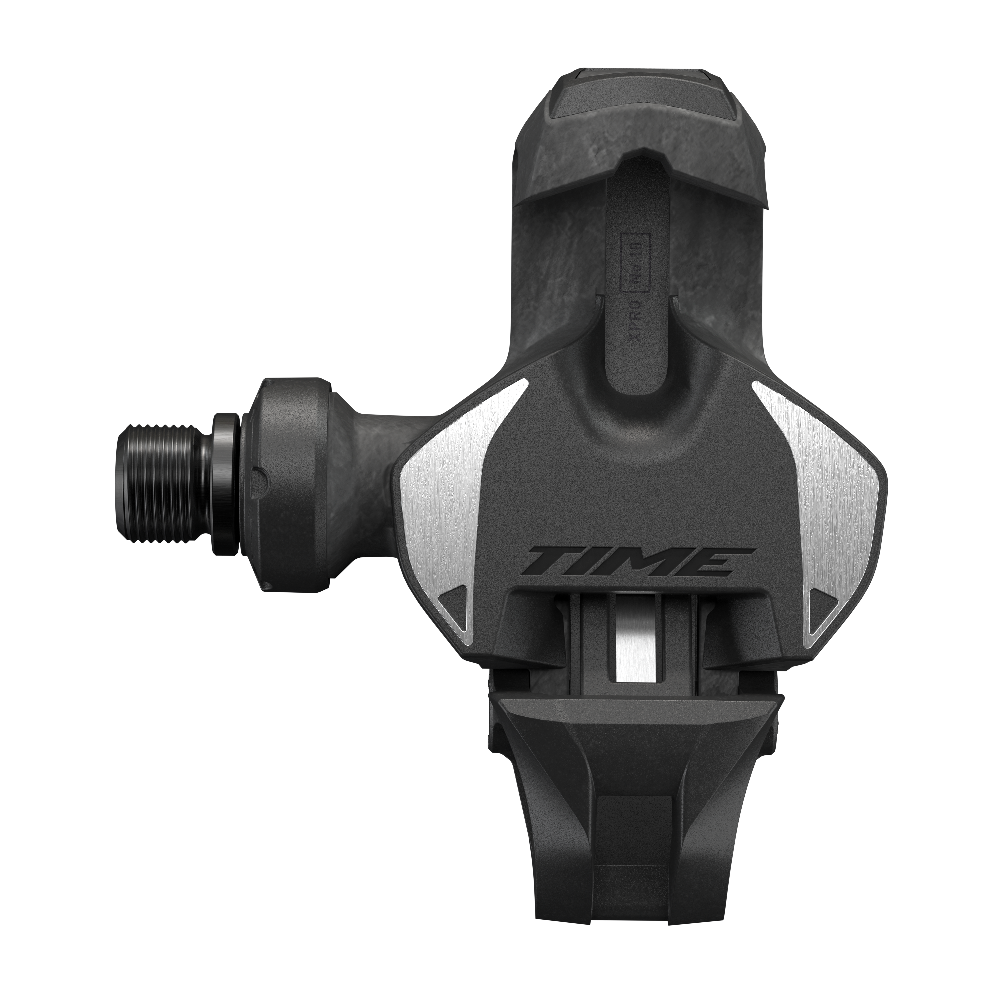

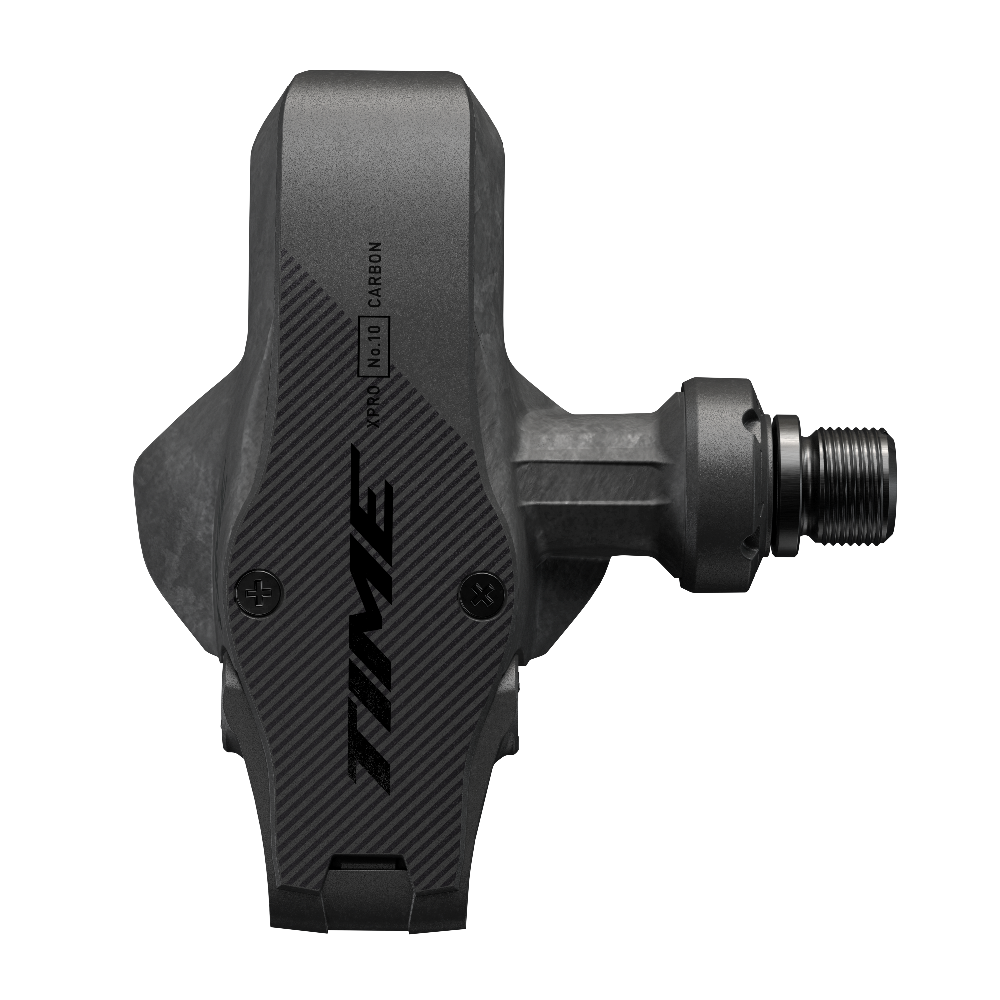

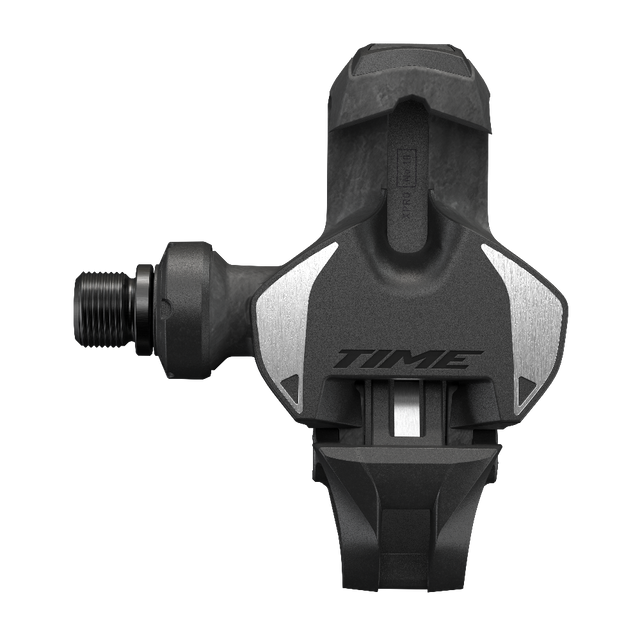

The XPRO 10 is TIME’s top blend of performance and value in a light weight and ergonomic race-ready pedal. The pedal maximizes power transfer and stability thanks to its large 725mm-squared surface area. The pedal’s bottom fairing helps improve aerodynamics and protect the carbon blade. TIME's patented pre-opened ICLIC system allows for fast and easy cleat engagement. TIME pedals are designed to eliminate pedal-induced discomfort. You can precisely manage tightness of the clamping mechanism with three settings of the tension adjustment on the carbon blade. TIME XPRO pedals offer three options for Q-factor to provide riders with more ergonomic options. The pedal’s low stack height provides good clearance. The XPRO 10 uses a hollow stainless-steel axle, making it strong but light.
- High performance, light, ergonomic at the right price.
- Fast and easy cleat engagement.
- Three tensions settings of carbon blade.
- Low stack height for good clearance.
- Cleats included with all pedal purchases.
Axle component | Hollow steel axle |
---|---|
Bearings | Steel |
Body component | Carbon-filled |
Cleats | ICLIC |
Pedal stack height | 14.7mm |
Angular freedom | +5° to -5° with free cleats, 0° with fixed cleats |
Contact surface area | 725 mm2 |
Distance pedal spindle / crank arm | 53mm, 57mm |
Lateral freedom | +1.25 mm or -1.25 mm |
Release angle | 16° with free cleats |
Tension | 3 different settings of carbon blade |
Threading | 9/16 - 20 inch |
Weight (per pedal) | 113g |
Color (Pedal) | Black |
Accessories | ICLIC free foot cleats |
Intended use | Road |
Power Measurement | Not Compatible |
