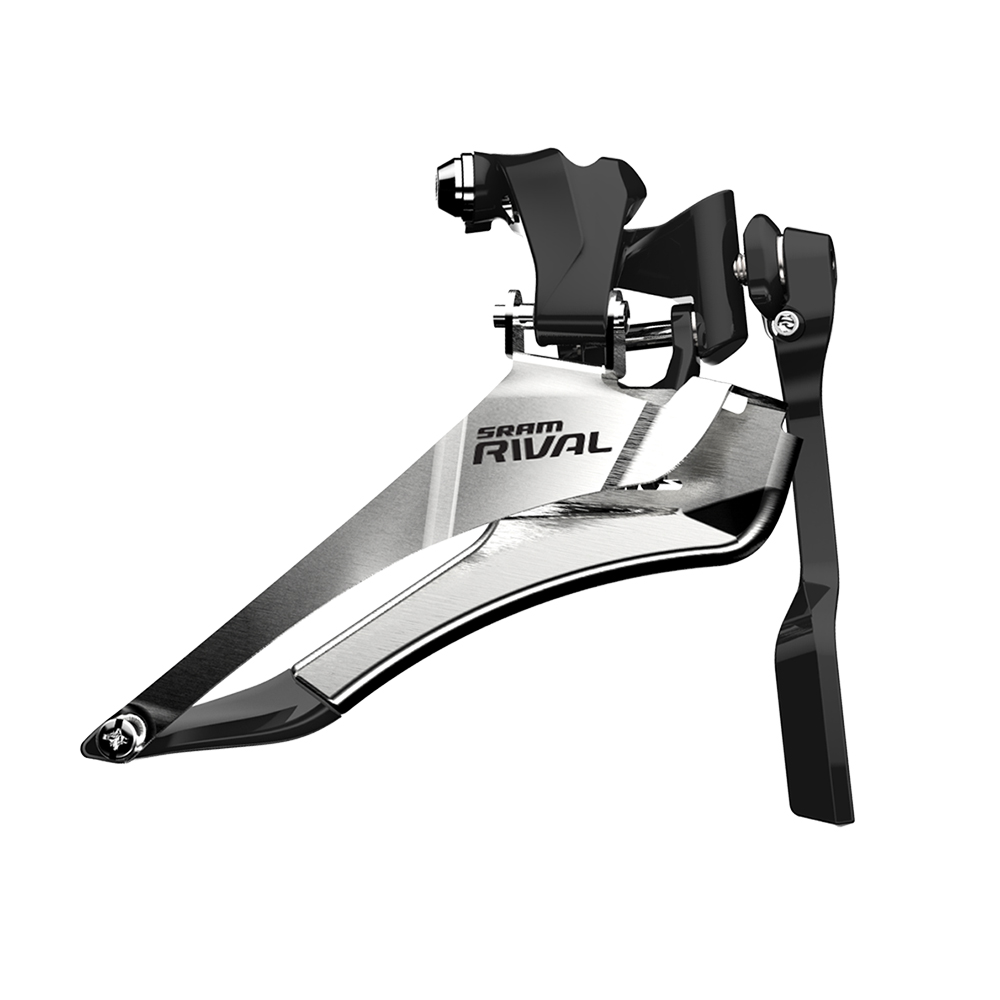

Sram Rival 22 Yaw Front Derailleur

OVERVIEW

The SRAM Rival 22 groupset delivers immense performance across a broad variety of bikes and disciplines. Paved or not. Cyclocross or triathlon. Road racing or uncharted journeys. Rival 22 provides the tools and technology to meet each challenge and expand your limits.

FEATURES

• SRAM Road 11-speed Yaw™ compatible

• Braze-on and clamp styles are available

• Yaw™ cage rotates in line with the chain, improving the shifting speed and precision while eliminating the need for shifter trim.

• Integrated chain spotter protects your frame and installs and adjusts independently of the derailleur itself.

• Precision alignment markings on the cage.
• Model: FD-RIV-B1

SPECIFICATIONS

Speed (FD)	11
Compat - Chainring (FD)	46/34T, 46/36T, 50/34T, 52/36T, 53/39T, 55/42T
Mounting type (FD)	Braze-on
Cable routing	n/a
Color (FD)	Black
Chainstay Angle	n/a
Clamp size (FD)	n/a
Drivetrain Configuration	2x
Technology (FD)	Road-Yaw
Chainline	45.0mm
Chain Technology	11 Speed Powerchain
Weight Based On	w/chainspotter
