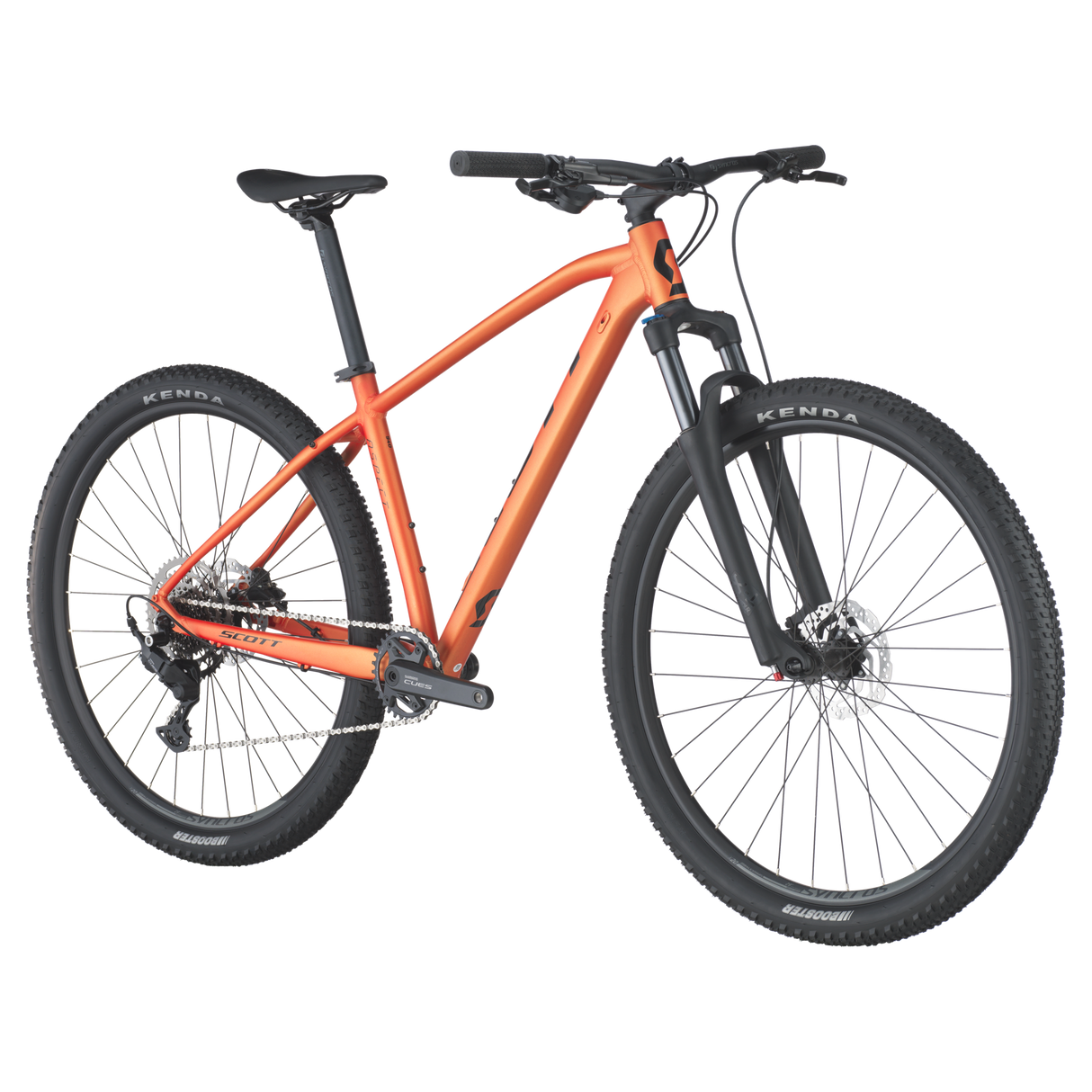

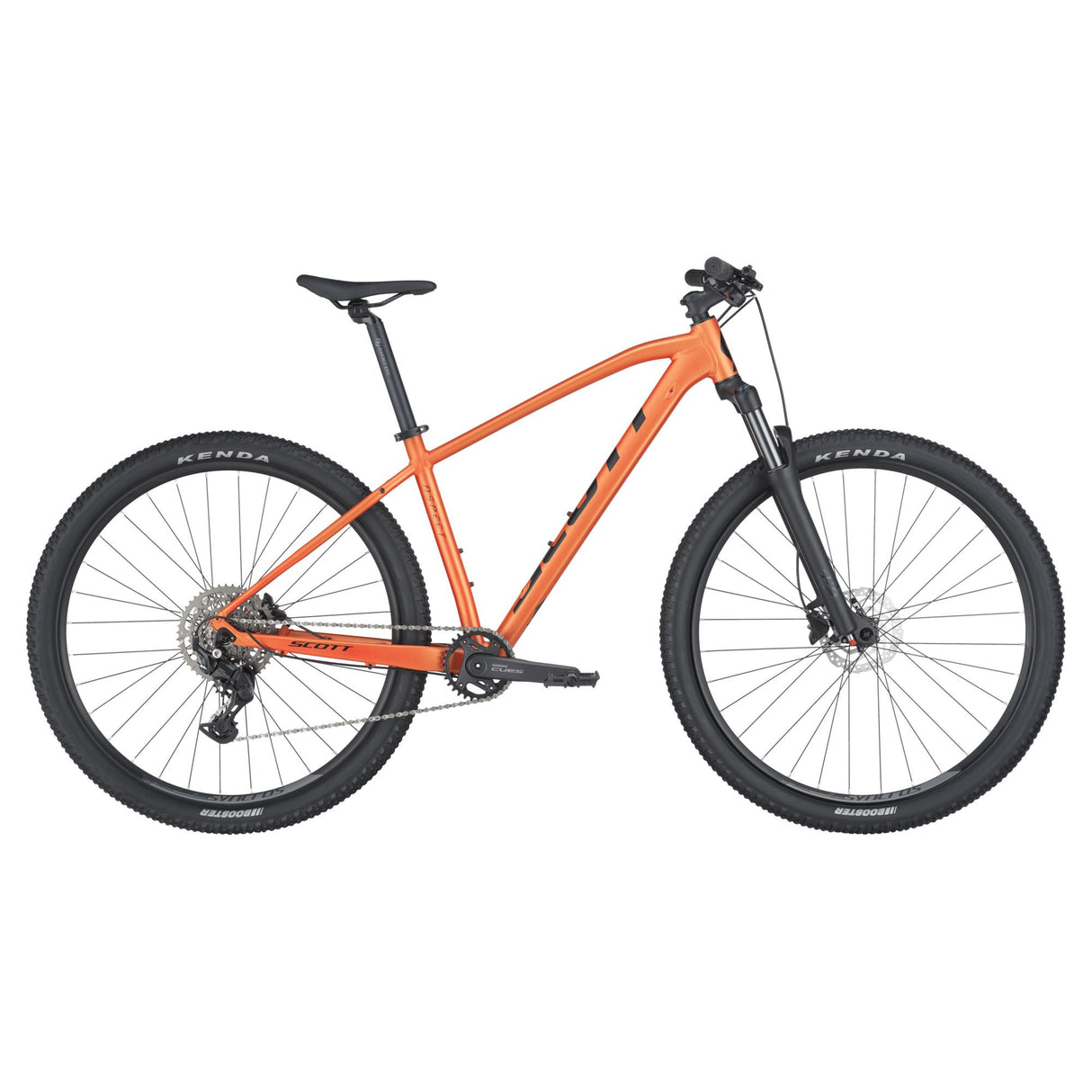

SCOTT Aspect 940 Cues 9 SPD Mountain Bike

FEATURES

• Aspect 700/900 Alloy Frame

• Suntour XCR32/X1-LO-R 100mm Fork

• Shimano CUES 9 Speed

• Shimano Brakes

• Kenda Booster

SPECIFICATIONS

• Frame: Aspect 900-700 series / Alloy 6061 Custom Butted Tubing BSA73 / Internal Cable Routing / replaceable hanger

• Fork: Suntour XCR32/X1-LO-R Hyd. Lockout / Reb. Adj. 100mm travel

• Rear Derailleur: Shimano CUES RD-U4000-GS Shadow Type / 9 Speed

• Shifters: Shimano CUES SL-U4000-9 / 2 way release
• Crankset: Shimano CUES FC-U6000-1 32T

• BB-Set: Shimano BB-BBMT500 Hollowtech II / threaded

• Chain: KMC X11

• Cassette: Shimano CUES CS-LG400-9 / 11-46T

• Brakes: Shimano MT200 / Hydr. Disc Brakes

• Rotor: Shimano SM-RT10 CL rotor / F&R 160mm

• Handlebar: Syncros 3.0 / 720mm black / 31.8mm / 12mm rise / 9° BS Syncros Pro Grip

• H'stem: Syncros 3.0 / 7° / Black

• Seatpost: Syncros 3.0 31.6mm / 350mm / Black

• Seat: Syncros 3.0

• Headset: Syncros OE Press Fit / 1 1/8" OD 50mm / ID 44mm

• Hub (Front): Shimano HB TX505

• Hub (Rear): Shimano FH-TX5058

• Spokes: 14 G / stainless / black

• Rims: Syncros X-20 Disc 32H / black

• Front Tire: Kenda Booster 2.4" / 30TPI

• Rear Tire: Kenda Booster 2.4" / 30TPI

• Pedals: VP VP-536

• Approx. weight in KG: 14.15 (with tubes / wo Pedals)

• Approx. weight in LBS: 31.2 (with tubes / wo Pedals)

• Max. System Weight: 128kg, The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

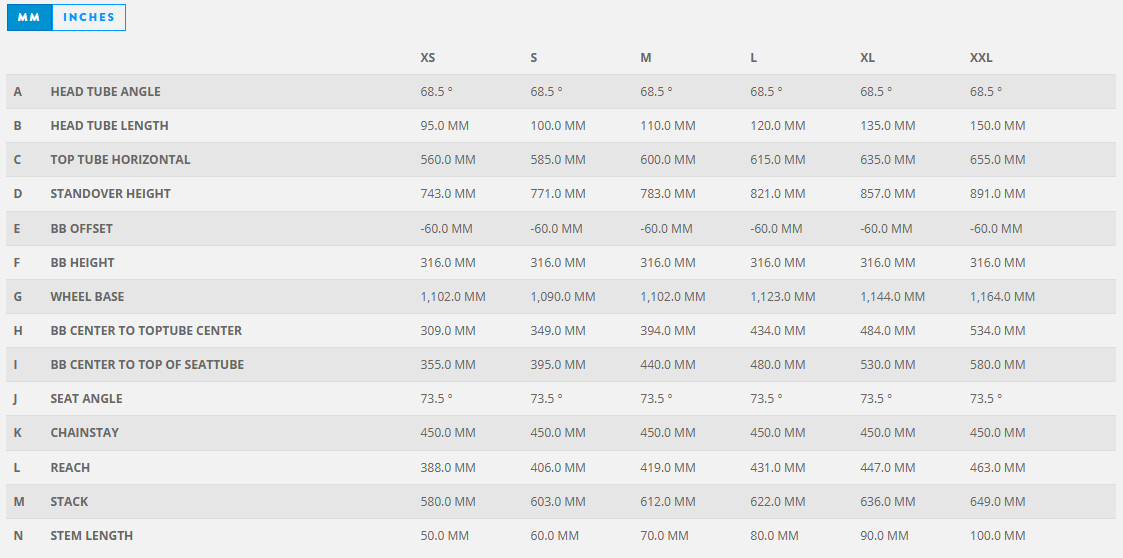

GEOMETRY
