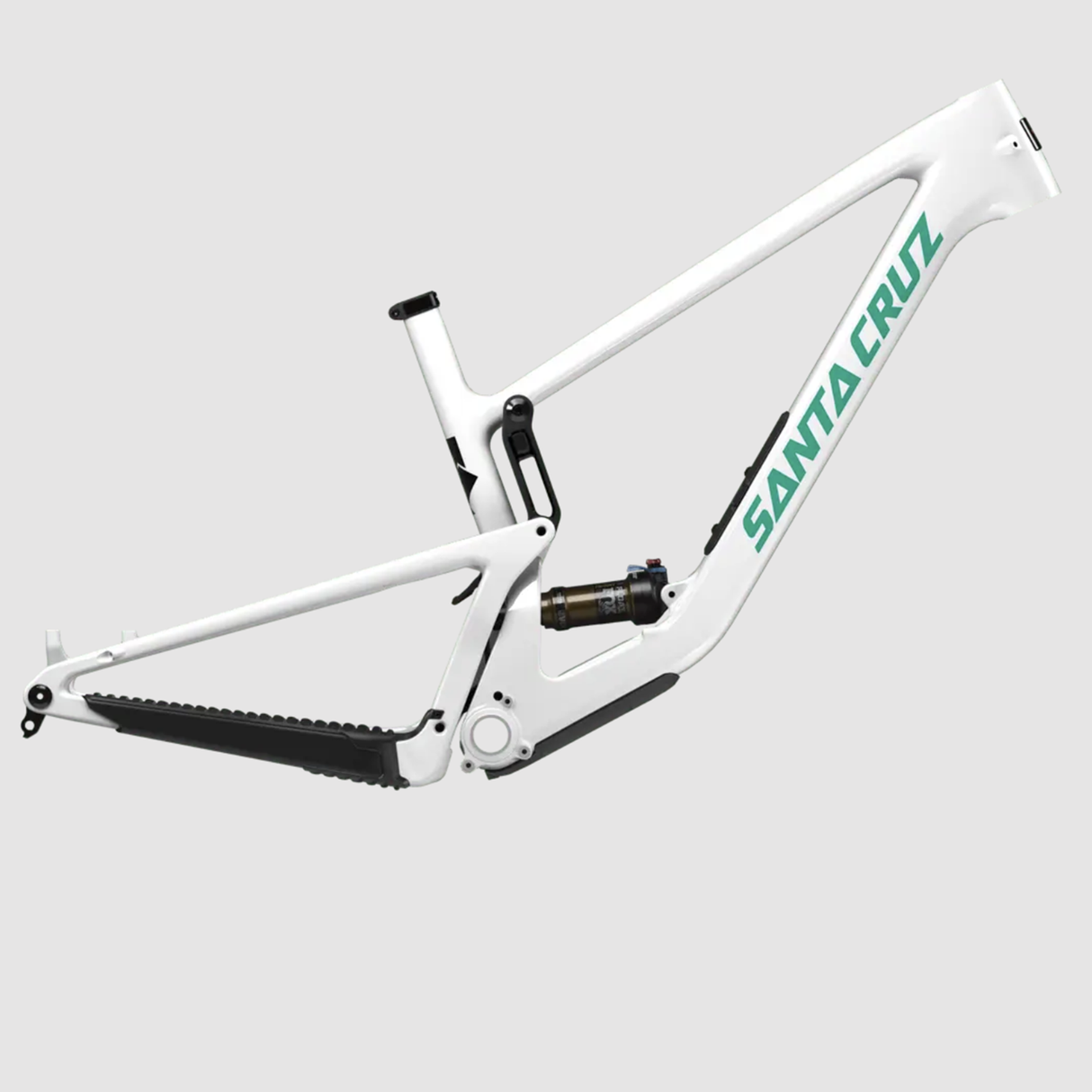

Santa Cruz Tallboy 5 CC 29 - 24 FAC Mountain Bike Frameset
The Tallboy has earned a loyal following amongst those who seek a go-to bike that will hold up to the relentless hammering... Read More
Santa Cruz Tallboy 5 CC 29 - 24 FAC Mountain Bike Frameset - S is backordered and will ship as soon as it is back in stock.
Santa Cruz Tallboy 5 CC 29 - 24 FAC Mountain Bike Frameset
FEATURES
FEATURES
- We mimicked our longer travel geometry to create a bike with a 65.5-degree head-angle, generous front center, and short offset fork.
- 120mm of lower link-driven VPP suspension is designed to handle tough climbs and yet still take on high-speed descending.
- The reduced rolling resistance and larger footprint of 29-inch wheels inspires confidence and helps riders cover ground efficiently.
- Proportional Geometry: seat tube angle steepens and rear center grows as frame size increases.
- Glovebox: Stows all your essentials so you can ditch the pack on your lunch laps or always be ready with the fix.
SPECIFICATIONS
SPECIFICATIONS
| Suspension System | VPP |
| Headset/Headtube | Integrated (IS41/52) |
| Seat Post | 31.6mm |
| Seat Clamp | 36.4mm |
| Eye to Eye length | 190mm |
| Stroke | 45mm |
| Fork Compatibility | 130mm |
| Fork Offset | 44mm |
| Brake Mount | PM 180mm |
| BB Shell | 73mm Threaded |
| Max Tire Size | 2.5" |
| Max Chainring Size | 36t |
| Water Bottle Mounts | 1 |
| Shock Mounting Bushing Front | 30x8 |
| Shock Mounting Bushing Rear | 30x8 |
FRAME SIZING
FRAME SIZING
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
The Tallboy is available in sizes extra small - extra extra large (XS-XXL).
