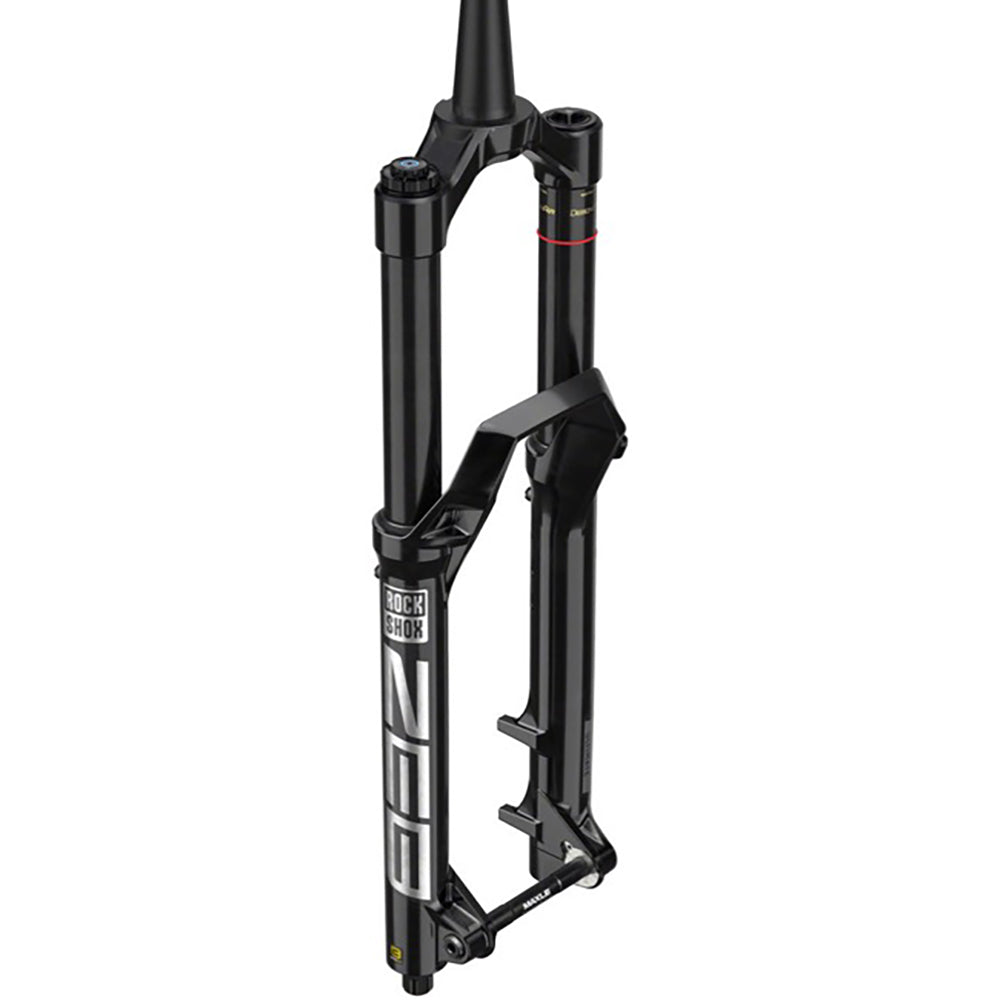

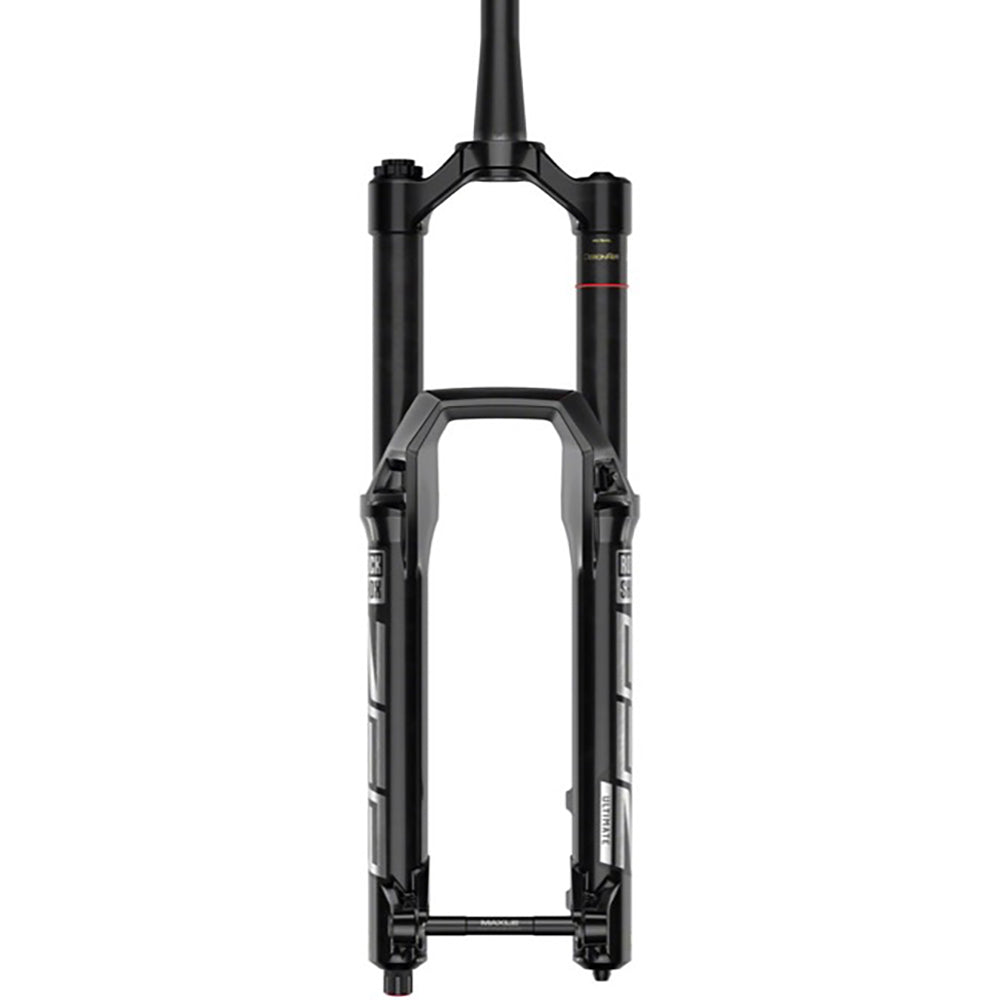

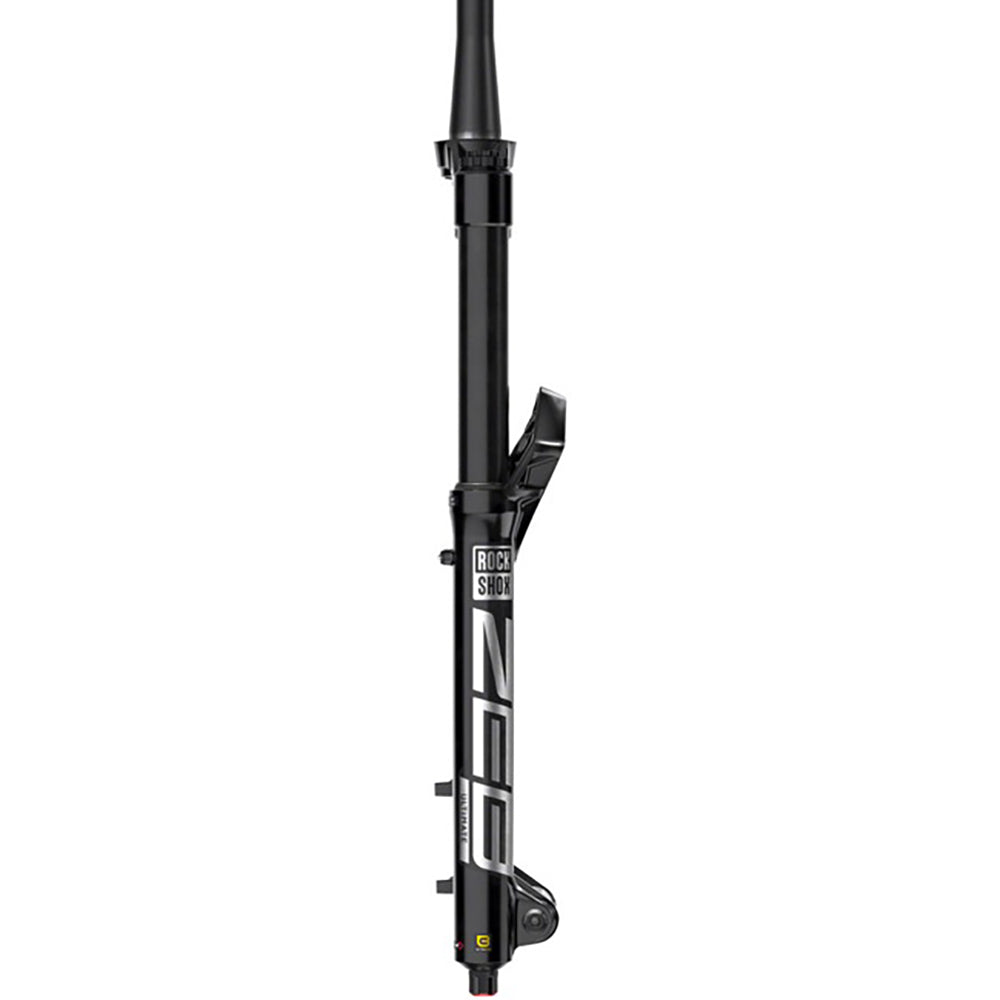

RockShox ZEB Ultimate 29inch 160mm Travel Fork

FEATURES

• Charger 3 RC2 damping with fully independent adjustment of low and high speed compression through IFP design enables precise tuning
• ButterCups for smooth riding absorb 20% of lighter, high-frequency vibrations and thus prevent fatigue
• DebonAir+ air spring with more volume than DebonAir absorbs smaller bumps even better and at the same time stands higher in the suspension travel
• reduced friction due to longer Ultimate bushings than the previous model with higher overlap

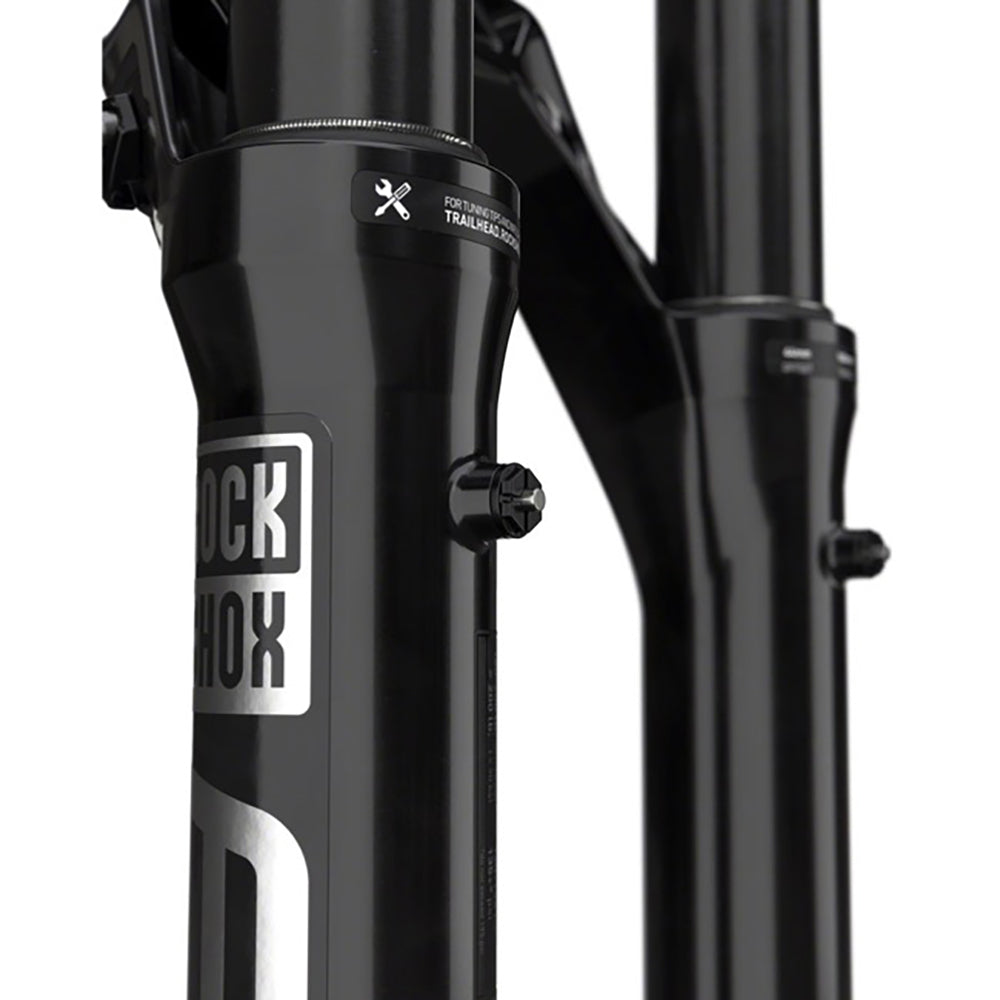

• pressure relief valves release excess air pressure in the immersion tubes at the push of a button, adjustment of the air pressure to the environment
• 38 mm standpipe diameter for high rigidity
• low-friction SKF wiper seals for high durability and good suspension behaviour
• with Maxima Plush Dynamic Suspension Lube for low friction and good durability
• crown adjust
• torque cap dropouts for increased stiffness
• with screw-on torque cap adapters for simplified use with standard end caps
• also suitable for e-bikes
• fork crown outer diameter: 59 mm



SPECIFICATIONS

• Wheel Size: 29"

• Positive Spring: Air

• Brake Type: Post Mount 200

• Crown Race: 40

• External Adjustments: High Speed Compression Damping, Low Speed Compression Damping, Rebound Damping

• Negative Spring: Air

• Stanchion Diameter: 38

• Steerer Type: Tapered

• Maximum Tire Width: 81

• Offset: 44

• Front Axle: 15 x 110mm "Boost" Thru Axle

• S.H.I.S. Stem Clamp Diameter: 28.6

• Travel: choose; 160mm

• Axle to Crown Length: 576mm (160mm travel)

• Designed for ebike: Yes

• Lockout Switch: Crown

• Color: choose; Slab Grey or Ultimate High Gloss Black
