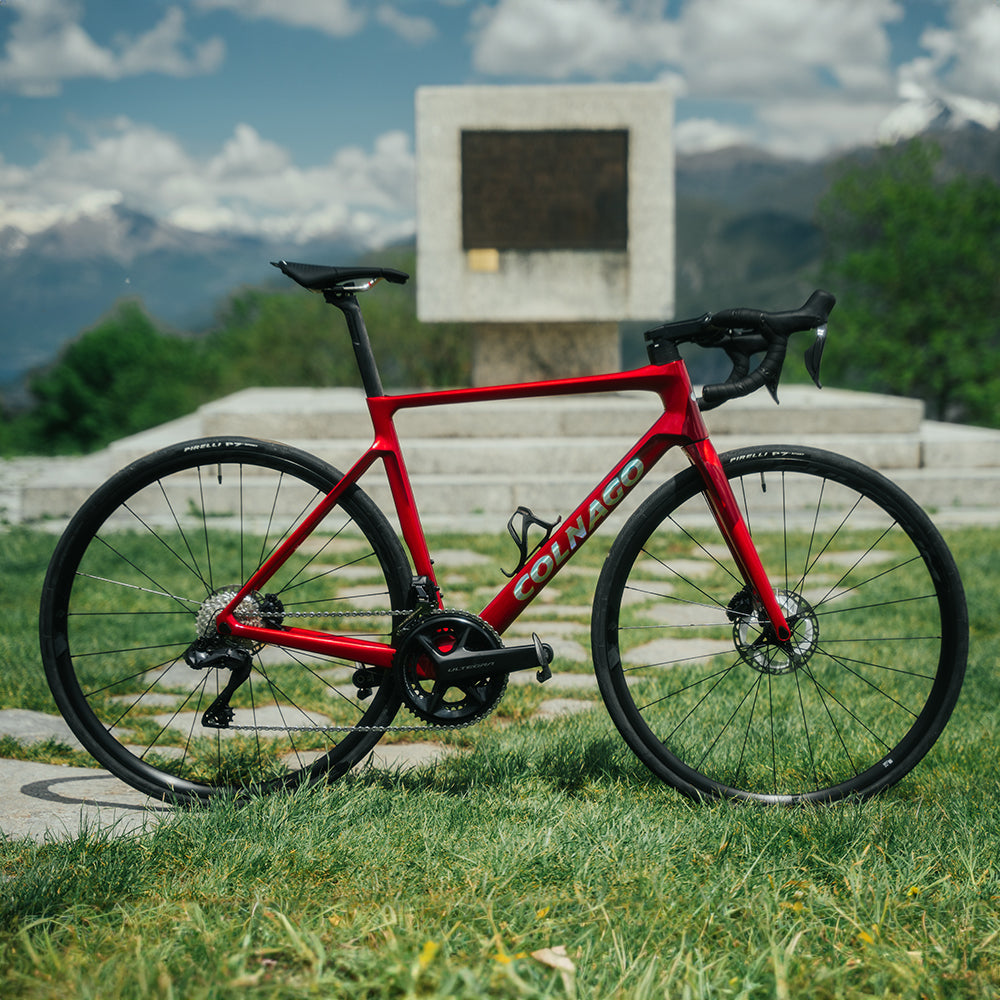

LIGHTNESS AND RESPONSIVENESS, WITH COLNAGO CHARM

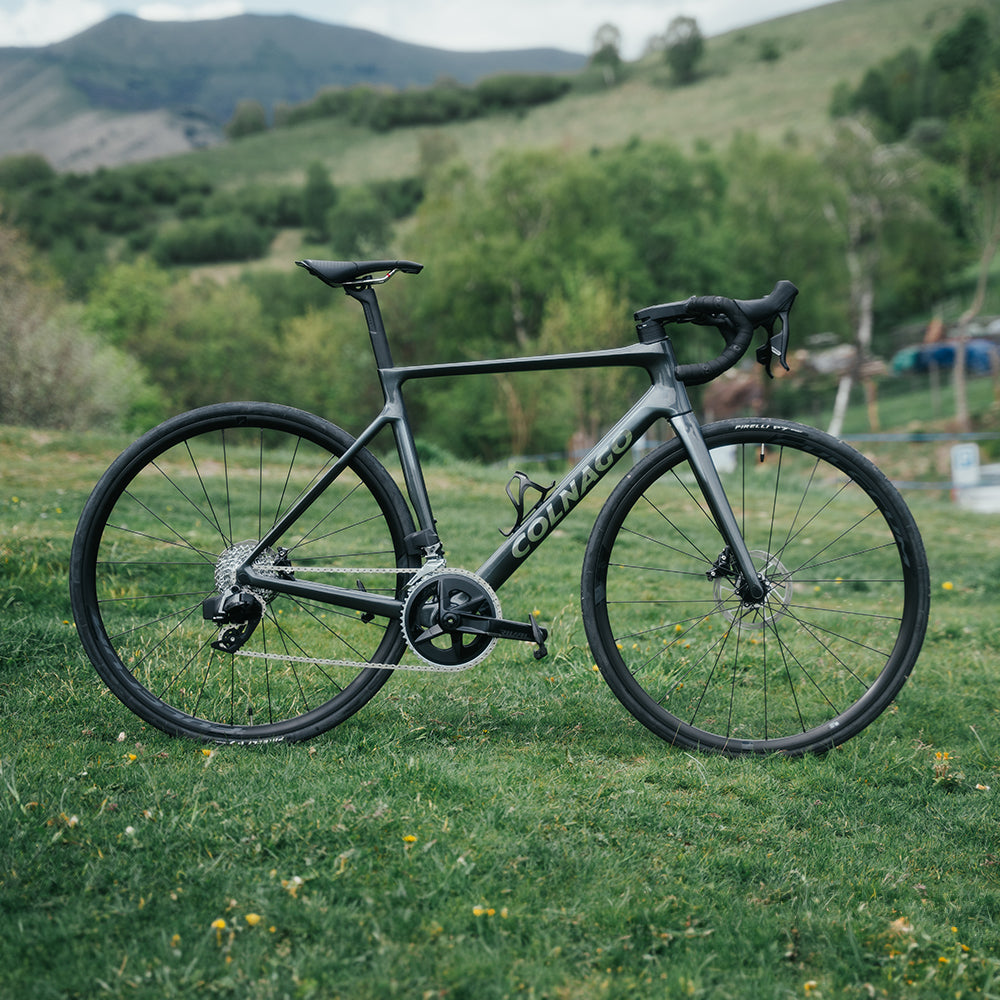

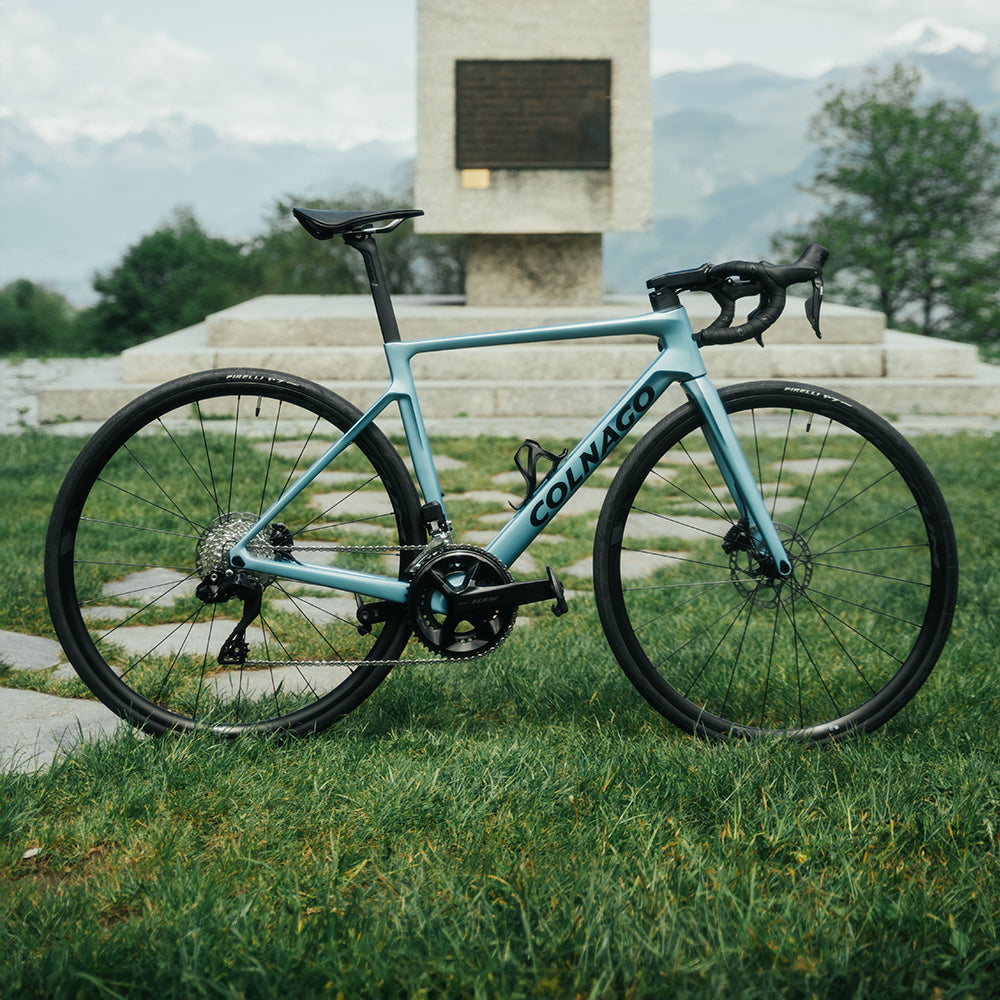

The Colnago V4 is an all-round bicycle, a bike that is extremely fun to ride and has a clean and refined design. The frame is a monocoque which is stiff, solid, reactive, and which enjoys the same carbon layup R&D and aerodynamic studies that led to the realization of the V4Rs.
A RACING SOUL: Shorter head tube and longer fork than previous models for enhanced rideability and responsiveness. These features - combined with quality carbon - make this bike perfectly suited to both climbs and flatter terrain.

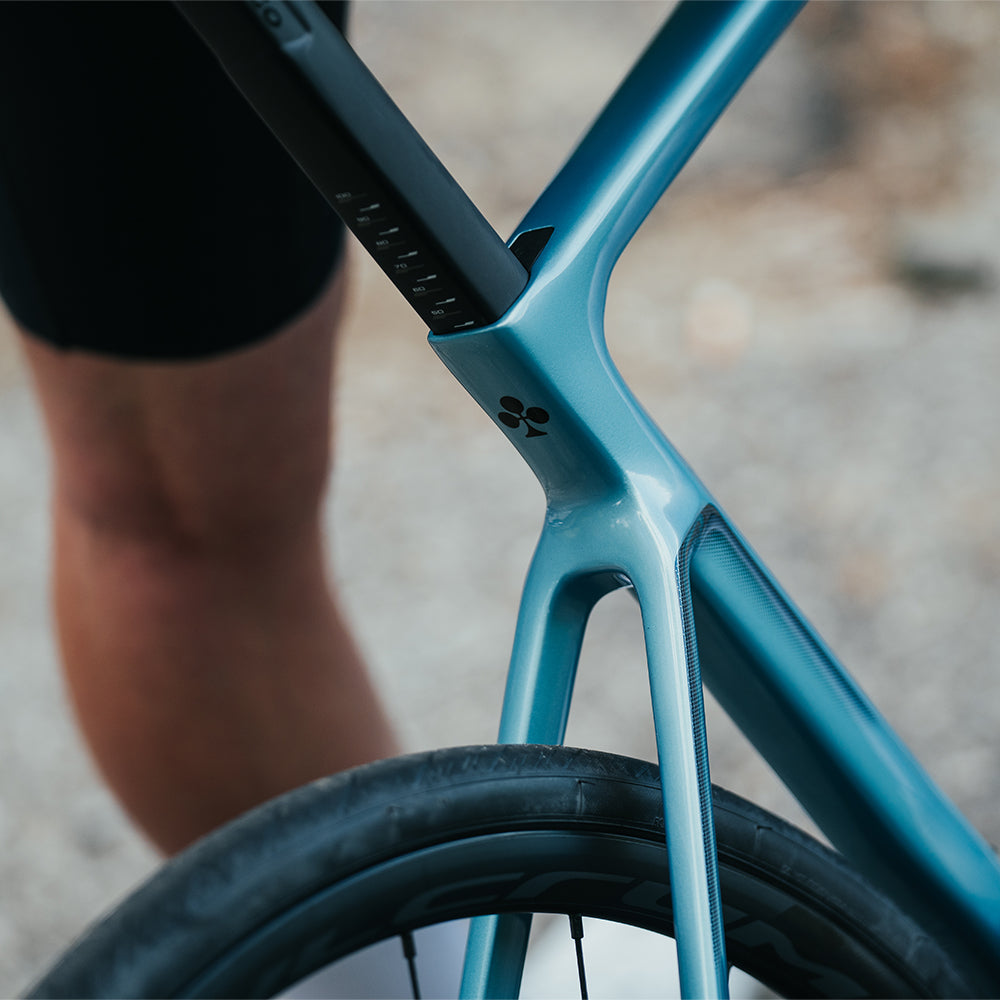

TYRES UPTO 30 mm: The fork is designed specifically for disc brakes and has concave chain stays to accommodate tyres up to 30mm (nominal).

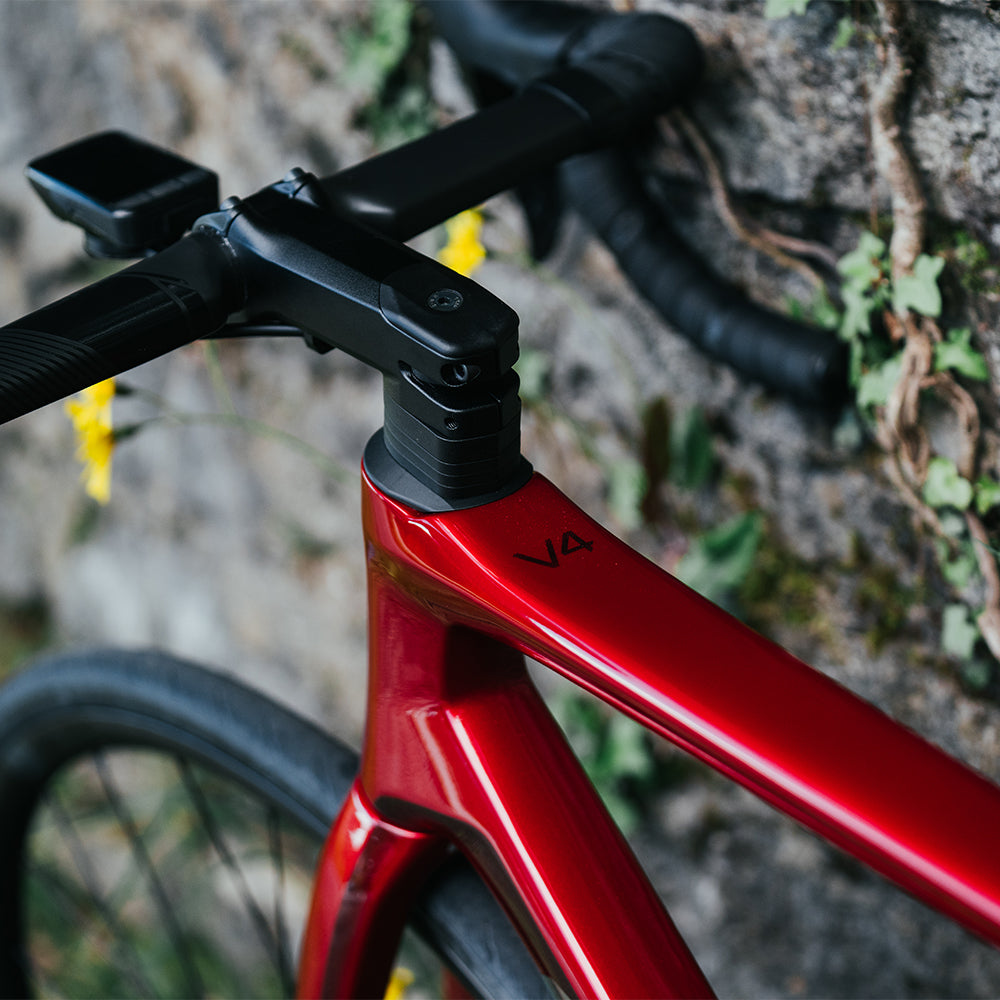

INTEGRATED CABLES: The cables run inside the Colnago SR10 stem and then through the fork stem. This makes for an extremely sleek and technically more aerodynamic frame.
FRAME KIT
- Frame (material): Monocoque carbon.
- Fork (material, section notes): Carbon fork for disc brakes, integrated cables, 1"1/8 section
- Headset: ACROS ss 1"1/4 35x47x7 bearing
- Seatpost: Carbon seatpost, 0.15 offset, "D-Shape" section
- Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)

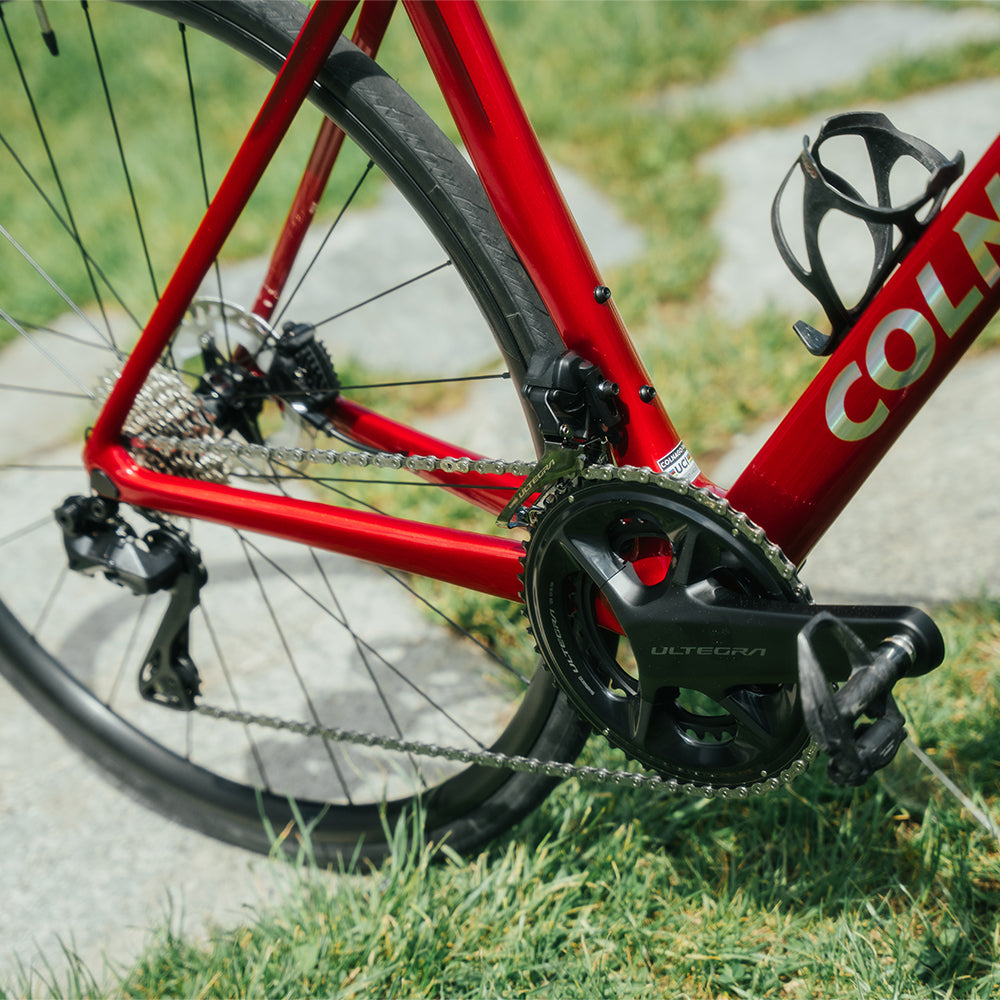

DRIVETRAIN
- Shifting system: Shimano Ultegra R8170 Di2 Disc
- Front derailleur: Shimano Ultegra: Shimano FD-R8150
- Rear derailleur: Shimano Ultegra: Shimano Shadow RD-R8150
- Chain: Shimano Ultegra: Shimano CN-M8100 12V
- Crankset: Shimano Ultegra: 52-36T
- Cassette: Shimano Ultegra: 11-30 12v
- Bottom bracket: T47
- Crank length
- Sizes 420 - 485 170 mm
- Sizes 510 - 530 172.5 mm
- Sizes 550 - 570 175 mm
BRAKES
- Brakes: Shimano Ultegra R8170, 160 mm Front / 140 mm Rear, RT-CL800 rotors
- Disc size: 160 mm Front/ 140 mm Rear
- Brake lever: Shimano ULTEGRA ST-R8170
- Brake caliper: Shimano ULTEGRA BR-R8170
WHEELS
- Wheels: Fulcrum Racing 600 DB - Tubeless ready
- Material: Rims: aluminium, Spokes: stainless steel.
- Rim height: Front: 24 mm; Rear: 24 mm
- Internal channel width: 20 mm
- Hubs: Aluminium, Sealed Cartridge Bearings
- Through axles: Front: HH12-100 - Rear: HH12-142
- Tyres: Pirelli P7 Sport 28 mm
- Maximum tyre size: 32 mm (nominal width)
COMPONENTS
- Saddle: SELLE ITALIA NOVUS BOOST EVO or PROLOGO SCRATCH M5

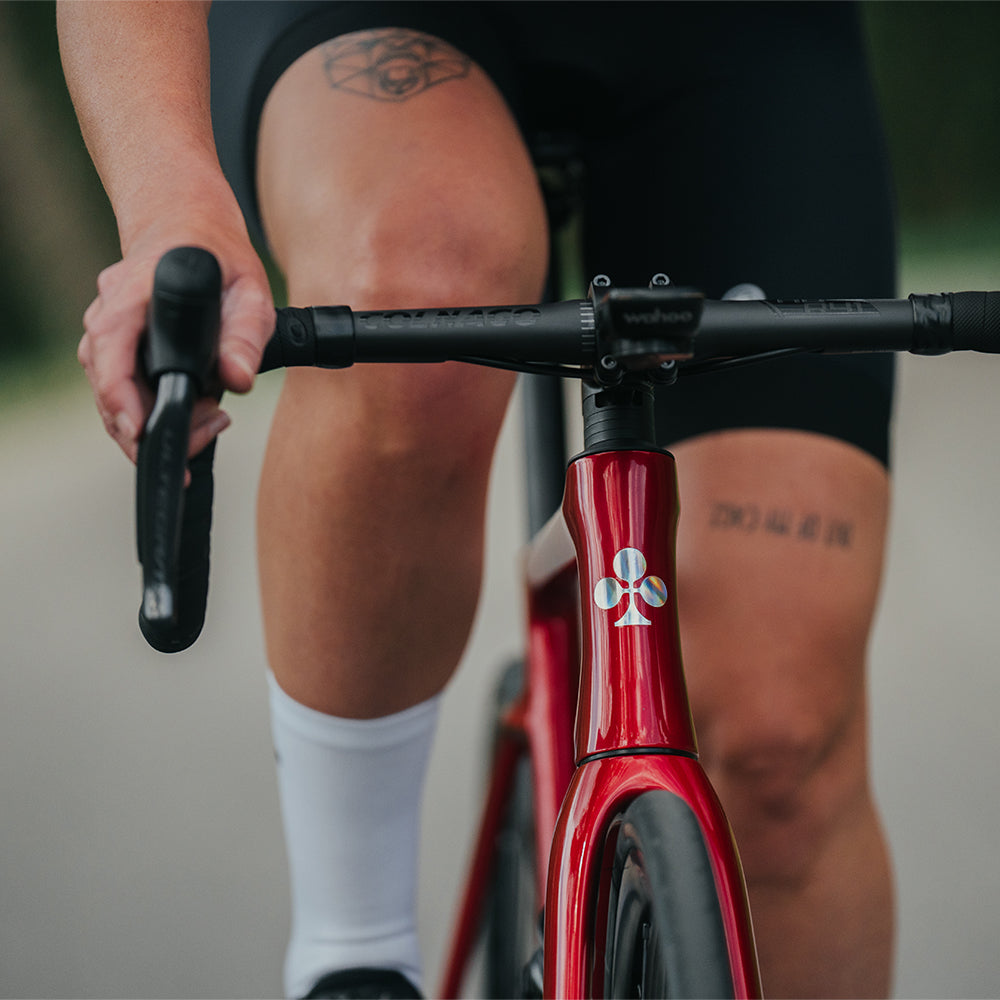

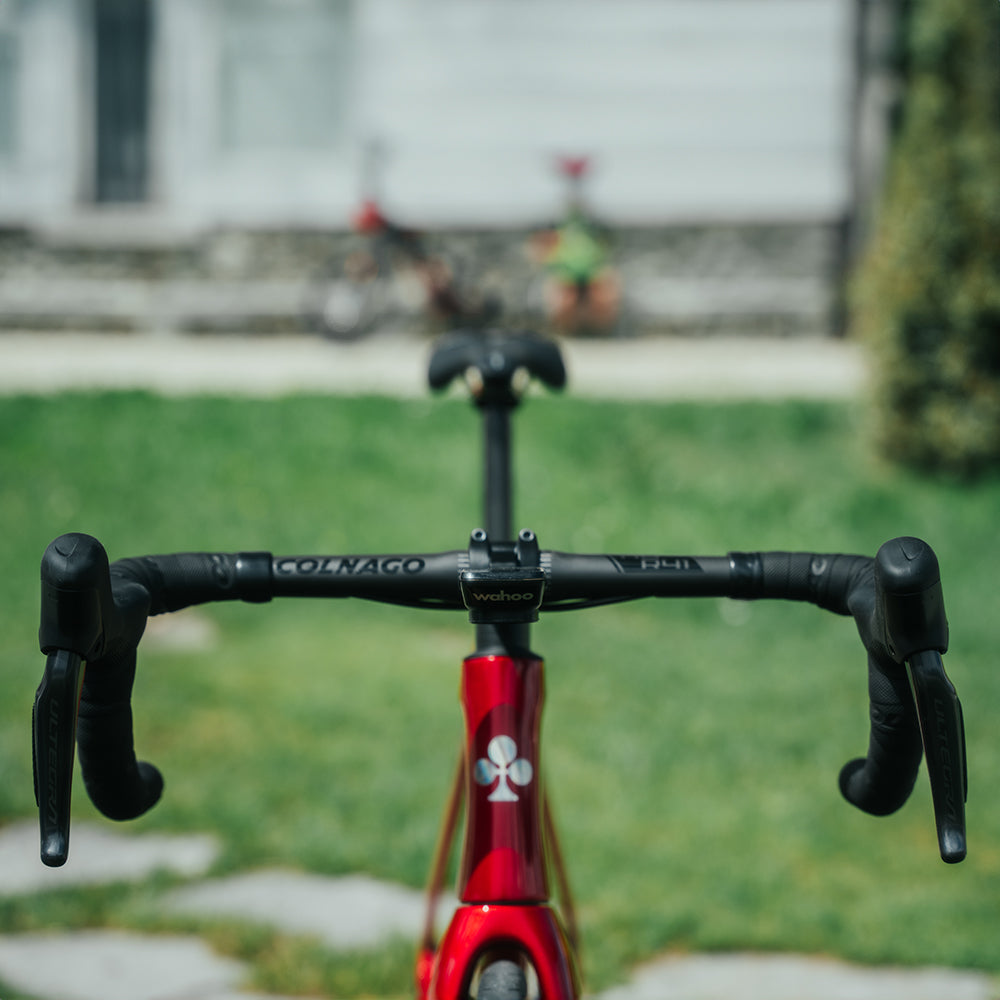

- Handlebar: COLNAGO R41 (carbon)
- Sizes 420 - 485 Width: 400 mm
- Sizes 510 - 530 Width: 420 mm
- Sizes 550 - 570 Width: 440 mm
- Stem: Colnago SR10
- Size 420 Length: 90 mm
- Size 455 Length: 100 mm
- Sizes 485 - 510 Length: 110 mm
- Sizes 530 - 550 Length: 120 mm
- Size 570 Length: 130 mm
- Handlebar Tape: Colnago Grip Black
- Bottle cage: Colnago Matt Black (1x)
