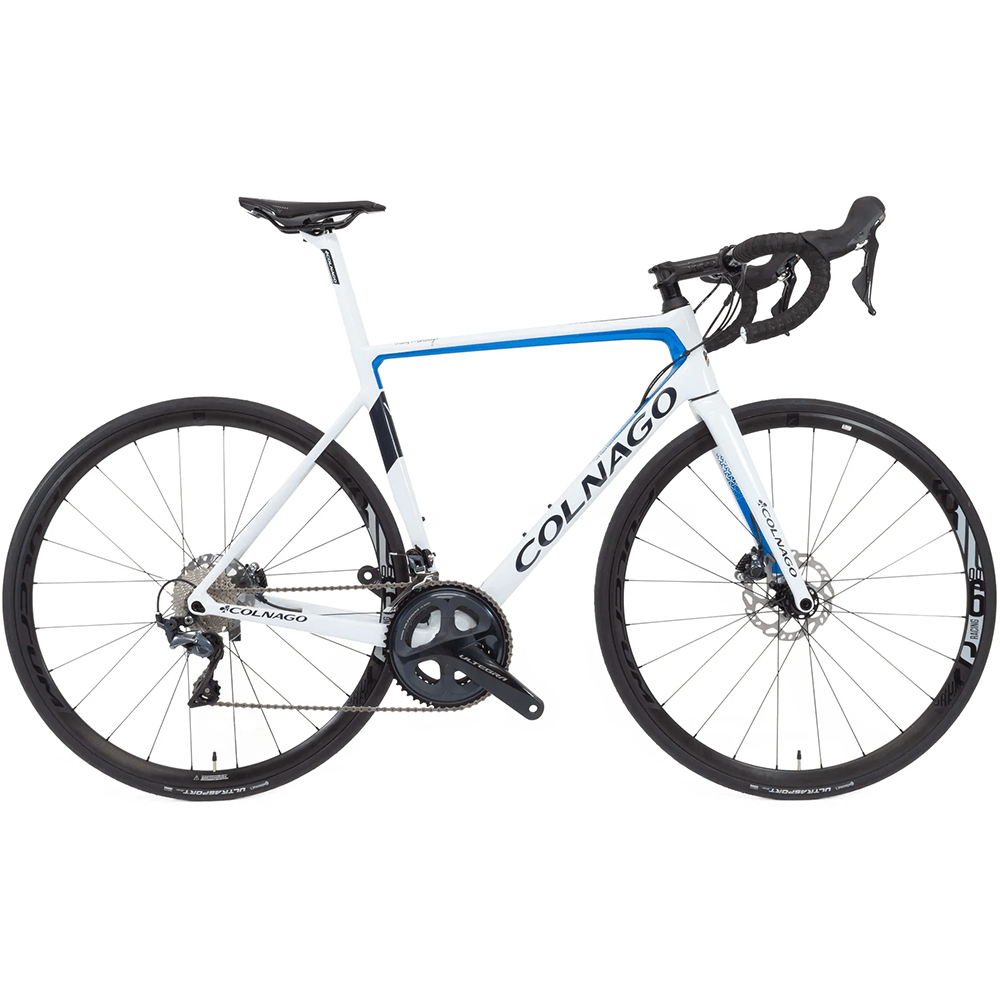

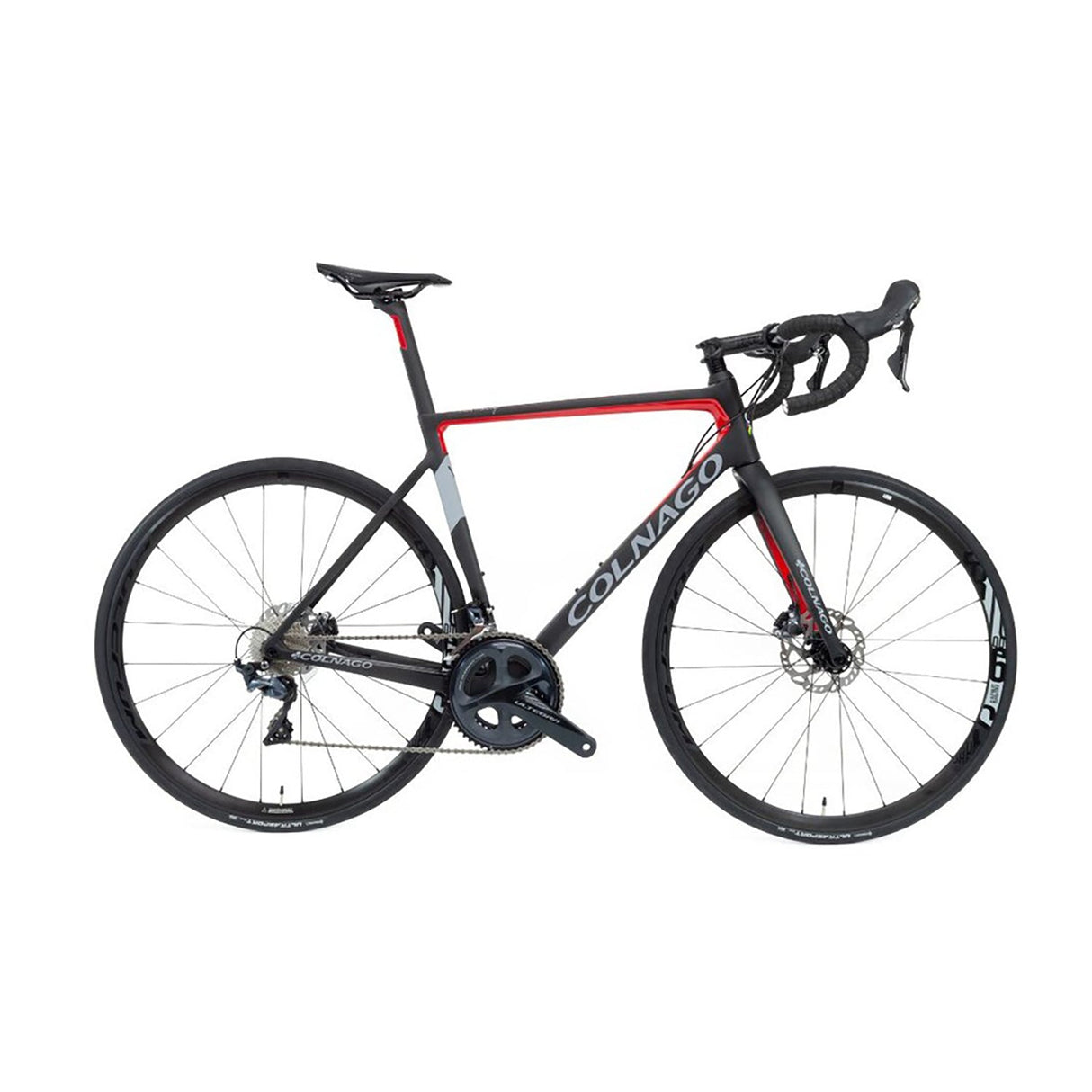

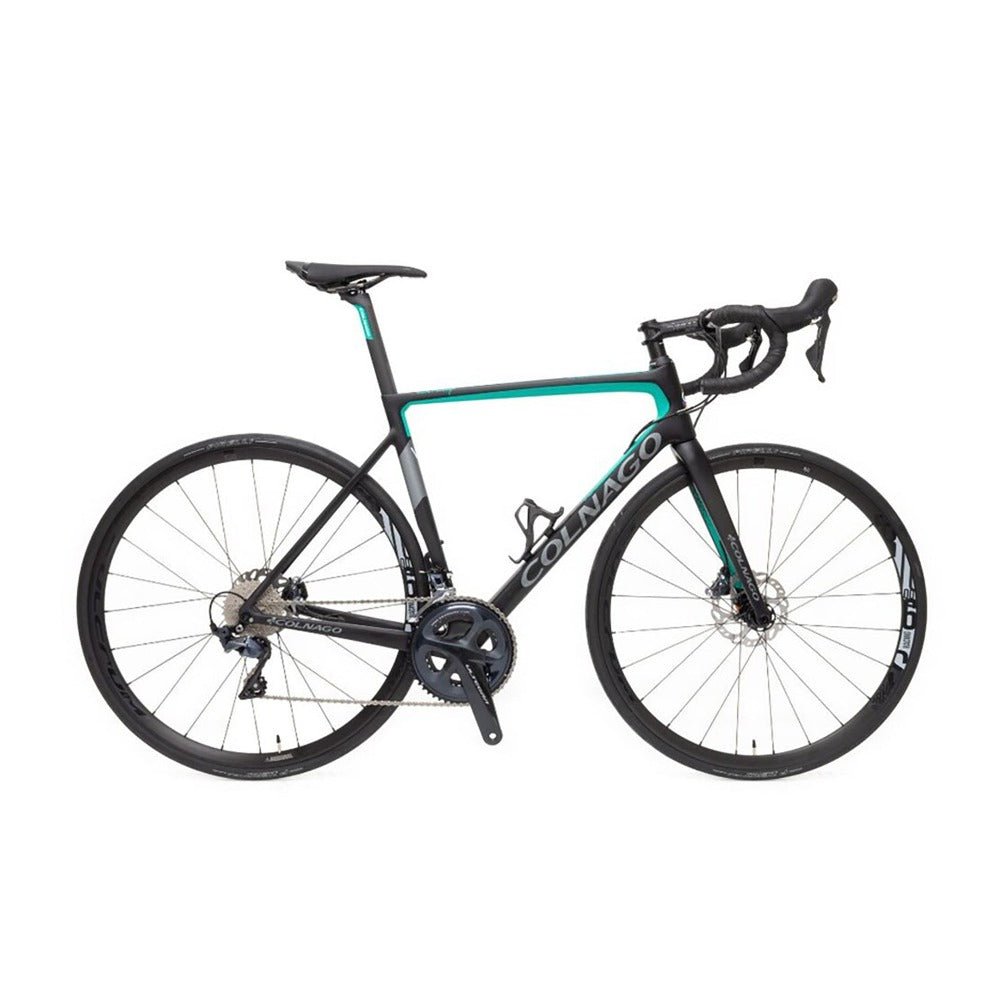

Colnago V3 Disc Ultegra R8020 Fulcrum 600 Road Bike
Making much of the technology of the flagship V3Rs accessible to more riders, the Colnago V3 Road Bike perfectly balances stiffness, weight and compliance, offering precise handling and a racy feel. Built-up with a mechanical Shimano Ultegra disc groupset, this is an incredibly capable race-ready machine. Updates from the previous V models include a redesigned fork that maximises compatibility with disc brakes and wider tyres, a new geometry that uses a shorter head tube and lower bottom bracket, plus a seatpost clamp that's lighter and offers more modulated tightening. All of this is brought together in a carbon monocoque frameset that combines low weight with aerodynamic details. This is a bike that'll climb, descent, sprint and handle with equal aplomb. Shimano Ultegra is a very small step down from the top-end Dura-Ace model in terms of performance and is provided here in a mid-compact configuration, the choice of many racers thanks to its balance of high and low gears. Hydraulic disc braking brings powerful stopping that's confidence-inspiring at speed, no matter if you're riding in blazing sunshine or through a heavy downpour. Fulcrum Racing 600 wheels are a great all-rounder, robust and reliable, and the bike is finished with Deda Zero2 and Prologo finishing kit, alongside an aero seatpost that further cuts drag. Read More
FEATURES
FEATURES
THE DESIGN
It blends technical solutions that aim at lightness with aerodynamic details. The line is clean and essential, it can be fitted with covers up to 28 inches. V3 is available in eight sizes and in a single version with disc brakes.
GEOMETRY
What is the point of making a light bike if you can’t ride it effectively? For this reason the geometry has been completely redesigned. The main features are the shorter head tube, the longer fork and a greater balance across all eight size options. The height of the bottom bracket has also been changed, it is lower, to improve the driveability of the bicycle with increased tyres (28c).
THE FORK
It has been developed for maximum compatibility with the disc brake system. The new shape with concave sheaths in the upper part (front view) optimizes the wheel passage allowing the use of wide tires (28c), comfort and lateral rigidity.
SEATPOST CLOSURE
Much of the effort has been concentrated in this area of the frame, both to reduce the overall weight of the locking system and to increase its functionality, power and safety. The new locking system is therefore smaller if compared to that of the V2-r and C64, integrated into the frame and allows a greater modulation in tightening.
SPECIFICATION
SPECIFICATION
Frame | Colnago V3 Disc, carbon |
Fork | Colnago V3 Disc, carbon |
Headset | Colnago, 1-1/8" to 1-1/4" |
Bottom Bracket | ThreadFit82.5 |
Stem | Deda Zero2 |
Handlebar | Deda Zero2 |
Front Brake | Shimano Ultegra, BR-R8070, Shimano SM-RT70, 160mm rotor |
Rear Brake | Shimano Ultegra, BR-R8070, Shimano SM-RT70, 140mm rotor |
Brake Levers | Shimano Ultegra ST-R8020 |
Front Derailleur | Shimano Ultegra FD-R8000 |
Rear Derailleur | Shimano Ultegra RD-R8000, 11-speed |
Shift Levers | Shimano Ultegra ST-R8020, 11-speed |
Cassette | Shimano Ultegra CS-R8000, 11-28t, 11-speed |
Crankset | Shimano Ultegra FC-R8000, 52/36 |
Chain | Shimano Ultegra, 11-speed |
Front wheel | Fulcrum Racing 600 disc brake, clincher |
Rear wheel | Fulcrum Racing 600 disc brake, clincher |
Front Tyre | Continental Ultra Sport II, 180 TPI, clincher |
Rear Tyre | Continental Ultra Sport II, 180 TPI, clincher |
Saddle | Prologo Dimension Data |
Seatpost | Colnago Carbon |
Pedals | Available to be purchased separately |
Please note | Images for illustration of colourway only. Specification is as listed and might change without prior notice. |
