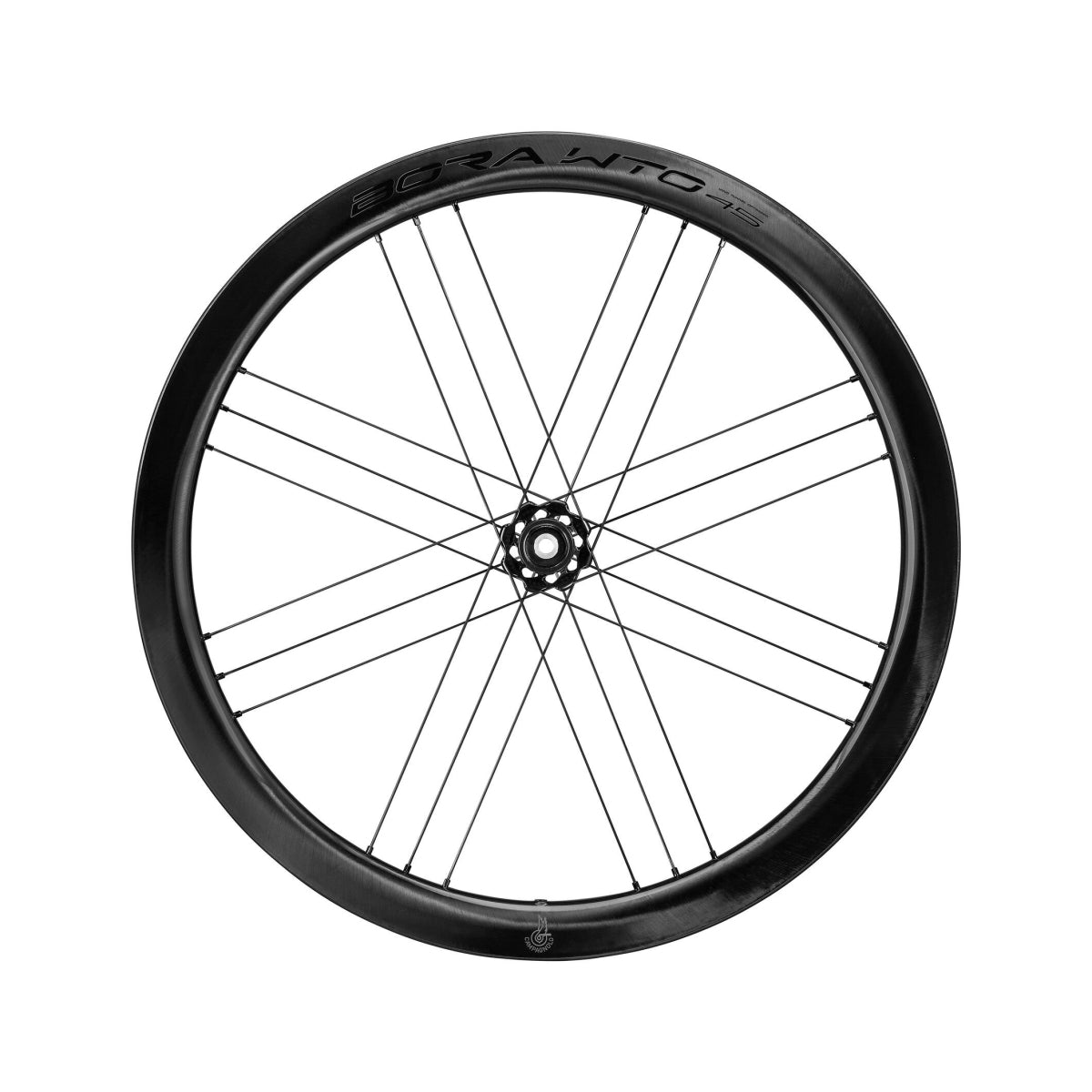

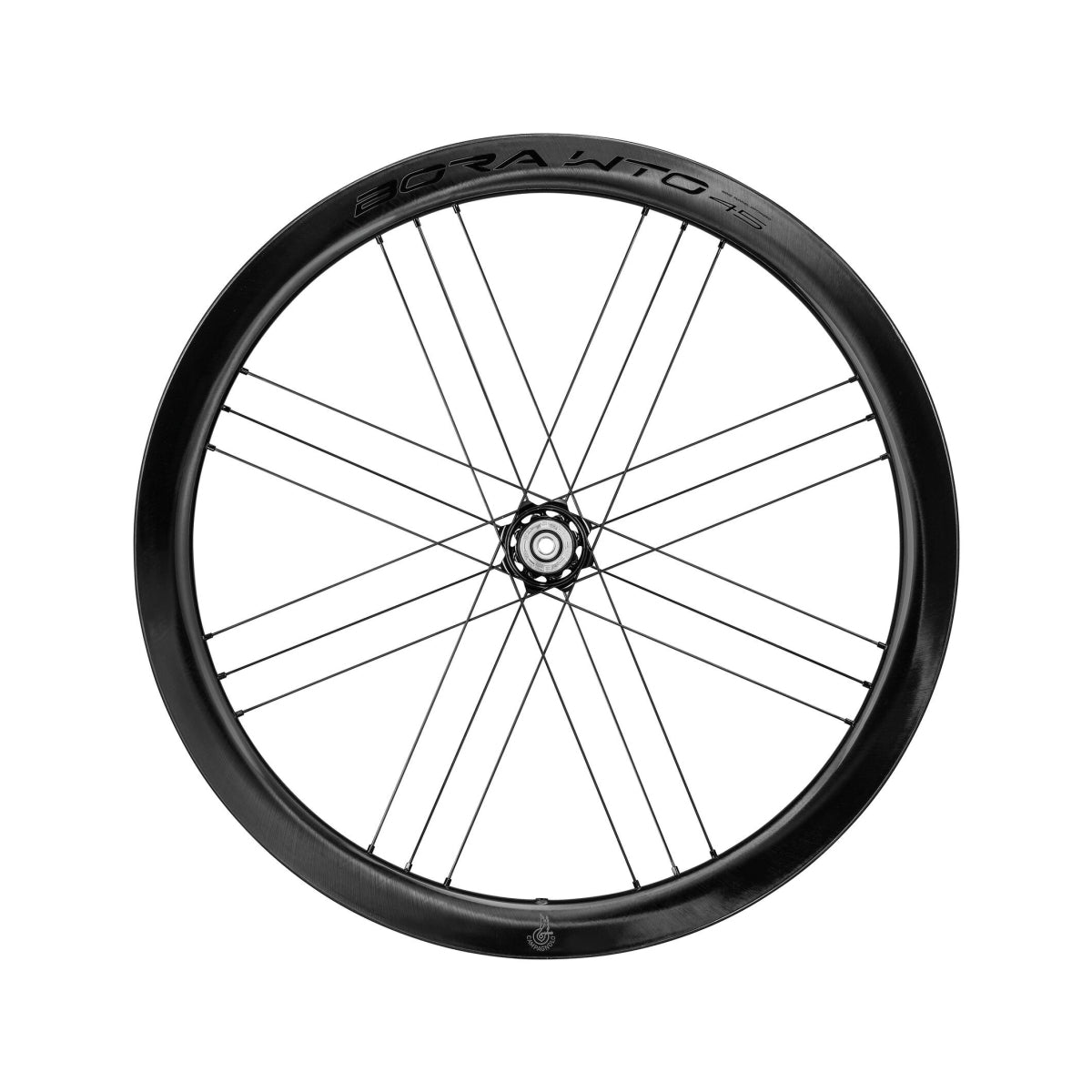

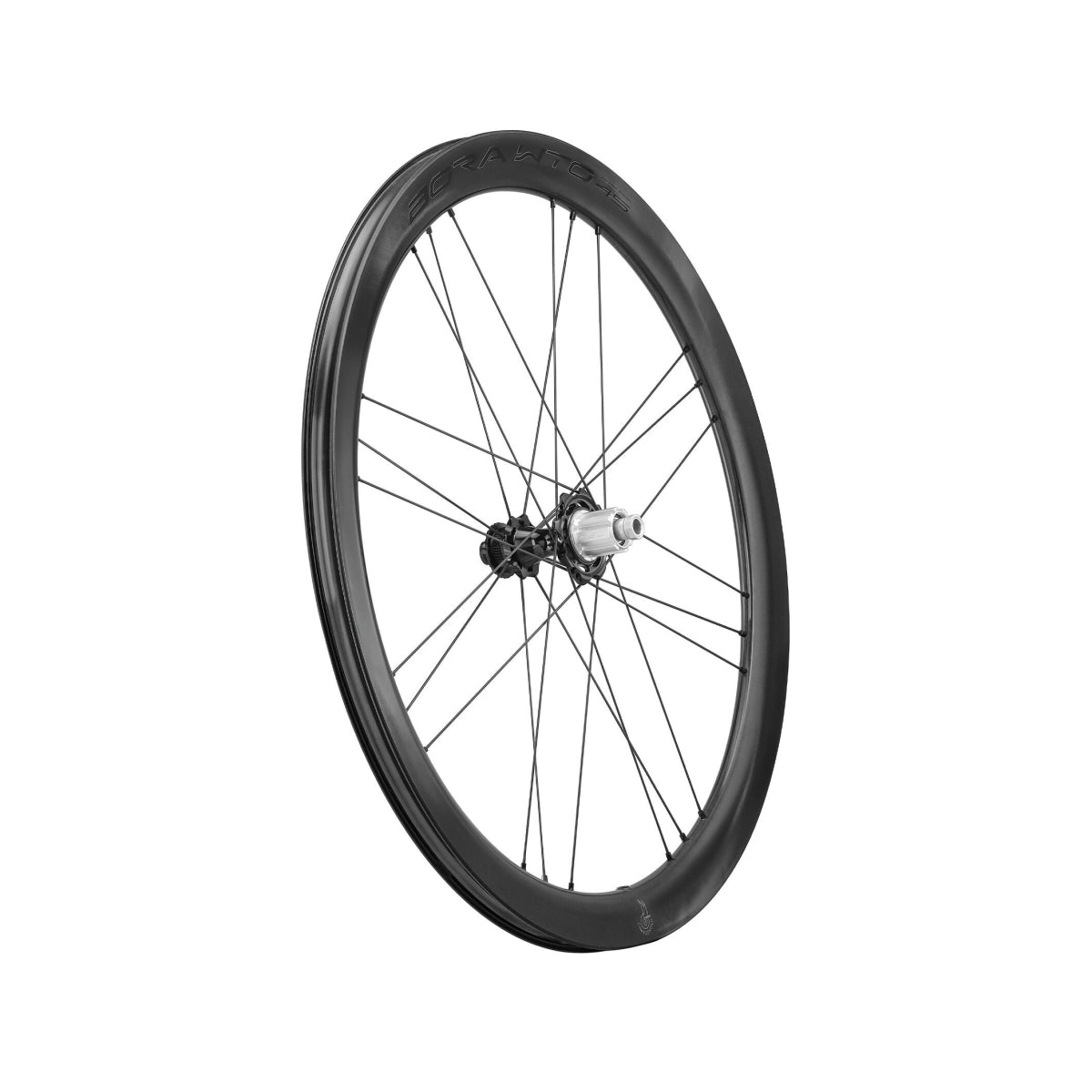

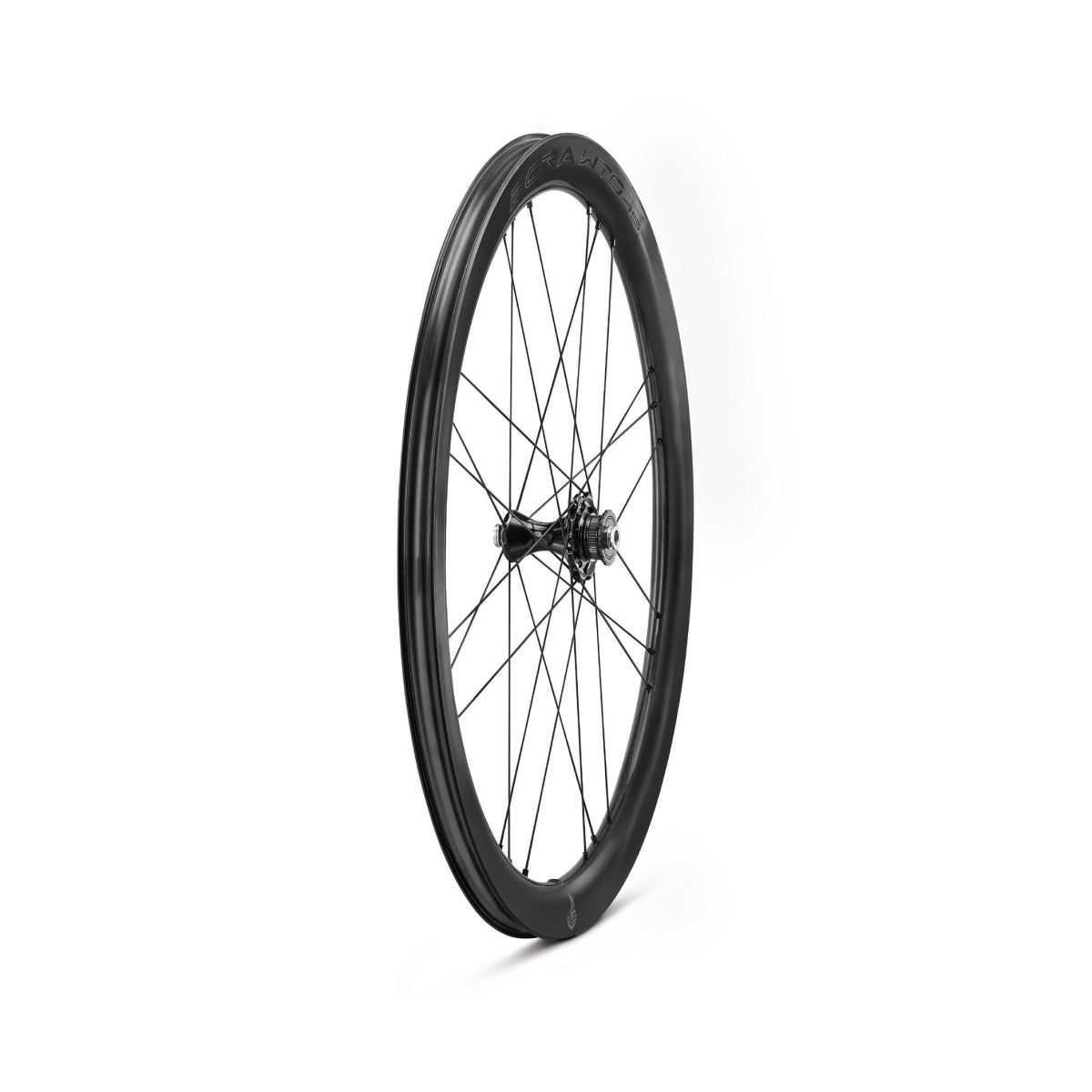

Campagnolo offers the most modern version of the first-class carbon wheels that have won over the most demanding cyclists around the world for years. The famous Bora Ultra WTO and Bora WTO models have been further enhanced with eye-catching design elements in the three different rim heights. BORA WTO 45 DISC BRAKE offers an ideal combination of stability at high speeds and maneuverability on the most technically demanding routes, while the weight has been significantly reduced compared to the previous model and the geometry provides a completely new feeling of control.
- Rim height: 45 mm
- Rim material: Carbon
- Rim cross-section (height/width): 60/29.0 mm
- Inner width of the rim: 23 mm
- Sticker Water transfer DCS (Dark Copper Shaded)
- Weight: 1405 g
- 24 stainless steel spokes with aerodynamic-elliptical cross-section on the front wheel, grouped with G3 geometry
- 24 stainless steel spokes with aerodynamic elliptical cross-section on the rear wheel, grouped with G3 geometry
- Monolithic hub made of black aluminum
- USB cone bearing shell
- Hub stop: 100 mm front, 142 mm rear
- Axle material: aluminum
- Cone/bearing shell system
- Freehub body: N3W, SRAM XDR or Shimano 11-speed
- Compatible with: Clincher and tubeless tires
- N3W
- patented freehub body standard developed for 11-, 12- and 13-speed cassettes from 9, 10 and 11 teeth upwards
- also compatible with older 9 and 10-speed cassettes
G3-Speichen Geometrie
- Groups of three parallel spokes with straight heads are arranged in a 2:1 ratio
- due to the double number of spokes on one side, wheels with G3 technology achieve a perfect tension balance
- increases stiffness and improves power transmission
WEIGHT: 1405 g
SPOKES
- 24 steel spokes in the front elliptical aero cross section, spaced in groups of three through the G3 system
- 24 steel spokes in the rear elliptical aero cross section, spaced in groups of three through the G3 system

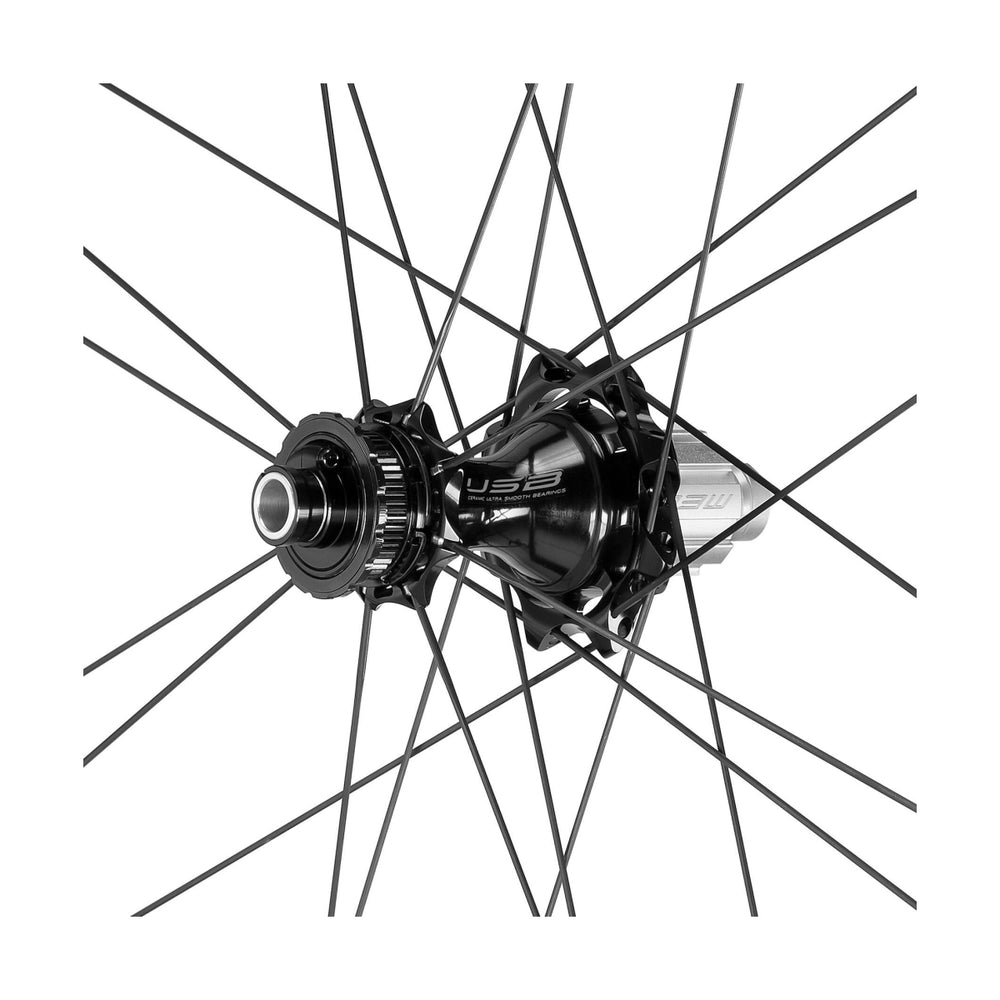

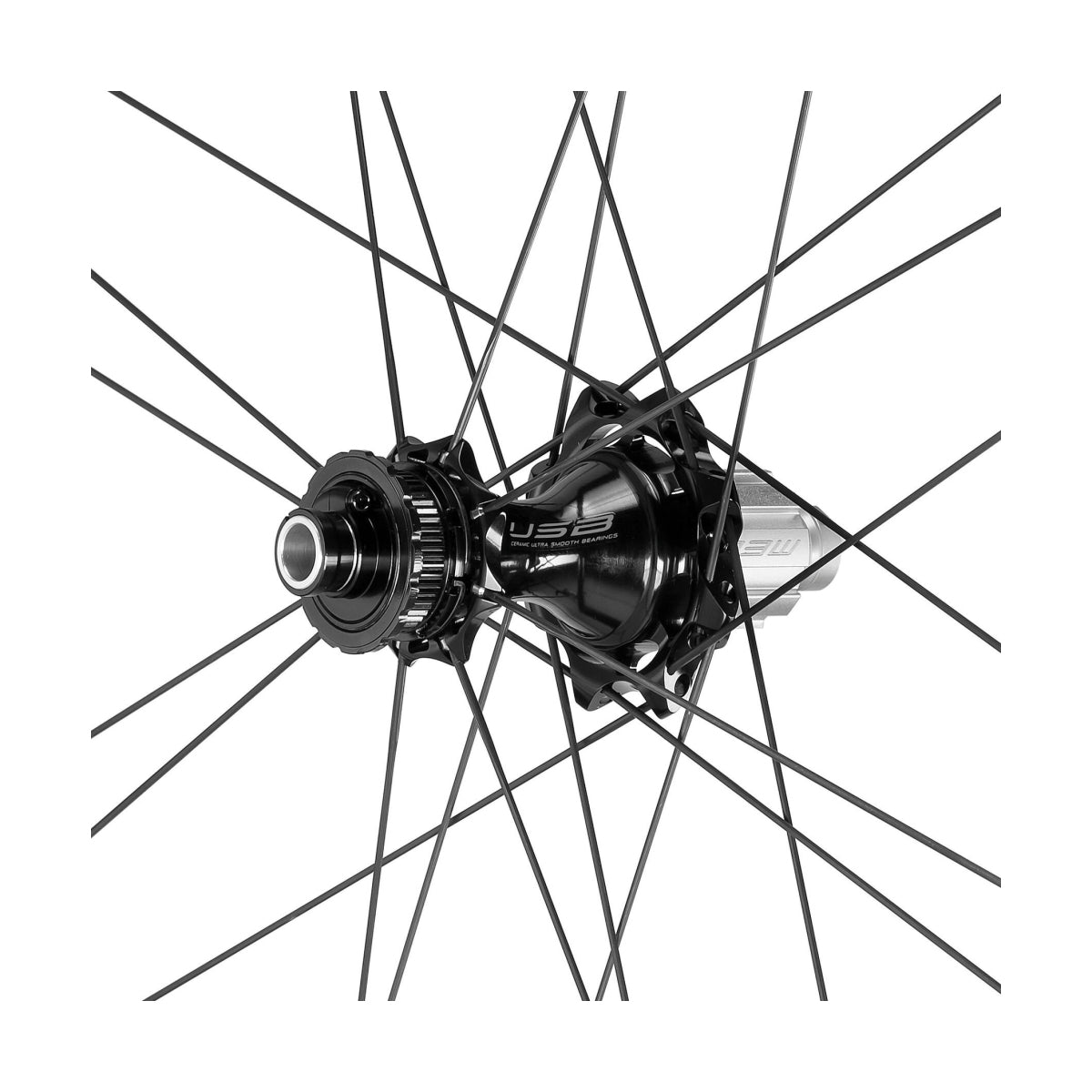

HUB
- Black aluminium monolithic hub
- USB cup/cone
- Hub width: front: 100 mm, back: 142 mm
- Axle material: aluminium
- Cup-and-cone bearing system
- N3W
TYPES
- Clincher and tubeless
RIM
- Rim height: 45 mm
- Rim material: Carbon
- Rim cross section (H/W): 45/29,0 mm
- Internal width of rim: 23 mm
- Water Transfer decals
ASSEMBLY
The Bora™ WTO™ 45 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability
COMES WITH
- Tubeless valve
- Bushing to reduce the size of the valve hole
- 2 levers in composite material for tyre removal
- User manual
