- FEATURES
- SPECIFICATIONS
- AWARDS & MEDIA
- GEOMETRY
- UNPLUGGED Carbon HMX Frame
- Öhlins RXF38 M.2 Air, 170mm
- FOX Float X Nude, 160mm / TracLoc
- SRAM X01 Eagle AXS / Wireless
- Shimano XTR M9120 4 Piston Disc
- Syncros Revelstoke 1.5
- Syncros Hixon iC Carbon

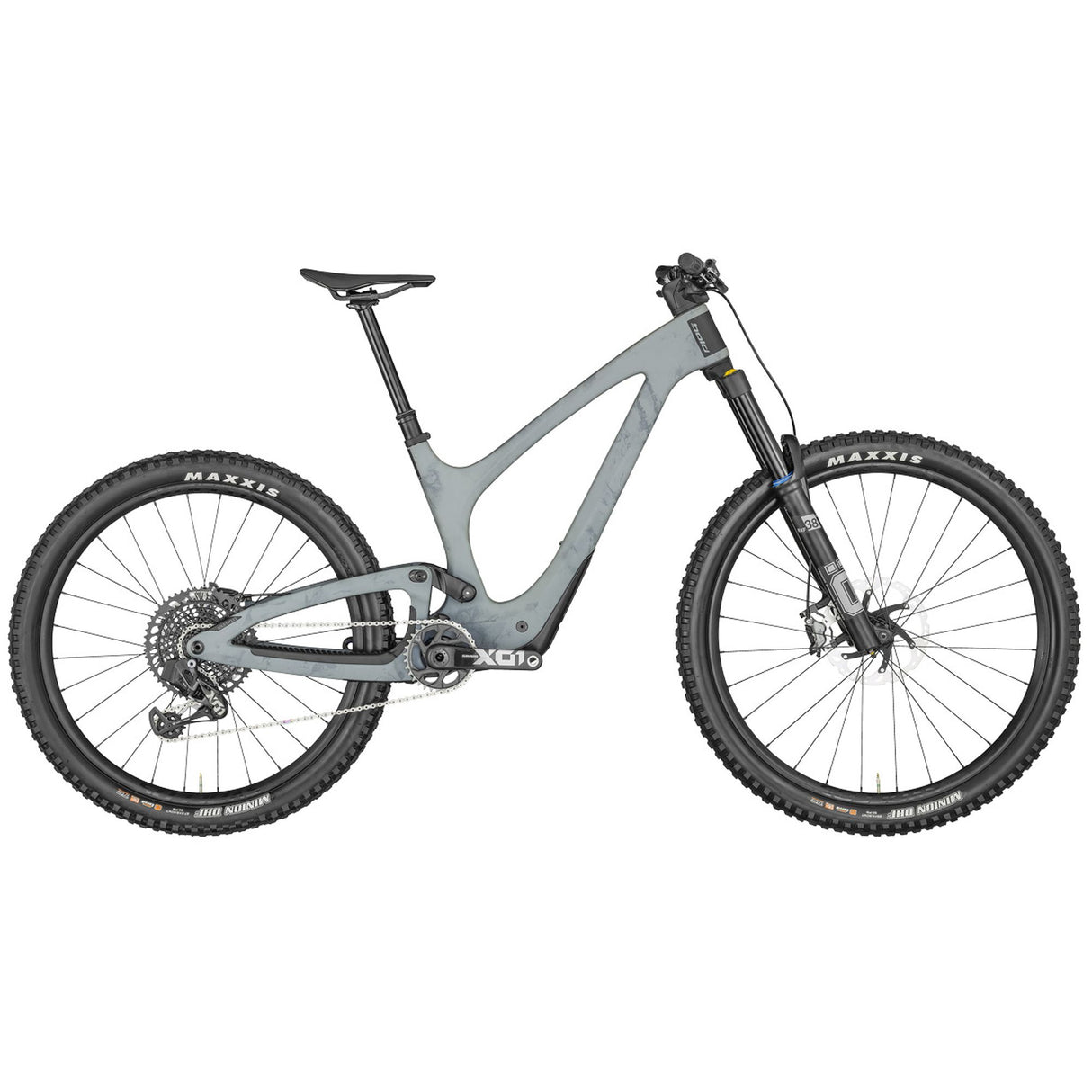

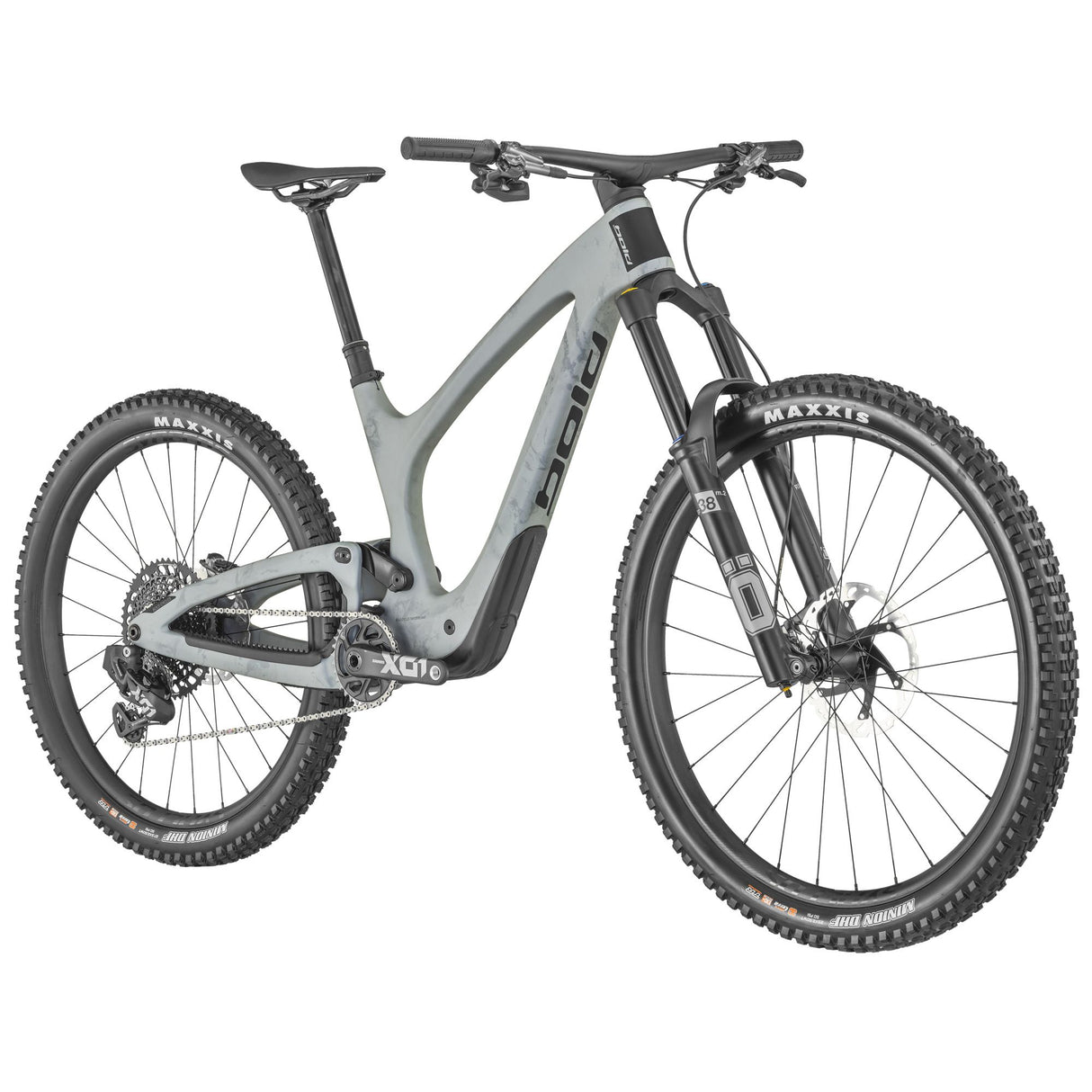

- Model: 291166
- Frame: Bold Unplugged 160 / Carbon HMX Integrated Suspension Technology / IST VP Vario Tech / Mullet Ready / Wireless Shifting ONLY Head angle adjustable / Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
- Fork: Öhlins RXF38 m.2 Air TTX-Technology HSC - LSC - LSR adjustable / 15x110mm Axle 44mm offset / tapered steerer 170mm travel
- Rear Shock: FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion SCOTT custom w. travel / geo adj. 3 modes: Climb-Traction Control-Descend Custom large Air volume / Comp & Reb. Adj. T185X55mm / Travel 160-100-Climb
- Remote System: TracLoc Technology Rear Suspension & Dropper Remote 3 Rear Suspension modes
- Rear Derailleur: SRAM X01 Eagle AXS / 12 Speed Wireless Electronic Shift System
- Shifters: SRAM GX Eagle AXS Rocker Controller
- Crankset: SRAM X01 DUB Eagle Carbon crankarm 55mm CL / 32T
- Chainguide: Bold custom
- BB-Set: SRAM DUB PF 92 MTB Wide / shell 41x92mm
-
Chain: SRAM CN X01 Eagle
- Cassette: SRAM X01 XG1295 / 10-52 T
- Brakes: Shimano XTR M9120 4 Piston Disc
- Rotor: Shimano RT-86 / 6 Bolt / 203/F and 180/R
- Handlebar: Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm#Syncros Endurance lock-on grips
- Seatpost: Syncros Duncan Dropper Post 1.5 34.9mm Size S 170mm / Size M, L & XL 200mm
- Seat: Syncros Tofino Regular 1.0 Carbon rails
- Headset: Syncros - Acros Angle adjust & Cable Routing HS System Stainless / +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
- Wheelset: Syncros Revelstoke 1.5 6 Bolt F: 15x110mm / R: 12x148mm 30mm Tubeless ready rim 28H / XD Driver Syncros Axle w/Removable Lever with Tool Size S & M F29 - R27.5 Mullet / Size L & XL F&R 29
- Front Tire: Maxxis Minion DHF / 29x2.5" / 60TPI Foldable Tubeless Ready / EXO+
- Rear Tire: Maxxis Minion DHF / 2.5" / 60TPI Foldable Tubeless Ready / EXO+ Size S & M 27.5 / Size L & XL 29
- Extras: Save the Day Kit/ SRAM AXS Powerpack/ Syncros Fork Fender
- Accessories: Syncros Eco Sealant
In addition to having tried it during the official presentation in Girona, Spain, Bold sent one to the editorial office in size M for a test on our trails. In the video you can find the complete test, further down in the article you can read the details of the new bike and see the photos." MTB MAG
