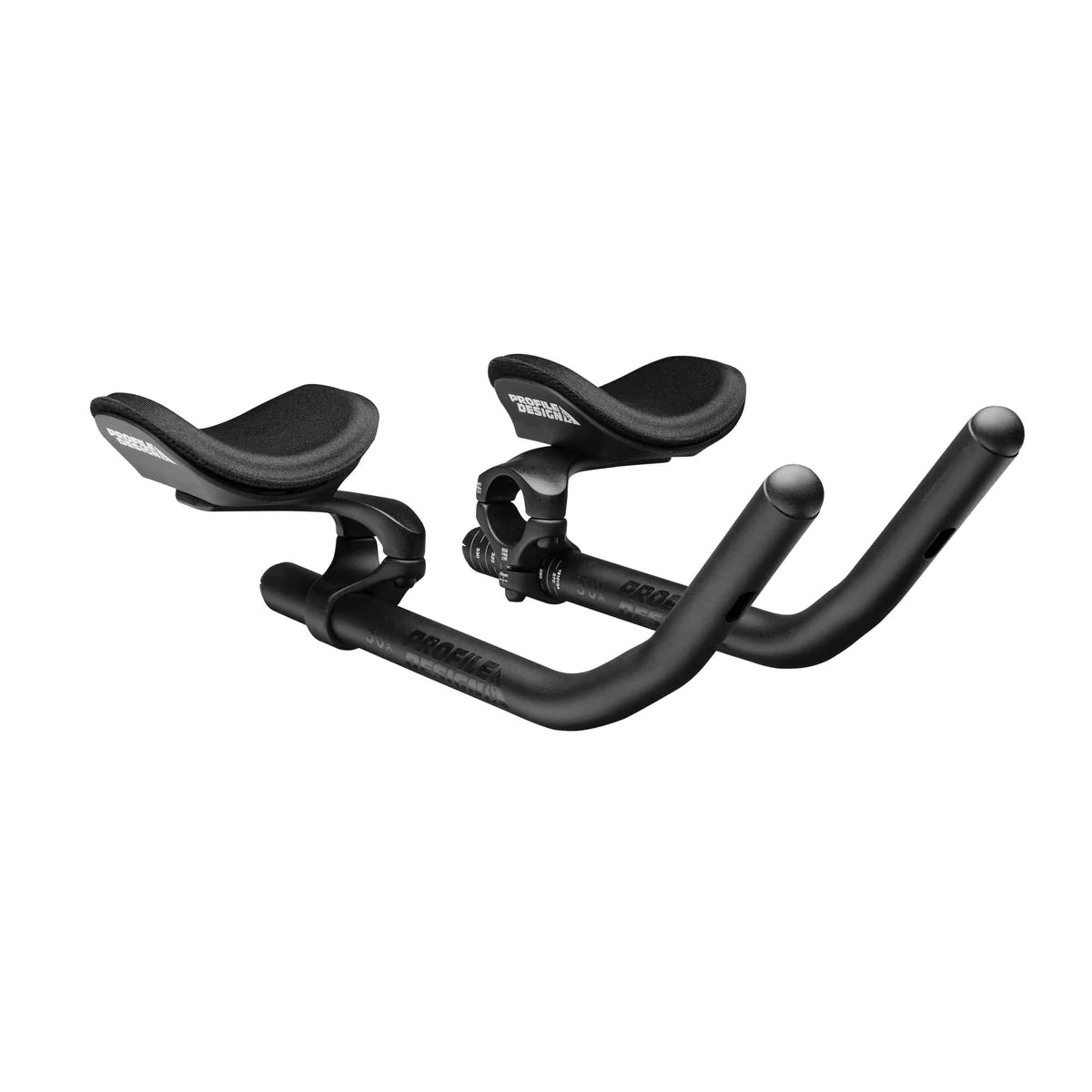

The hypersonic bracket offers our new generation fit range in a low stack, undermount format. Pairing this bracket with the ergo armrest offers industry leading fit options and greater comfort. With the 50a extensions, this aerobar encourages a neutral twist angle. There are 100 distinct position options achievable just by moving the armrests. Combine that with the risers and this bar offers 1500 possible configurations. As a clip on bar it is also possible to adjust the extension width and tilt easily. This is the most adjustable clip on bar on the market (and in history).
Performance
Fit Data
- Armrest Offset: -85mm to -17.5mm in 7.5mm steps
- Armrest Width: 112mm to 280mm in 18.5mm steps (With Extensions at 100mm)
- Armrest Stack: 39mm
The extension length and rotation can be easily adjusted using the top bolt.
There are 100 distinct position options achievable just by moving the armrests. Combine that with the risers and this bar offers 1500 possible configurations. As a clip on bar it is also possible to adjust the extension width and tilt easily. This is the most adjustable clip on bar on the market (and in history).
Origin
The Ergo armrest shares the flippable design of the rest of our new generation armrests. By swapping sides or rotating the armrests smaller increments of movement are achieved – making it simple to fine tune a riders position or match the position from their previous aerobar or bike.
Extensions

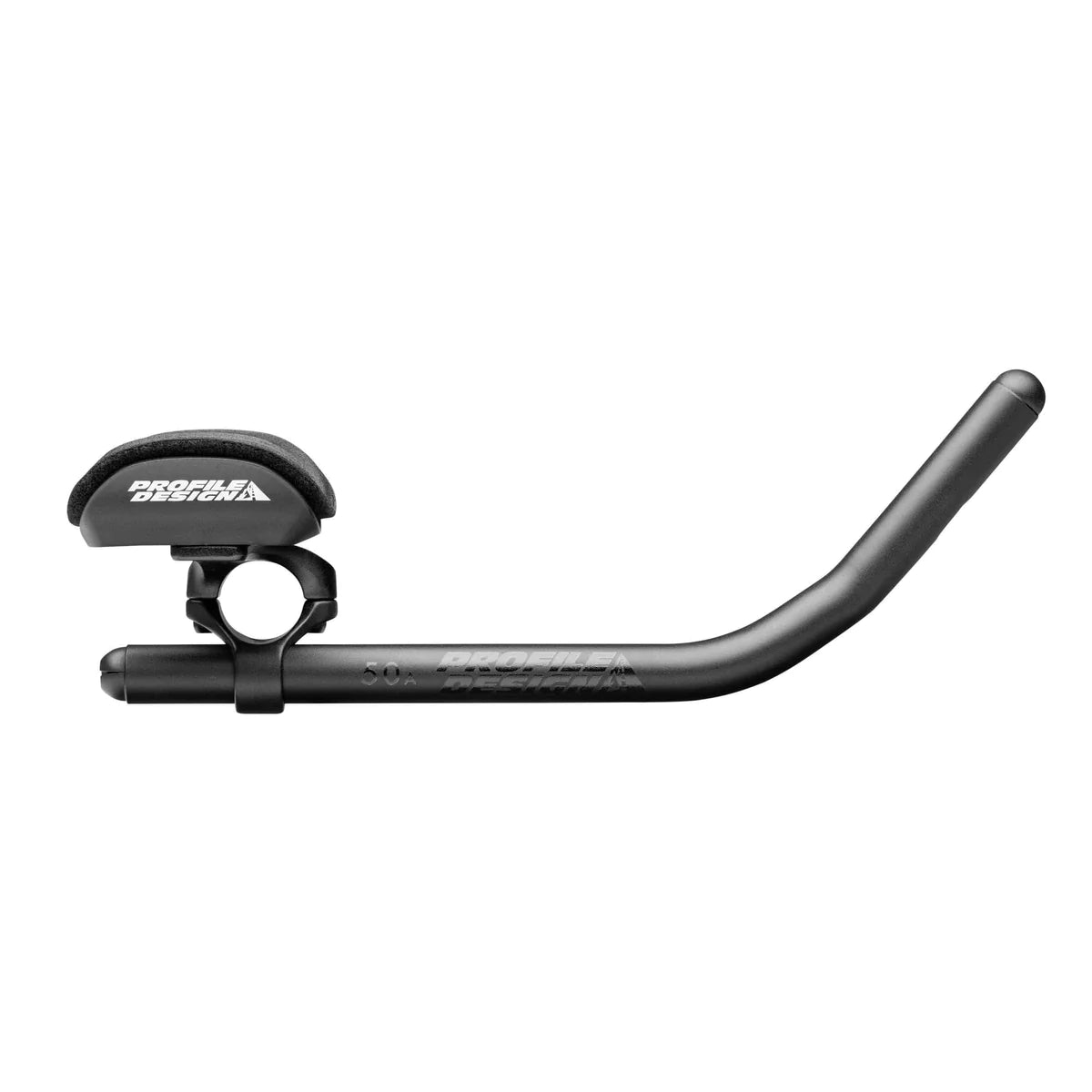

- Extension Shape: A 50a extensions offer a 50° ski bend shape.
- The 50a offer a 7.5mm lateral shift per side. This allows the rider to get their hands narrower or wider without tilting the extensions so much that the shifters touch.
- Armrest Offset : -85mm to -17.55mm in 7.5mm steps
- Armrest Width : 112mm to 280mm in 18.5mm steps (With Extensions at 100mm)
- Armrest Stack : 39mm
- Extension Shape : A 50a extensions offer a 50° ski bend shape - 340mm length
- The 50a offer a 7.5mm lateral shift per side. This allows the rider to get their hands narrower or wider without tilting the extensions so much that the shifters touch.
- Bracket: Hypersonic
- Clamp Diameter: 31.8mm (26.0 w/Shims)
- Armrest: Ergo / 10mm Pads
- Armrest Width: 112mm to 280mm in 18.5mm steps (with Extensions at 110mm)
- Armrest Offset: -85mm to -17.5mm in 7.5mm steps
- Armrest Stack: 39mm
- Color: Matte Black
- Weight: 640g
Torque settings (all bolts are M6)
- Bar Clamp: 6Nm
- Extension Clamp: 5Nm
-
Armrest Bolts: 4.7Nm
WEIGHT
- Bracket: g
- Armrest: 130g
- Extensions:
- Total: 640g
