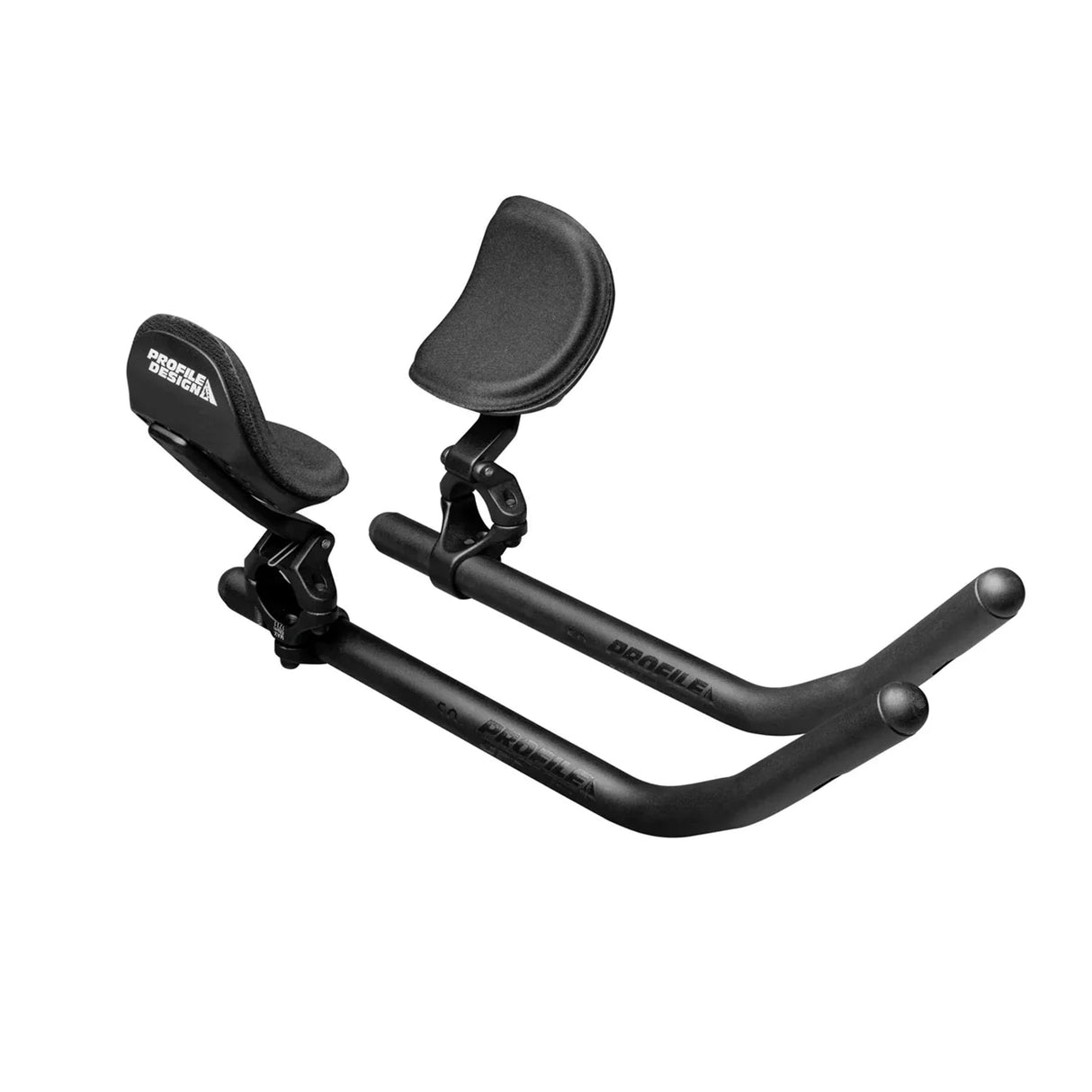

The extension length and rotation can be easily adjusted using the bottom bolt. There are 100 distinct position options achievable just by moving the armrests. Combine that with the risers and this bar offers 1500 possible configurations. As a clip on bar it is also possible to adjust the extension width and tilt easily. This is the most adjustable clip on bar on the market (and in history). It is worth noting that our previous top level clip on aerobar, the J4/F35, offered 90 possible configurations. This highlights the significant step forward we’ve made with our new generation aerobars in allowing riders to precisely adjust their position.
FIT DATA
- Armrest Offset: -85mm to -17.55mm in 7.5mm steps
- Armrest Width: 112mm to 280mm in 18.5mm steps (With Extensions at 100mm)
- Armrest Stack: 40mm
The extension length and rotation can be easily adjusted using the bottom bolt.
There are 100 distinct position options achievable just by moving the armrests. Combine that with the risers and this bar offers 1500 possible configurations. As a clip on bar it is also possible to adjust the extension width and tilt easily. This is the most adjustable clip on bar on the market (and in history).
It is worth noting that our previous top level clip on aerobar, the J4/F35, offered 90 possible configurations. This highlights the significant step forward we’ve made with our new generation aerobars in allowing riders to precisely adjust their position.
ORIGIN
Extensions
- Extension Shape: A 50a extensions offer a 50° ski bend shape - 340mm length
- The 50a offer a 7.5mm lateral shift per side. This allows the rider to get their hands narrower or wider without tilting the extensions so much that the shifters touch.
- Bracket: Flip
- Clamp Diameter: 31.8mm (26.0 w/Shims)
- Armrest: Ergo / 10mm Pads
- Armrest Width: 112mm to 280mm in 18.5mm steps (with Extensions at 100mm)
- Armrest Offset: -85mm to -17.5mm in 7.5mm steps
- Armrest Stack: 40mm
- Color: Matte Black
- Weight: 587g
Torque settings (all bolts are M6)
- Bar Clamp: 6Nm
- Extension Clamp: 5Nm
- Armrest Bolts: 4.7Nm
Weight
- Bracket: 242g
- Armrest: 145g
- Extensions: 200g
- Total: 587g
