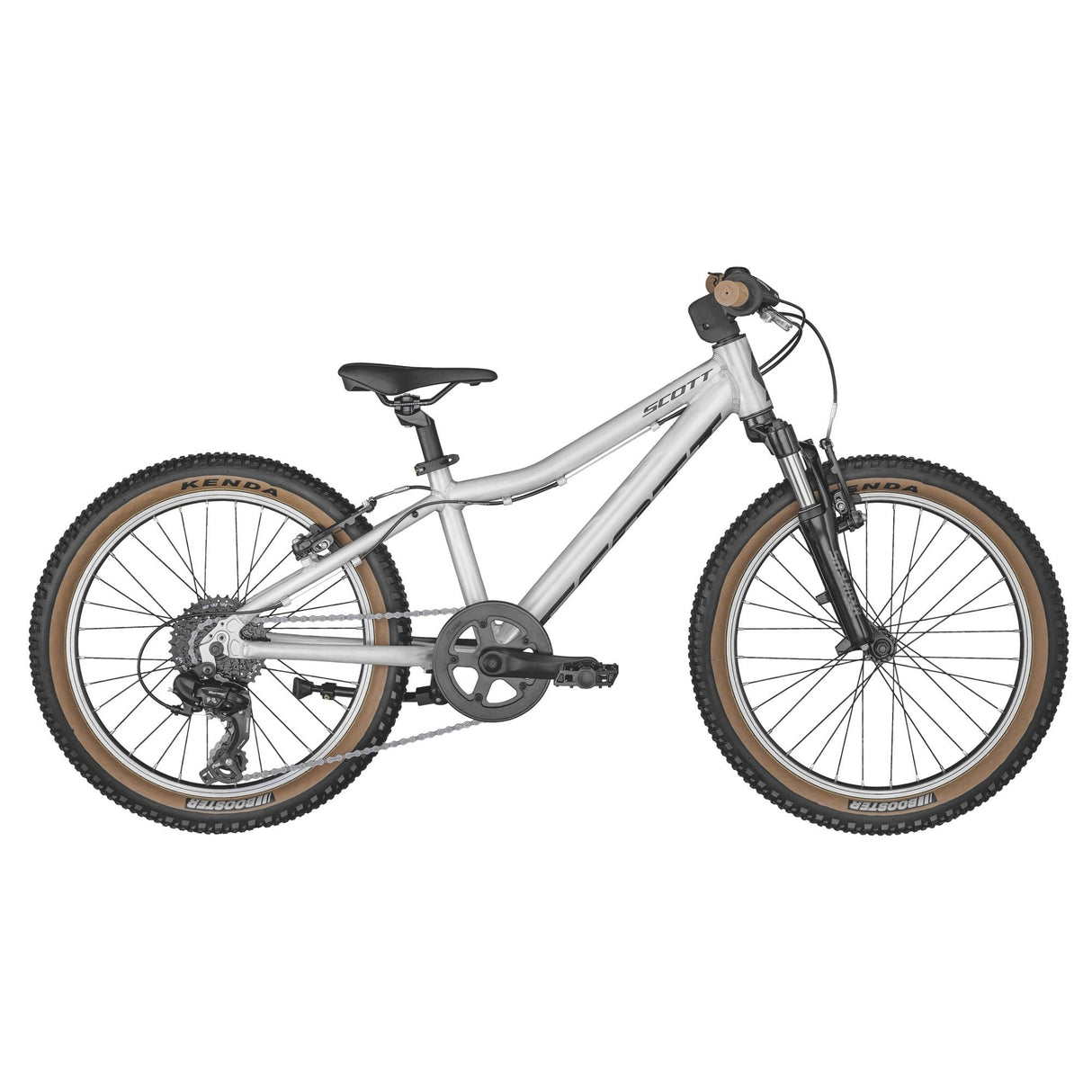

Scott Scale 20 Kids Bike

KEY FEATURES

• Kids from 115 cm
• 20'' wheels
• 10.6 kg / 23.37 LBS
• For kids who like to go fast
• Perfect 1st suspension bike
• Equipped with 7 gears
• Bigger cassette to easier climbs
• Model: 290748

SPECIFICATIONS

FRAME

• Scale 20 Junior
• Alloy 6061 / Semi int. HT
• SCOTT dropout / V-Brake

FORK

• SR Suntour XCT-JR 20
• 40mm travel
• Softer spring setup

REAR DERAILLEUR

• Shimano RD-TY300
• 7 Speed

SHIFTERS

• Shimano SL-RV300-7
• Revo Shifter

CRANKSET

• Prowheel / Alloy Crank 127mm
• 36T / w/CG PVG double cover

BB-SET

• Feimin / BB68 / cartridge / square taper

CHAIN

• KMC Z7

CASSETTE

• SunRace MFM300
• 7 Speed / 13-34T

BRAKE LEVERS

• Tektro Junior JL-510 TS / RS

BRAKES

• Tektro V-Brakes
• Kids' specific

HANDLEBAR

• Kids riser bar alloy D:19mm
• 540mm / 20mm Rise
• Syncros Grips Kids100/80 D19

H'STEM

• Alloy 50mm / +10° / 25.4mm clamp

SEATPOST

• Alloy / 26.8mm / 250mm

SEAT

• Syncros Future Pro

HEADSET

• Feimin FP-H807
• 1 1/8" Semi Int.

HUB (FRONT)

• KT-122F / Nutted

HUB (REAR)

• KT-122R / Nutted

SPOKES

• 15G / UCP / black

RIMS

• Shining V-6NS

FRONT TIRE

• Kenda K1227 Booster / 20x2.2" / 30TPI

REAR TIRE

• Kenda K1227 Booster / 20x2.2" / 30TPI

PEDALS

• Kids Pedals / w/Reflector

EXTRAS

• Kickstand

ACCESSORIES

• Syncros Stem Protector

APPROX WEIGHTS IN KG

• 10.6

APPROX WEIGHTS IN LBS

• 23.37

MAX. SYSTEM WEIGHT

• 50kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

GEOMETRY
