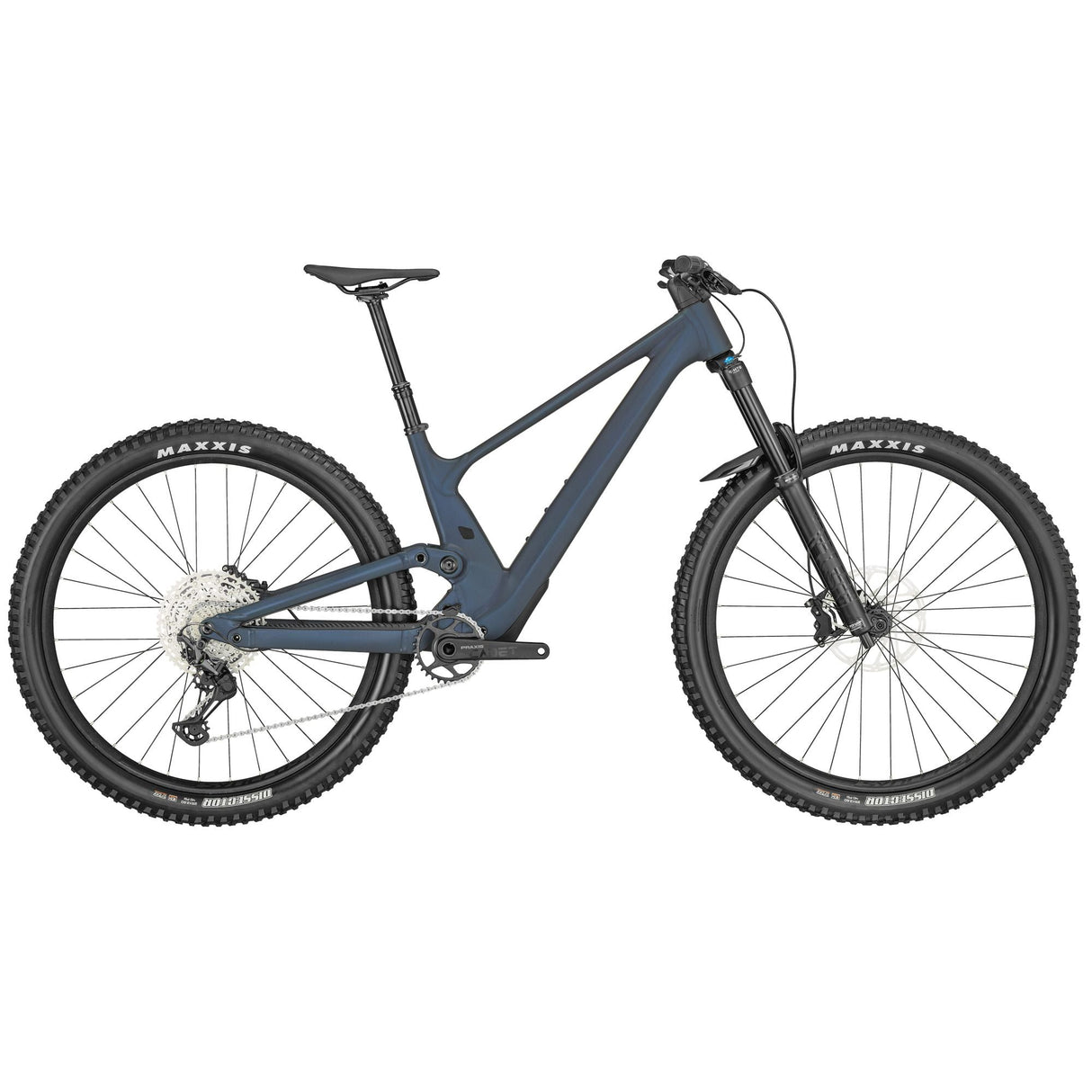

Scott Genius 930 Mountain Bike

FEATURES

• Genius Alloy Frame
• FOX 36 Float Rhythm 160mm Fork
• FOX Float Custom, 150mm, TwinLoc
• Shimano XT-Deore 12 Speed
• SRAM DB8 4 Piston Disc Brakes
• Maxxis Foldable Tires
• Model: 290141

SPECIFICATIONS

FRAME

• Genius Alloy 6061
• Integrated Suspension Technology
• Virtual 4 Link kinematic / Adjustable head angle
• Syncros Cable Integration System
• BB92 / UDH Interface / 12x148mm with 55mm Chainline

FORK

• FOX 36 Float Rhythm Air Grip
• 3-Modes / 15x110mm QR axle / tapered steerer
• 44mm offset / Reb. Adj. / Lockout / 160mm travel

REAR SHOCK

• FOX Float Custom EVOL Performace Trunnion
• 3 modes / Lockout-Trail-Descend
• DPS / Reb. Adj.
• Travel 150mm / T185X55mm

REMOTE SYSTEM

• SCOTT TwinLoc 2 Technology
• Suspension & Dropper Remote
• 3 Suspension modes

REAR DERAILLEUR

• Shimano XT RD-M8100 SGS
• Shadow Plus / 12 Speed

SHIFTERS

• Shimano Deore SL-M6100-R / Rapidfire Plus

CRANKSET

• Praxis Cadet M24HD
• 55mm CL / 32T

CHAINGUIDE

• SCOTT custom

BB-SET

• Praxis M24 BB92 / shell 41x92mm

CHAIN

• Shimano Deore CN-M6100

CASSETTE

• Shimano Deore CS-M6100-12 / 10-51 T

BRAKES

• SRAM DB8 4 Piston Disc

ROTOR

• SRAM Centerline CL Rotors 200/F and 180/R

HANDLEBAR

• Syncros Hixon 2.0 Alloy 6061 D.B.
• 12mm Rise / back sweep 8° / 780mm
• Syncros Endurance lock-on grips

H'STEM

• Syncros AM 2.0
• Syncros Cable Integration System
• 4° rise / 6061 Alloy / 31.8mm / 1 1/8"

SEATPOST

• Syncros Duncan Dropper Post 2.5
• 31.6mm / S size 125mm / M size 150mm / L & XLsize 170mm

SEAT

• Syncros Tofino 2.5 Regular

HEADSET

• Syncros - Acros Angle adjust & Cable Routing HS System
• +-0.6° head angle adjustment
• ZS56/28.6 – ZS56/40 MTB

HUB (FRONT)

• Formula CL-811 / 15x110mm

HUB (REAR)

• Formula CL-148M / 12x148mm

SPOKES

• Stainless Black 15G / 1.8mm

RIMS

• Syncros X-30S / 32H / 30mm / Sleeve Joint
• Tubeless ready

FRONT TIRE

• Maxxis Dissector / 2.6" / 60TPI Foldable
• Tubeless Ready / EXO

REAR TIRE

• Maxxis Dissector / 2.6" / 60TPI Foldable
• Tubeless Ready / EXO

EXTRAS

• Syncros Fork Fender

APPROX WEIGHTS IN KG

• 15.5 (Tubeless setup)

APPROX WEIGHTS IN LBS

• 34.17 (Tubeless setup)

MAX. SYSTEM WEIGHT

• 128kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
