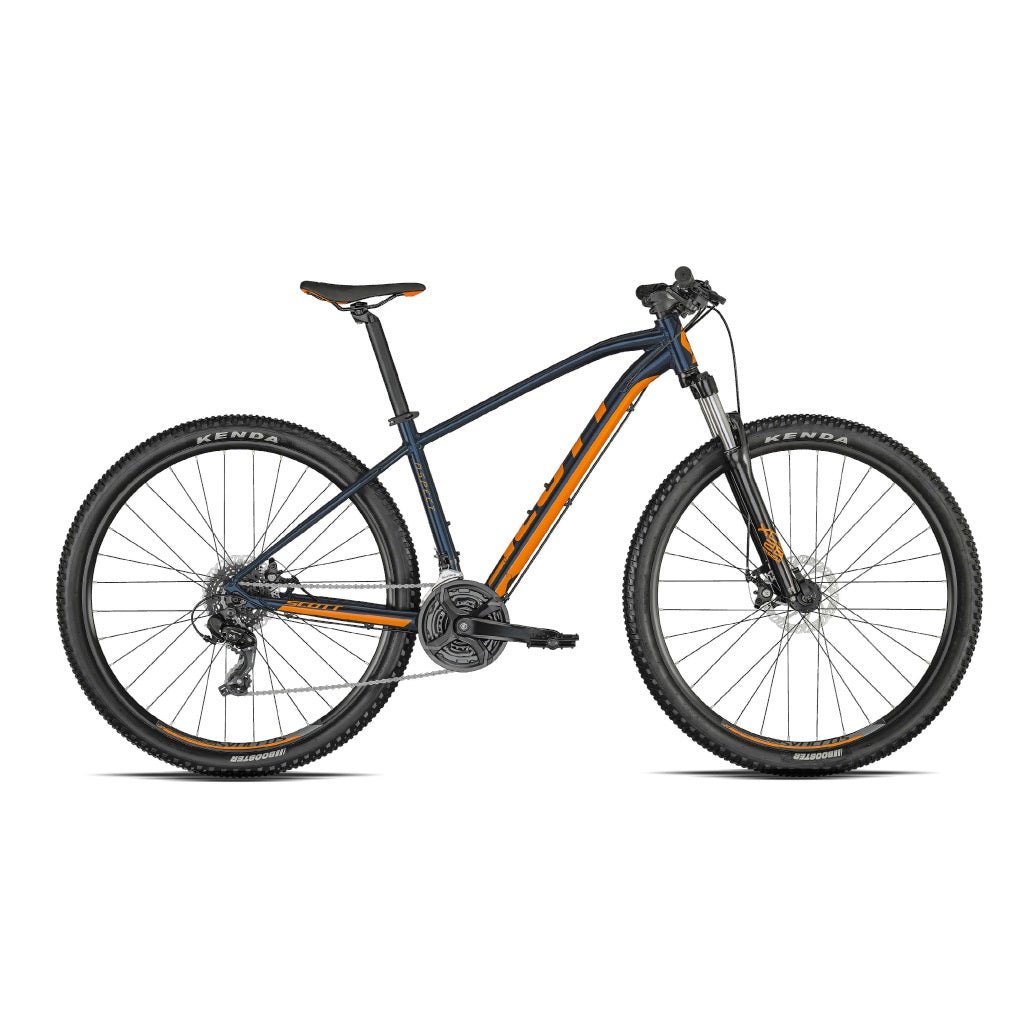

Scott Aspect 970 Mountain Bike

KEY FETAURES

• Aspect 700/900 Alloy Frame
• Suntour XCE28 100mm Fork
• Shimano Tourney 21 Speed
• Tektro Mech. Disc Brakes
• Kenda Booster
• Model: 290246

SPECIFICATIONS

• FRAME: Aspect 900-700 series / Alloy 6061 Custom Tubing BSA73 / Internal Cable Routing / replaceable hanger

• FORK: Suntour XCE28 100mm travel

• REAR DERAILLEUR: Shimano Tourney RD-TY300 21 Speed

• FRONT DERAILLEUR: MicroShift FD-M20 / 31.8mm

• SHIFTERS: Shimano ST-EF-41-L / 7R EZ-fire plus w/gear indicator

• CRANKSET: Prowheel TA-CQ01 42x34x24 w/CG

• BB-SET: Feimin FP.B902 BB73 / square taper

• CHAIN: KMC Z-7

• CASSETTE: Sunrace CSM40 7AV / 11-34T

• BRAKES: Tektro SCM-02 Mech. Disc Brakes

• ROTOR: Tektro / 6 bolt / F&R 160mm

• HANDLEBAR: HL MTB-AL-312BT / 720mm / black / 12mm rise
  Syncros Pro Grip

• H'STEM: TDS-C301-8FOV / 10° / 31.8 / Black

• SEATPOST: HL SP C207 31.6mm / 350mm / Black

• SEAT: Syncros 3.0

• HEADSET: Syncros OE Press Fit / 1 1/8" OD 50mm / ID 44mm

• HUB (FRONT): Formula DC-19 FQR Disc

• HUB (REAR): Formula DC-27A 7s RQR Disc

• SPOKES: 14 G / stainless / black

• RIMS: Syncros X-20 Disc 32H / black

• FRONT TIRE: Kenda Booster 2.4" / 30TPI

• REAR TIRE: Kenda Booster 2.4" / 30TPI

• PEDALS: Feimin FP-803

• APPROX WEIGHTS IN KG 14.95 (with tubes / wo Pedals)

• APPROX WEIGHTS IN LBS 32.96 (with tubes / wo Pedals)

• MAX. SYSTEM WEIGHT: 128kg

  The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
