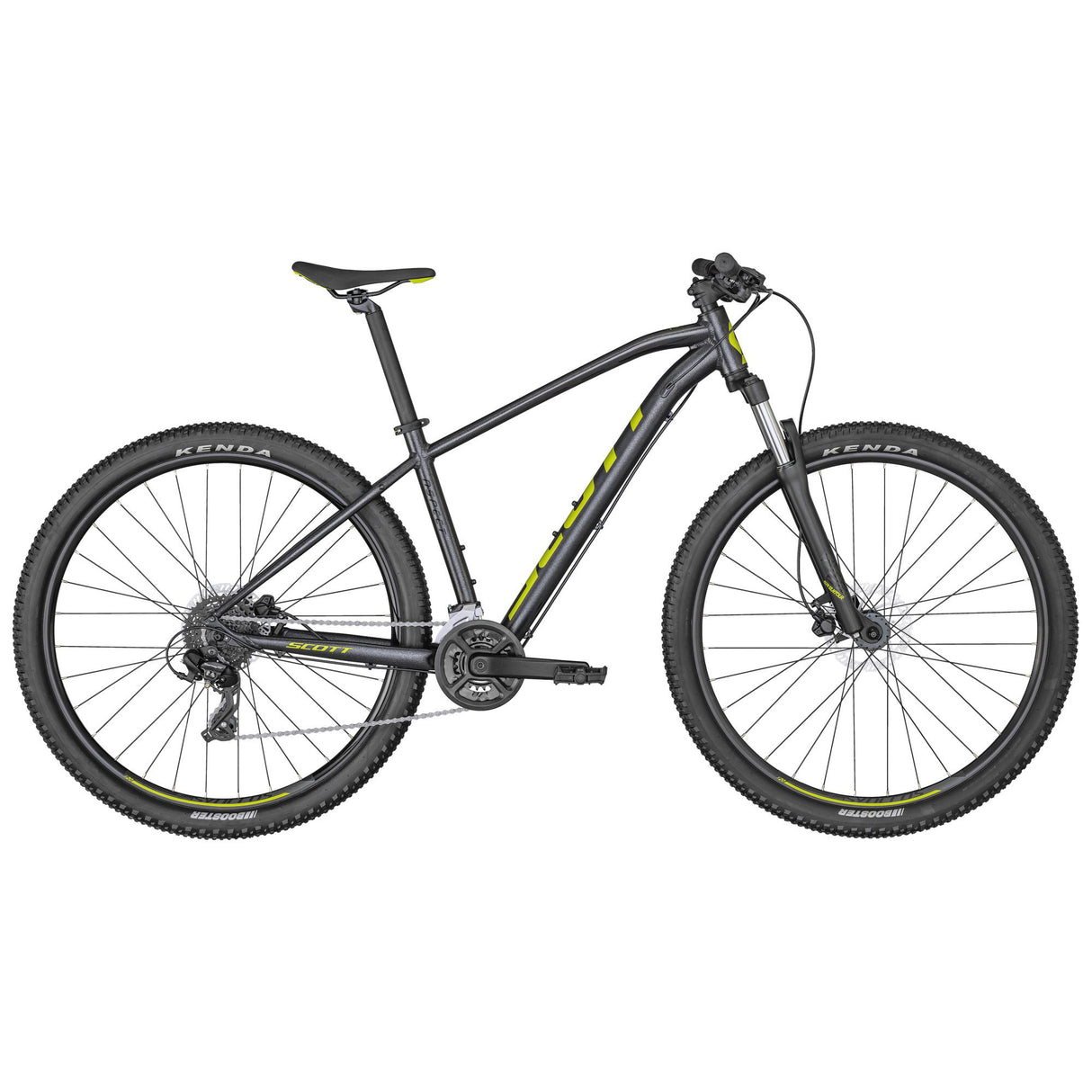

Scott Aspect 960 Mountain Bike

FEATURES

• Aspect 700/900 Alloy Frame
• Suntour XCE28 100mm Fork
• Shimano TX800 16 Speed
• Tektro Hyd. Disc Brakes
• Kenda Booster
• MODEL: 290243

SPECIFICATIONS

FRAME

• Aspect 900-700 series / Alloy 6061 Custom Tubing
• BSA73 / Internal Cable Routing / replaceable hanger

FORK

• Suntour XCE28
• 100mm travel

REAR DERAILLEUR

• Shimano Tourney RD-TX800
• 16 Speed

FRONT DERAILLEUR

• Shimano FD-M315-TS / 31.8mm

SHIFTERS

• Shimano SL-M315
• R-fire plus / 2 way release
• w/gear indicator

CRANKSET

• Prowheel TM-CY01
• 36X22 w/CG

BB-SET

• Feimin FP.B908N
• BB73 / square taper

CHAIN

• KMC Z-8.3

CASSETTE

• Sunrace CSM55 8AV / 11-34T

BRAKES

• Clarks Clout Hydr. Disc Brakes

ROTOR

• Clarks / 6 bolt / F&R 160mm

HANDLEBAR

• HL MTB-AL-312BT / 720mm / black / 12mm rise
• Syncros Pro Grip

H'STEM

• TDS-C301-8FOV / 10° / 31.8 / Black

SEATPOST

• HL SP C207
• 31.6mm / 350mm / Black

SEAT

• Syncros 3.0

HEADSET

• Syncros OE Press Fit / 1 1/8"
• OD 50mm / ID 44mm

HUB (FRONT)

• Formula DC-19 FQR Disc

HUB (REAR)

• Formula DC-25 8s RQR Disc

SPOKES

• 14 G / stainless / black

RIMS

• Syncros X-20 Disc
• 32H / black

FRONT TIRE

• Kenda Booster
• 2.4" / 30TPI

REAR TIRE

• Kenda Booster
• 2.4" / 30TPI

PEDALS

• Feimin FP-873-ZU

APPROX WEIGHTS IN KG

• 14.6 (with tubes / wo Pedals)

APPROX WEIGHTS IN LBS

• 32.19 (with tubes / wo Pedals)

MAX. SYSTEM WEIGHT

• 128kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

GEOMETRY
