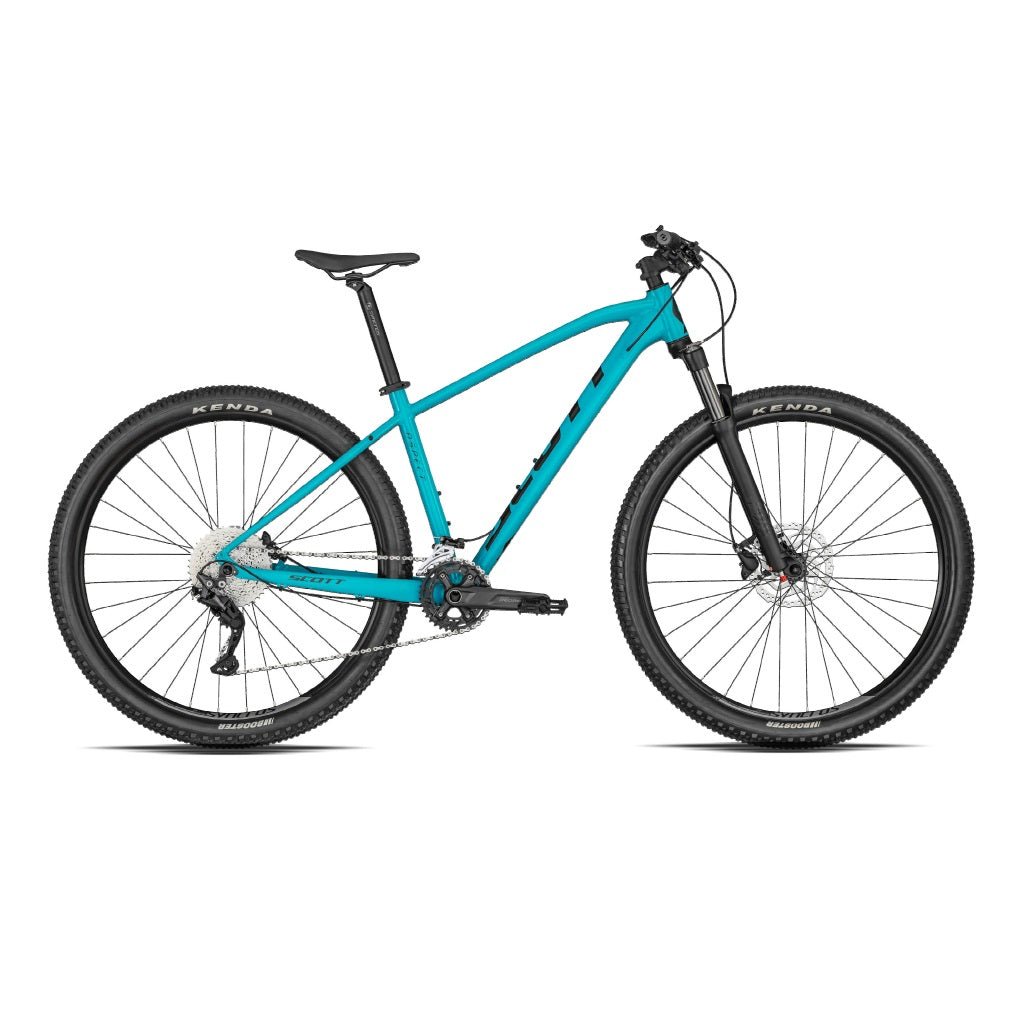

Scott Aspect 930 Mountain Bike

• Aspect 900 Alloy Frame
• Suntour XCR32/X1-RL-R 100mm Fork
• Suntour Remote Lockout
• Shimano Deore 20 Speed
• Shimano Brakes
• Kenda Booster
• Model: 290235 / 290220 / 290202

FRAME
Aspect 900 series / Alloy 6061 Custom Butted Tubing
BSA73 / Internal Cable Routing / replaceable hanger

FORK
Suntour XCR32/X1-RL-R
Remote Lockout / Reb. Adj.
100mm travel

REMOTE SYSTEM
Suntour Remote lockout

REAR DERAILLEUR
Shimano Deore RD-M4120
20 Speed

FRONT DERAILLEUR
Shimano FD-M4100 Side Swing / 31.8mm

SHIFTERS
Shimano SL-M4100
R-fire plus / 2 way release

CRANKSET
PROWHEEL VORTEX-551-TT
2-piece Design / 36X26

BB-SET
Shimano BB-SM-BB52
Hollowtech II / threaded

CHAIN
KMC X10

CASSETTE
Shimano CS-M4100-10 / 11-42T

BRAKES
Shimano MT200 / Hydr. Disc Brakes

ROTOR
Shimano SM-RT10 CL / 180/F and 160/R

HANDLEBAR
Syncros 3.0 / 720mm
black / 31.8mm / 12mm rise / 9° BS
Syncros Comfort Lock-on Grip

H'STEM
Syncros 3.0 / 7° / Black

SEATPOST
Syncros 3.0
31.6mm / 350mm / Black

SEAT
Syncros 3.0

HEADSET
Syncros OE Press Fit / 1 1/8"
OD 50mm / ID 44mm

HUB (FRONT)
Formula CL51

HUB (REAR)
Shimano FH-TX5058

SPOKES
14 G / stainless / black

RIMS
Syncros X-20 Disc
32H / black

FRONT TIRE
Kenda Booster
2.4" / 30TPI

REAR TIRE
Kenda Booster
2.4" / 30TPI

PEDALS
VP VP-536

APPROX WEIGHTS IN KG 13.95 (with tubes / wo Pedals)

APPROX WEIGHTS IN LBS 30.75 (with tubes / wo Pedals)

MAX. SYSTEM WEIGHT 128kg

The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

*Bike specifications are subject to changes.
