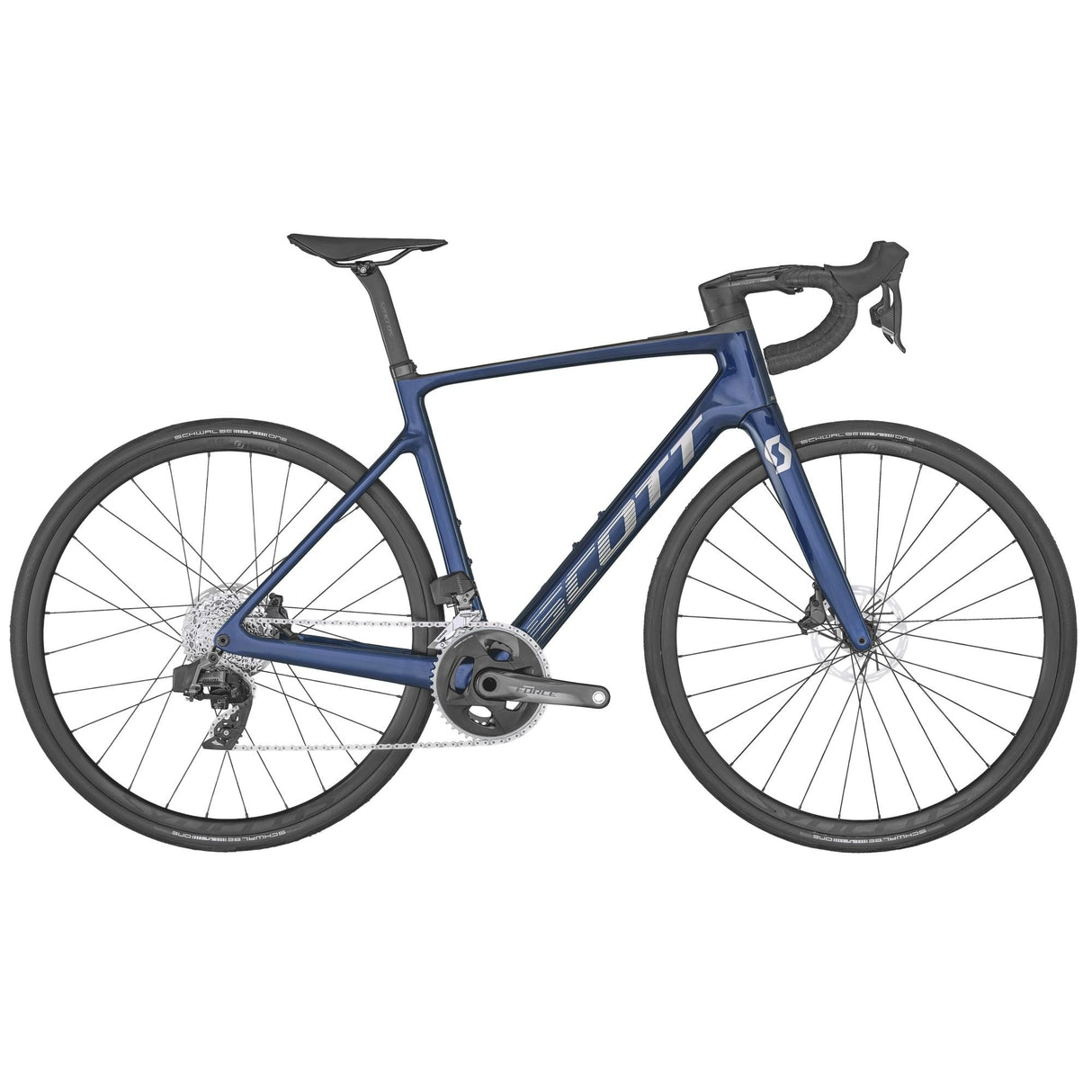

Scott Addict eRIDE 20 Electric Bike

KEY FEATURES

• Addict RC Disc HMX Carbon Frame
• Addict eRIDE HMX Fork
• SRAM RIVAL eTap AXS 24 Speed
• Mahle Motor Hub drive 60Nm max Torque, up to 425Wh
• Syncros Capital 2.0 25e Disc Wheels
• Schwalbe One Tires
• Syncros Carbon/Alloy parts

SPECIFICATIONS

FRAME

• Addict eRIDE Disc HMX
• Endurance geometry / Replaceable Derailleur Hanger
• Fully Internal cable routing
• Range Booster Ready

FORK

• Addict eRIDE HMX Flatmount Disc
• 1 1/4"-1 1/2" Eccentric Carbon steerer

DRIVE UNIT

• Mahle X20 Motor Hub drive 60Nm max Torque / EU: 25kmh / US: 20mph

BATTERY

• Mahle 36V-250Wh

DISPLAY

• Mahle One
• Bluetooth / Dedicated Smartphone app

CHARGER

• Mahle 100-240V-4A

REAR DERAILLEUR

• SRAM RIVAL eTap AXS
• 24 Speed Electronic Shift System

FRONT DERAILLEUR

• SRAM RIVAL eTap AXS Electronic Shift System

SHIFTERS

• SRAM RIVAL eTap AXS HRD Shift-Brake System

CRANKSET

• SRAM RIVAL Crankset
• 46/33 T

BB-SET

• SRAM DUB PF ROAD 86.5

CHAIN

• SRAM RIVAL

CASSETTE

• SRAM RIVAL XG1250
• 10-36 T

BRAKES

• SRAM RIVAL eTap AXS HRD Shift-Brake System
• Flatmount

ROTOR

• SRAM Paceline rotor 160/F and 160/R

HANDLEBAR

• Syncros Creston 2.0 Compact
• Alloy

H'STEM

• Syncros RR iC
• 1 1/4"

SEATPOST

• Syncros Duncan 1.0 Aero

SEAT

• Syncros Belcarra Regular 2.0

HEADSET

• Syncros Addict RC Integrated

WHEELSET

• Syncros Capital 2.0 25e Disc
• 24 Front 12x100mmTA /32 Rear 12x142mmTA

FRONT TIRE

• Schwalbe ONE Race-Guard Fold
• 700x30C

REAR TIRE

• Schwalbe ONE Race-Guard Fold
• 700x30C

APPROX WEIGHTS IN KG

• 11.80

APPROX WEIGHTS IN LBS

• 26.01

MAX. SYSTEM WEIGHT

• 120 kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

GEOMETRY
