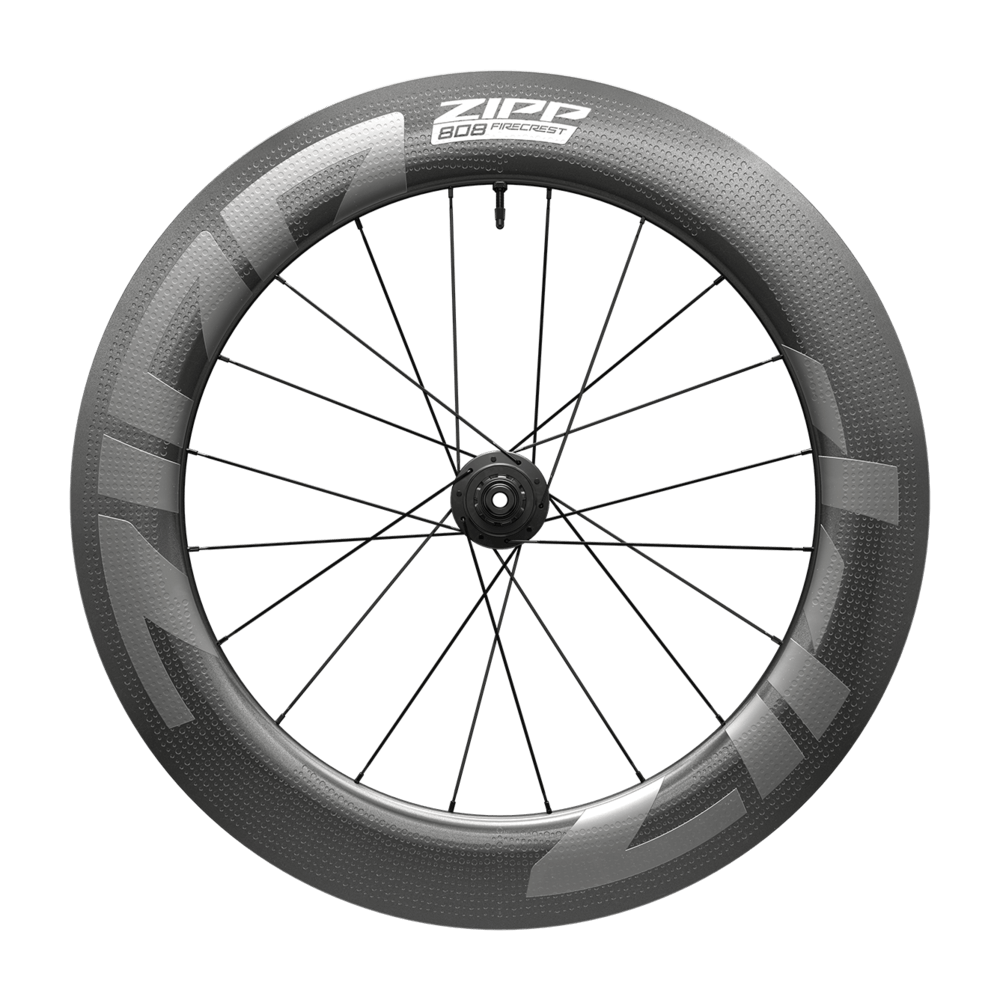

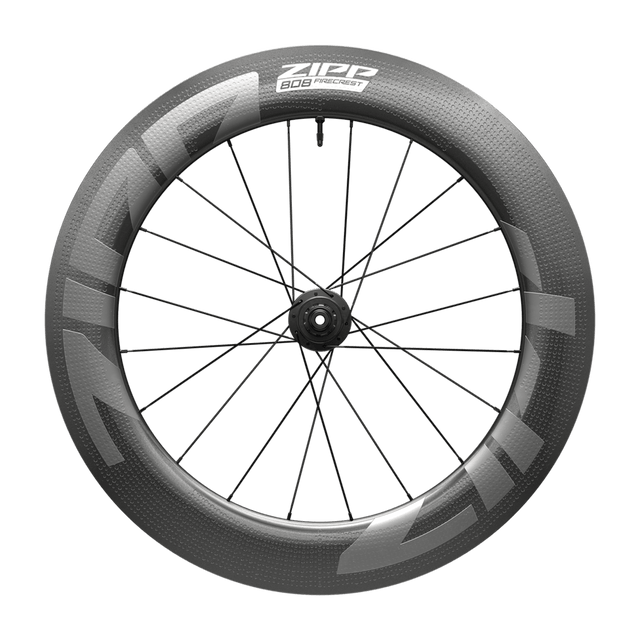

Zipp’s 808 Firecrest Tubeless Disc-wheelset is all about science to achieve speed. That’s the perfect approach for Zipp’s stiff deep-rim choice for criteriums, road racing, or any kind of hammer-fest.
OVERVIEW
Zipp’s 808 Firecrest Tubeless Disc-wheelset is all about science to achieve speed. That’s the perfect approach for Zipp’s stiff deep-rim choice for criteriums, road racing, or any kind of hammer-fest. At 80mm deep, its rim is designed to make you faster in every way. Zipp’s Total System Efficiency design approach, or TSE, infuses the 808 Firecrest with new features, including a huge drop in weight from its previous iteration, well more than 280 grams. Also, the wheel is designed with a hookless and tubeless rim profile and 23mm internal width. That’s ideal for running wider tires at lower pressure for reduced rolling resistance and greater cornering grip. In fact, TSE attacks the four primary barriers to speed: Wind Resistance, Gravity, Rolling Resistance, and Vibration Losses. Zipp’s legendary Firecrest rim shape provides high aero efficiency and crosswind stability. Also, Zipp’s ABLC Technology uses a complex dimpling pattern to improve aero efficiency. What’s more, while this wheelset is optimized for tubeless tires, you still have the option to run Tubeless or tubeless ready tires with tubes. The 808 Firecrest with TSE builds on this wheel’s legacy as a go-to wheel fastest or optimized for TT, tri and crit racing. This wheelset is fastest with a 28mm tire. Disc brakes also off er more reliable speed modulation and braking power in all weather conditions. What’s more, in triathlon, running wider tubeless tires at lower pressure makes you faster while also smoothing out the ride so your legs are fresher for the all-important run. Zipp’s German-engineered ZR1 DB Hubset provides quick engagement with robust durability, adding to the punchiness of the 808 Firecrest.
FEATURES
TSE design with 23mm internal width with tubeless and hookless rim profile ideal for wider tires at lower tire pressure
Minimum 25mm tire the 808 is optimized for a 28mm tire.
Almost 274g lighter than previous model
ZR1 DB hub is engineered in Germany with better seal design for improved durability and quicker response with 66 points of engagement
An all-out aero 80mm rim profile
ABLC dimple design helps manage air flow around the rim, and contributes to create a faster, more stable wheel
Superior modulation and stopping power of disc brakes
Center locking rotor interface. Lockring is included
Built with Sapim™ CX Sprint J-bend spokes
Zipp graphics and cosmetic identity that scream speed
SRAM/Shimano™ driver bodies
Campagnolo® N3W Driver body sold separately
Ships with 12mm front and rear end caps
Lifetime warranty
TECHNOLOGIES
Zipp’s Total System Efficiency (TSE) wheel-design is based on a simple premise: Efficiency equals speed. The combination of a new rim laminate with a wider rim profile optimized for tire interface, transforms your ride experience to overcome the four barriers to speed: wind resistance, gravity, rolling resistance, vibration losses.
Just how effective is TSE? Outdoor testing at commissioned by Zipp revealed the real-world gains of Zipp Total System Efficiency (TSE) at 40kph. The 454 NSW with TSE™ required a 10-watt savings to maintain that speed compared with the previous model. The 404 Firecrest TSE showed a 4 watt savings.
TSE approach is a balanced attack against the four barriers to speed:
These four enemies of speed are present, to varying degrees, in all road-cycling disciplines. TSE-designed wheels are optimized to make you faster no matter road surface or discipline (Use color code above to see barriers to speed in specific cycling disciplines):
WIND RESISTANCEOur Solution: Conquering wind resistance through gains in aerodynamic efficiency and crosswind stability is Zipp’s longtime forte with our industry-changing Firecrest and Sawtooth NSW rim shapes. In modern road bikes, disc brakes improve stopping power, but they also help you increase speed. The absence of rim-brake calipers allows for a wider rim profile with a smoother tire to rim interface for optimum aero performance with larger tires that provide a net gain inefficiency.
GRAVITYOur Solution: Zipp wheels with TSE are remarkably lighter, about a pound lighter in the case of the 454 NSW. With advanced in our carbon manufacturing, Zipp designs wheels with massive weight savings. The 454 NSW Tubeless Disc-brake wheelset is roughly a pound (more than 400 grams) lighter than its predecessor! Typically, weight reduction comes at the price of durability. Yet, the design, rim laminate, and manufacturing process used on TSE-designed wheels provides robust durability at a lighter weight.
ROLLING RESISTANCEOur Solution: Perhaps you remember this from physics class: pressure = force distributed over an area. In cycling, the tire-contact patch area is determined by the rider’s weight and your tire pressure. If you got on two different bikes with two different width tires but the same tire pressure on both bikes, the contact patch of the different tires would match because both tires are supporting the same load with the same pressure. The only difference in these two scenarios is the SHAPE of the contact patch. A wider tire will produce a wider and shorter contact patch compared to a narrow tire.There are two ways to make a tire wider – get a bigger tire or get a rim with a wider tire bed. Wider rim + wider tire = wider and shorter tire contact patch. This promotes less tire sag, which deforms the tire less, resulting in less energy lost in the rolling tire. Improving rolling resistance has the same magnitude of impact on overall efficiency as choosing the right rim shape.
VIBRATION LOSSESOur Solution: Using a new rim laminate, we design Zipp wheels to be versatile: They can be ridden on traditional roads, but they are also capable of tackling harder terrain including rough roads, light gravel, and—of course—the cobbles of the Spring Classics. We designed wheels with wider tire beds to be run at lower tire pressures to smooth out the ride.
LESSONS FROM ZIPP’S ROLLINGROAD™In developing TSE, Zipp engineers set up a “RollingRoad™” to duplicate surface conditions cyclists encounter in the real world in our test lab. The Rolling Road™ allows us to capture data to analyze the efficiency of different bike setups over various surfaces.Riding with low pressure , our rider (right) is calm and focused. Riding with high pressure, our rider (left) is visibly uncomfortable and laboring to maintain control of the bike. The whole-body vibration seen here stems from the amount the tires can absorb the bumps. More pressure leads to more vertical displacement. Low pressure cuts out road input significantly.
SMOOTHING THE RIDEVertical displacement robs energy from the system and goes right into the rider’s body. Look at the arms in these two different setups: That muscle moving back and forth is soaking up power from the system. The human body is acting like a big damper system. The less you vibrate the damper, the less energy you lose to vibration.Your next question should be, “So what?” How much power loss are we talking about? 1 watt? 3 watts?
PSI VS. POWERData from our RollingRoad™ tests show the difference between ultra-low pressure and high pressure can account for 50 watts in efficiency gains on a rough road. The tests measured the power required to ride 32kph (20mph) over various surfaces. We captured energy lost to tire deformation, drivetrain, and whole-body vibration.The order of magnitude of this type of loss warrants your attention. As surface roughness increases, you want to run larger tires at lower pressures. We advocate using a tubeless setup to capture full benefits. Pinch flats are much less likely at low pressure when running tubeless. Added benefits of a wider tire at lower pressures are better handling and cornering. Your tires will not skip off small bumps and lose traction while cornering.
ZIPP HOOKLESS TECHNOLOGY
SPECIFICATIONS
SIZE (WHEELS)
700c
RIM CONSTRUCTION
Carbon – Hookless
HUB
ZR1 Disc Brake
TIRE COMPATIBILITY
Tubeless tires only
RIM DEPTH
80mm
BRAKE COMPATIBILITY
Disc (Center Lock)
DRIVER BODY TYPE
n/a, SRAM XDR, SRAM/Shimano Road
RIM - INSIDE WIDTH
23mm
MAX RECOMMENDED SYSTEM WEIGHT
250lbs
MAX TIRE PRESSURE
73psi
RIM FINISH
UD fiber, adhesive decals
RIM PROFILE
Symmetrical
SPOKE LENGTH DS
224mm, 236mm
SPOKE LENGTH NDS
238mm, 240mm
WEIGHT (G)
1635
WEIGHT BASED ON
Wheel set in lightest configuration: 12mm through axles and XDR body. No tape or valve included. Front: 752g Rear: 883g
