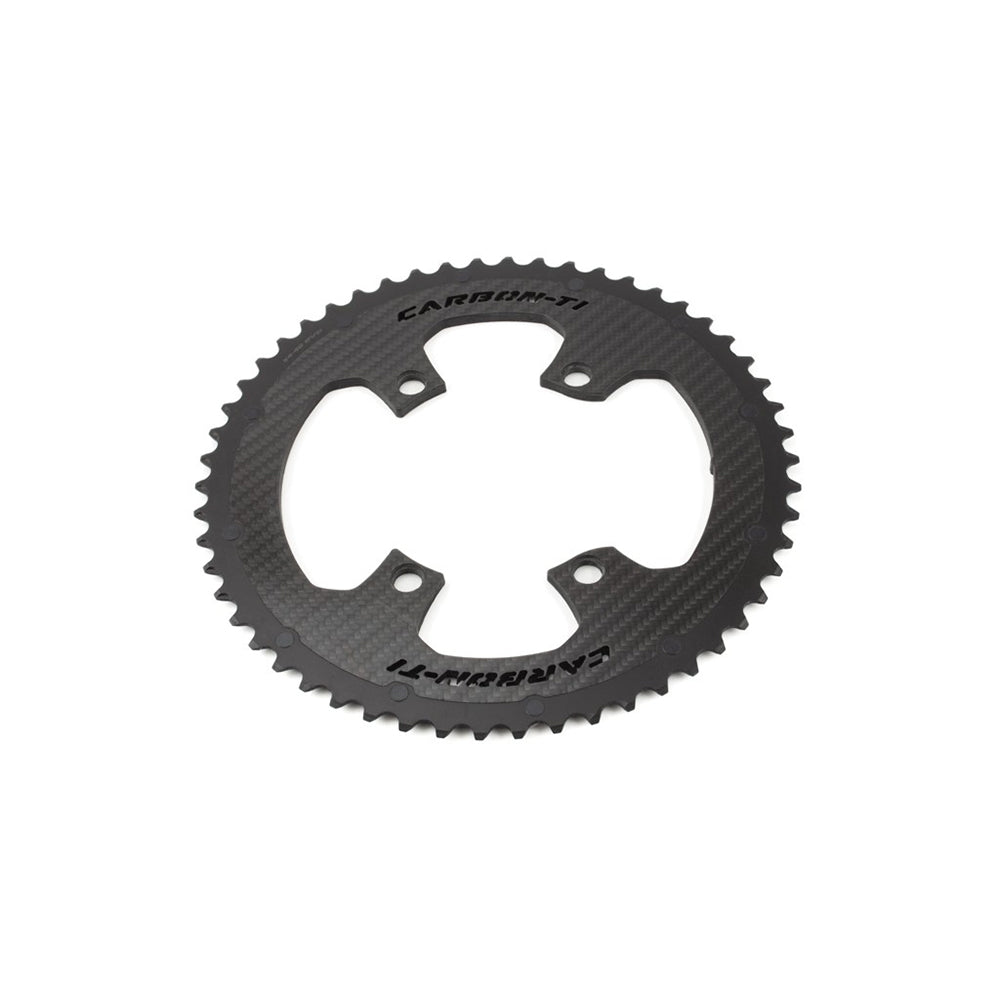

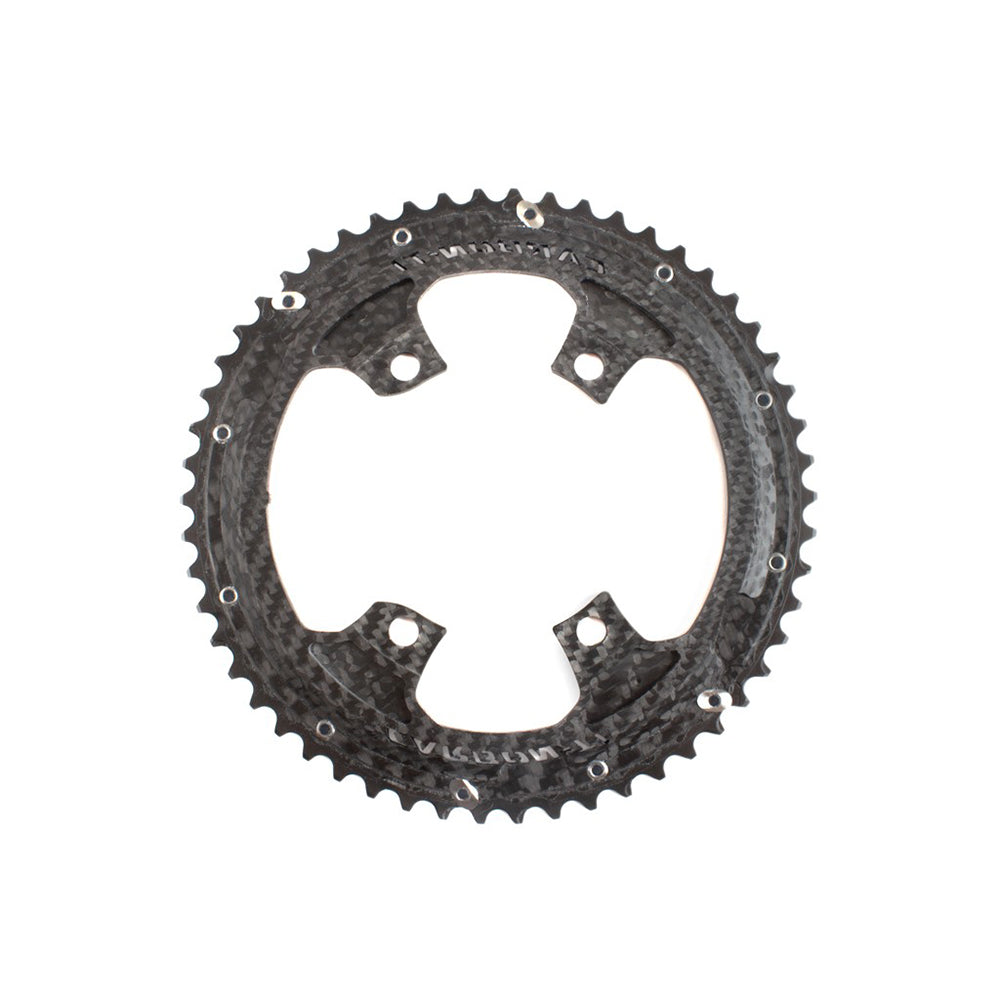

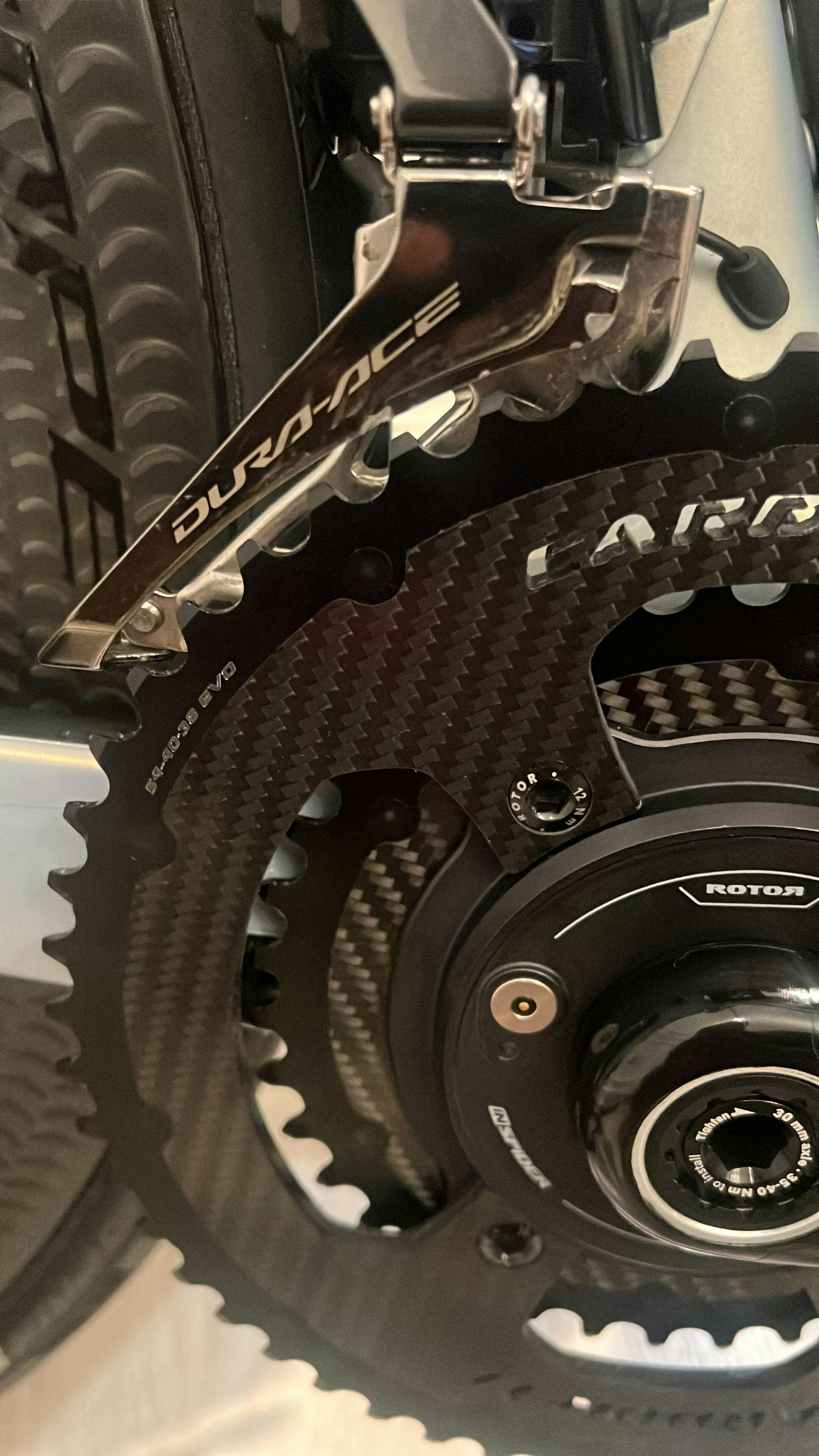

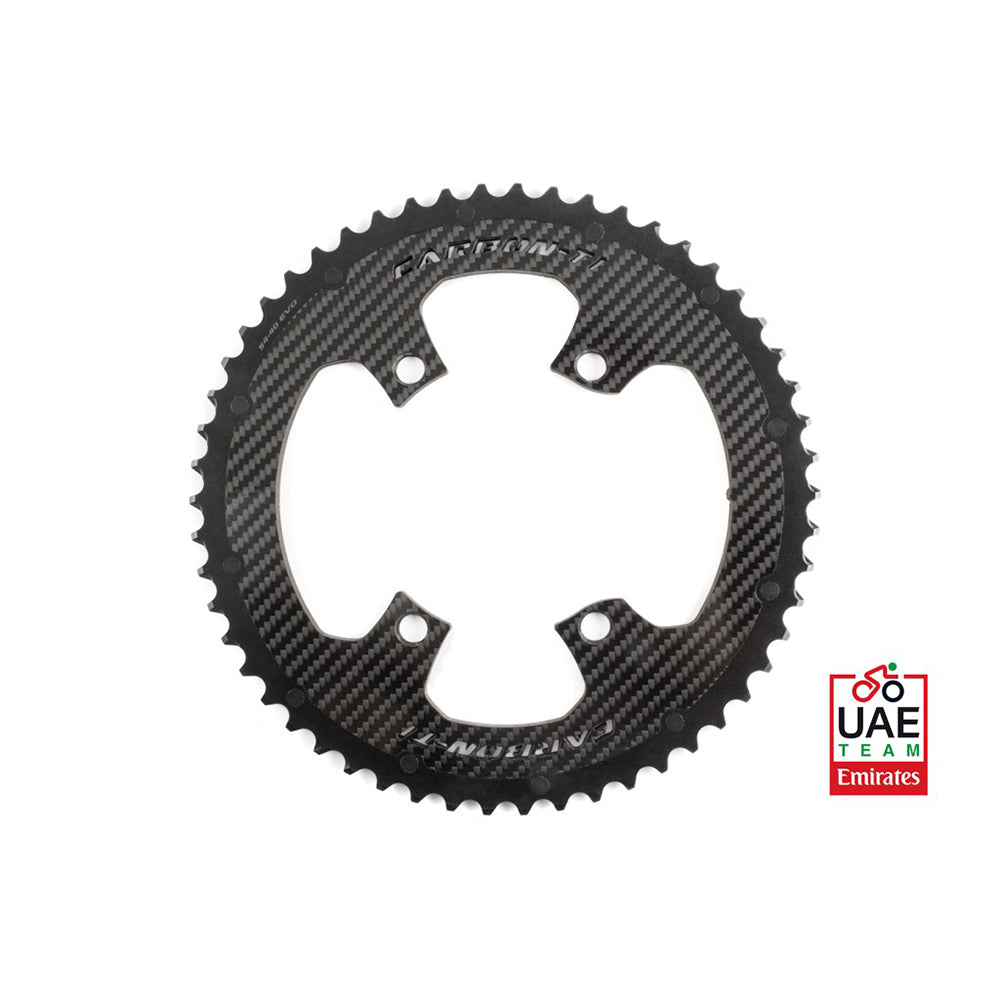

X-Carboring EVO BCD 110 DA9200 (4 arms) are made for Shimano Dura Ace and Ultegra 12 speed cranks, as well as for the top-rated SRM Origin power meters. The wording "EVO" distinguishes this new generation of external chainrings which adopts the well known innovations that already belong to the latest "X-AXS" chainrings specific for SRAM AXS 12s groupsets.
In detail, the outer chainrings are now produced with a thicker carbon fiber plates, to obtain a higher stiffness and to allow a more elaborate CNC machining. These ramps together with the redesigned titanium elements have the function of "harpooning" the chain, transferring it from the smallest to the largest chainring and allow fast and precise up-shiftings and down-shiftings with both electronic and mechanical derailleurs.
X-Carboring EVO chainrings are available in sizes 54/40, 53/39, 52/36 and 50/34 as well as in the unedited 58/46 and 56/44.Compatibility is ensured for Shimano 11 and 12 speed, Campagnolo 11 and 12 speed and SRAM 11 speed groupsets (and chains).
It is recommended to use the X-Cover DA9200. It is a specific kit for Shimano DuraAce 9200 12s cranks and is made up of AL7075-T6 alloy.
Alternatively, the X-Fix ROAD kit is available with customized laser engravings and in a wide range of anodized colors.
- Chainring in AL7075-T6 aluminum alloy, 3K glossy structural carbon fiber with Titanium Grade 5 elements.
- Outer gear with 54 teeth and BCD 110 mm 4 arms, compatible with Shimano Dura-Ace FC-9200, Ultegra FC-8100, SRM Origin, and Rotor Power Meter INSpider cranks. Compatible with Shimano Dura-Ace 9200, Ultegra 8100, Campagnolo 12-speed groupsets, and all previous 11-speed groupsets.
- Not compatible with SRAM AXS 12 speed groups (choose the specific X-AXS chainrings).
- It must be coupled with its inner X-CarboRing 40 x 110 (4 arms) chainring.
- It is recommended to use the X-Cover DA9200. It is a specific kit for Shimano DuraAce 9200 12s cranks and is made up of AL7075-T6 alloy.
- Alternatively, the X-Fix ROAD kit is available with customized laser engravings and in a wide range of anodized colors.
- 100% made in Italy.
