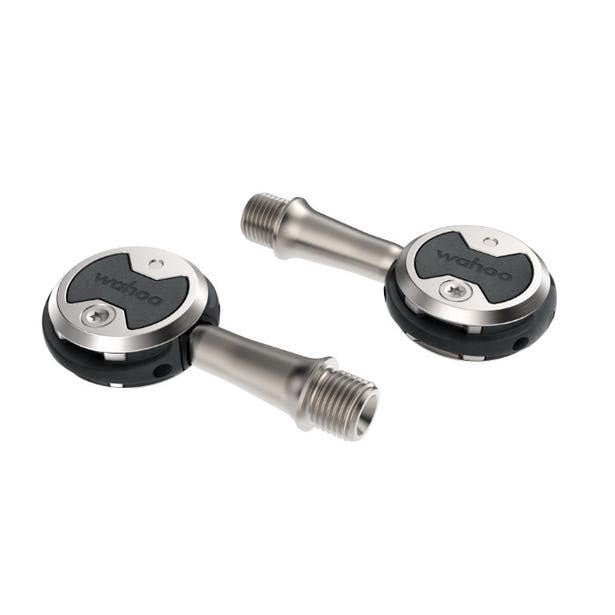

Wahoo Speedplay Nano Pedal

• Part Number: WFPRN1S53
• Physical Dimensions: 3.9" x 2" x 2"
• Shipping Weight: 1.1lb
• Box Dimensions: 5.9" x 2" x 3.9"
• Country of Origin: Vietnam
• Weight: 168g per pair
• Stack Height: 11.5mm (3 hole) 8.5 (4 hole)
• Q Factor: 53mm
• Body Material: Carbon Composite
• Spindle Material: Titanium
• Bearing Type: Triple Sealed Cartridge & Needle Bearings
• Cornering Clearance: 39°
• Max Rider Weight: 180lb / 82kg
• Cleats: Standard Tension Included
• Release Angle: Micro Adjustable from 0° to 7.5°
• Pedal Float: Adjustable from 0° to 15°
• Cleat Fore - Aft Adjustability: Up to 13mm
• Cleat Left - Right Adjustability: Up to 8mm
• Walkable Cleat: Yes (adaptor included)
• Cleats are included.

Wahoo Speedplay pedals are designed for road cycling only. For the best riding experience, ensure your cleats are clean before and during every ride. Off-road cycling can result in damage to the cleats and/or debris becoming lodged in the cleats.

• Left and Right Pedals
• Cleat Assembly
• Screw Packet
• Quick Start Guide
• Important Product Information Guide

Additional Tools Required for Assembly: #2 Philips Head Screwdriver and 8mm Allen Wrench
