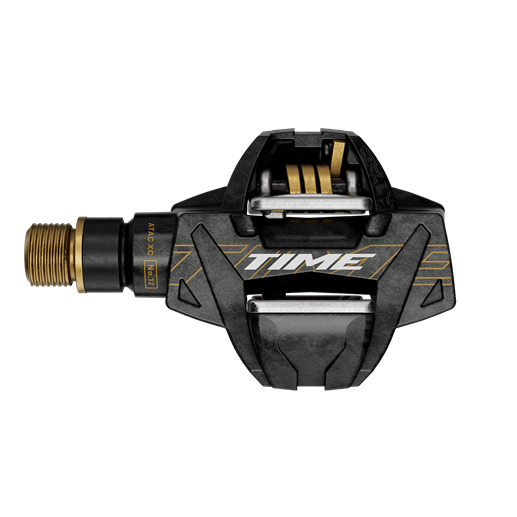

Time ATAC XC 12 Titanium B1 MTB Pedals
The ATAC XC 12 is our lightest off-road pedal, purpose-built for quick windup and trail speed. TIME’s premier XC pedal is also designed for your comfort thanks to an ergonomic design. It all starts with simple clip-in thanks to a wide-angle of positive cleat engagement. Once you’re in the clipped in, the features of ATAC XC 12 really kick in: Freedom of movement lateral and angular for reduced injuries and muscle fatigue. The pedal’s self-cleaning design clears mud and debris each time you step in. Light and strong with a titanium axle and carbon body, ATAC XC 12 offers easy and consistent engagement with tension adjustment to meet your pedal preference and needs. This pedal is ideal for gravel and cyclocross as well. Read More
Time ATAC XC 12 Titanium B1 MTB Pedals
FEATURES
FEATURES
- Ideal for XC, gravel, or cyclocross.
- Easy clip in and pedal engagement.
- Titanium axle and carbon body for light weight.
- Self-cleaning design to push out mud with step in.
- Tension adjustment.
- Cleats included with all pedal purchases.
-
Model: PD-XC-12-B1
SPECIFICATIONS
SPECIFICATIONS
| Bearings |
Steel |
|---|---|
| Body component |
Carbon-filled |
| Cleats |
ATAC cleats |
| Pedal stack height |
18.3mm |
| Angular freedom |
+5° to -5° with free cleats, 0° with fixed cleats |
| Contact surface area |
n/a |
| Distance pedal spindle/crank arm |
54mm |
| Lateral freedom |
+2.5 mm or -2.5 mm |
| Release angle |
10° with ATAC Easy cleats, 13 or 17° with ATAC cleats |
| Tension |
3 different positions of the spring |
| Threading |
9/16 - 20 inch |
| Platform Size |
n/a |
| Color (Pedal) |
Carbon Gold |
| Accessories |
ATAC cleats |
| Intended use |
XC, CX, Gravel |
| Power Measurement |
Not Compatible |
| Weight (per pedal) |
120g |
| Weight (g) |
120 |
