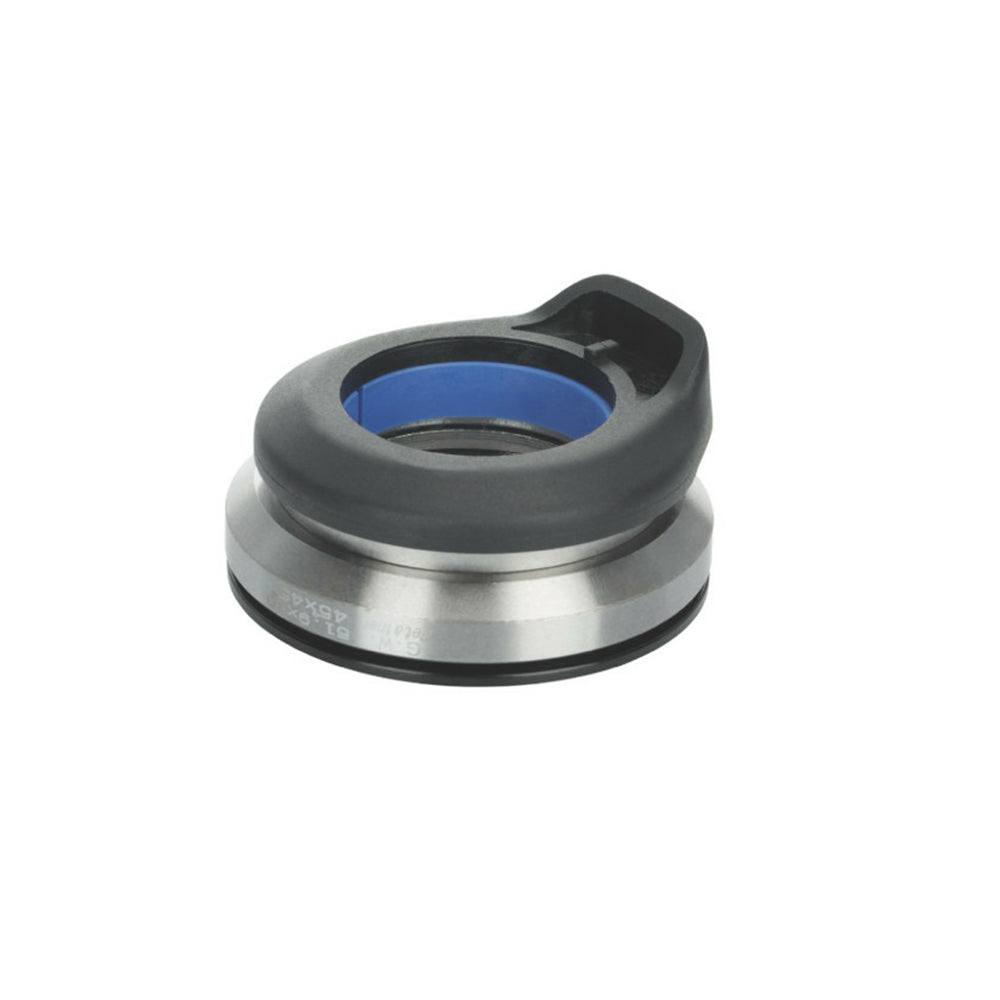

Syncros Headset IS42/28.6 - IS52/40

SPECIFICATIONS

• Material: stainless steel, plastic
• Design: fully integrated
• Steerer tube: 1 1/8" - 1.5" tapered
• SHIS upper part: IS42/28.6
• SHIS lower part: IS52/40 (45° x 45°)
• Press-in dimension above Ø: -
• Offset above: -
• Press-in dimension below Ø: -
• Offset below: -
• Outer diameter (bearing) top: 42 mm
• Outside diameter (bearing) below: 52 mm
• Overall height (only bearing) above: kA
• Overall height (only bearing) below: kA
• Bearing seat: 45°/45°
• Bearing : industrial bearings, double sealed
• Colour: silver, cover cap black
