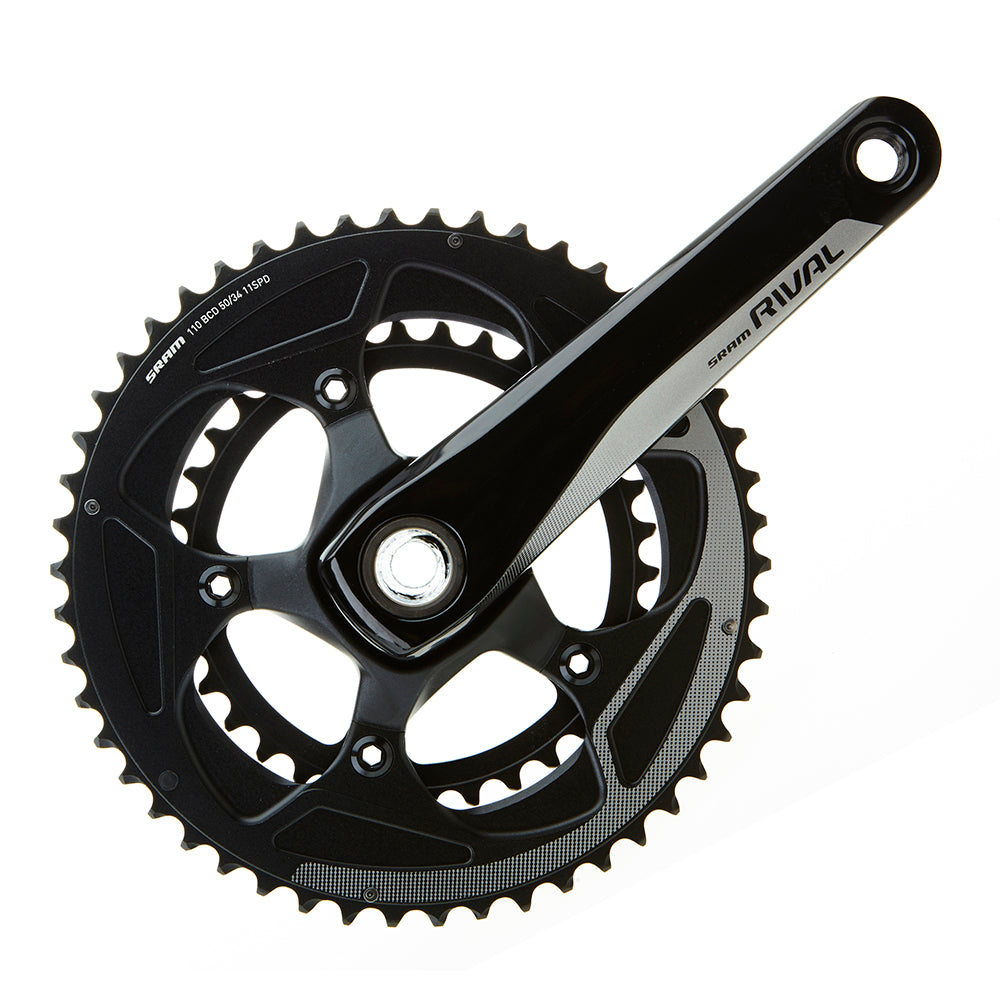

Sram Rival 22 Crankset

The SRAM Rival 22 groupset delivers immense performance across a wide variety of bikes and disciplines. Paved or not. Cyclocross or triathlon. Road racing or uncharted journeys. Rival 22 provides the tools and technology to meet each challenge and expand your limits.

• SRAM Road 11-speed Yaw™ compatible.
• Aluminium arms and a machined spider for strength and improved stiffness.
• Alloy X-GlideR™ chainrings with advanced shift timing pins and ramps, which are optimised for shifting with the Yaw™ front derailleur.

BB30
Besides serious weight savings, this bottom bracket means narrow Q-factor, more ankle clearance, greater bearing durability, and stronger crank construction.
GXP
GXP’s gutter seal design cuts friction, durability and weight—improving both feel and performance.
PressFit 30
It’s all the best from BB30 and Press-Fit bottom brackets in one captivating package. This bottom bracket is designed for 30mm spindle cranksets. The key difference with PressFit 30 is how the bearings are fitted into the frame. Bearings are housed in nylon cups which will be pressed into the frame's bottom bracket shell. PressFit 30 will feature an integrated seal, pre-assembled into the cups, to further prolong bearing life.
X-GlideR Chainrings
X-GlideR Chainrings are designed for an optimised shifting performance with the Yaw front derailleur. The stiffer rings (5mm 7075-T6 aluminium CNC-machined) feature upshift rivets with an advanced design adopted from SRAM XX. CNC machining allows for precision control of each tooth shape, ramp, and nearly every shifting feature of the chainring. The chainrings, chain, and front derailleur are designed as a single integrated system for optimised performance.
PressFit GXP
A variant of the external GXP bottom bracket, PressFit cuts weight by up to 40 grams and eases installation by allowing you to press the bearing cups into the frame instead of threading them. It requires no change to the crank spindle length and diameter.

• Speeds: 11

• BB Compatibility: BB30/PF30-68mm, GXP/PF GXP 68mm

• Chainring Size: 50/34T

• Crank arm length: 172.5mm

• Chainline: 45.0mm

• BB Spindle Interface: 30mm, GXP

• Chainring material: Aluminium/Aluminium

• Bolt Circle Diameter (BCD): 110 BCD

• Power meter: No

• Power Meter Type: n/a

• Chainring Offset: n/a

• Bottom Bracket Technology: 30mm, GXP

• Cranksets Type: Road

• Chain Technology: 11 Speed Powerchain

• Drivetrain Configuration: 2x

• Technology (FD): Road-Yaw

• Front Tooth Jump: 16

• Chainring Mount Interface: Integrated (BCD)

• Weight Based On: wout/BB
