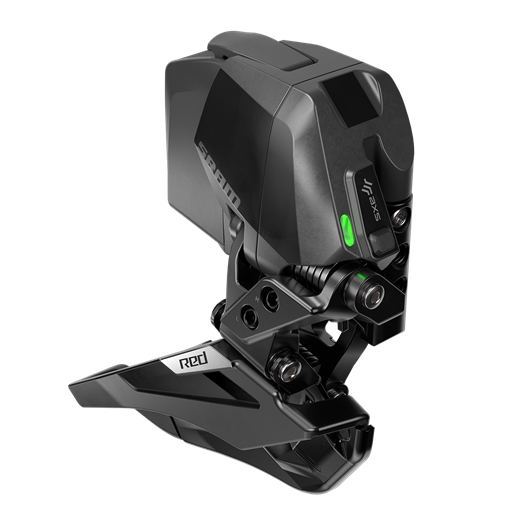

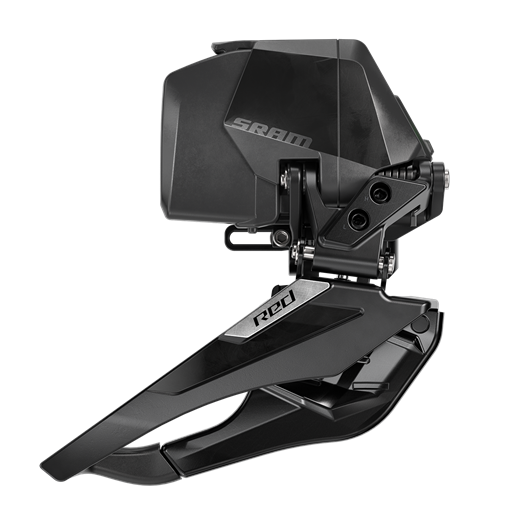

SRAM RED AXS Front Derailleur E1 Braze

FEATURES

• AXS is enabled for easy wireless setup, monitoring, personalization, and reliability

• Refined cage shape results in faster and more accurate front shifts

• Easy setup with included tool

• SRAM Yaw cage technology optimized for use with X-Range chainrings

• Auto trim functionality for Rasp Free Running

• Compatible with 46/33T, 48/35T, 50/37T, 52/39T, 54/41T, and 56/43T chainring combos


SPECIFICATIONS

• Speed (FD): 12

• Compat - Chainring (FD): 46/33T, 48/35T, 50/37T, 54/41T, 56/43T

• Mounting type (FD): Braze-on

• Cable routing: N/A

• Color (FD): Black

• Chainstay Angle: 61-66 degrees

• Clamp size (FD): N/A

• Drivetrain Configuration: 2x

• Technology (FD): Road-Yaw

• Chainline: 45.0mm

• Chain Technology: Road Flattop D1, Road Flattop E1
• UPC Code: 710845905124
• Piece Height: 7.500
• Piece Length: 16.000
• Piece Width: 16.000
• Piece Weight: 0.339
