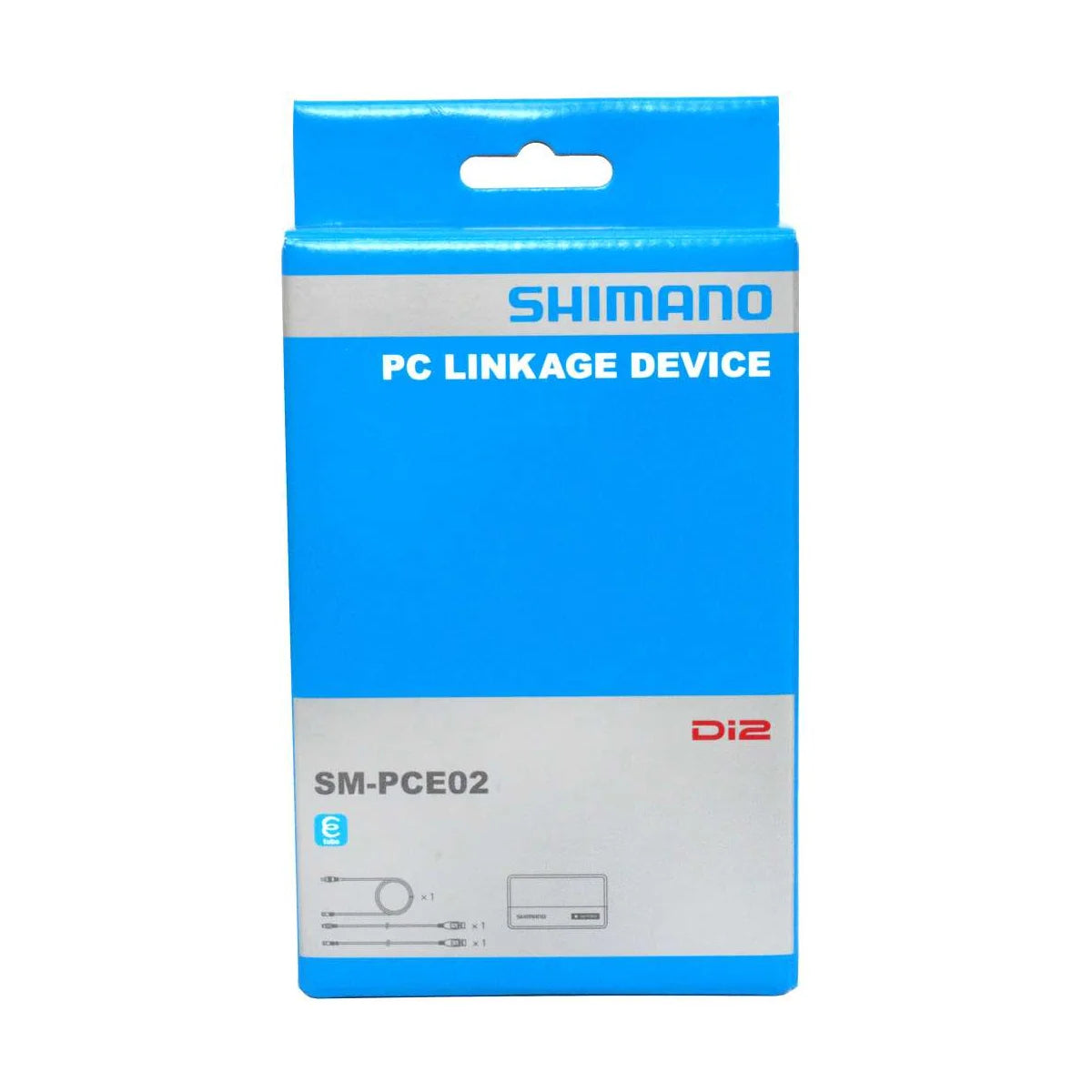

Shimano PC Linkage Device Steps SM-PCE02

The Shimano SM-PCE02-B PC Interface / Linkage Device is a maintenance tool for E-Bike STEPS and Di2 groups that connects directly to a computer. It features improved communication quality to reduce noise and includes an easy-to-use function for checking current leakage. The Shimano SM-PCE02 connects via a Micro USB port.

• Connects directly to a computer for maintenance

• Reduces noise with improved communication quality

• Checks current leakage with an easy-to-use function

• Updates unit firmware through the internet

• Saves and writes settings across multiple bicycles with the preset function

• Works with Shimano STEPS, Di2, and FOX Float iCD suspension

• Connection check: Checks that each unit is connected correctly and recognized by the PC.

• Customize: Lets you customize the global functions and operations of the system to suit your needs.

• Error check: Checks the operation of one or more connected units and identifies units with a problem. It does not fix problems, and it may not find every problem.

• Update firmware: Updates the firmware for each unit, which is downloaded via the internet.

• Preset: Reads or writes all settings of one or more connected units at once. Settings can be saved in a file and written to multiple bicycles.

• Unit log acquisition (E-Bike category only): Acquires data from the units and shows it in a report, including each unit’s settings and the battery status.

• Complete Setup: Disconnect the unit from the computer after setup. The unit may not operate properly until this is done.

• Brand: Shimano

• Model: SM-PCE02-B

• Product Type: PC Interface / Linkage Device

• Connection: Micro USB port

• Compatibility: Shimano STEPS and Di2 components, FOX Float iCD suspension
