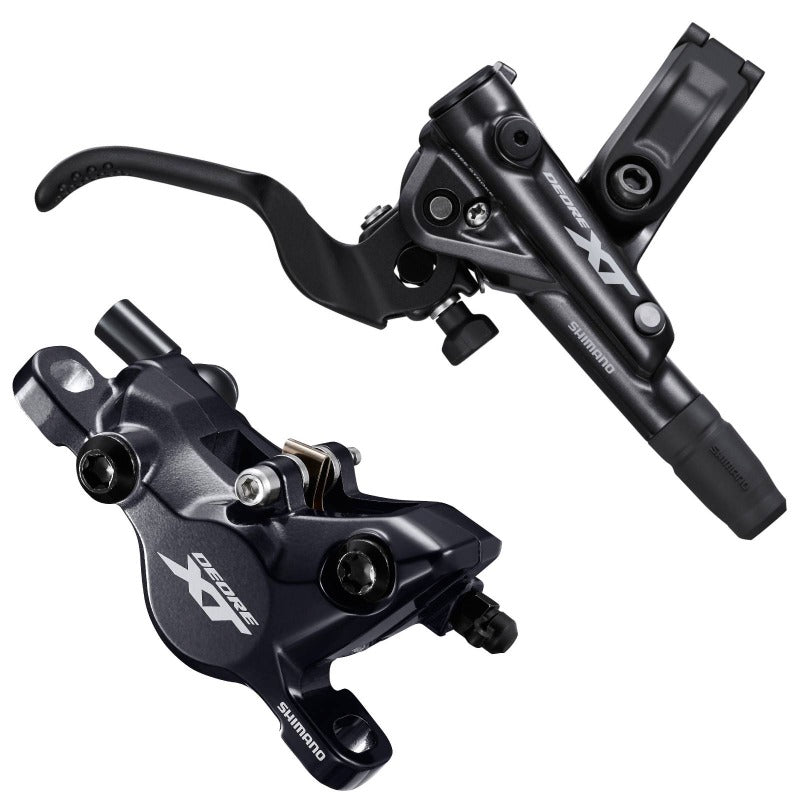

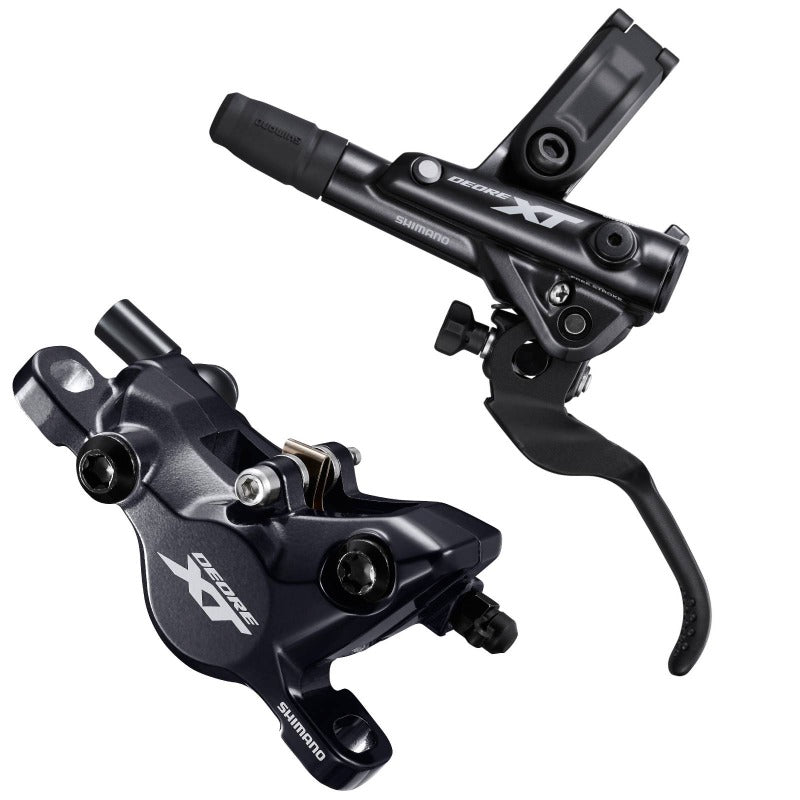

Shimano BR-M8100L/BL-M8100R XT Disc Brake system

• Quicker Piston retraction
• Two piston
• Banjo type connection and inside hose routing
• Superior modulation gives you greater control
• Lightweight
• Quick and easy assembly

LEVER

• Optimized lever axle position with additional contact point and refined ergonomics
• Greater flexibility and action-optimized cockpit layout
• 10% stiffer than M8000 even under high temp conditions
• Quicker brake engagement with shorter free stroke
• Toolless reach adjust
• Free stroke adjust
• Intuitive and versatile braking keeps your focus on the trail
• High rigidity
• Rider tuned adjustment

CALIPER

• Model Number: BR-M8100
• Series: SHIMANO_DEORE_XT_M8100
• Brake hose (kit): SM-BH90-SBM
• Brake Type: Hydraulic disc brake
• Caliper fixing bol: Anti loosen method Snap ring
• Caliper fixing bolt: Tool size 5 mm
• Hose joint: Banjo
• J-Kit spec (for OEM)
• Mount type (available for IS mount with mount adapter): Post-
• type
• Oil: SHIMANO Mineral
• One way bleeding
• Pad Option: J03A Resin (w/ fin), J04C Metal (w/ fin)
• Pad Standard: G03A Resin (w/o fin), G04S Metal (w/o fin)
• Pad mount :Pad axle
• Piston: 2
• Recommended brake rotor RT-MT800
• Ice technology pad compatible caliper

LEVER

• Model Number: BL-M8100
• Series: SHIMANO_DEORE_XT_M8100
• Brake hose: SM-BH90-SBM
• Brake Type: Hydraulic disc brake
• Clamp band: Open clamp band
• Compatible shifting lever mount: I-SPEC EV
• Free stroke adjust
• Funnel bleeding
• Hose joint Straight
• J-kit option available
• Lever size (Finger): 2
• Oil SHIMANO Mineral
• Reach Adjust Type: Toolless
• Servo wave mechanism
• Compatible shifting lever mount: Clamp band
