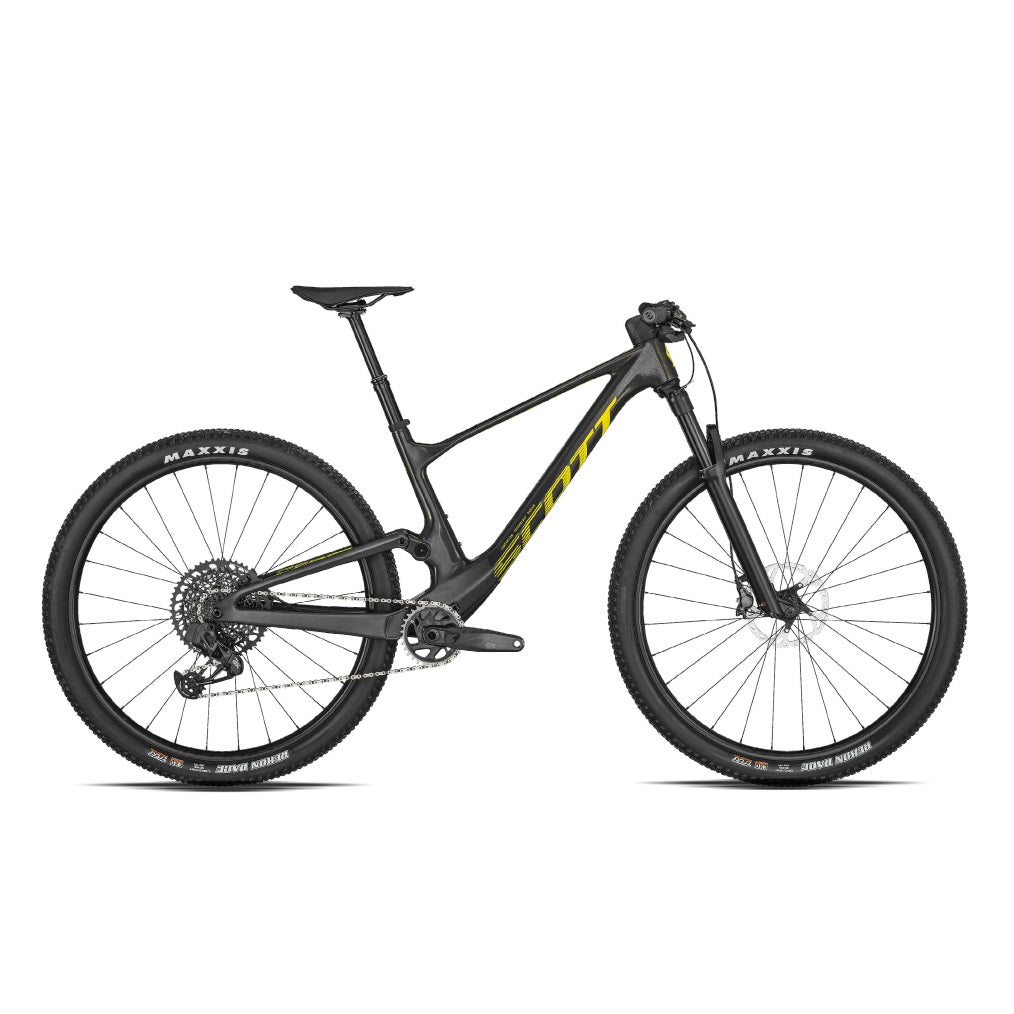

The Spark RC Team Issue is the perfect blend of top-notch carbon engineering, never before seen levels of integration and just the right amount of secret sauce. We wanted to make this platform faster than ever before both up and down the hill. Increasing travel, perfecting geometry, and applying input from the world's best athletes, we've created the cross country race bike of all cross country race bikes. If you think fast is fun, then you're going to love this ride.
Please note that bike specifications are subject to change without prior notice.
Read more
- SPECIFICATIONS
- GEOMETRY
Frame
- Spark RC Carbon HMF
- Integrated Suspension Technology
- Flex Pivot / Adjustable head angle
- Syncros Cable Integration System
- BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork
- FOX 34 SC Float Performance Air Grip
- 3-Modes / Kabolt 15x110mm axle / 44mm offset / tapered steerer
- Reb. Adj. / Lockout / 120mm travel
Rear Shock
- FOX NUDE 5 EVOL Trunnion
- SCOTT custom w. travel / geo adj.
- 3 modes: Lockout-Traction Control-Descend
- DPS / Reb. Adj. / Travel 120-80-Lockout / T165X45mm
Remote System
- SCOTT TwinLoc 2 Technology
- 3 Suspension modes
Rear Derailleur
- SRAM GX Eagle AXS 12 Speed
- Wireless Electronic Shift System
Shifters
- SRAM GX Eagle AXS Rocker Controller
Crankset
- SRAM GX Eagle DUB
- 55mm CL / 32T
BB-Set
- SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
- SRAM CN GX Eagle
Cassette
- SRAM XG1275 / 10-52 T
Brakes
- Shimano XT M8100 Disc
Rotor
- Shimano SM-RT76 / 6 Bolt / 180/F and 160/R
Handlebar
- Syncros Fraser iC SL XC Carbon
- -12° rise / back sweep 8° / 740mm
- Syncros Performance XC lock-on grips
Seatpost
- FOX Transfer SL Performance Dropper Post
- 31.6mm / S size 75mm / M, L & XL size 100mm
Seat
- Syncros Belcarra Regular 1.5
- Titanium rails
Headset
- Syncros - Acros Angle adjust & Cable Routing HS System
- +-0.6° head angle adjustment
- ZS56/28.6 – ZS56/40 MTB
Wheelset
- Syncros Silverton 2.0-30 6 Bolt
- F: 15x110mm, R: 12x148mm
- 30mm Tubeless ready rim / 28H / XD Driver
- Syncros Axle w/Removable Lever
- with 6mm Allen, T30 and T25 Tools
Front Tire
- Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead
- Tubeless Ready / EXO
Rear Tire
- Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead
- Tubeless Ready / EXO
Extras
- SRAM AXS Powerpack
Accessories
- Transport Axle
Approx weights in KG
- 11.6 (Tubeless setup)
Approx weights in LBS
- 25.57 (Tubeless setup)
Max. System Weight
- 128kg
- The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Model: 290096
