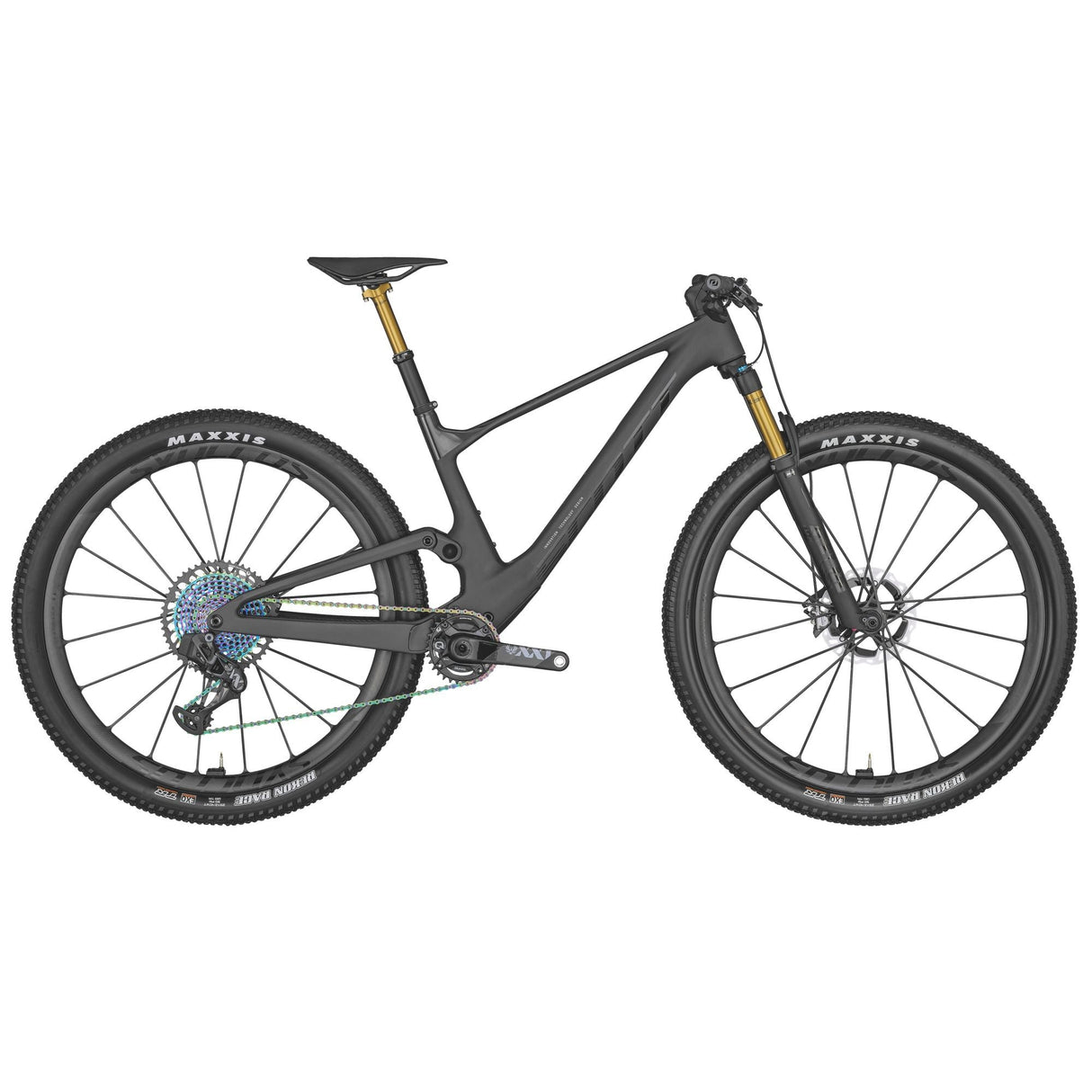

Scott Spark RC SL EVO AXS Mountain Bike

KEY FEATURES

• Spark RC Carbon HMX SL 1870g Frame
• FOX 34 SC Float Factory 120mm Fork
• FOX Nude 5 Factory EVOL, 120mm, TwinLoc
• SRAM XX Eagle AXS, PWR Meter
• Shimano XTR Disc Brakes
• Syncros Silverton SL2 CF Wheels
• Maxxis Rekon Race Foldable Tires
• FOX Dropper Post, Syncros CF Parts



SPECIFICATION

FRAME

• Spark RC Carbon HMX SL
• Integrated Suspension Technology
• Flex Pivot / Adjustable head angle
• Syncros Cable Integration System
• BB92 / UDH Interface / 12x148mm with 55mm Chainline
• Lightest 120mm frame 1870g (w/shock)

FORK

• FOX 34 SC Float Factory Air / Kashima FIT4
• 3-Modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset
• Tapered steerer / Lockout / Reb. Adj.
• 120mm travel

REAR SHOCK

• FOX NUDE 5 Factory EVOL Trunnion
• SCOTT custom w. travel / geo adj.
• 3 modes: Lockout-Traction Control-Descend
• DPS / Kashima / Reb. Adj.
• Travel 120-80-Lockout / T165X45mm

REMOTE SYSTEM

• SCOTT TwinLoc 2 Technology
• Suspension & Dropper Remote
• 3 Suspension modes

REAR DERAILLEUR

• SRAM XX1 Eagle AXS / 12 Speed
• Wireless Electronic Shift System

SHIFTERS

• SRAM Eagle AXS Rocker Controller

CRANKSET

• SRAM XX1 Eagle AXS
• Carbon crankarm / Power Meter
• DUB / 55mm CL / 32T

BB-SET

• SRAM DUB PF 92 MTB Wide / shell 41x92mm

CHAIN

• SRAM CN XX1 Eagle

CASSETTE

• SRAM XX1 XG1299 / 10-52 T

BRAKES

• Shimano XTR M9100 Disc

ROTOR

• Shimano RT-MT900 CL / 180/F and 160/R

HANDLEBAR

• Syncros Fraser iC SL XC Carbon
• -12° rise / back sweep 8° / 740mm / Syncros Pro lock-on grips

SEATPOST

• FOX Transfer SL Factory Dropper Post Kashima
• 31.6mm / 100mm

SEAT

• Syncros Belcarra SL Regular 1.0
• Carbon rails

HEADSET

• Syncros - Acros Angle adjust & Cable Routing HS System
• +-0.6° head angle adjustment
• ZS56/28.6 – ZS56/40 MTB

WHEELSET

• Syncros Silverton SL2-30 CL full Carbon
• F: 15x110mm, R: 12x148mm / 30mm Tubeless ready rim
• DT Swiss 240 Ratchet EXP 36 / XD Driver
• SRAM TyreWiz / Syncros SL Axle w/Removable Lever
• with 6mm Allen, T30 and T25 Tools

FRONT TIRE

• Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead
• Tubeless Ready / EXO

REAR TIRE

• Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead
• Tubeless Ready / EXO

EXTRAS

• SRAM AXS Powerpack
• SRAM TyreWiz

ACCESSORIES

• Syncros Eco Sealant
• Transport Axle

APPROX WEIGHTS IN KG

• 10.1 (Tubeless setup)

APPROX WEIGHTS IN LBS

• 22.27 (Tubeless setup)

MAX. SYSTEM WEIGHT

• 128 kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
