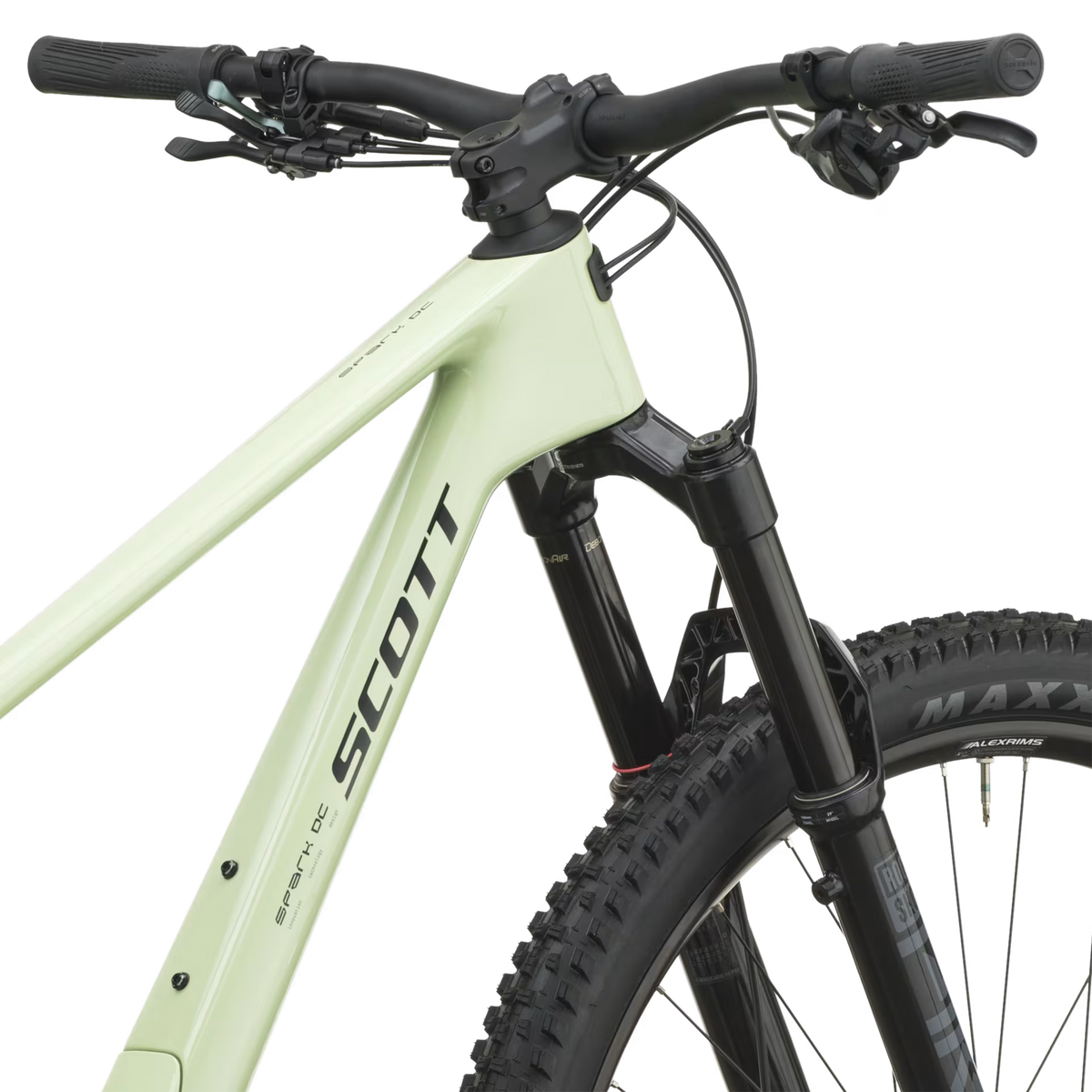

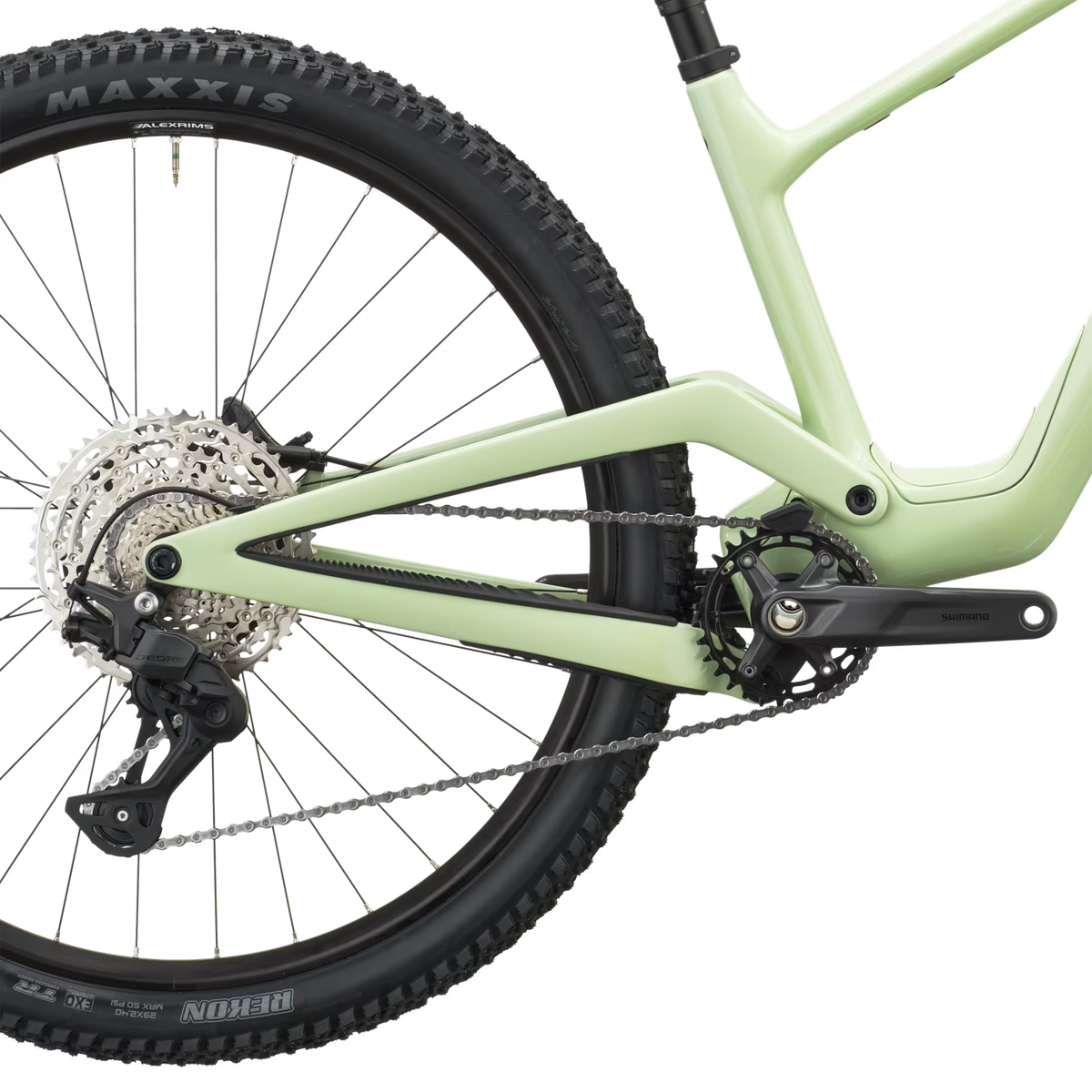

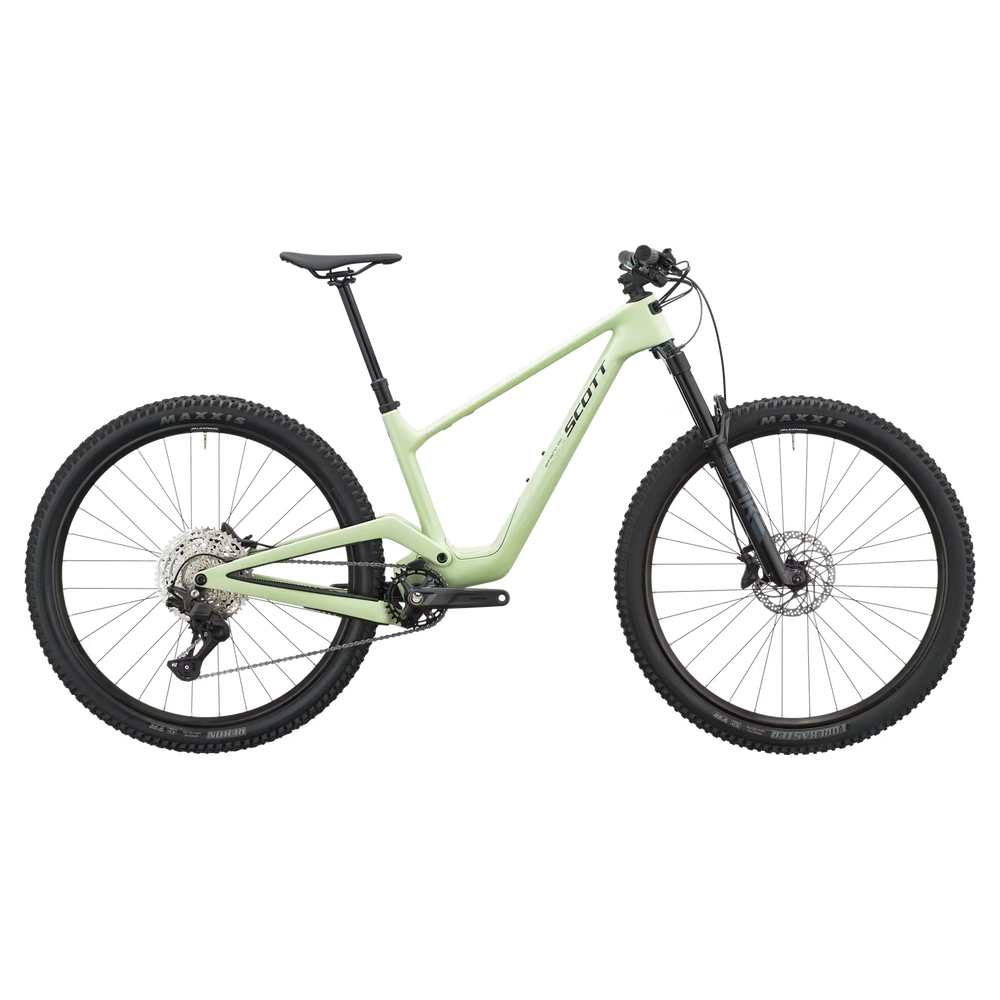

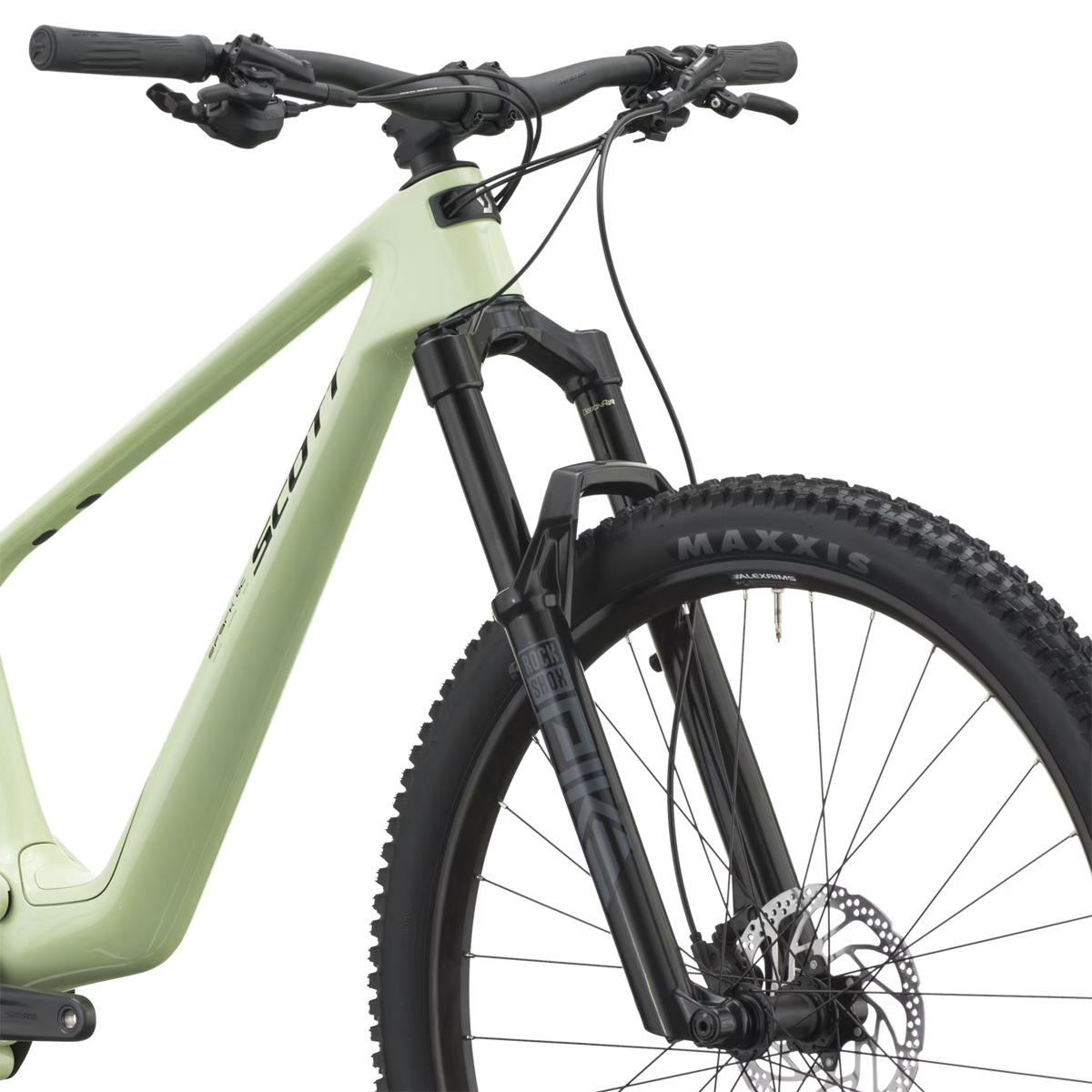

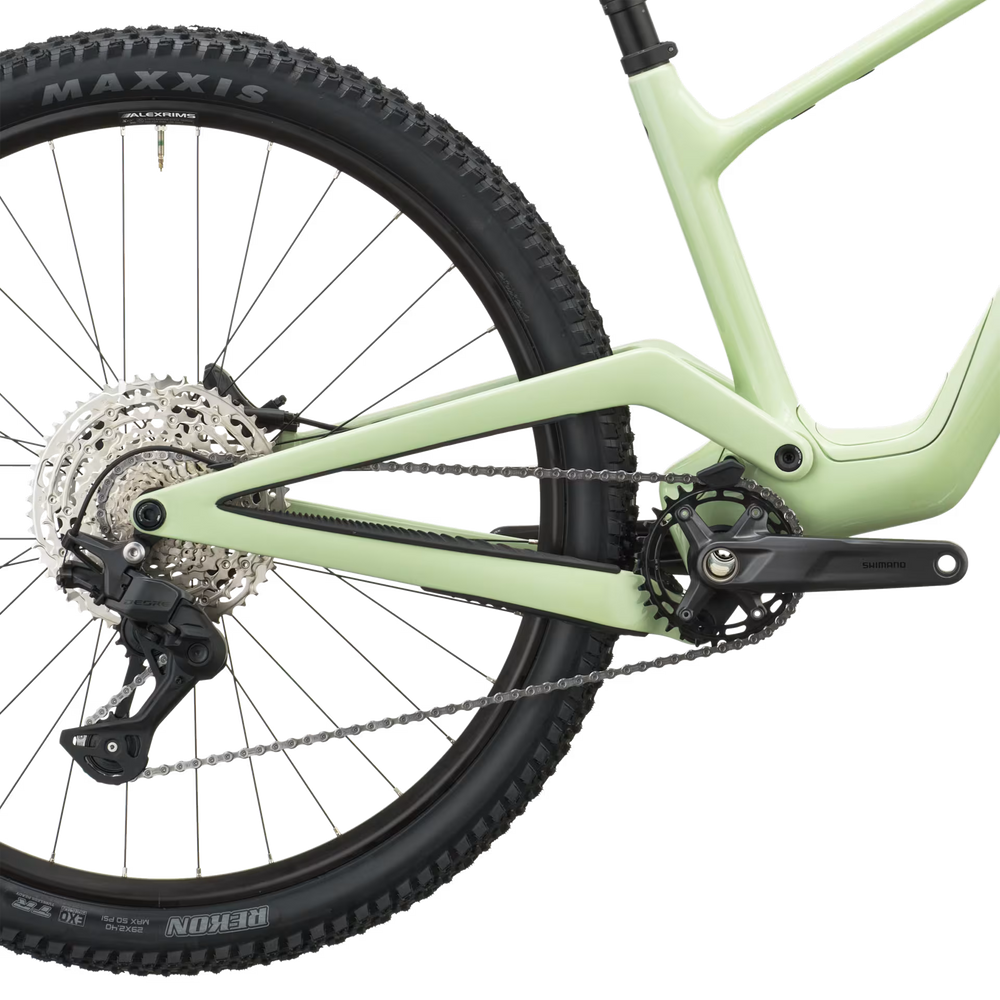

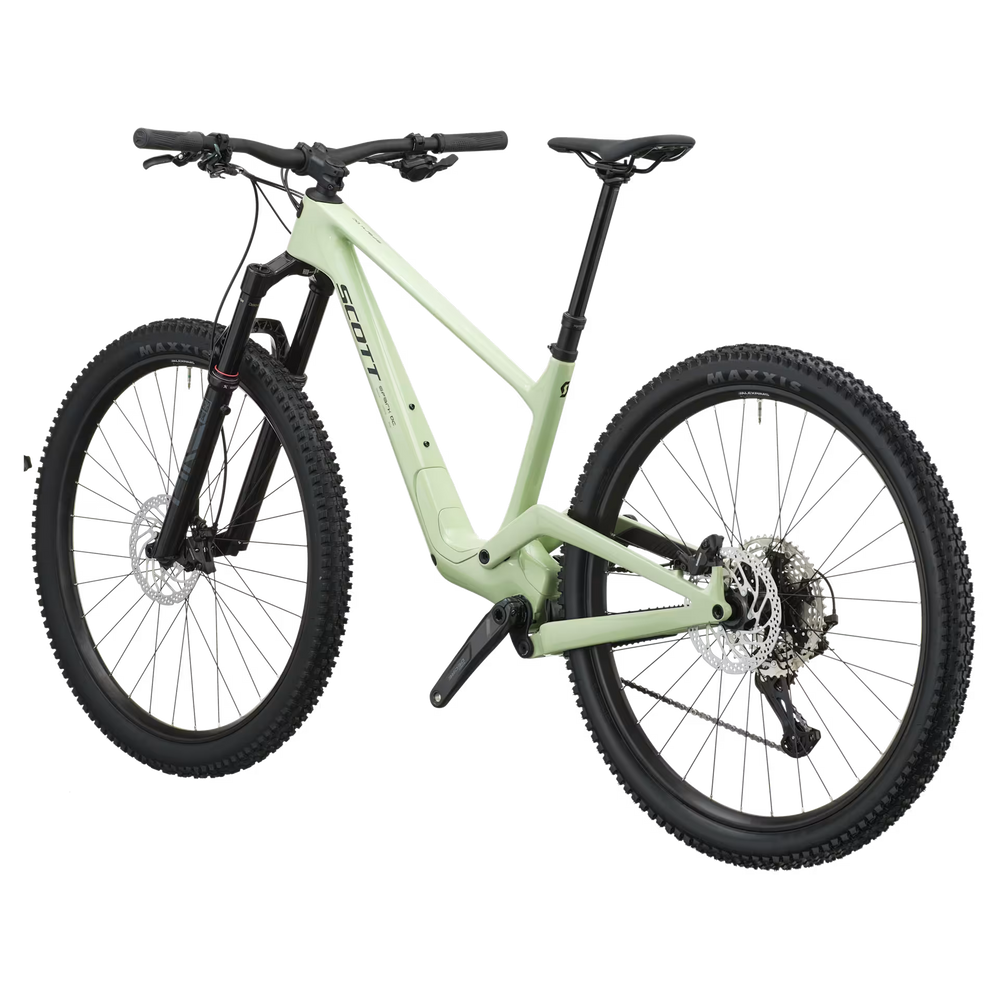

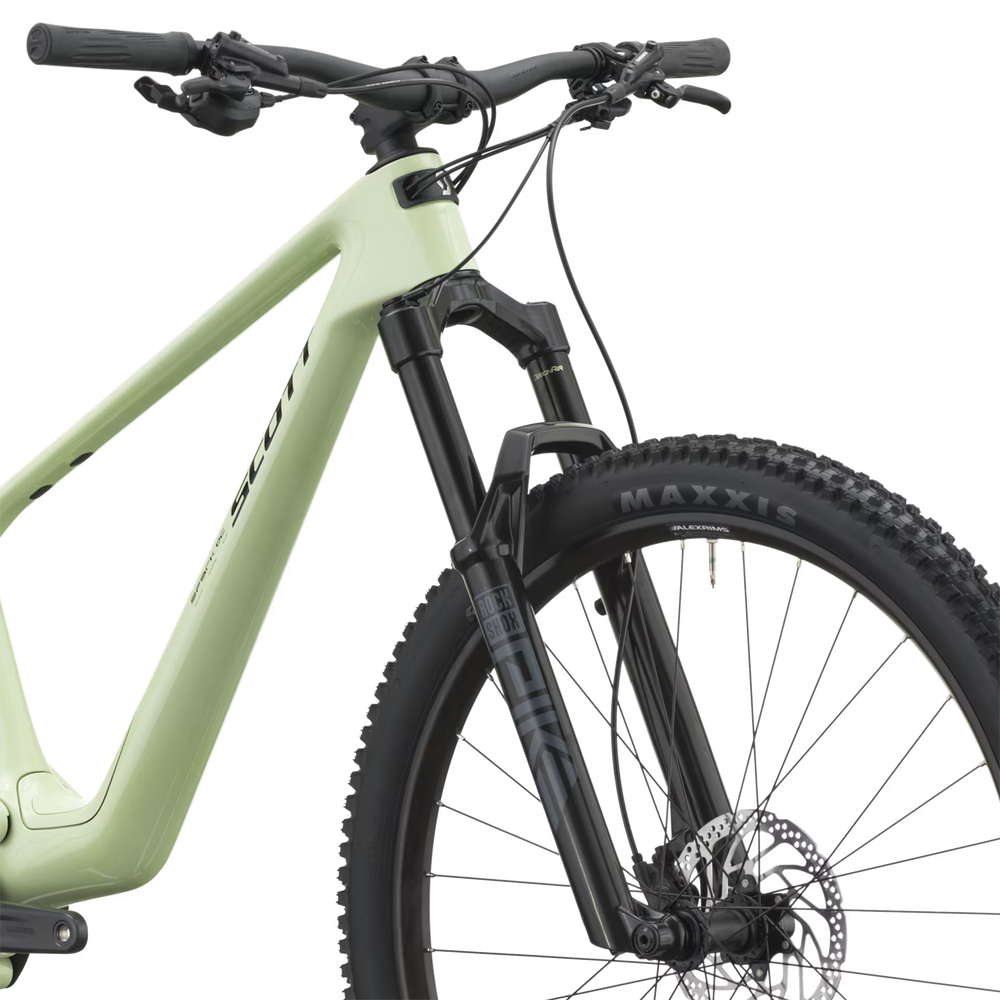

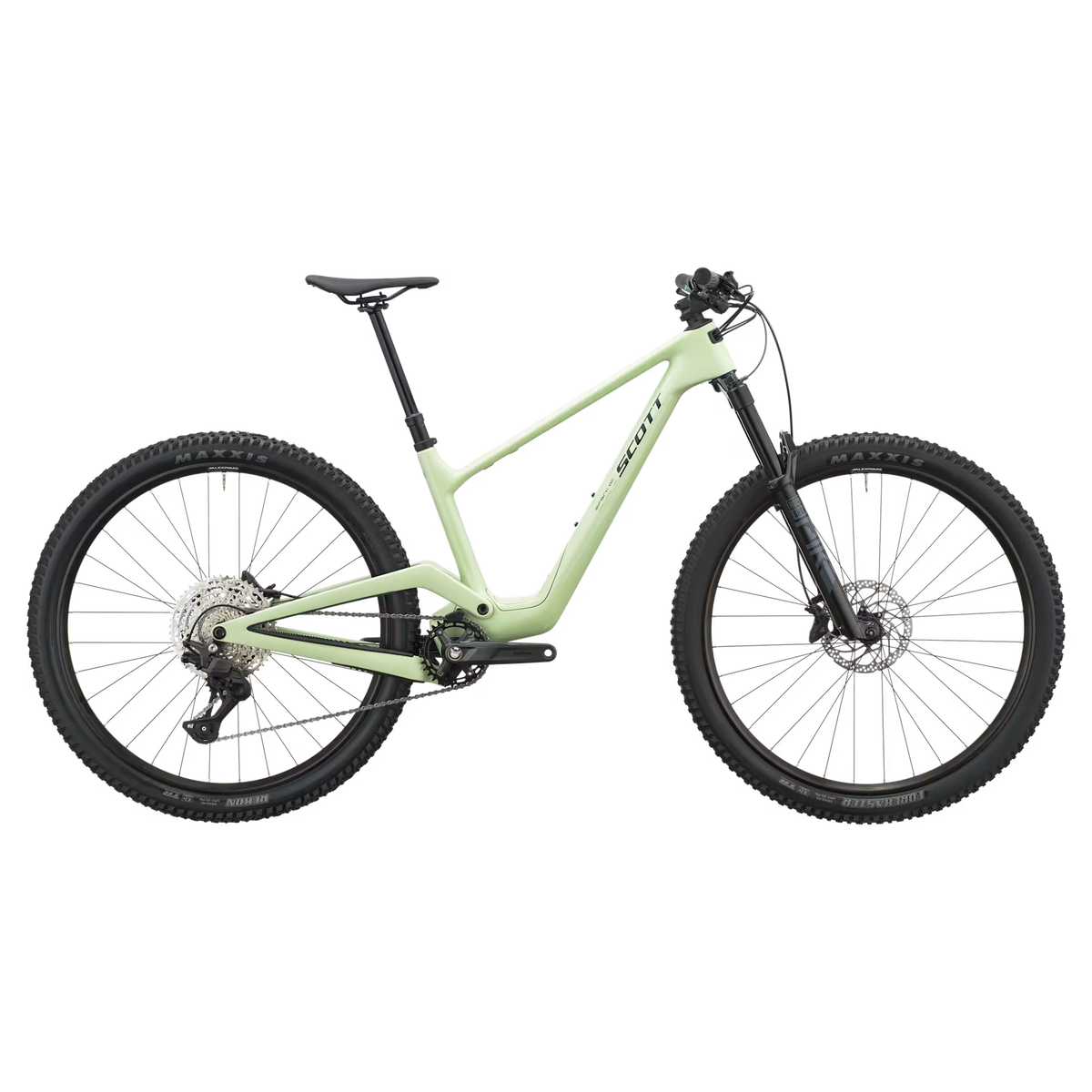

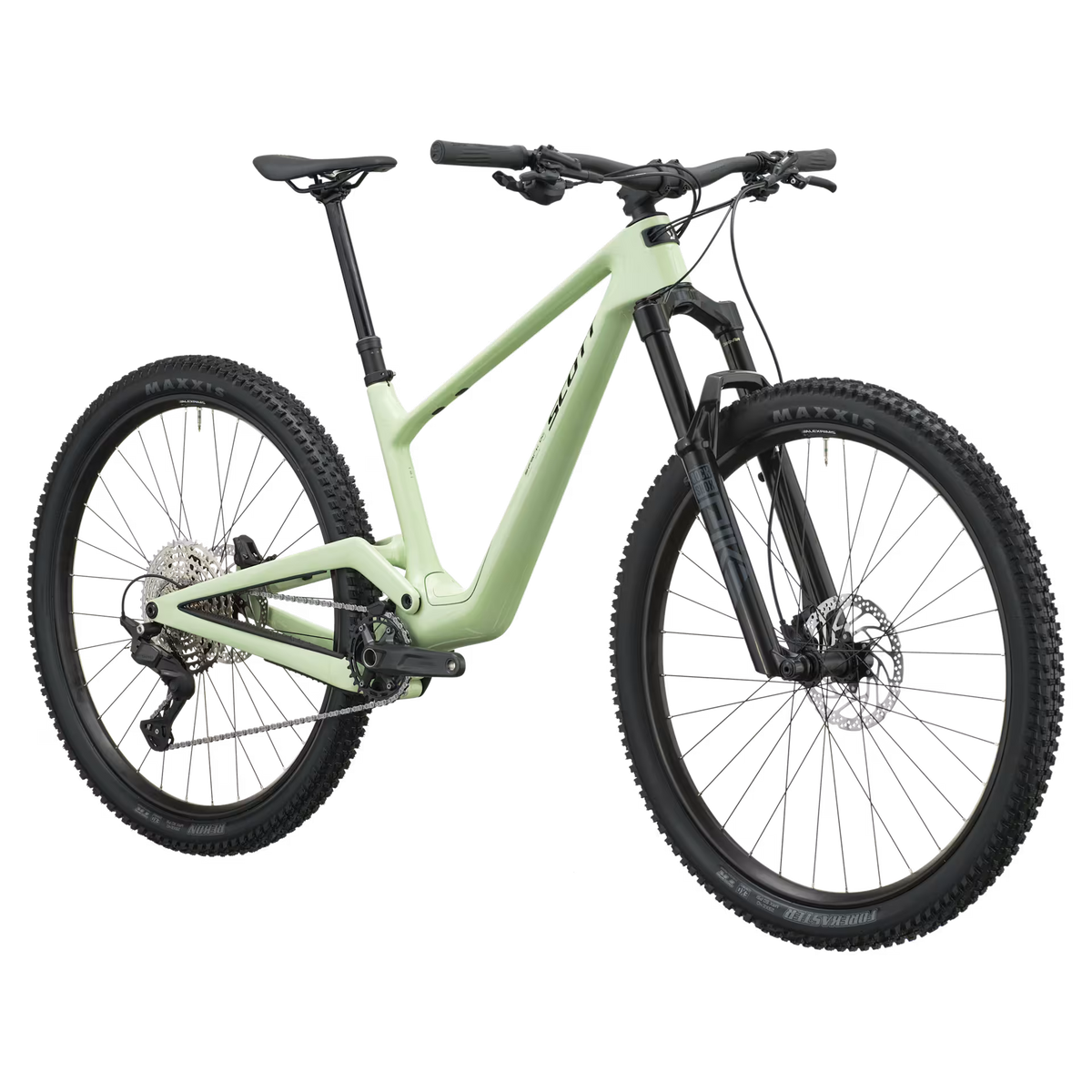

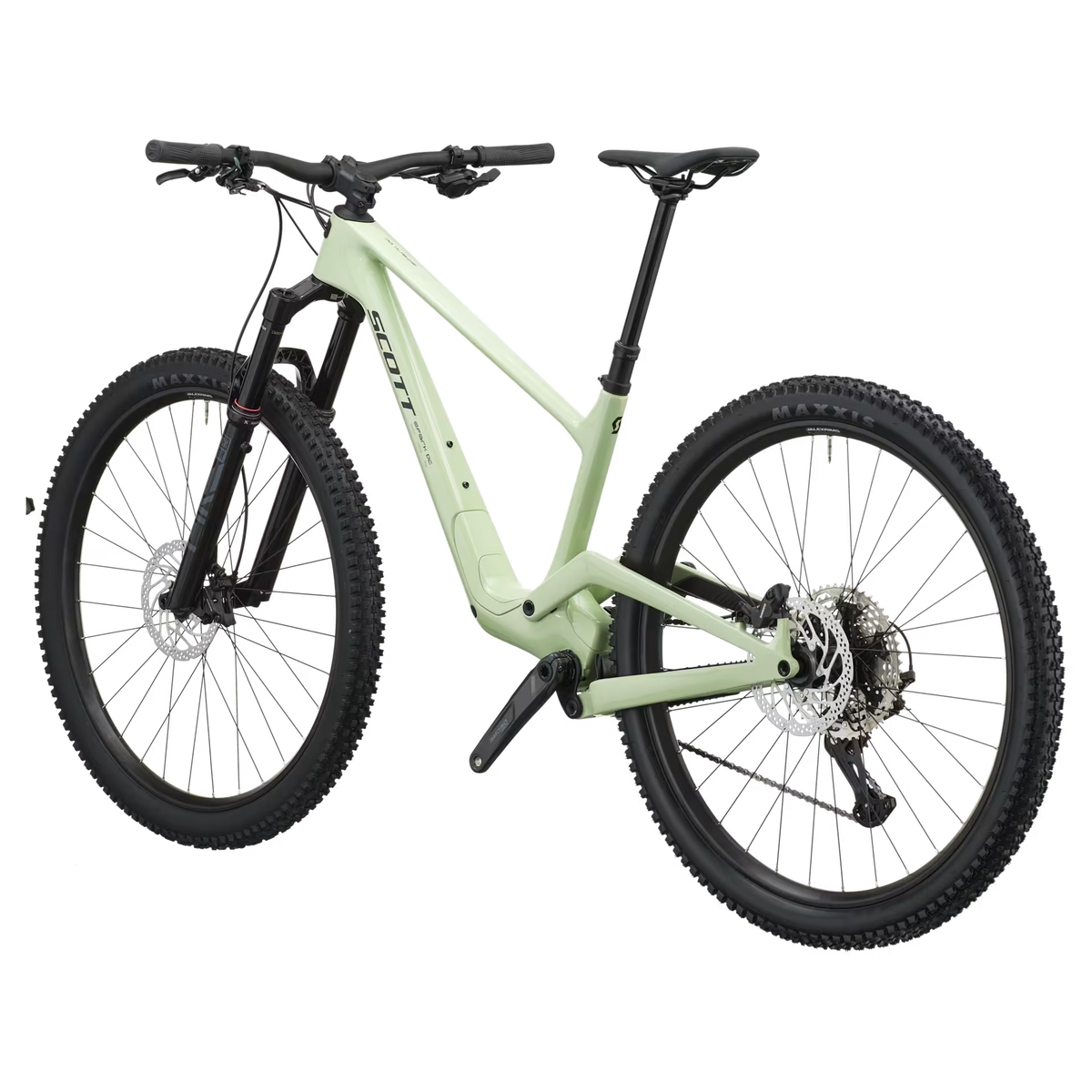

Scott Spark DC 40 Mountain Bike

The SCOTT Spark DC 40 is built for riders who want more from every ride. A short-travel platform that delivers cross-country speed and backcountry capability in one considered design—engineered to be your go-to for everything.

Every detail is tuned to open up the trail without limitation.

The 140mm front and 135mm rear travel provide the ideal range to climb efficiently, carve descents with confidence, and absorb the rough stuff in between. A low center of mass enhances stability through flow trails and jump lines, while the lightweight HMF carbon frame delivers efficient acceleration and lively handling out of switchbacks and onto open singletrack. Together, they represent a step forward for what short-travel trail riding should be.

Traction, control, and comfort are delivered by RockShox's Pike fork and Deluxe Traction shock—a setup that brings plush, responsive handling to dynamic terrain. From lunch laps and focused sessions to full weekend adventures, it's a combination built to elevate every second of the ride.

The component spec rounds out a capable and considered package. Shimano's Deore 12-speed drivetrain delivers confident, reliable shifting across every condition, while integrated frame storage and a dedicated frame mount make it straightforward to load up for longer days or light bikepacking when you want to put the bike to work.

Performance also extends to practicality. Improved serviceability and tunability are built into the design, so you can keep the bike dialed and spend less time in the workshop—and more time focused on the trail ahead.

Please note that bike specifications are subject to change without prior notice.

Lightweight Design

Suspension Layout

The refined flex-pivot system delivers 138 mm of highly efficient rear travel with reduced complexity and uncompromising performance. By eliminating unnecessary hardware and optimizing pivot placement, the system reduces weight while increasing torsional stiffness and long-term durability. A custom-tuned shock with bearing eyelets further reduces friction, significantly improving small-bump sensitivity and initial stroke response. The result is a rear end that reacts with precision, maintains grip over technical terrain, and delivers consistent support throughout the travel.

Shock Compatibility

We get it, riders love their own setups. So we designed the frame with plenty of space and compatibility for a wide range of aftermarket shocks. Run what you like. Swap what you want. The Spark DC accommodates aftermarket shock options from leading suspension brands such as RockShox SidLux XL FA, RockShox SidLux XL, Fox Float, & Öhlins TTX22M.2, RockShox Super Deluxe.

Frame Access

Clean looks need to come with clean solutions. That’s why we reinvented the way of accessing the internal compartment with a new magnetic down tube cover, faster and simpler than ever. Clipped in place, it prevents excessive dirt and dust from accumulating and getting into your frame. This not only keeps the shock performing at its best for longer, but also speeds up cleaning your bike after a muddy day out.

Save-The-Day-Kit & Tool

No modern mountain bike should be without a smart in-frame storage solution. At SCOTT Spots, we call this “ Save The Day Kit”, which features a neat in-frame bag including a super-light tube, a pump, and a set of tire levers. On top, a additionally included tool allows all adjustments required for daily use on the bike: a 6mm hex, a T25 Torx for the rear axle and additional frame hardware, and depending on the shock spec, a 3mm or 2.5mm hex for shock adjustment.

Cable Routing

Run your cables the way you want to. The Spark DC gives you multiple routing options plus smart touches to keep everything clean, quiet, and out of the way, without adding unnecessary complexity. You can choose between the clean-looking, sleek integrated solution through the headset, or route your cables through the head tube badge while running a “regular” bar/stem combination.

Sag & Travel

• Frame: Spark DC HMF Carbon Gen5, Adjustable Head angle and Fork lock, Syncros Cable Integration System Gen2, BSA BB, UDH Interface, 12x148mm with 55mm Chainline

• Fork: RockShox Pike 3P Air, Rush RL 3P Damper, 15x110mm Maxle Stealth, tapered Steerer, Reb. Adj., Lockout

• Travel: Front: 140 mm, Rear: 138 mm

• Rear Shock: RockShox Deluxe Traction Control RL3, SCOTT custom w. travel, geo adj., 3P: Lockout-Traction Control-Descend, Reb. Adj., Bearing Hardware 20x8mm, 210X50mm

• Remote System: SCOTT TwinLoc Technology, Suspension & Dropper Remote, 3 Suspension modes

• Headset: Syncros - Acros Angle adjust +-0.5°, Fork Lock, is52

• Rear Derailleur: Shimano Deore RD-M7200 12-speed

• Shifters: Shimano Deore SL-M6200

• Brakes: Shimano BR-MT620 4-Piston

• Crankset: Shimano FC-MT520, 32T

• Front Disc Rotor: Shimano RT-CL300, 180mm

• Chain guide: Spark DC Gen5 chain guide

• Rear Disc Rotor: Shimano RT-CL300, 160mm

• BB-Set: Shimano BB-MT501 BSA

• Handlebar: Syncros HB-M200-AL2, Alloy 6061, 760mm, 31.8mm, 7°, 20mm rise,
• Syncros lock-on grips

• H'stem: Syncros DC ST-M200-AL2, 0°, 31.6mm

• Seatpost: Syncros Dropper Post SP-M303-AL2, +RAD drop adjust, 31.6mm

• Seat: Syncros Tofino R 2.5

• Front Hub: Formula CL-811, 15x110mm

• Rear Hub: Formula CL-3248M, 12x148mm, Micro Spline

• Chain: Shimano CN-M6100

• Cassette: Shimano Deore CS-M6200, 10-51T

• Spokes: Stainless Black

• Front Rim: Alex Rims X-30SE 32H, Tubeless ready

• Rear Rim: Alex Rims X-30SE 32H, Tubeless ready

• Extras: Syncros Tool

• Approx weight in KG: 13.8 Tubeless

• Approx weight in LBS: 30.42 Tubeless

• Grips: Syncros XC Lock-On, ready for Tubeless plug Kit Storage

• Front Tire: Maxxis Forekaster 29x2.4", 60TPI Foldable, Tubeless Ready

• Rear Tire: Maxxis Recon 29x2.4", 60TPI Foldable, Tubeless Ready, EXO

• Max. System Weight: 130kg (The overall weight includes the bike, the rider, the equipment, and possible additional luggage)
