Please note that bike specifications are subject to change without prior notice.

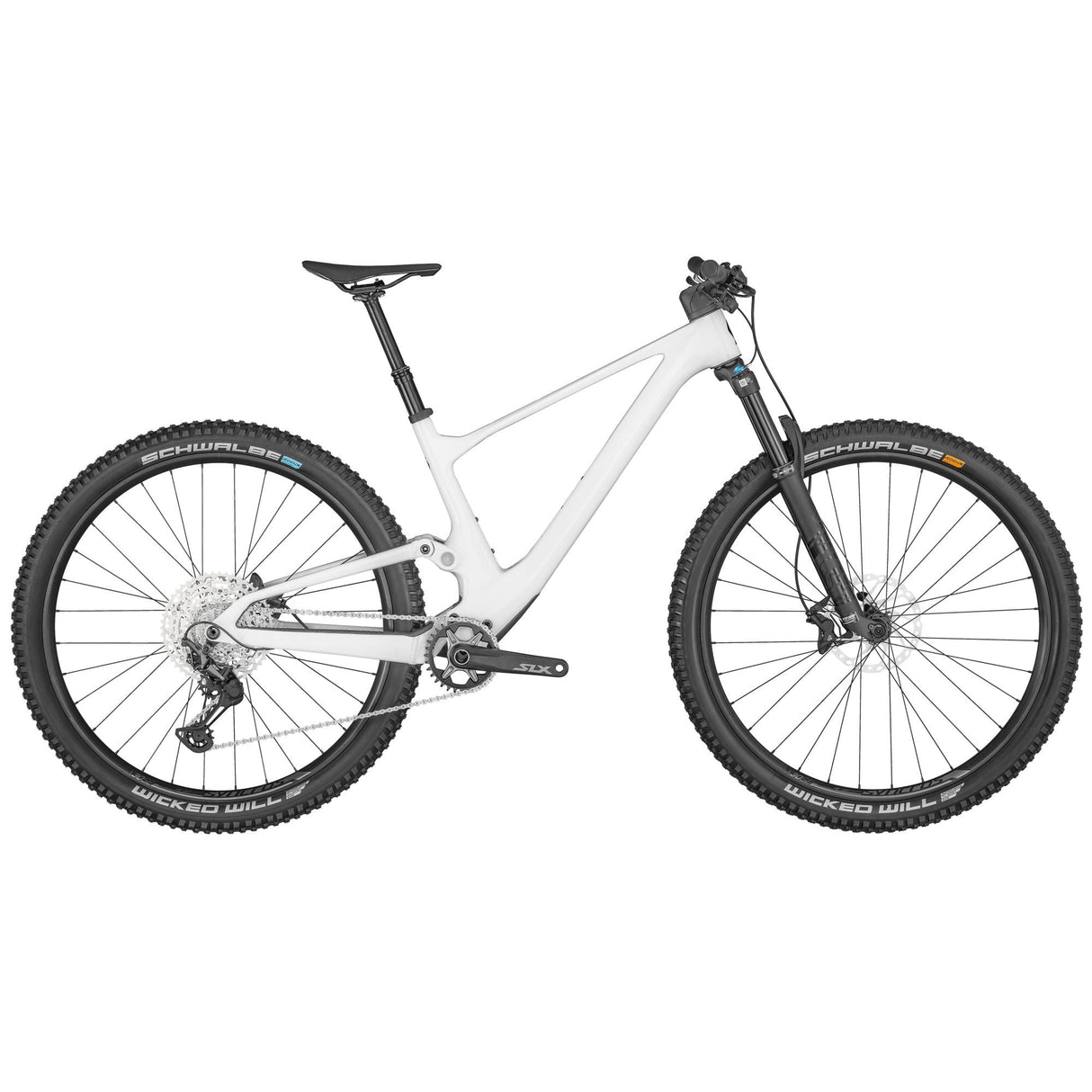

MODEL: 290115
Frame
- Spark Carbon HMF Mainframe with Alloy 6011 Swingarm
- Integrated Suspension Technology
- Flex Pivot / Adjustable head angle
- Syncros Cable Integration System
- BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork
- FOX 34 Float Rhythm Air Grip
- 3-Modes / Kabolt 15x110mm axle / tapered steerer
- 44mm offset / Reb. Adj. / Lockout / 130mm travel
Rear Shock
- FOX NUDE 5T EVOL Trunnion
- SCOTT custom w. travel / geo adj.
- 3 modes: Lockout-Traction Control-Descend
- Custom large Air volume / DPS / Reb. Adj.
- Travel 120-80-Lockout / T165X45mm
Remote System
- SCOTT TwinLoc 2 Technology
- Suspension & Dropper Remote
- 3 Suspension modes
Rear Derailleur
- Shimano XT RD-M8100 SGS
- Shadow Plus / 12 Speed
Shifters
- Shimano Deore SL-M6100-IR / Rapidfire Plus
- Ispec EV clamp
Crankset
- Shimano SLX FC-M7120-1 / Hollowtech 2
- 55mm CL / 32T
BB-Set
- Shimano BB-MT500 / shell 41x92mm
Chain
- Shimano Deore CN-M6100
Cassette
- Shimano Deore CS-M6100-12 / 10-51 T
Brakes
- Shimano Deore M6120 4 Piston Disc
Rotor
- Shimano SM-RT64 CL / F&R 180mm
Handlebar
- Syncros Fraser 2.0 DC Alloy 6061 D.B.
- mini Rise / back sweep 8° / 760mm
- Syncros Performance XC lock-on grips
H'stem
- Syncros DC 2.0
- Syncros Cable Integration System
- 0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost
- Syncros Duncan Dropper Post 2.0
- 31.6mm / S & M size 125mm / L size 150mm / XL size 170mm
Seat
- Syncros Tofino 2.0 Regular
- CRMO rails
Headset
- Syncros - Acros Angle adjust & Cable Routing HS System
- +-0.6° head angle adjustment
- ZS56/28.6 – ZS56/40 MTB
Hub (Front)
- Formula CL-811 / 15x110mm
Hub (Rear)
- Formula CL-148M / 12x148mm / Micro Spline
- Syncros Axle w/Removable Lever
- with 6mm Allen, T30 and T25 Tools
Spokes
- Stainless Black 15G / 1.8mm
Rims
- Syncros X-30SE / 32H / 30mm
- Tubeless ready
Front Tire
- Schwalbe Wicked Will 29x2.4" EVO
- Super Race / TLE / 67EPI / Addix Speed Soft
Rear Tire
- Schwalbe Wicked Will 29x2.4" EVO
- Super Race / TLE / 67EPI / Addix Speed Grip
Approx weights in KG
- 13.5 (Tubeless setup)
Approx weights in LBS
- 29.76 (Tubeless setup)
Max. System Weight
- 128kg
- The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
