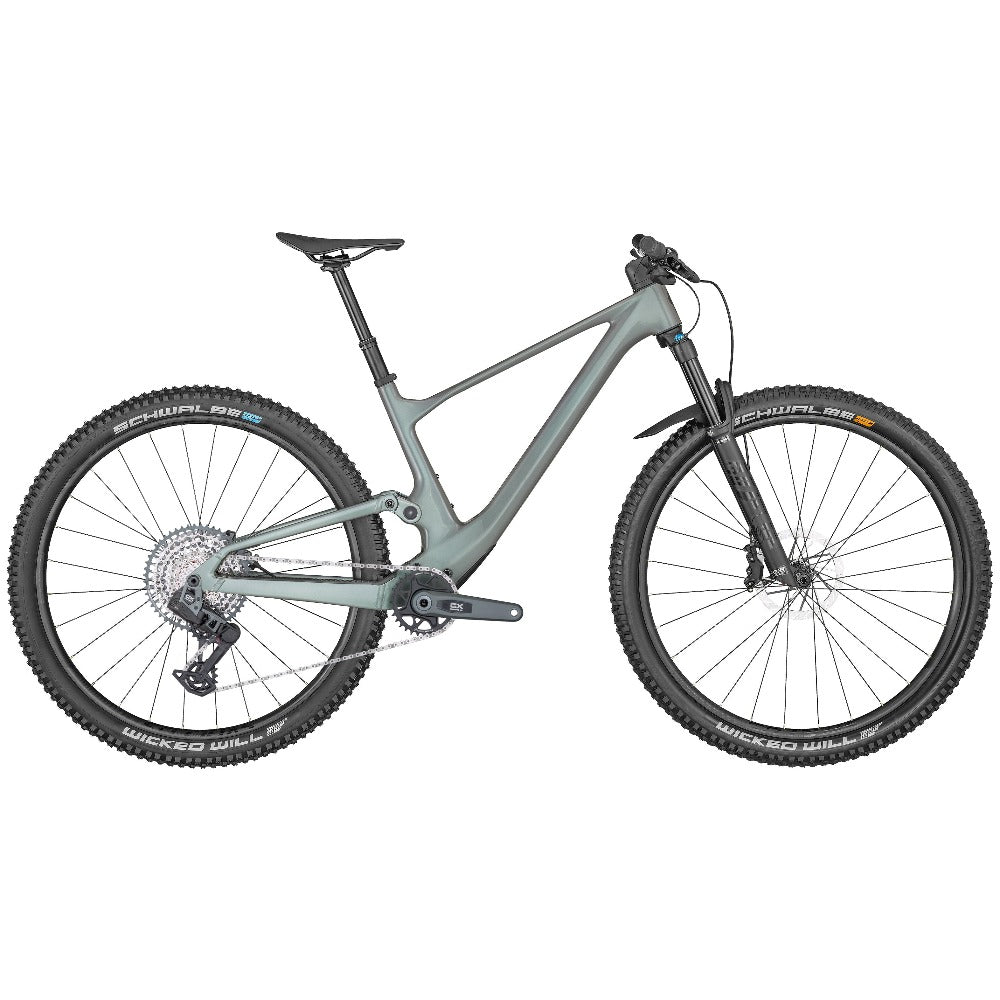

Scott Spark 920 TR Mountain Bike

 Model: 420644

Frame

• Spark Carbon HMF Mainframe with Alloy 6011 Swingarm

• Integrated Suspension Technology

• Flex Pivot / Adjustable head angle

• Syncros Cable Integration System

• BB92 / UDH Interface / 12x148mm with 55mm Chainline


Fork

• FOX 34 Float Performance Air Grip

• 3-Modes / Kabolt 15x110mm axle / tapered steerer

• 44mm offset / Reb. Adj. / Lockout / 130mm travel


Rear Shock

• FOX NUDE 5T EVOL Trunnion

• SCOTT custom w. travel / geo adj.

• 3 modes: Lockout-Traction Control-Descend

• Custom large Air volume / DPS / Reb. Adj.

• Travel 120-80-Lockout / T165X45mm


Remote System

• SCOTT TwinLoc 2 Technology

• Suspension & Dropper Remote

• 3 Suspension modes


Rear Derailleur

• SRAM GX Eagle AXS Transmission 12 Speed

• Wireless Electronic Shift System


Shifters

• SRAM GX Eagle AXS Rocker Controller


Crankset

• SRAM GX Eagle Transmission

• DUB / 55mm CL / 32T


BB-Set

• SRAM DUB PF 92 MTB Wide / shell 41x92mm


Chain

• SRAM CN GX Eagle Transmission


Cassette

• SRAM GX Eagle XS 1275 Transmission 10-52


Brakes

• SRAM DB8 4 Piston Disc


Rotor

• SRAM HS2 Rotos / 6 Bolt / F&R 180mm


Handlebar

• Syncros Fraser 1.5 DC Alloy 7075 D.B.

• mini Rise / back sweep 8° / 760mm

• Syncros Performance XC lock-on grips


H'stem

• Syncros DC 1.5

• Syncros Cable Integration System

• 0° rise / 7050 Alloy / 31.8mm / 1 1/8"


Seatpost

• Syncros Duncan Dropper Post 1.5

• 31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm


Seat

• Syncros Tofino 2.0 Regular

• CRMO rails


Headset

• Syncros - Acros Angle adjust & Cable Routing HS System

• +-0.6° head angle adjustment

• ZS56/28.6 – ZS56/40 MTB


Wheelset

• Syncros Silverton 2.5-30 6 Bolt

• F: 15x110mm

• R: 12x148mm

• 30mm Tubeless ready rim 28H / XD Driver

• Syncros Axle w/Removable Lever

• with 6mm Allen

• T30 and T25 Tools


Front Tire

• Schwalbe Wicked Will 29x2.4" EVO

• Super Race / TLE / 67EPI / Addix Speed Soft


Rear Tire

• Schwalbe Wicked Will 29x2.4" EVO

• Super Race / TLE / 67EPI / Addix Speed Grip


Extras

• Syncros Fork Fender


Approx weights in KG

• 12.9 (Tubeless setup)


Approx weights in LBS

• 28.44 (Tubeless setup)


Max. System Weight

• 128kg

• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
