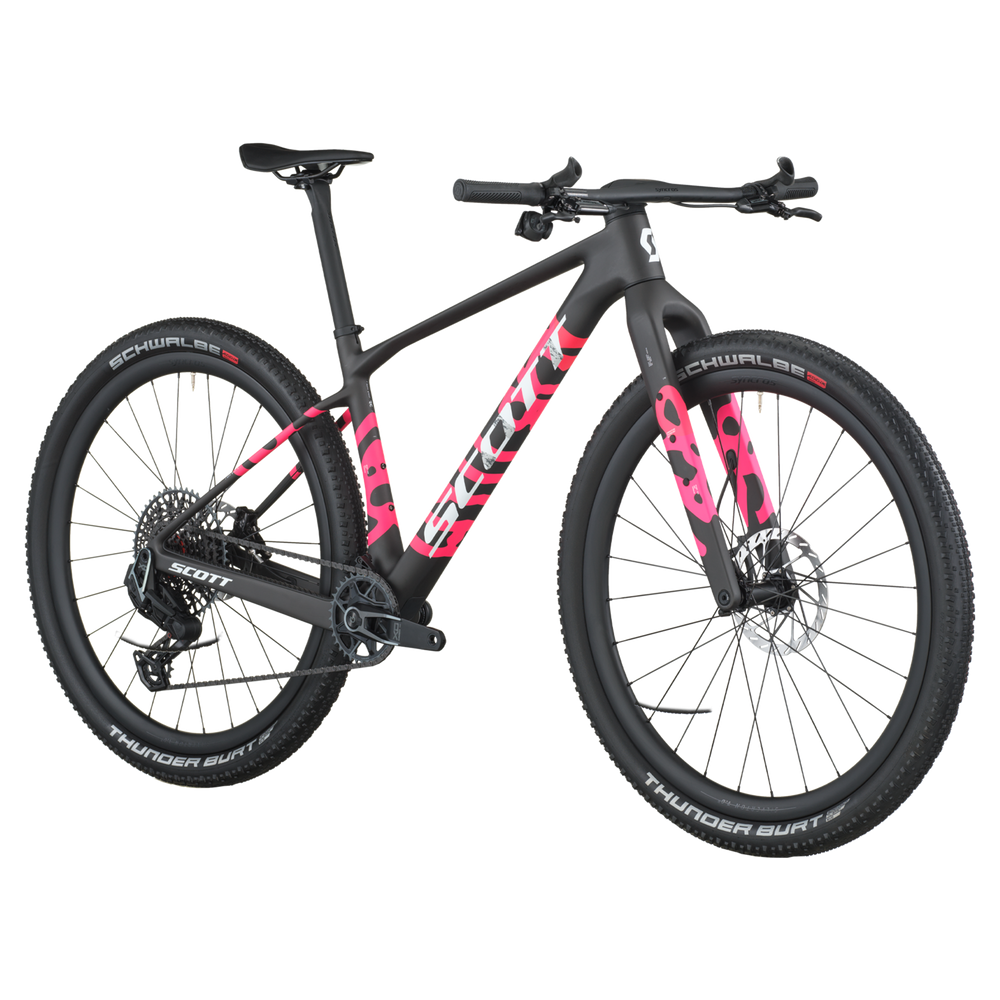

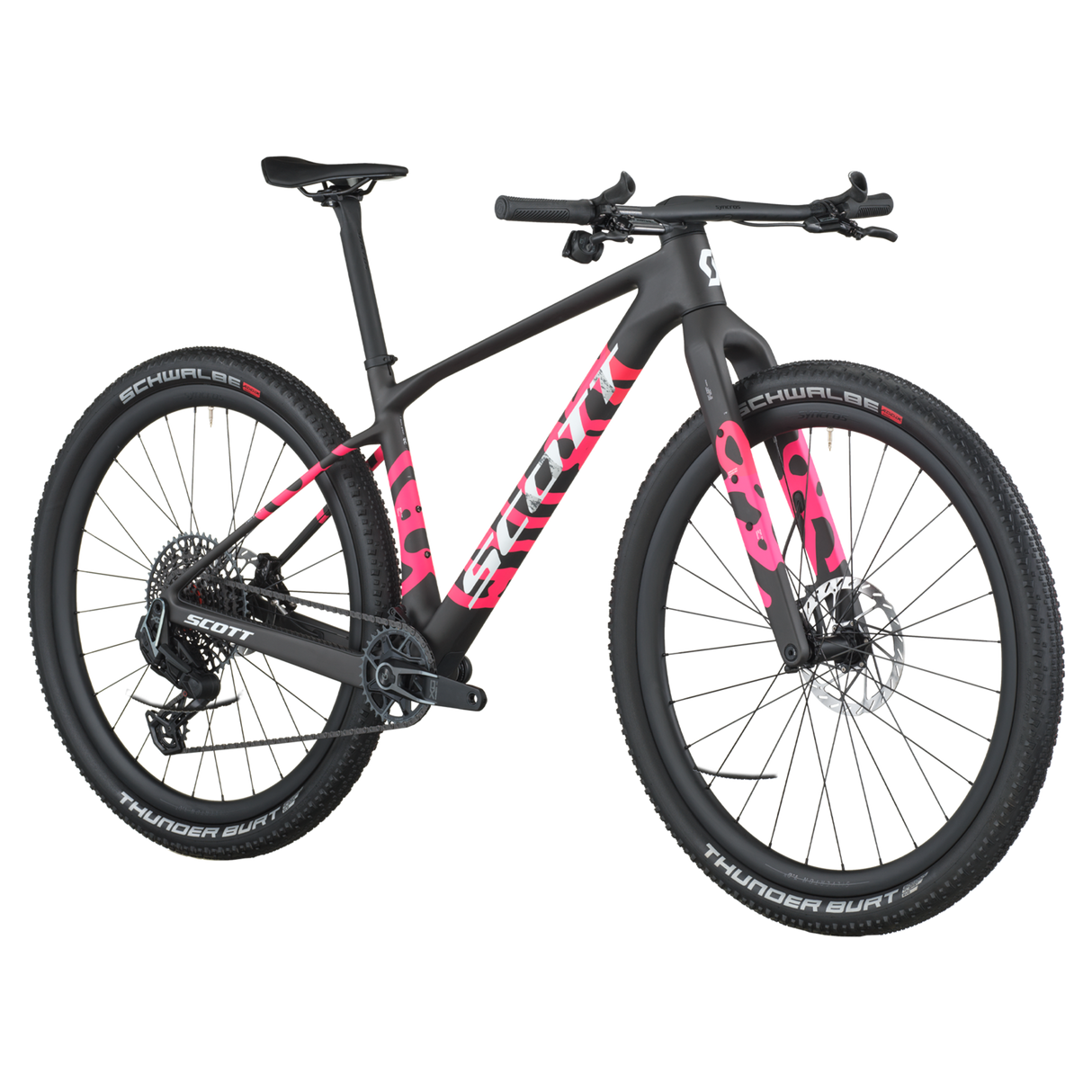

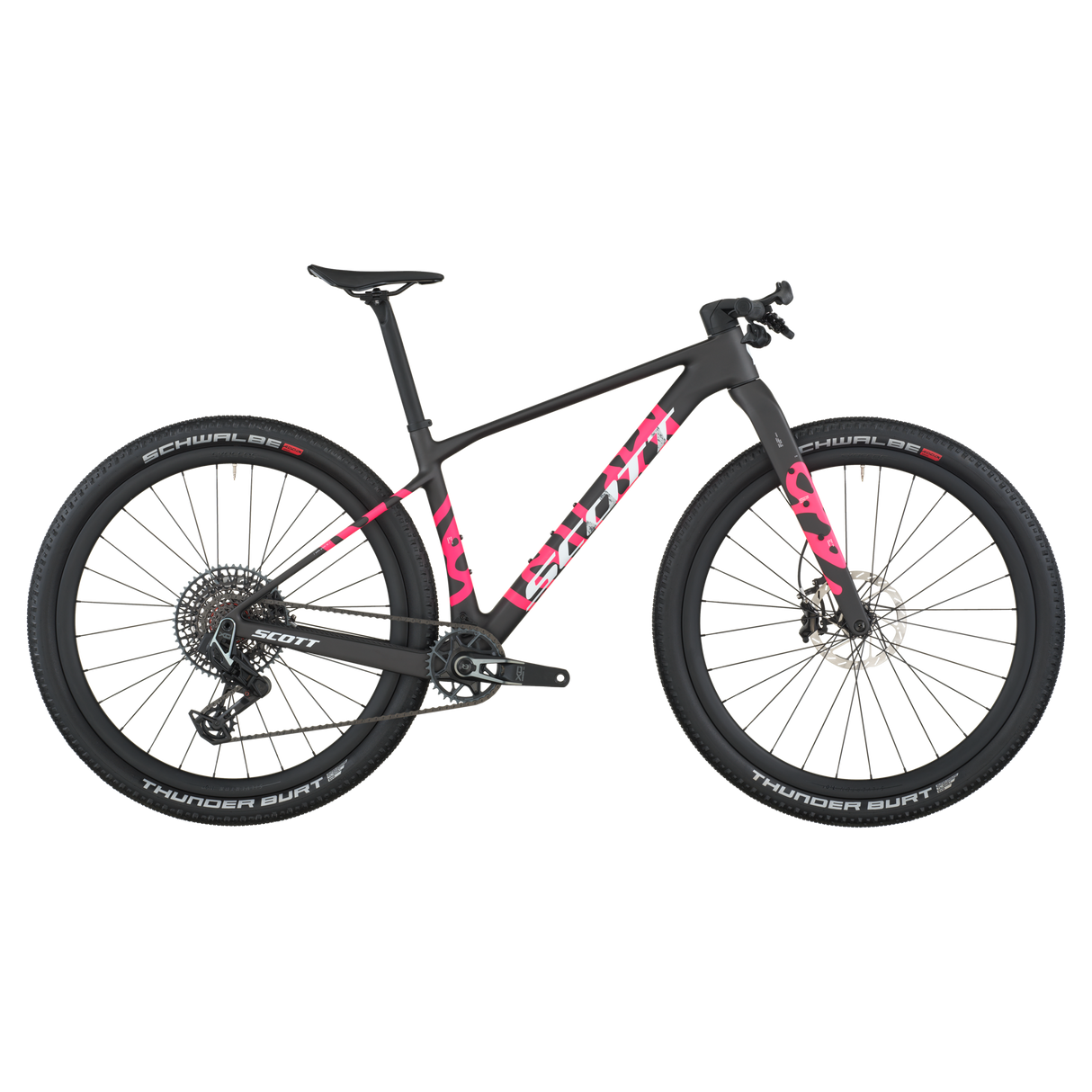

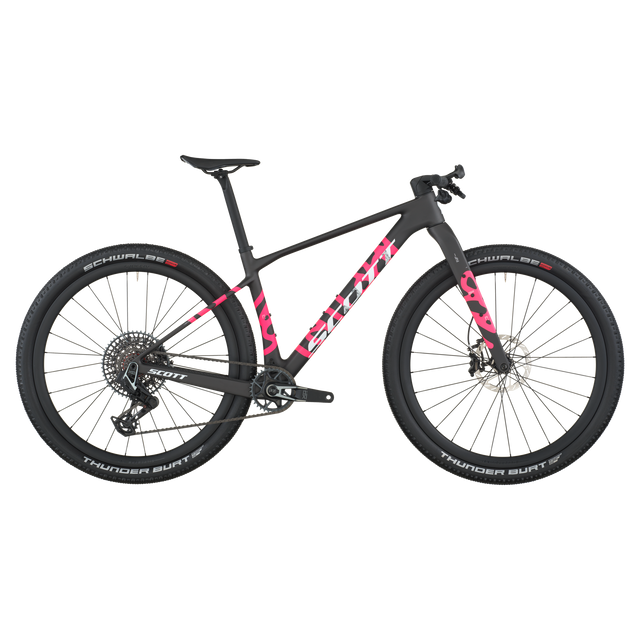

Scott Scale RC SRAM X0 AXS Gravel Bike

• Scale Carbon HMF Frame

• Scale Rigid HMF Fork

• SRAM X0 AXS Transmission, PM Drivetrain

• SRAM Motive 4 Piston Disc Brakes

• Syncros Silverton GR TR Wheelset

• Schwalbe Thunder Burt Foldable Tires

• Syncros Carbon Parts

• Frame: Scale Carbon HMF, Adjustable head angle, Syncros Cable Integration System, Advanced Shock & Standing Damping System, BB92, UDH Interface, 12x148mm with 55mm Chain line

• Fork: Scale Rigid HMF Post mount Disc Standard, Tapered Carbon steerer

• Rear Derailleur: SRAM X0 Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System

• Shifters: SRAM AXS Rocker Pod Controller
• Crankset: SRAM X0 Eagle Transmission, Spindle Power Meter, DUB, 55mm CL, 34T

• Chain guide: SCOTT custom

• BB-Set: SRAM DUB PF 92 MTB Wide, shell 41x92mm

• Chain: SRAM CN X0 Eagle Transmission

• Cassette: SRAM X0 Eagle XS 1295 Transmission 10-52

• Brakes: SRAM Motive Silver 4-Piston Disc

• Rotor: SRAM HS2 CL Rotors 180/F and 160/R

• Handlebar: Syncros Fraser iC SL XC Carbon, -20° rise, back sweep 8°, 740mm, Syncros Performance XC lock-on grips

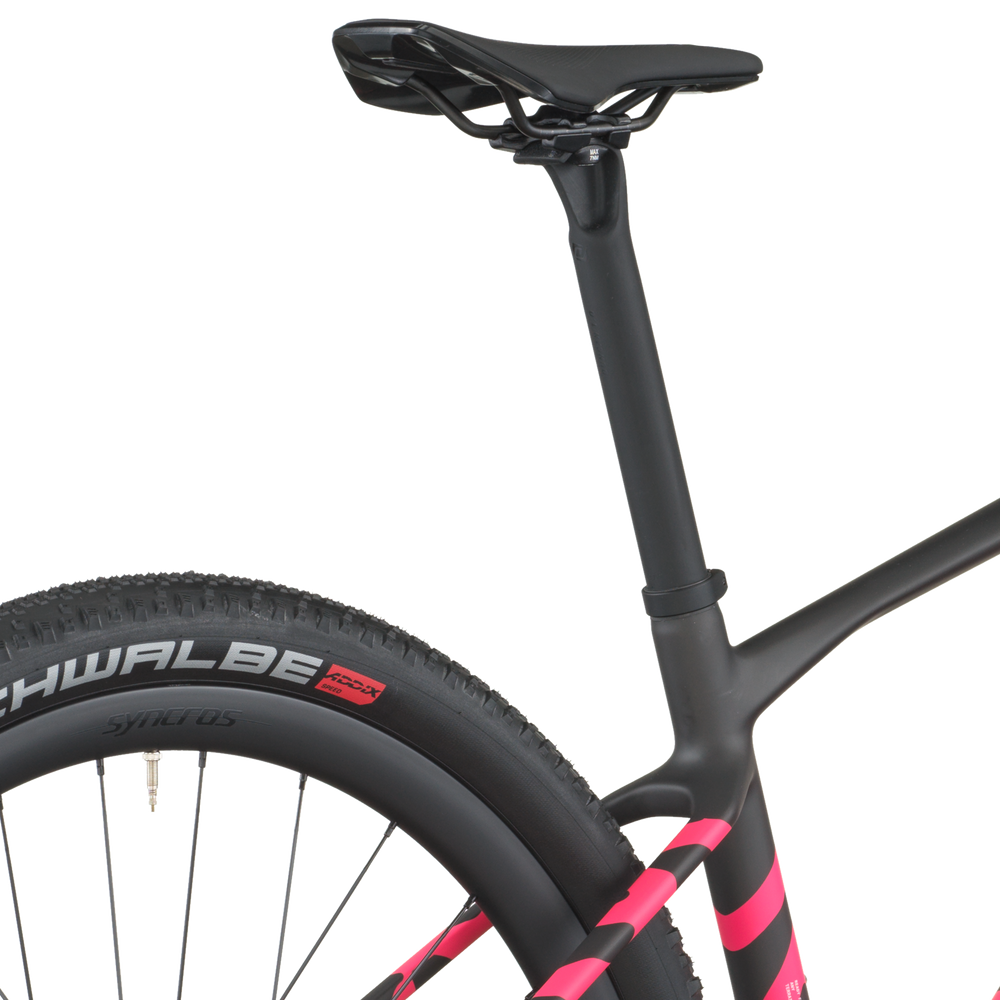

• Seatpost: Syncros Duncan 1.0 Carbon, 10mm offset, 31.6x400mm

• Seat: Syncros Belcarra V2.0 Cut Out, CRMO rails

• Headset: Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB

• Wheelset: Syncros Silverton 1.0X CL, F: 15x110mm, R: 12x148mm, Tubeless ready Carbon rim 28H, XD Driver, Syncros Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools

• Front Tire: Schwalbe Thunder Burt 29x2.35" EVO, Super Ground, TLE, 67EPI, Addix Speed

• Rear Tire: Schwalbe Thunder Burt 29x2.35" EVO, Super Ground, TLE, 67EPI, Addix Speed

• Extras: SRAM AXS Powerpack

• Accessories: Spirgrips+ Inner Bar endsMilkit Tire Sealant

• Approx. weight in KG: 9.1 (Tubless setup)

• Approx. weight in LBS: 20.06 (Tubless setup)

• Max. System Weight: 120kg, The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

Monocoque Construction - The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.

Service Door -  A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regards to cable routing.

Hollow Dropout Construction - The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the head flush with the surface. This enables the lightest possible construction approach and a clean looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).
