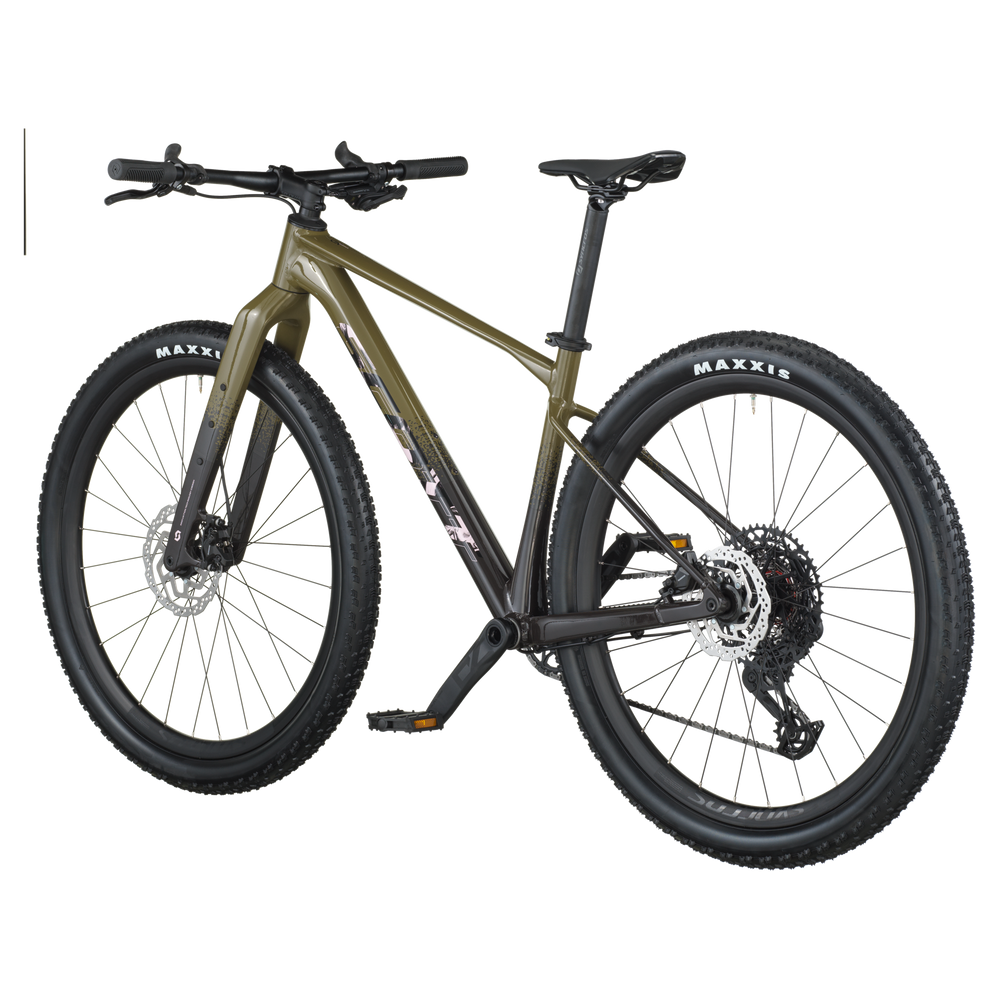

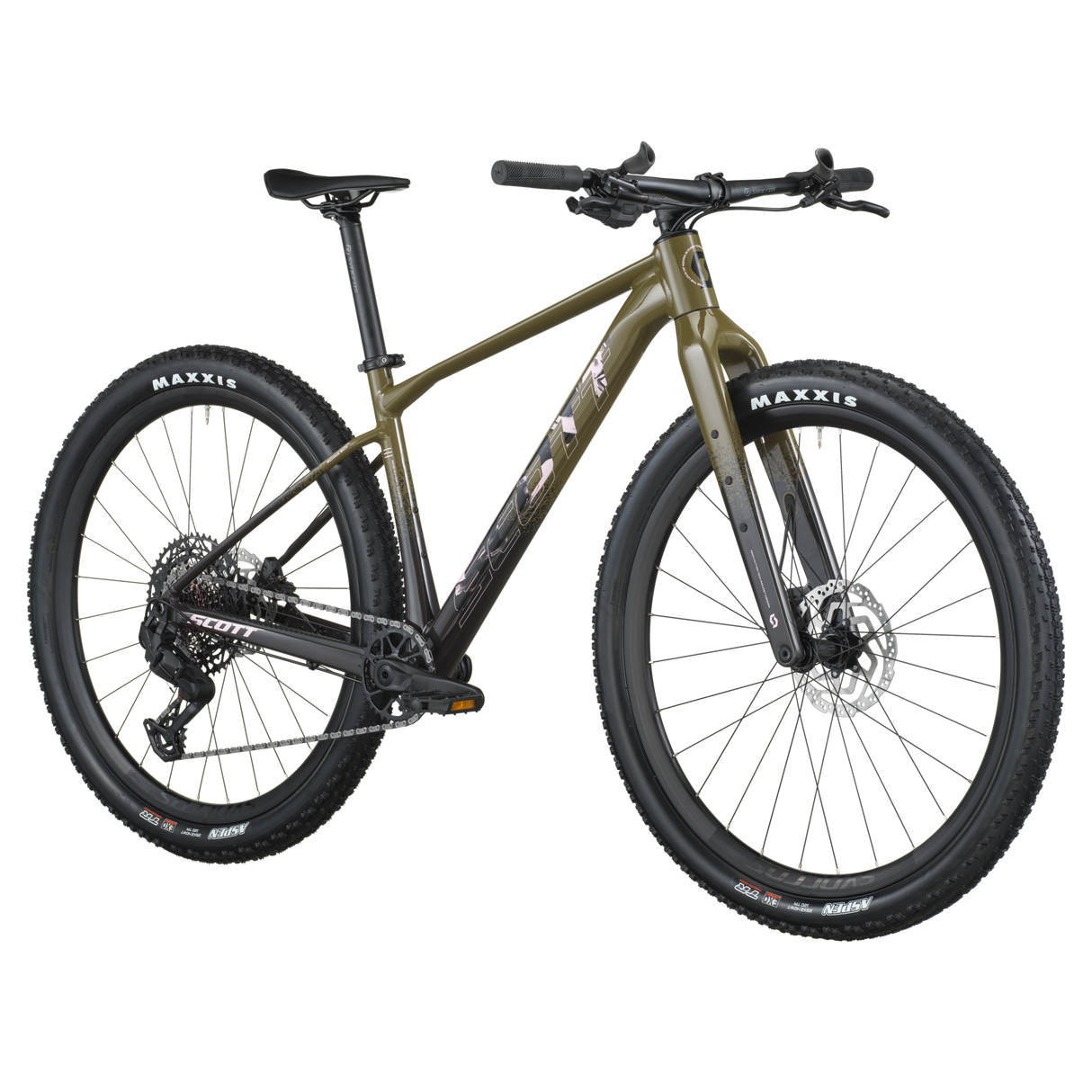

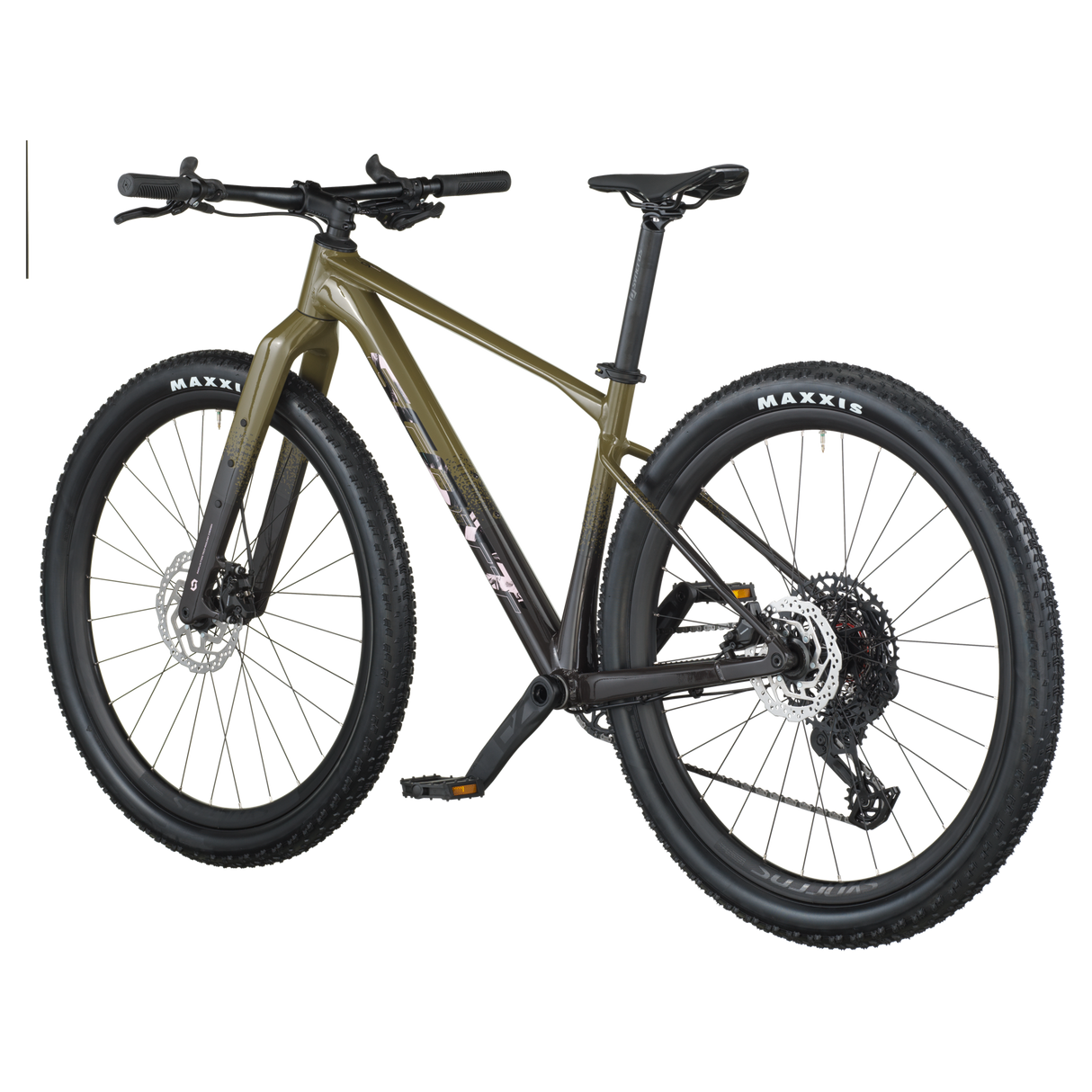

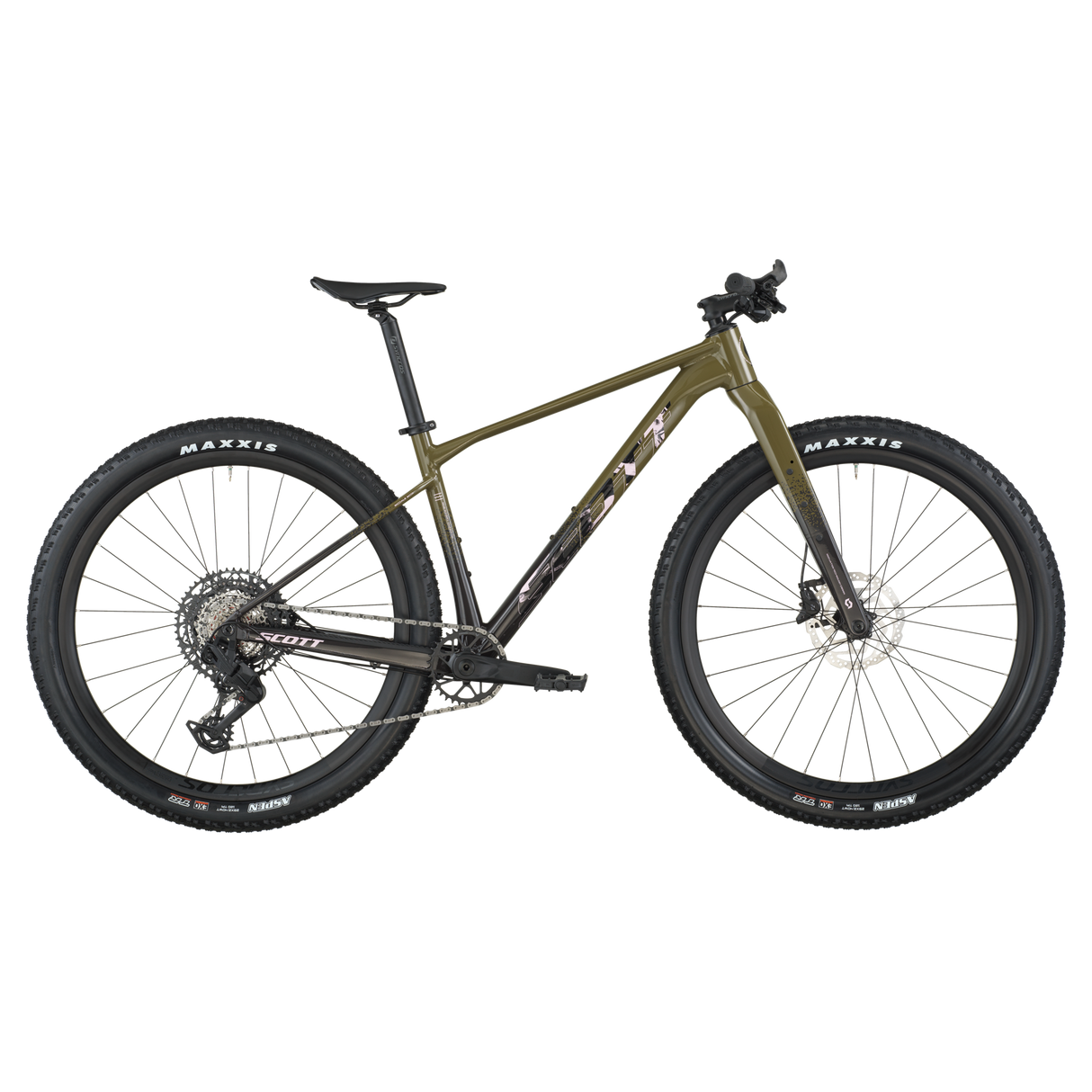

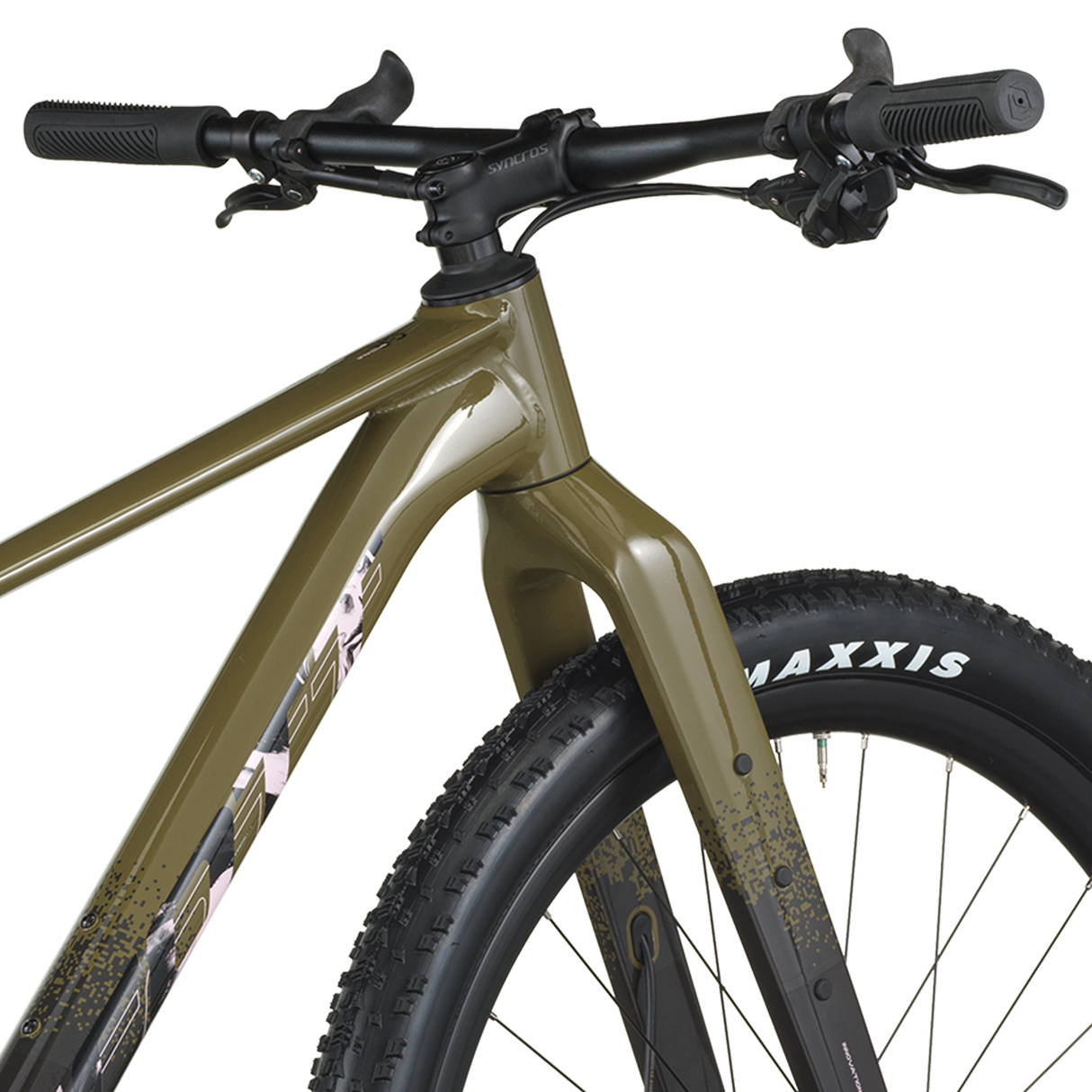

Scott Scale 20 SRAM Eagle 70 Gravel Bike

The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.

• Scale Alloy 6061 Frame

• Scale Rigid HMF Fork

• SRAM Eagle 70 Transmission 12 Speed Drivetrain

• Shimano Hyd. Disc Brakes

• Syncros X-28TR Rims

• Maxxis Aspen Foldable Tires

• Syncros Parts

• Frame: Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System BB92, UDH Interface, 12x148mm with 55mm Chainline

• Fork: Scale Rigid HMF Postmount Disc Standard Tapered Carbon steerer

• Rear Derailleur: SRAM Eagle 70 Transmission 12 Speed

• Shifters: SRAM Eagle 70 Trigger
• Crankset: SRAM Eagle 70 Transmission DUB, 55mm CL, 34T

• Chainguide: SCOTT custom

• BB-Set: SRAM DUB PF 92 MTB Wide, shell 41x92mm

• Chain: SRAM CN Eagle 70 Transmission

• Cassette: SRAM Eagle XS 1270 V2 Transmission 10-52

• Brakes: Shimano MT401 Disc Brake

• Rotor: Shimano SM-RT10 CL, 180/F and 160/R

• Handlebar: Syncros Alloy 6061 T shape Flat, 9°, 740mm Syncros Performance XC lock-on grips

• H'stem: Syncros DC 3.0 Syncros Cable Integration System 0° rise, 6061 Alloy, 31.8mm, 1 1/8"

• Seatpost: Syncros, 31.6x400mm

• Seat: Syncros Belcarra V2.5 Cut Out

• Headset: Syncros - Acros OE Cable Routing HS System OD 50/62mm, ID 42/56mm

• Hub (Front): Formula CL-811, 15x110mm

• Hub (Rear): Formula CL-3248, 12x148mm

• Spokes: Stainless Black 15G, 1.8mm

• Rims: Syncros X-28, 28H, Tubeless ready

• Front Tire: Maxxis Aspen, 29x2.4", 120TPI Foldable Bead Tubeless Ready, EXO

• Rear Tire: Maxxis Aspen, 29x2.4", 120TPI Foldable Bead Tubeless Ready, EXO

• Accessories: Spirgrips+ Inner Bar ends

• Approx. weight in KG: 11.4 (Tubless setup without pedals)

• Approx weight in LBS: 25.13 (Tubless setup without pedals)

• Max. System Weight: 120kg. The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
• Product Code: 425492

Monocoque Construction - The new Scale RC’s monocoque construction enables production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.

Service Door - A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regard to cable routing.

Hollow Dropout Construction - The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the head flush with the surface. This enables the lightest possible construction approach and a clean-looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).
