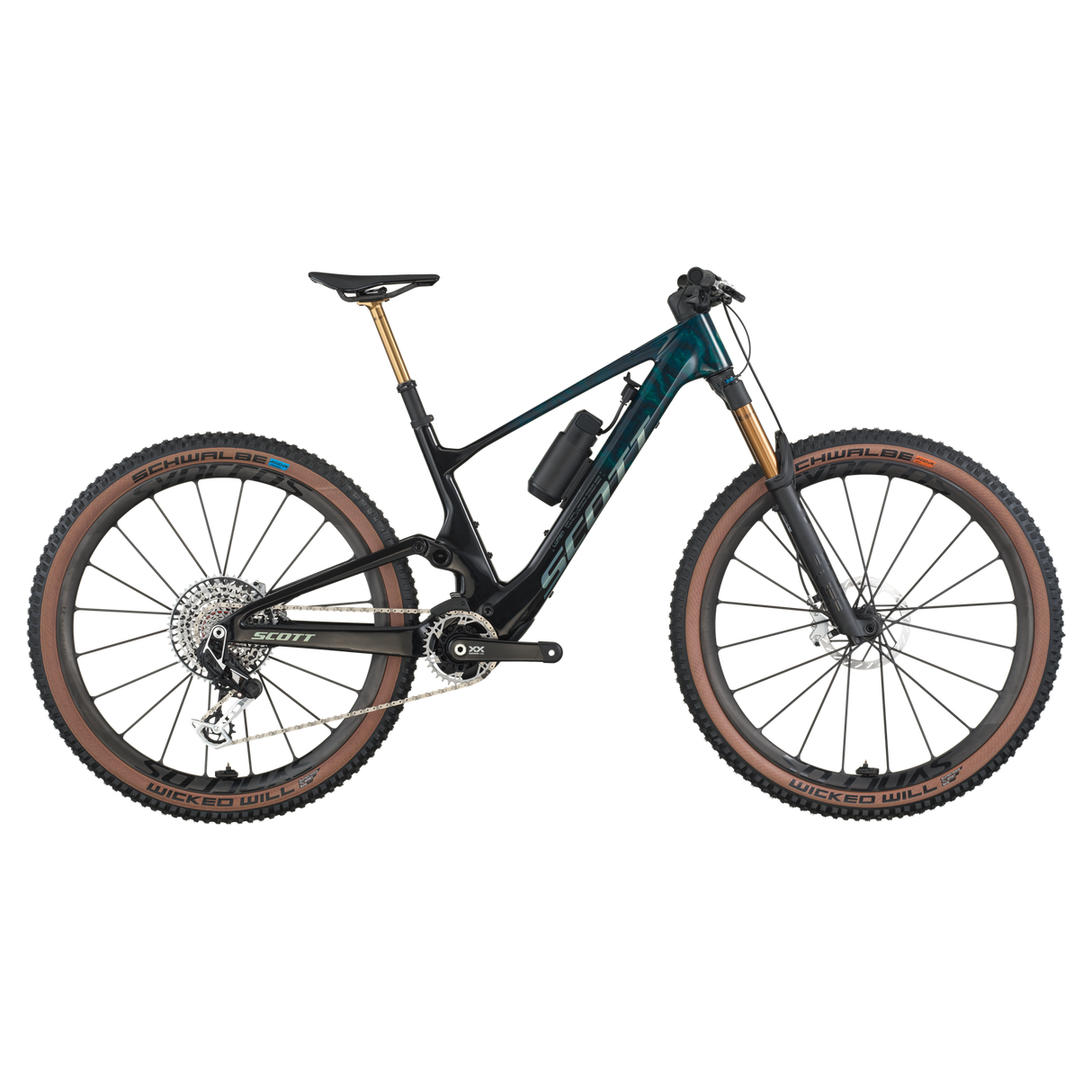

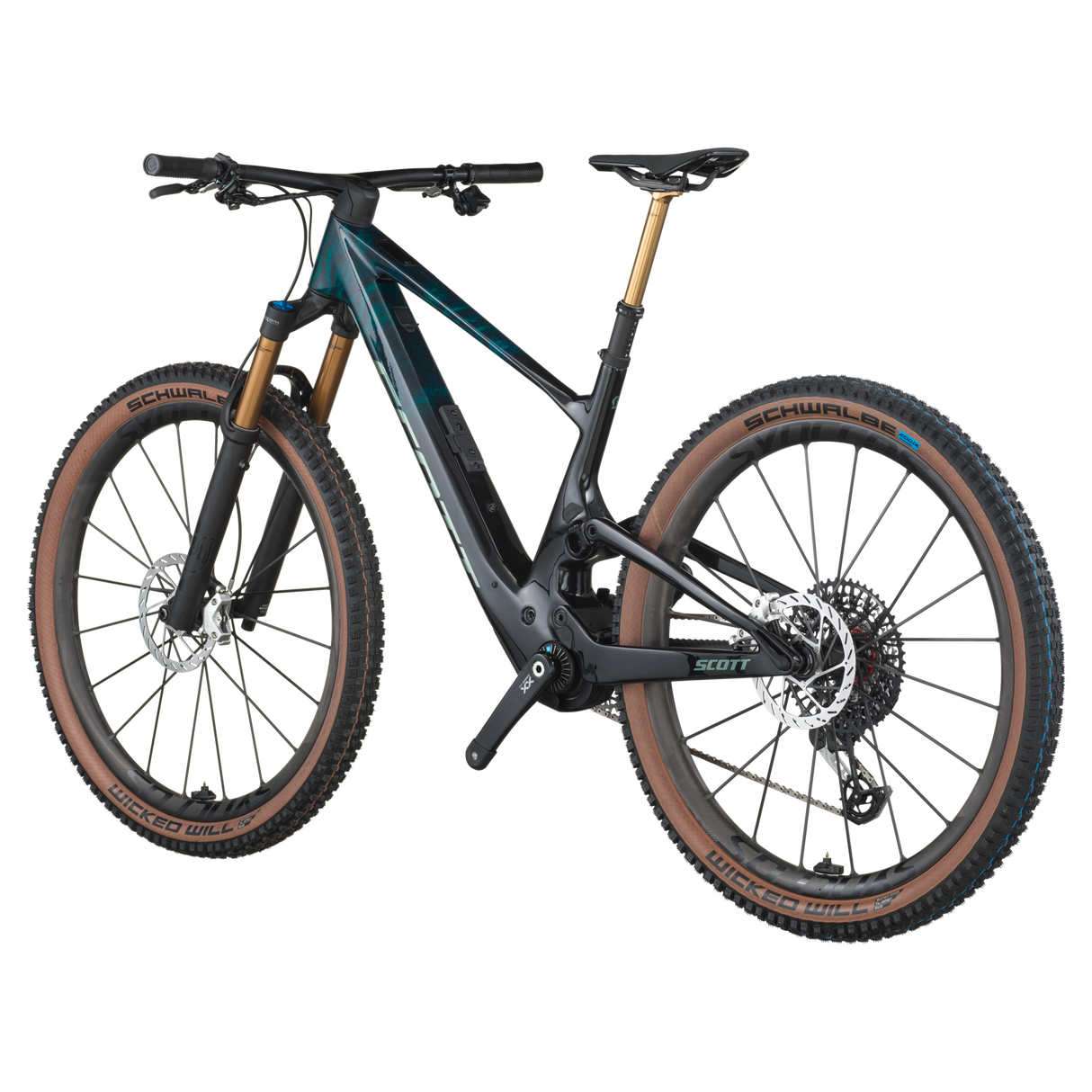

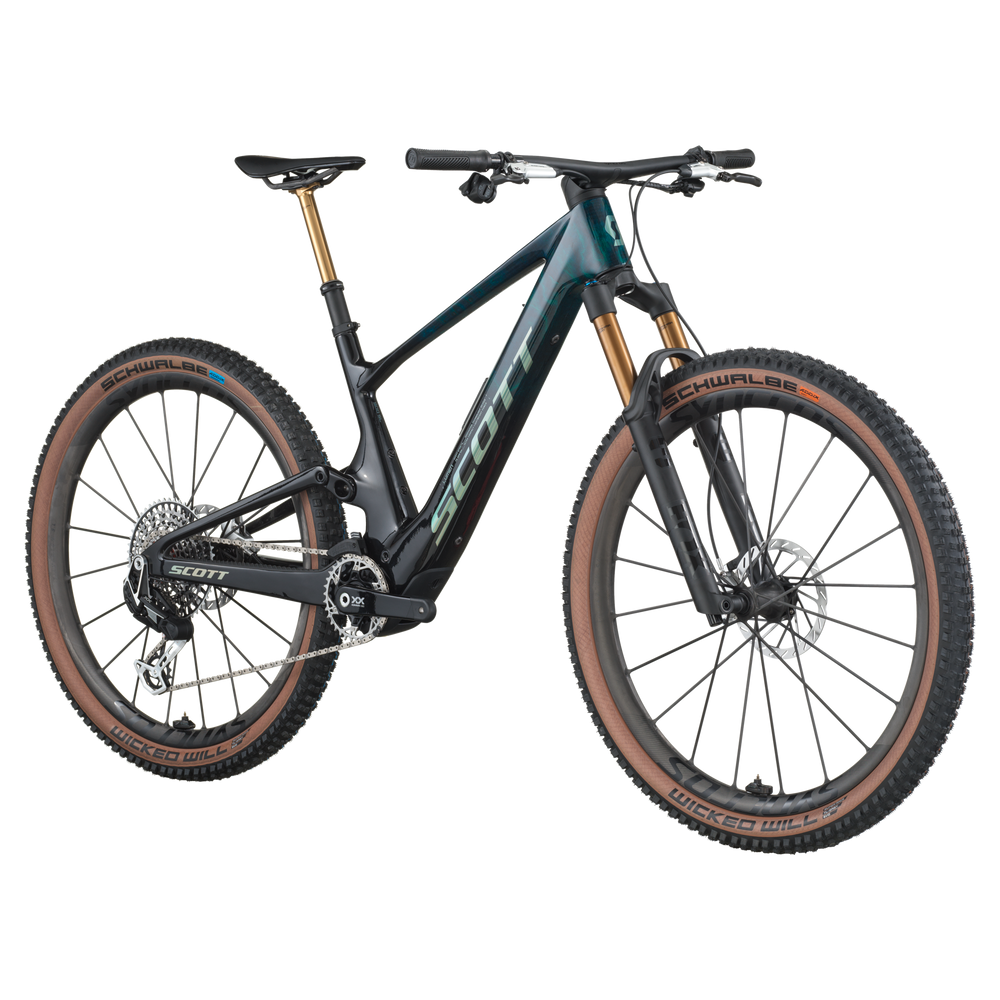

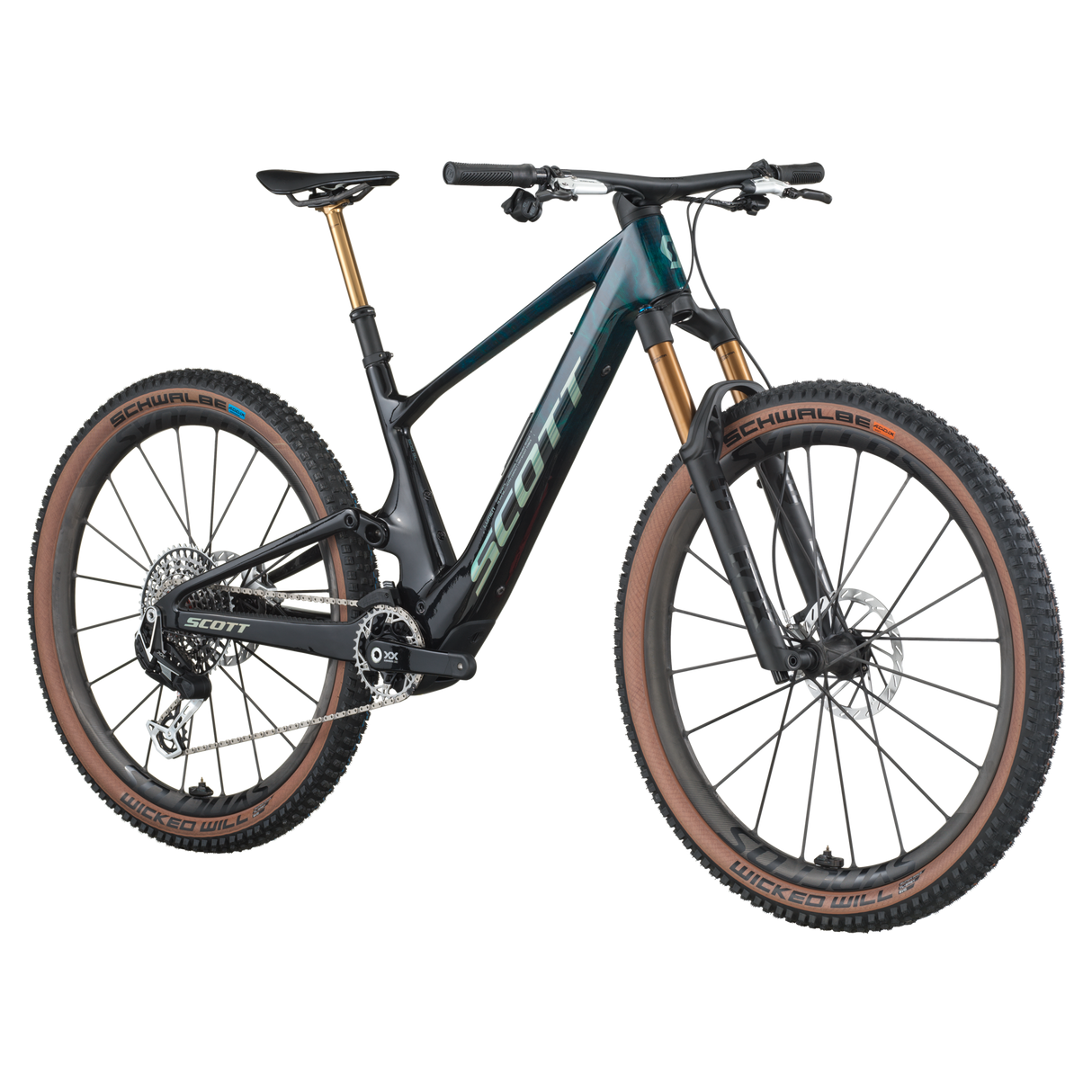

Scott Lumen 900 SL Mountain Bike

For mountain bikers looking to wring every last ounce of fun out of the trail, the updated Lumen 900 SL eMTB is the ultimate ride. At 15.5kg and specced with more torque than ever, it tricks like a down-country bike and pulls like a full-power torque to blast you out of hairpins and easily overcome monster inclines.

The extra juice is courtesy of TQ’s new HPR60 motor unit, which boosts torque from 50Nm as on the previous Lumen 900 to 60Nm of thrust that might make you feel like you’ve got a World Champion’s legs. Typically, that improvement comes at the cost of a heavier system weight, but that’s not the case with the HPR60. It’s the same weight as the outgoing motor drive used on the previous Lumen 900, but 20% stronger.

Energy management and range are also improved with cooling fins and new software that combine to make the drive unit as efficient as its predecessor despite the additional torque. Lumen 900 SL takes your rides far with its 360Wh main battery that can be complemented with the included Range Extender Battery. The small-water-bottle-sized extender attaches with a quick-release mount or easily stows away in a day pack.

This Lumen 900 SL features a brightly illuminated colour screen for crisp viewing of your motor and battery performance. We’ve also specced it as your ultimate e-MTB with a 140mm FOX Factory 36 SL fork, custom Scott 130mm integrated shock, SRAM XX Eagle AXS, and Motive Ultimate brakes.

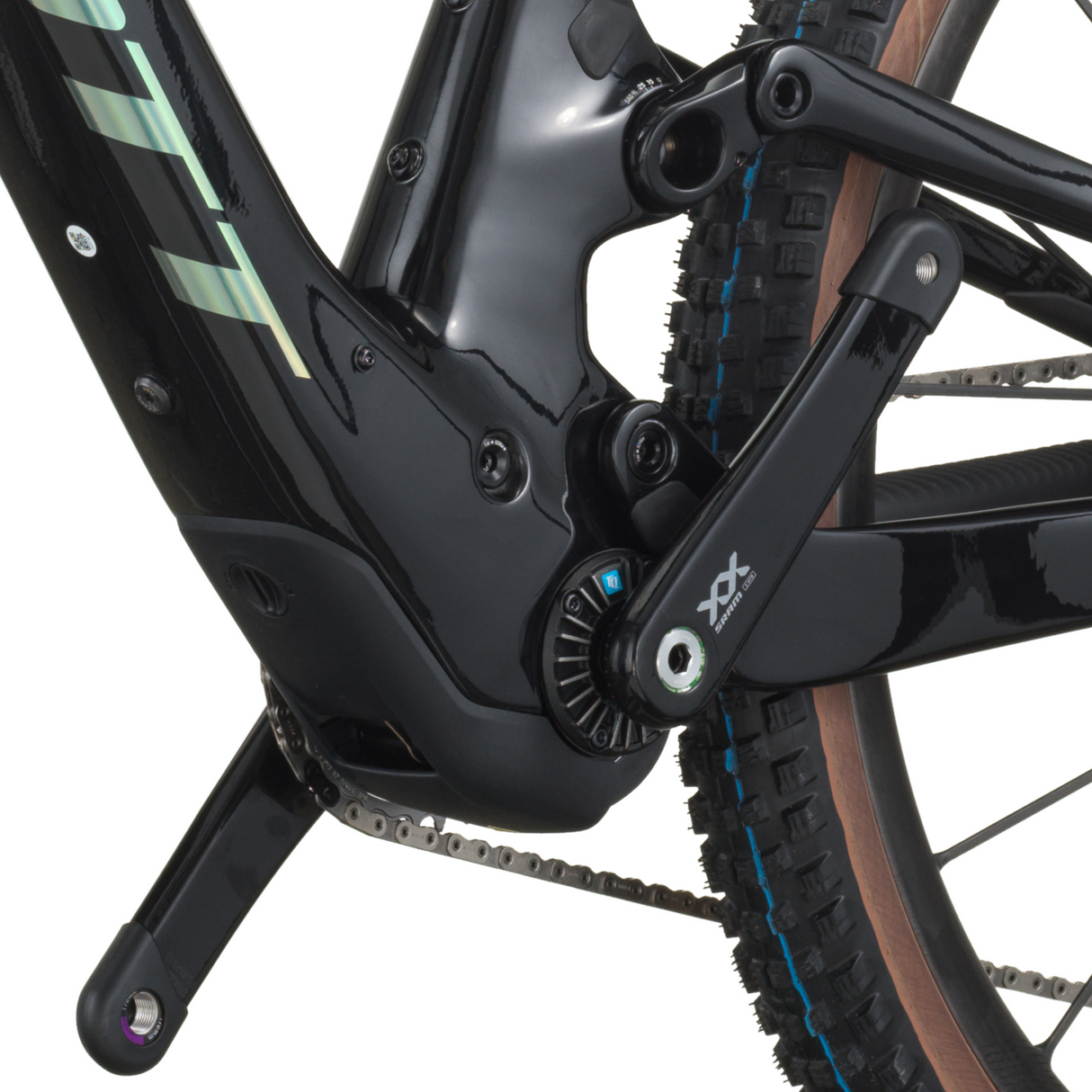

• TQ HPR60 Motor
  TQ is a German company founded in 1994 who specialize in electric components across a range of industries.

• TQ HPR 360Wh Battery
  The Lumen features a 360Wh internal battery which can be further complemented by a 160Wh external range extender.

• TQ HPR RANGE EXTENDER
  The Lumen features a 360Wh internal battery, which can be further complemented by a 160Wh external range extender Easily fixed to the front water bottle mount with our unique SCOTT-designed quick-release mount, the range extender features a slim design and low weight, meaning minimal impact on the bike’s handling.

• Lumen Dual Water Bottle
  Unlike most full suspension E-Bikes, on the Lumen, there is no need to choose between the range extender or a water bottle - between longer rides and staying hydrated.

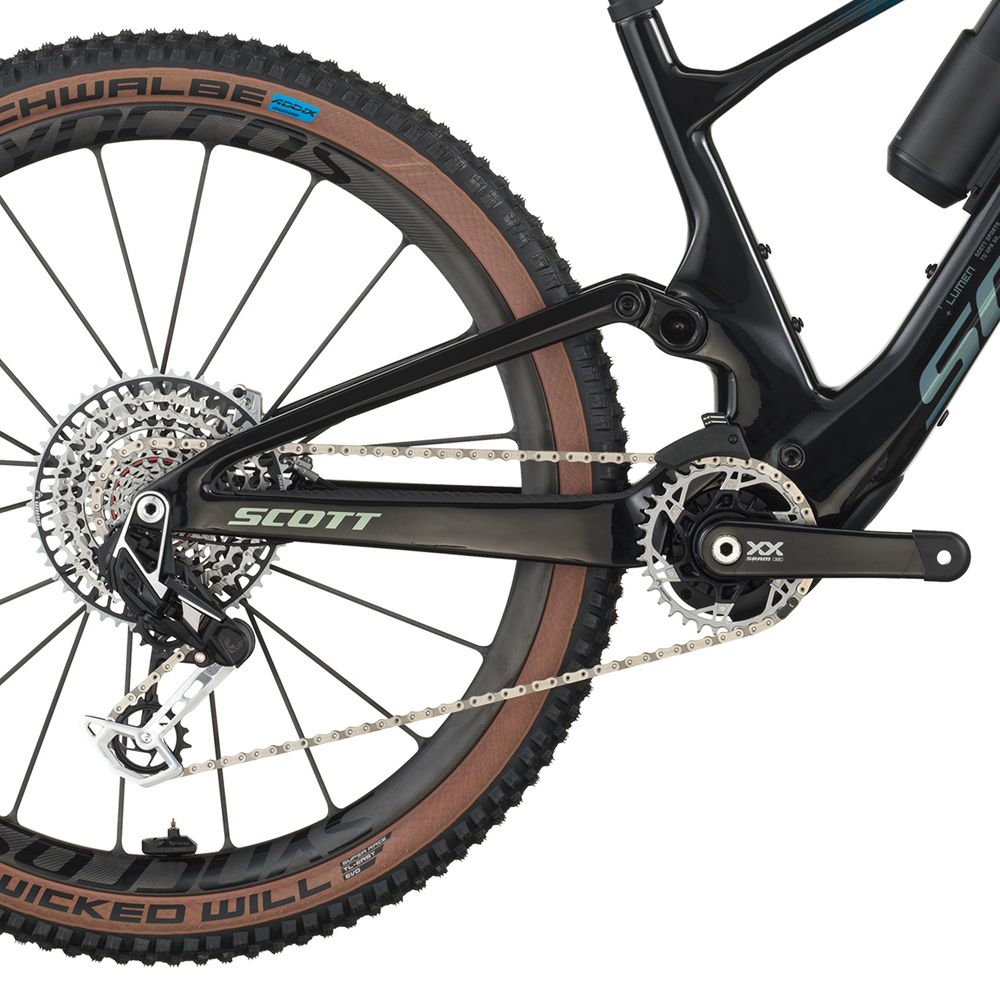

• Lumen Chain Line
  The TQ motor allows us to keep a standard Q-factor with a 55mm chain line – exactly the same as the Scott Spark.

• TQ HPR App
  The TQ app offers real benefit and is easy to use. It’s easy to connect, customize and control your TQ-powered e-bike with the TQ E-Bike app.

• TQ HPR Colored Display
  To maintain a clean cockpit, the TQ system puts the focus on a minimalistic colored display located in the top tube. At a glance, the display provides all the essential info, such as the battery level %, remaining KM range and even Watts, thanks to an integrated power meter.


• Frame: Carbon HMX Integrated Suspension Technology Flex Pivot, Adjustable head angle, Syncros Cable Integration System, UDH Interface, 12x148mm with 55mm Chainline Travel: Front: 140mm, Rear: 130mm

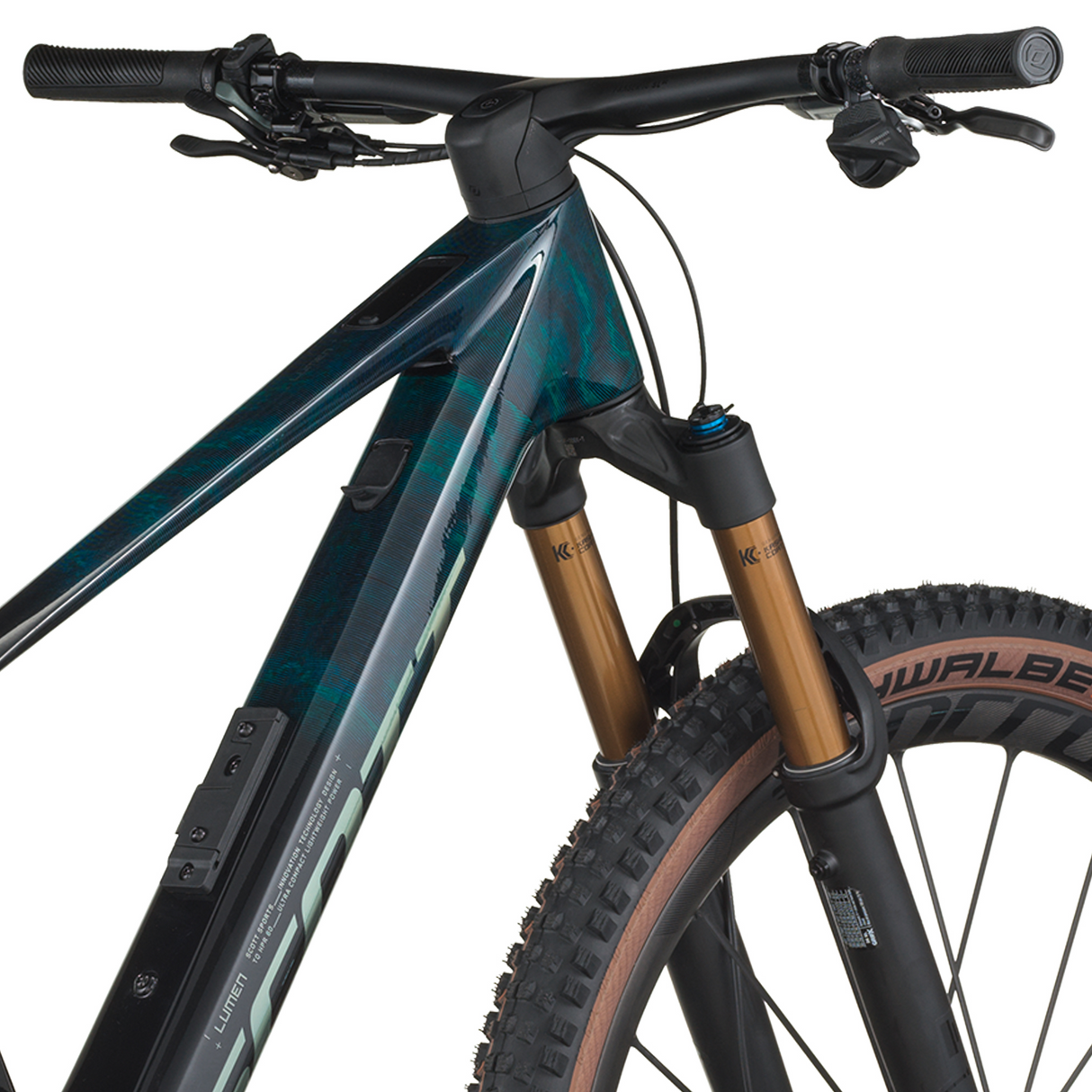

• Fork: FOX 36SL Factory Air, Kashima Grip SL 3-Modes with low Speed adj., Kabolt 15x110mm axle, 44mm offset Tapered steerer, Lockout, Reb. Adj. 140mm travel

• Rear Shock: FOX NUDE 6T Factory EVOL Trunnion SCOTT custom w. travel, geo adj.
  3 modes: Lockout-Traction Control-Descend Low Speed Adj., Custom large Air volume, Kashima, Reb. Adj. Bearing Hardware, Travel 130-90-Lockout, T165X45mm

• Remote System: SCOTT TwinLoc 2 Technology Suspension & Dropper Remote
  3 Suspension modes

• Drive Unit: TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph

• Battery: TQ Internal 360Wh + Range Extender 160Wh

• Display: TQ HPR Colour Bluetooth, ANT+, Dedicated Smartphone app

• Charger: TQ 100-240V-4A

• Rear Derailleur: SRAM XX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System

• Shifters: SRAM AXS Pod Rocker Controller

• Crankset: SRAM XX, Carbon

• Chainguide: e*thirteen, e*spec Slider

• Chainring: SRAM XX Eagle Transmission 34T chainring

• Chain: SRAM CN XX Eagle Transmission

• Cassette: SRAM XX Eagle XS 1297 Transmission 10-52

• Brakes: SRAM Motive Ultimate Stealth 4-Piston Disc

• Rotor: SRAM HS2 CL Rotors, F&R 180mm

• Handlebar: Syncros Fraser iC SL DC Carbon, 0° rise, back sweep 8°, mini Rise, 760mm Syncros Performance XC lock-on grips

• Seatpost: FOX Transfer Factory Dropper Post Kashima 31.6mm, S size 125mm, M size 140mm L ize 150mm, XL size 175mm

• Seat: Syncros Tofino Regular 1.0 Carbon rails

• Headset: Syncros - Acros Angle adjust & Cable Routing HS System Stainless, +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB

• Wheelset: Syncros Silverton SL2-30 CL full Carbon F: 15x110mm, R: 12x148mm, 30mm Tubeless ready rim DT Swiss 240 Ratchet EXP 36, XD Driver SRAM TyreWiz, Syncros SL Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools

• Front Tire: Schwalbe Wicked Will 29x2.4" EVO Super Race, TLE, 67EPI, Addix Speed Soft

• Rear Tire: Schwalbe Wicked Will 29x2.4" EVO Super Race, TLE, 67EPI, Addix Speed Grip

• Accessories: Tire Sealant Transport Axle

• Approx weight in KG: 16.0 Tubless setup without RE (1.1kg)

• Approx weight in LBS: 35.27 Tubless setup without RE (1.1kg)

• Max. System Weight: 130kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

• Model: 425436
