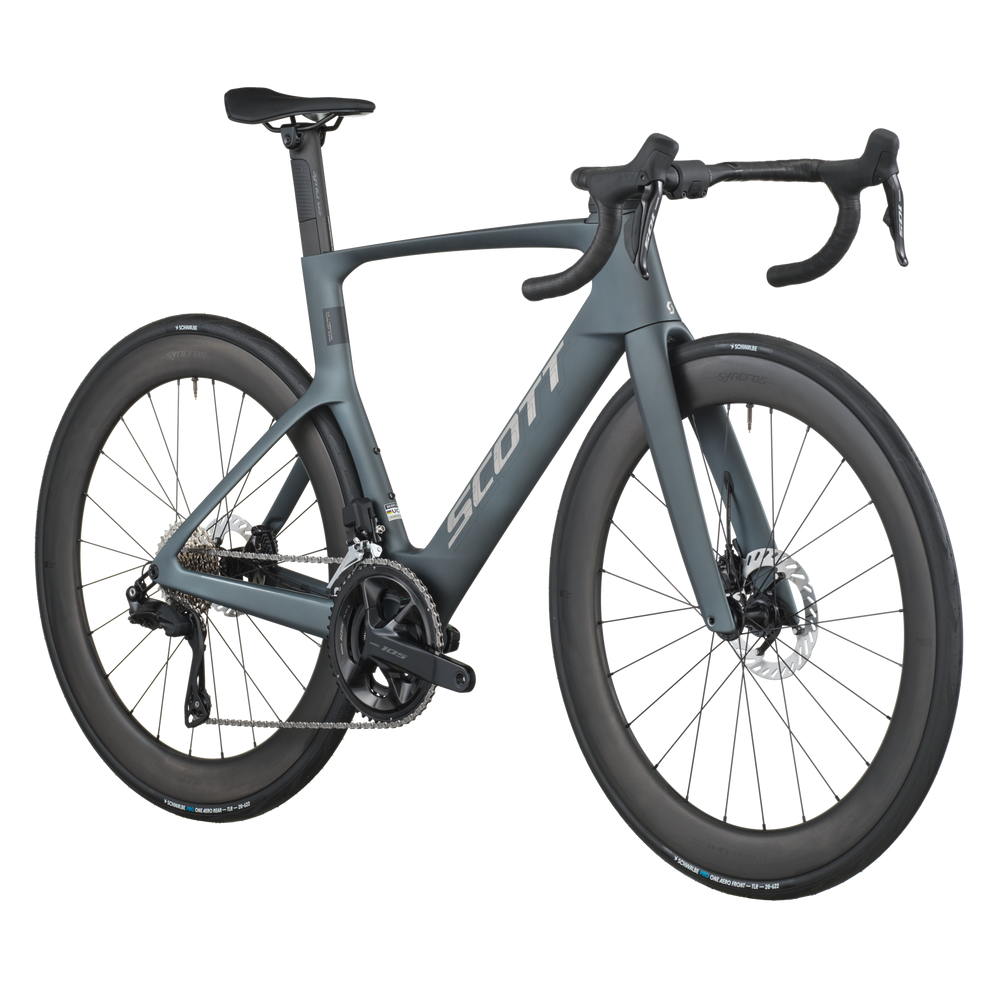

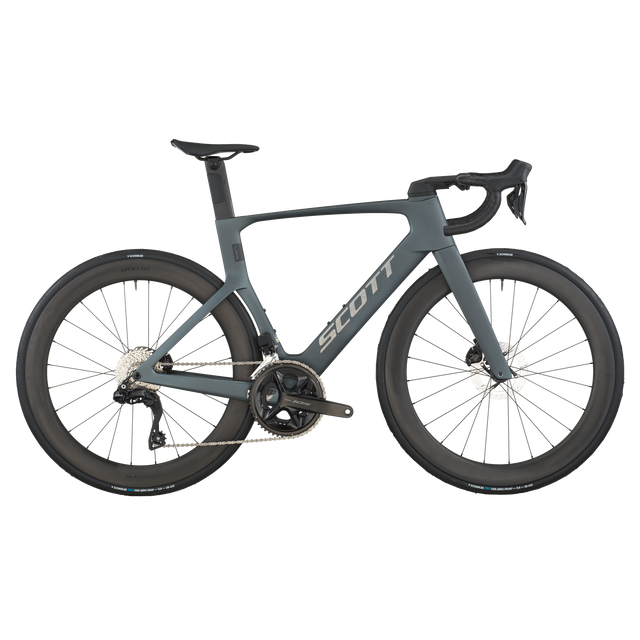

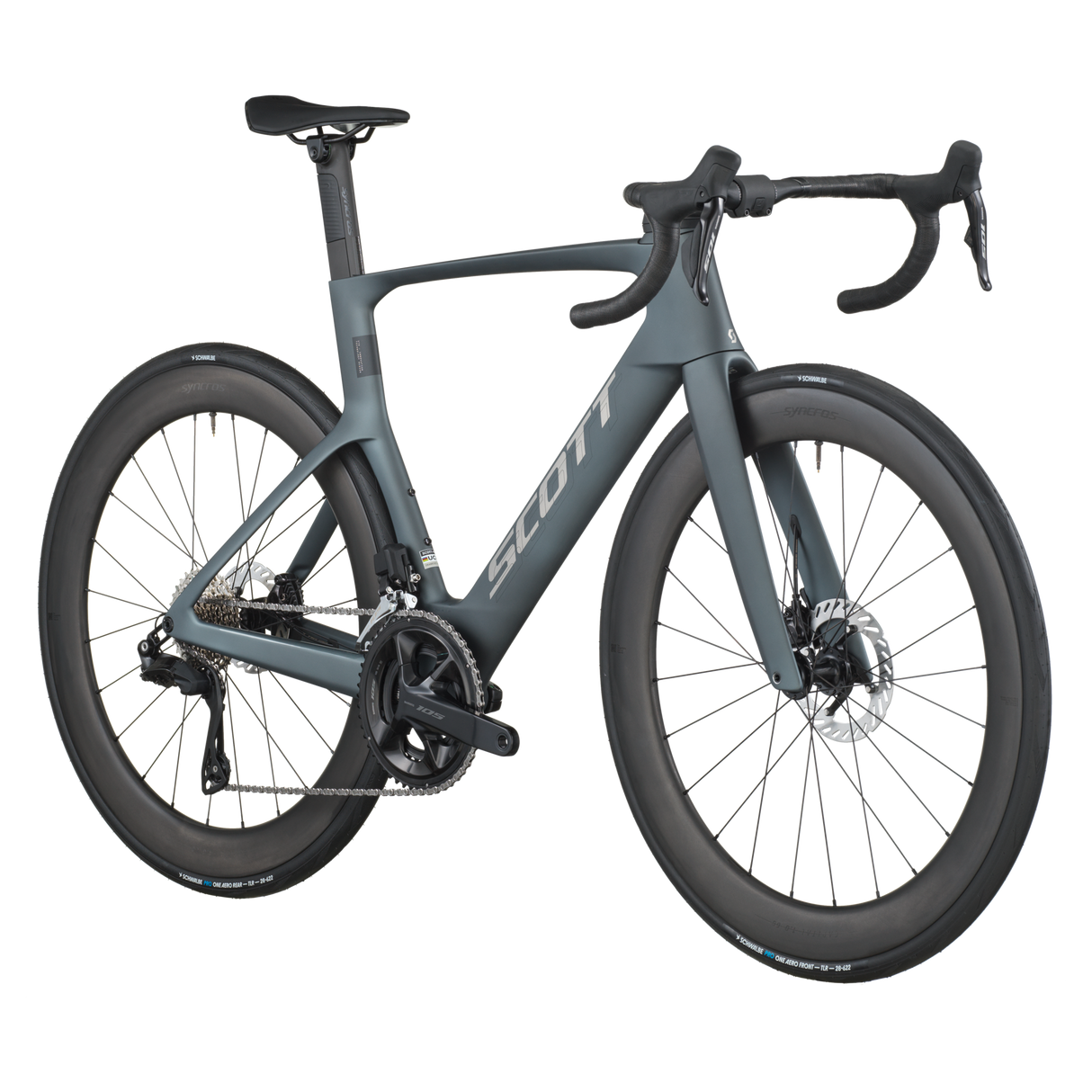

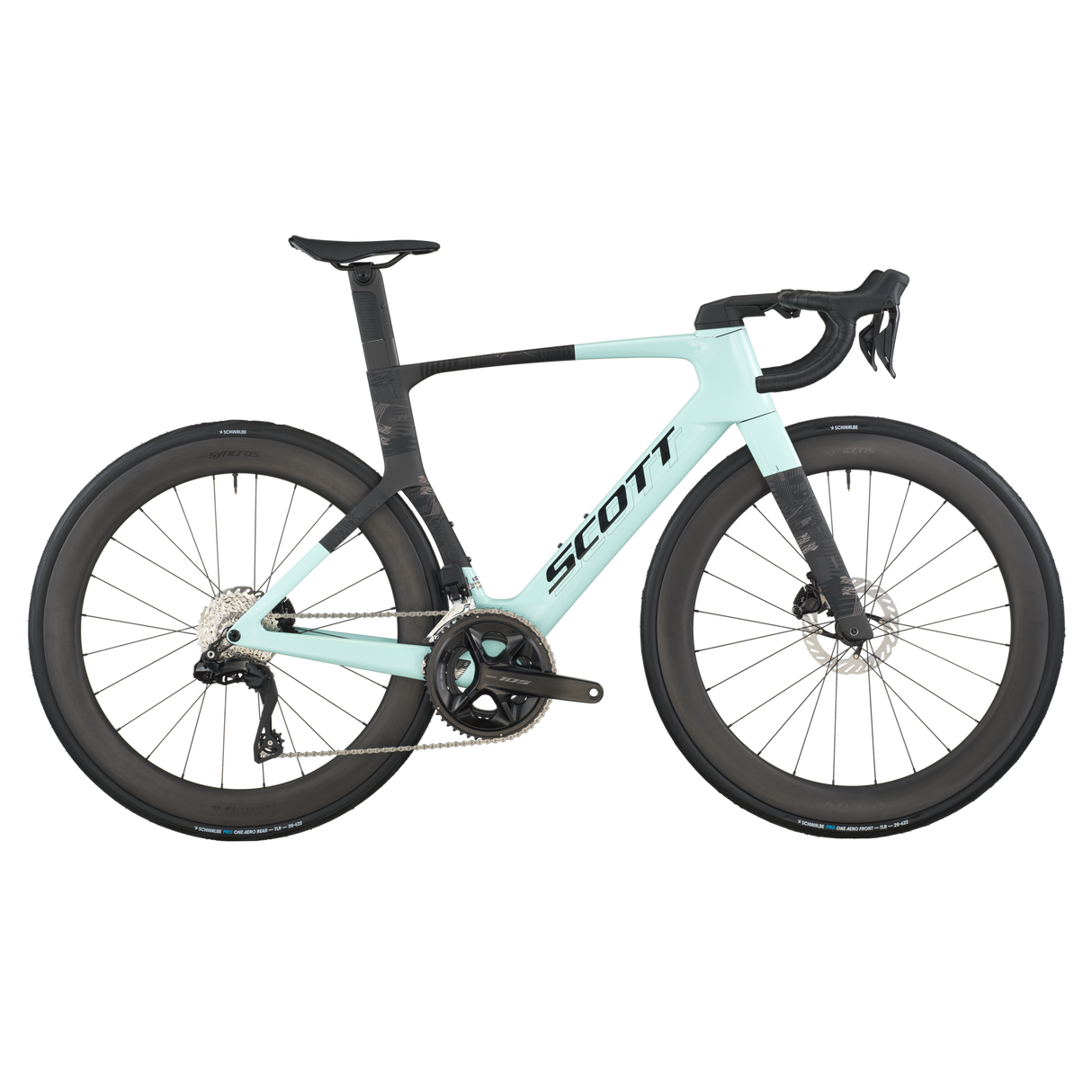

Scott Foil RC 20 Shimano 105 Di2 Road Bike

Frame

• FOIL RC Disc HMX

• Road Race geometry, Replaceable Derailleur Hanger

• Internal cable routing


Fork

• FOIL Disc HMX

• 1" Eccentric Carbon steerer

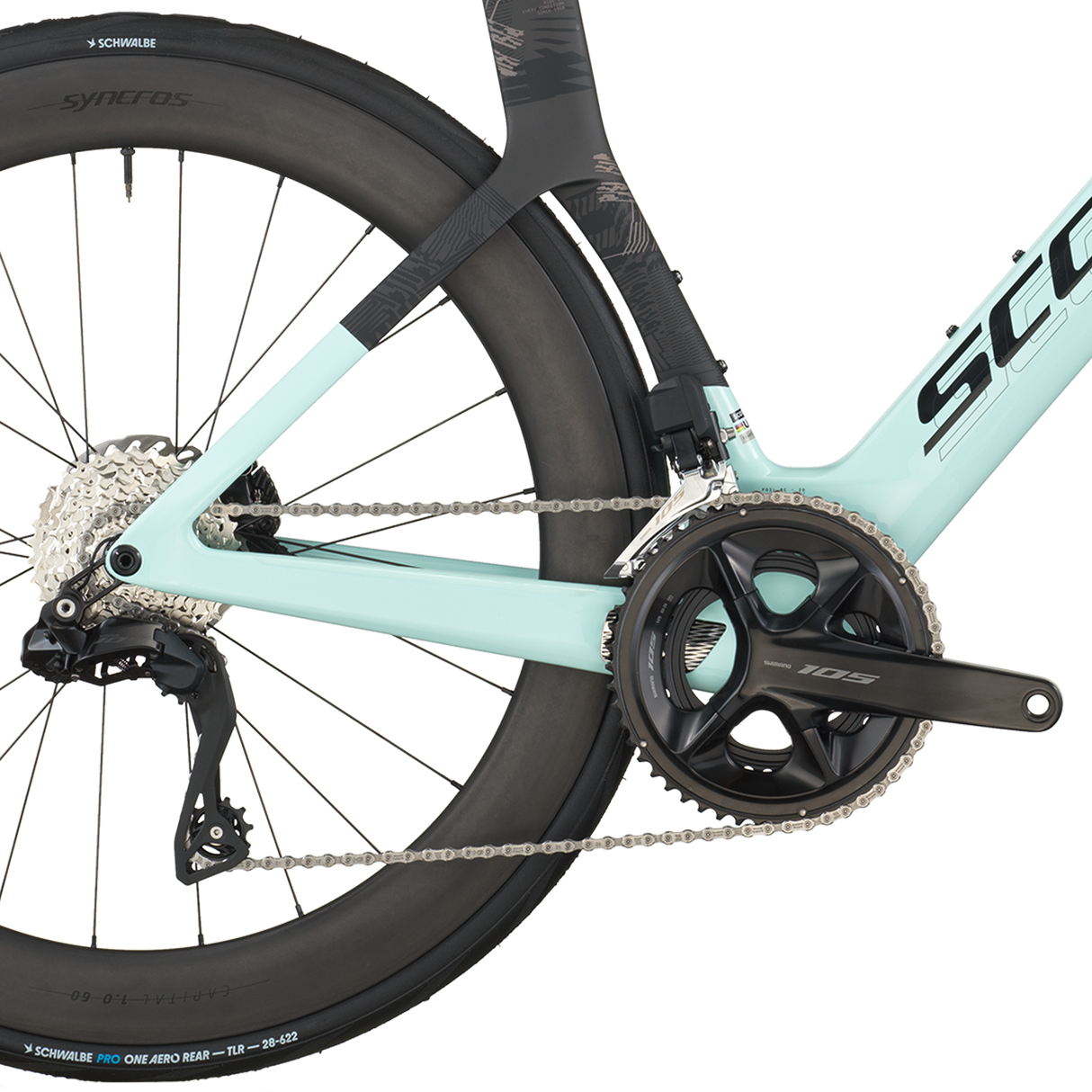

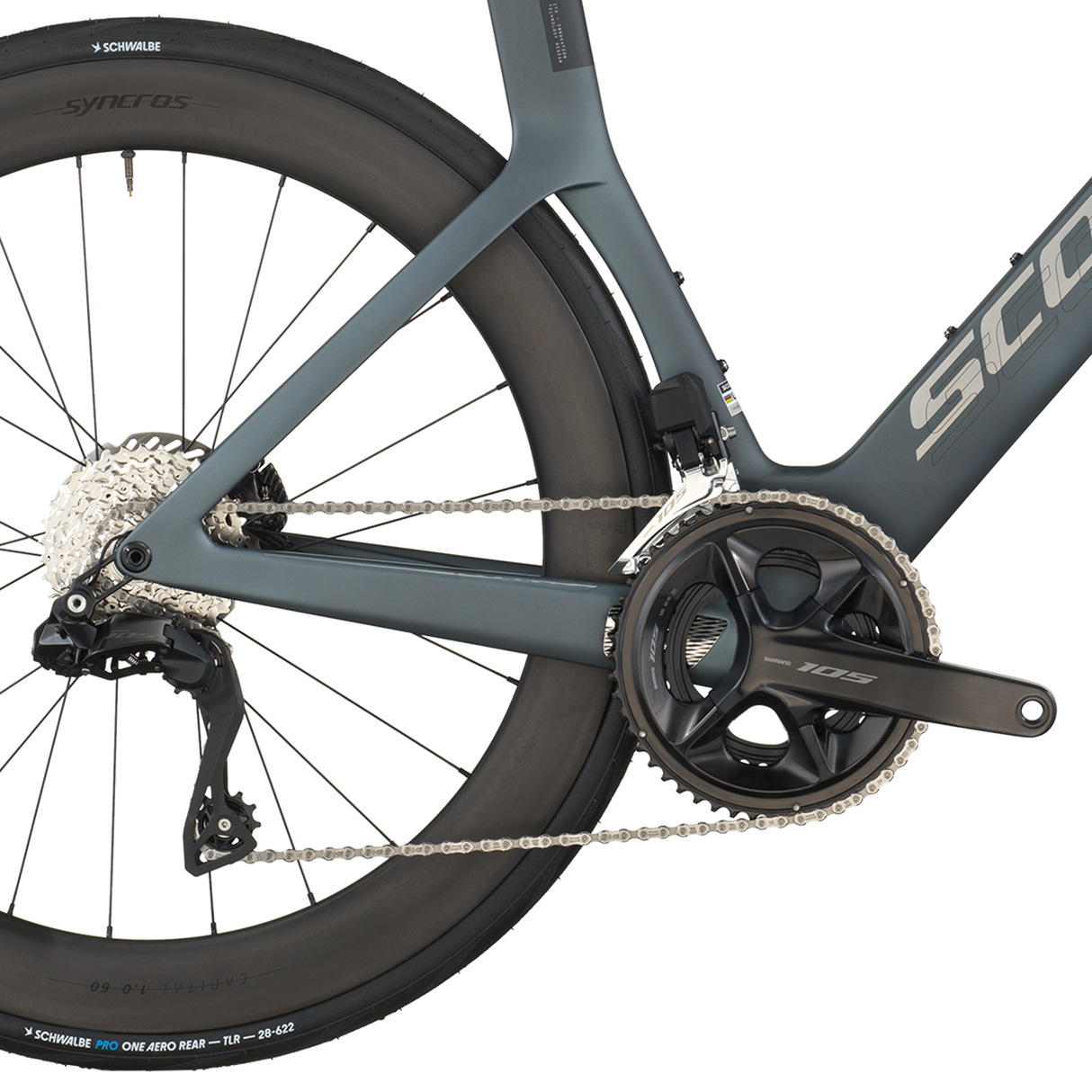

Rear Derailleur

• Shimano 105 Di2 RD-R7150

• 24 Speed Electronic Shift System


Front Derailleur

• Shimano 105 Di2 FD-R7150

• Electronic Shift System


Shifters

• Shimano 105 Di2 ST-R7170, 24 Speed Electronic Shift System


Crankset

• Shimano 105 FC-R7100

• Hollowtech II 52x36 T


BB-Set

• Shimano BB-RS500-PB


Chain

• Shimano CN-M6100-12


Cassette

• Shimano CS-R7100

• 11-34


Brakes

• Shimano BR-R7170 Hyd.Disc


Rotor

• Shimano RT-CL700 rotor 160/F and 140/R


Handlebar

• Syncros Creston 2.0 Aero


H'stem

• Syncros Foil 1.5 Aero


Seatpost

• Syncros Duncan SL Aero CFT


Seat

• Syncros Belcarra V 2.0 NEO Cut Out


Headset

• Acros AIF-1138


Wheelset

• Syncros Capital 1.0 60

• 24 Front, 24 Rear

• Syncros SL Axle, Removable Lever with Tool


Front Tire

• Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C


Rear Tire

• Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C


Approx. weight

• 8.1 KG

Max. System Weight

• 120kg

• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.


Model Code

• 425338

F01 Airfoil Technology - Through SCOTT's own F01 technology we are able to ensure that every tube and junction is optimized for the best aerodynamic design. Validated through computer simulation and wind tunnel testing we can guarantee that this is the fastest Road Bike SCOTT has ever made.

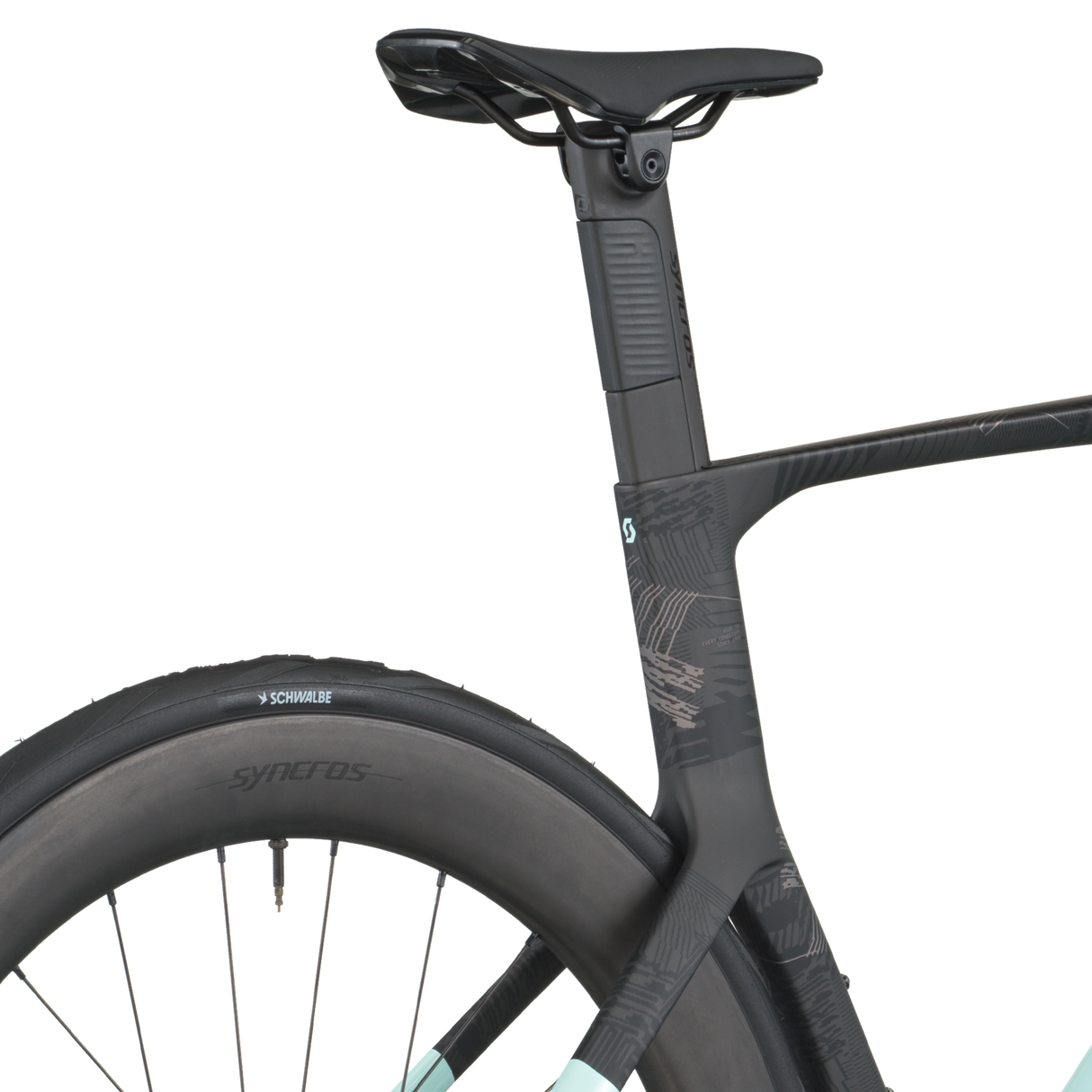

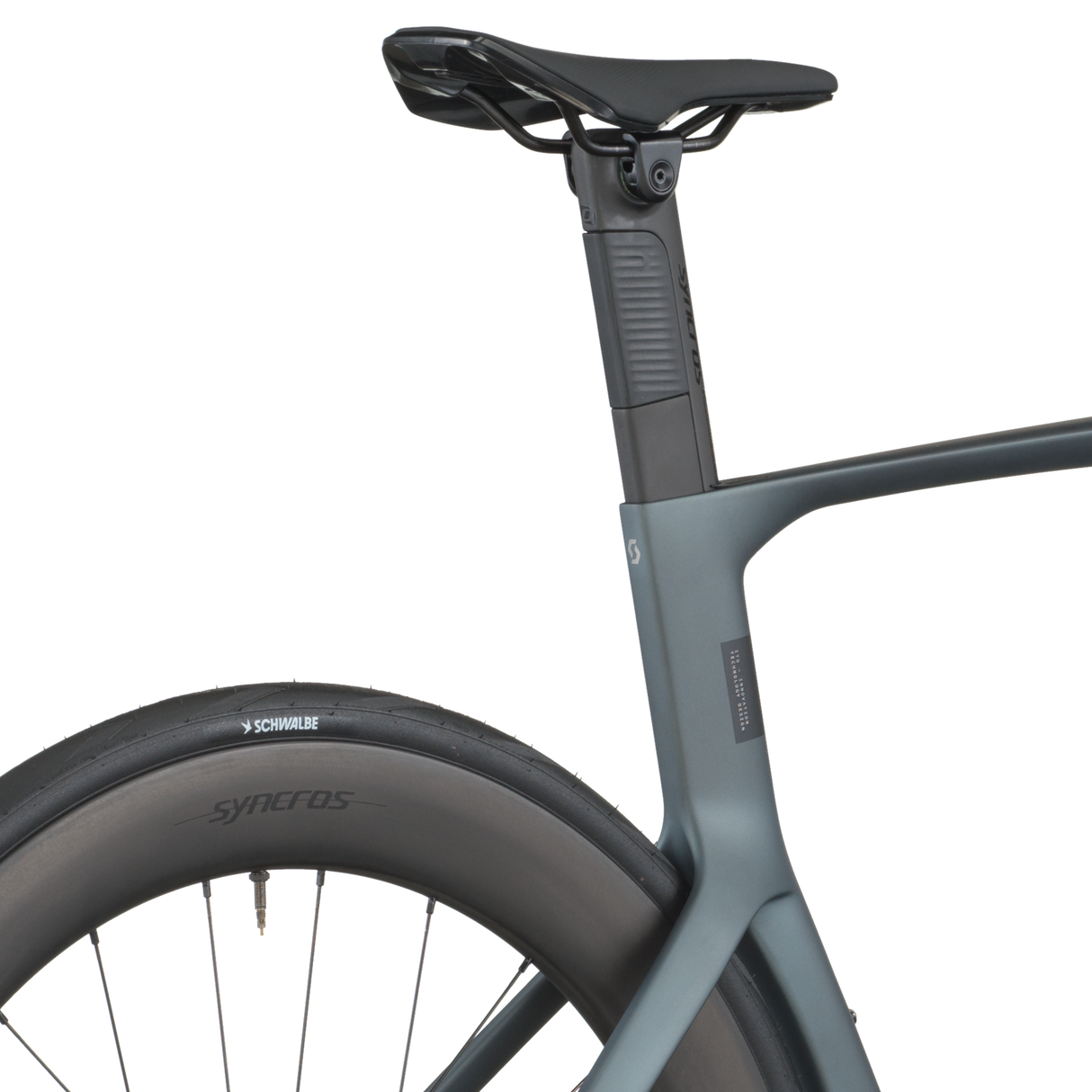

Syncros Duncan SL Aero CFT -

One of the most innovative features of the bike is the patented new Syncros Duncan SL Aero CFT. The innovative seatpost will not only make sure that on rougher surfaces you aren’t beaten up, but more importantly when on light gravel or cobbles, the seatpost will ensure you’re able to deliver maximum power through the pedals as you won’t be bucked out of the saddle. Consisting of two parts, the front, carbon fiber load bearing piece bends when the road gets bumpy ensuring you stay on the saddle.

Sold separately, the Syncros Campbell 20 Aero iL Rear Light is a USB rechargeable light that slots directly into the Duncan SL Aero CFT seatpost while maintaining the aerodynamic profile of the post. With its COB LED, it has 3 running modes, one steady, one for day time, and one for night time and offers 20Lm of output for a safe ride in all conditions.

Dropped Seatstays - All Foil RC models feature dropped seatstays which means additional comfort for the rider but crucially for an aero bike it also means less air resistance. They are aimed in at a 10 degree angle, forcing the passing air into the spinning spokes. Through aerodynamic testing we discovered that this detail provides significant aero gains as the bike moves forward. With the dropped seatstays we’re also able to hide the disc brake callipers not only further reducing aero drag but also adding to an overall clean aesthetic.

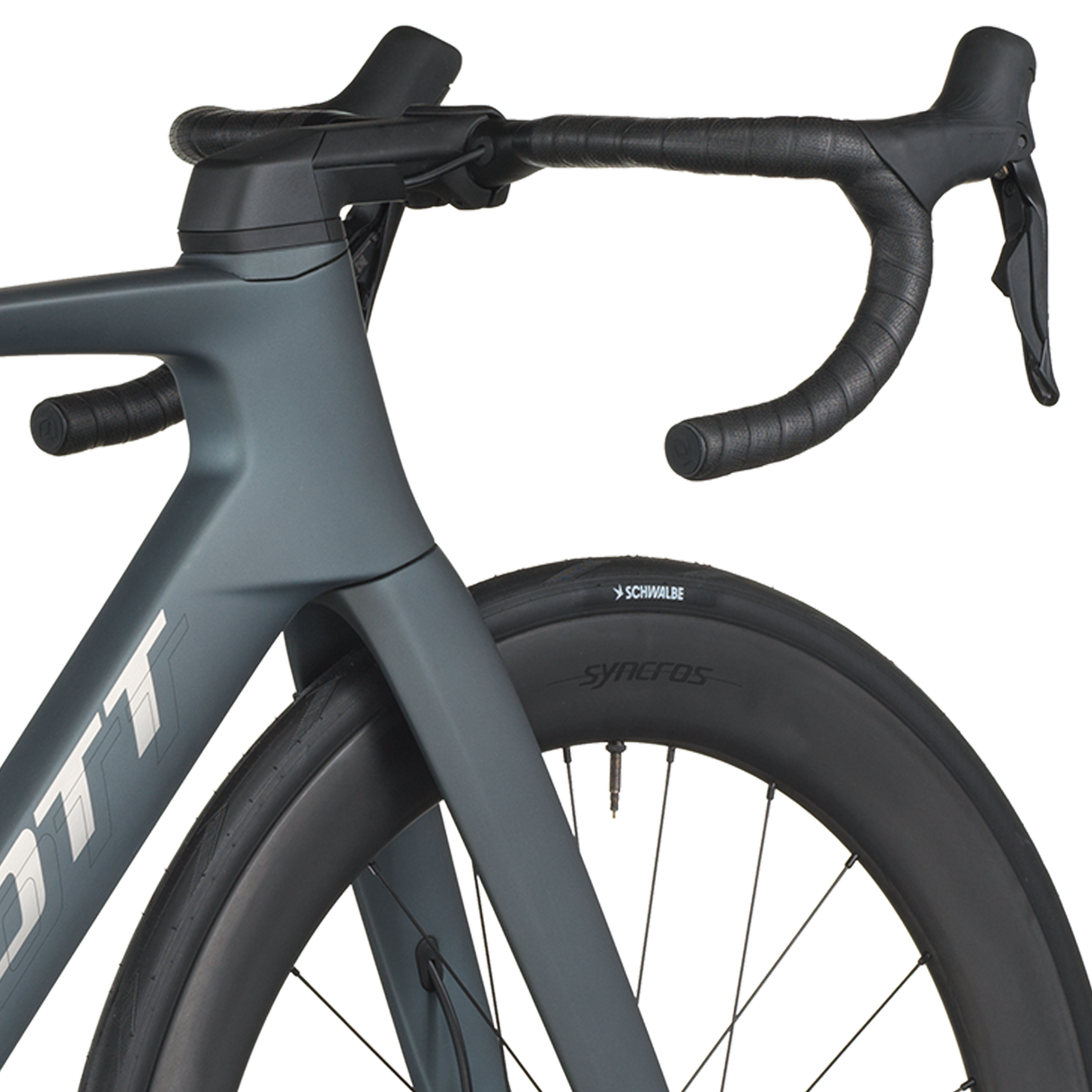

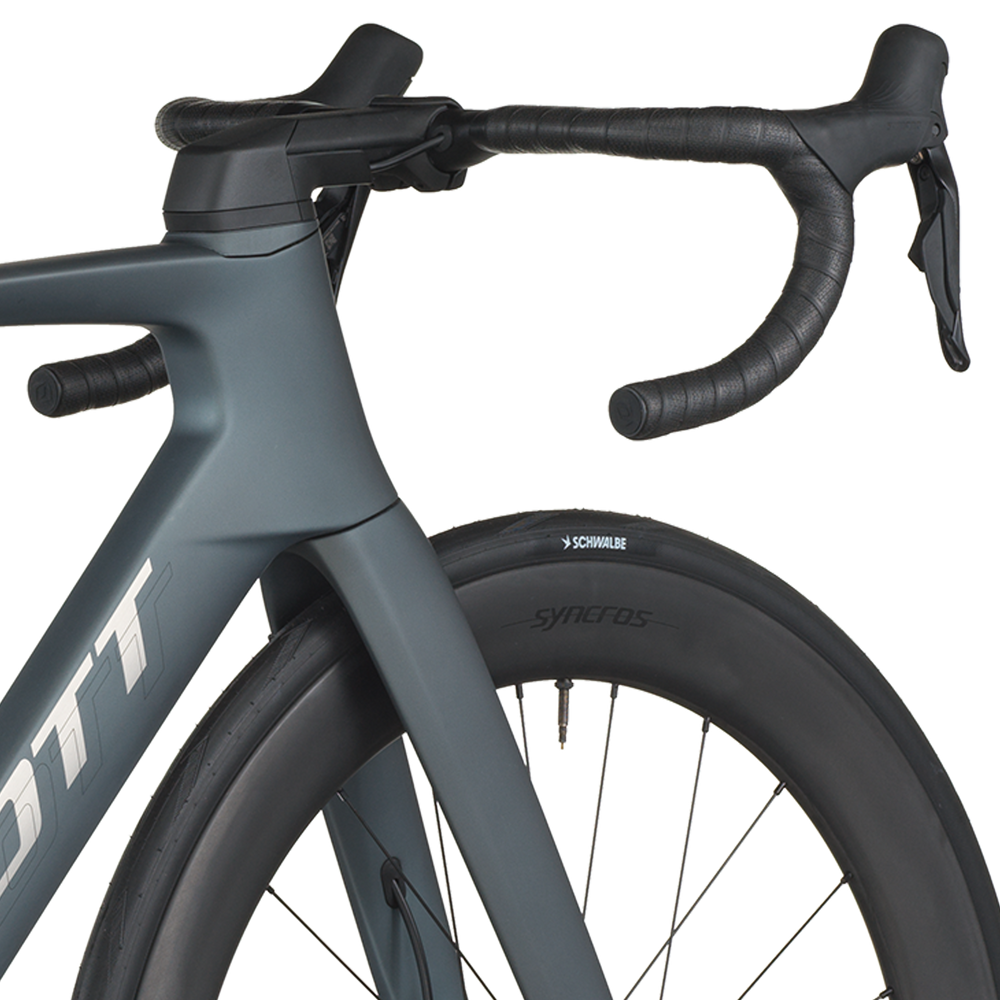

Oversized Head Tube - The Foil RC features an oversized head tube which not only allows for fully integrated cabling for both mechanical and electronic shifting but more importantly acts as a fairing for the bike. It splits the oncoming air and reduces aerodynamic drag as a rider powers forward.

Lightweight Design - With over 300 designs tested, SCOTT engineers were able to deliver a better carbon lay-up, a 30% reduction in the number of carbon pieces and joints used compared to the previous Foil and with incredible attention to the smaller details such as seat stays and seat clamp the team shaved weight without sacrificing stiffness.

30% fewer joints  I  9% weight saved   I  300 frame designs simulated
