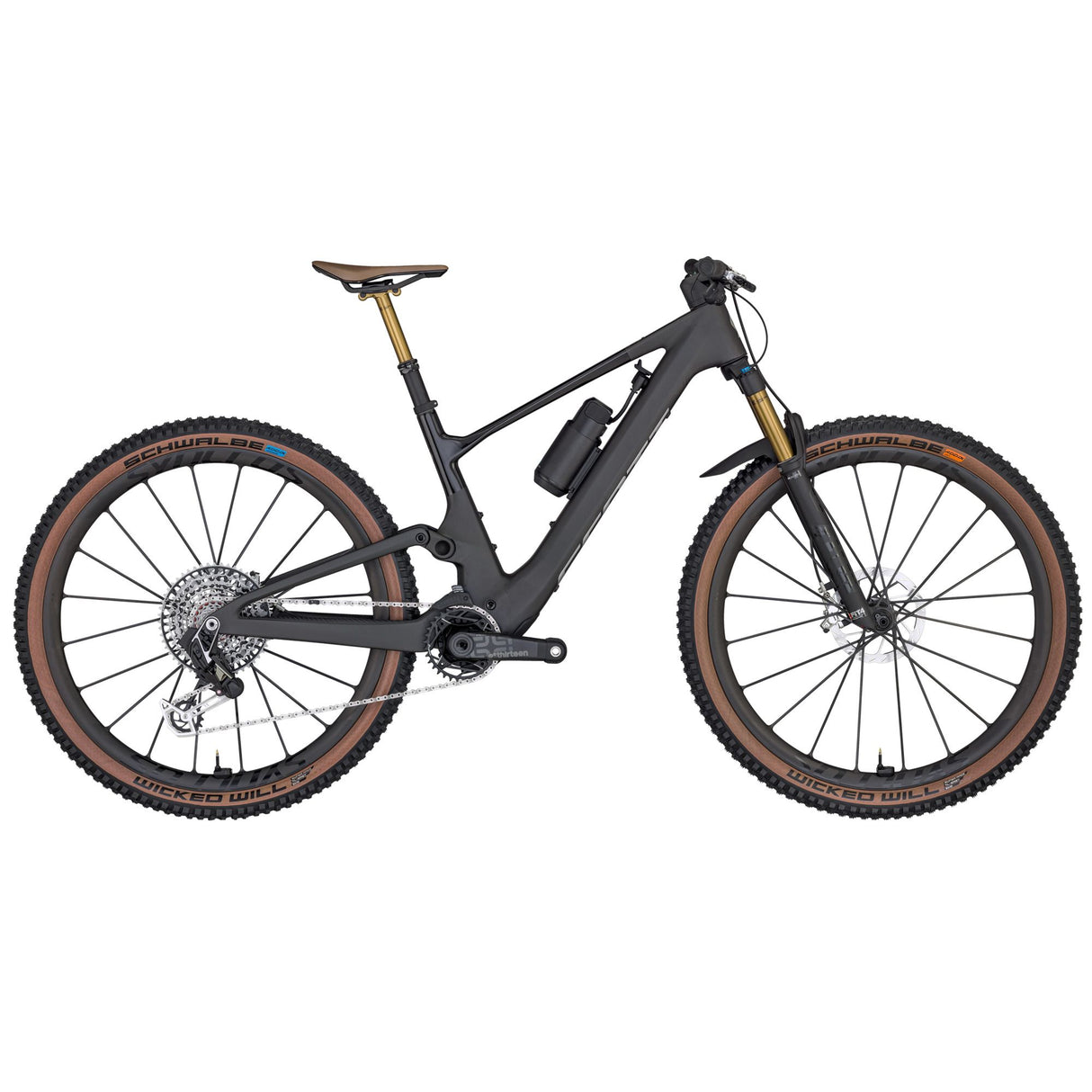

Scott Lumen Eride 900 SL E-Bike

• Lumen Carbon HMX Frame
• FOX 34 Float Factory 130mm Fork
• FOX NUDE 6T EVOL, TwinLoc, 130mm
• SRAM XX AXS Transmission 12Sp
• SRAM Level Ultimate 4 Piston
• Schwalbe Wicked Will Tires
• MODEL: 293286

FRAME

• Carbon HMX
• Integrated Suspension Technology
• Flex Pivot / Adjustable head angle
• Syncros Cable Integration System
• TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline

TRAVEL

• Front: 130mm / Rear: 130mm

FORK

• FOX 34 Float Factory Air / Kashima FIT4
• 3 modes with low Speed adj. / Kabolt 15x110mm axle / 44mm offset
• Tapered steerer / Lockout / Reb. Adj.
• 130mm travel

REAR SHOCK

• FOX NUDE 6T Factory EVOL Trunnion
• SCOTT custom w. travel / geo adj.
• 3 modes: Lockout-Traction Control-Descend
• Low Speed Adj. / Custom large Air volume / Kashima / Reb. Adj.
• Bearing Hardware / Travel 130-90-Lockout / T165X45mm

REMOTE SYSTEM

• SCOTT TwinLoc 2 Technology
• Suspension & Dropper Remote
• 3 Suspension modes

DRIVE UNIT

• TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

BATTERY

• TQ Internal 360Wh + Range Extender 160Wh

DISPLAY

• TQ HPR
• Bluetooth / ANT+ / Dedicated Smartphone app

CHARGER

• TQ 100-240V-4A

REAR DERAILLEUR

• SRAM XX Eagle AXS Transmission 12 Speed
• Wireless Electronic Shift System

SHIFTERS

• SRAM AXS Pod Ultimate Controller

CRANKSET

• e*thirteen / e*spec Race Carbon / 34T

CHAINGUIDE

• e*thirteen / e*spec Slider

CHAINRING

• Scott custom spider / SRAM Eagle Transmission 34T chainring

CHAIN

• SRAM CN XX Eagle Transmission

CASSETTE

• SRAM XX Eagle XS 1297 Transmission 10-52

BRAKES

• SRAM Level Ultimate Stealth 4-Piston Disc

ROTOR

• SRAM HS2 CL Rotors / F&R 180mm

HANDLEBAR

• Syncros Fraser iC SL DC Carbon
• 0° rise / back sweep 8° / mini Rise / 760mm
• Syncros Performance XC lock-on grips

SEATPOST

• FOX Transfer Factory Dropper Post Kashima
• 31.6mm / S size 125mm / M size 140mm
• L ize 150mm / XL size 175mm

SEAT

• Syncros Tofino Regular 1.0
• Carbon rails

HEADSET

• Syncros - Acros Angle adjust & Cable Routing HS System
• Stainless
• +-0.6° head angle adjustment
• ZS56/28.6 – ZS56/40 MTB

WHEELSET

• Syncros Silverton SL2-30 CL full Carbon
• F: 15x110mm
• R: 12x148mm / 30mm Tubeless ready rim
• DT Swiss 240 Ratchet EXP 36 / XD Driver
• SRAM TyreWiz / Syncros SL Axle w/Removable Lever
• with 6mm Allen
• T30 and T25 Tools

FRONT TIRE

• Schwalbe Wicked Will 29x2.4" EVO
• Super Race / TLE / 67EPI / Addix Speed Soft

REAR TIRE

• Schwalbe Wicked Will 29x2.4" EVO
• Super Race / TLE / 67EPI / Addix Speed Grip

EXTRAS

• SRAM AXS Powerpack
• Syncros Fork Fender

ACCESSORIES

• Syncros Eco Sealant
• Transport Axle

APPROX WEIGHT IN KG

• 15.5 (tubeless / without range extender)

APPROX WEIGHT IN LBS

• 34.17 (tubeless / without range extender)

MAX. SYSTEM WEIGHT

• 110 kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
