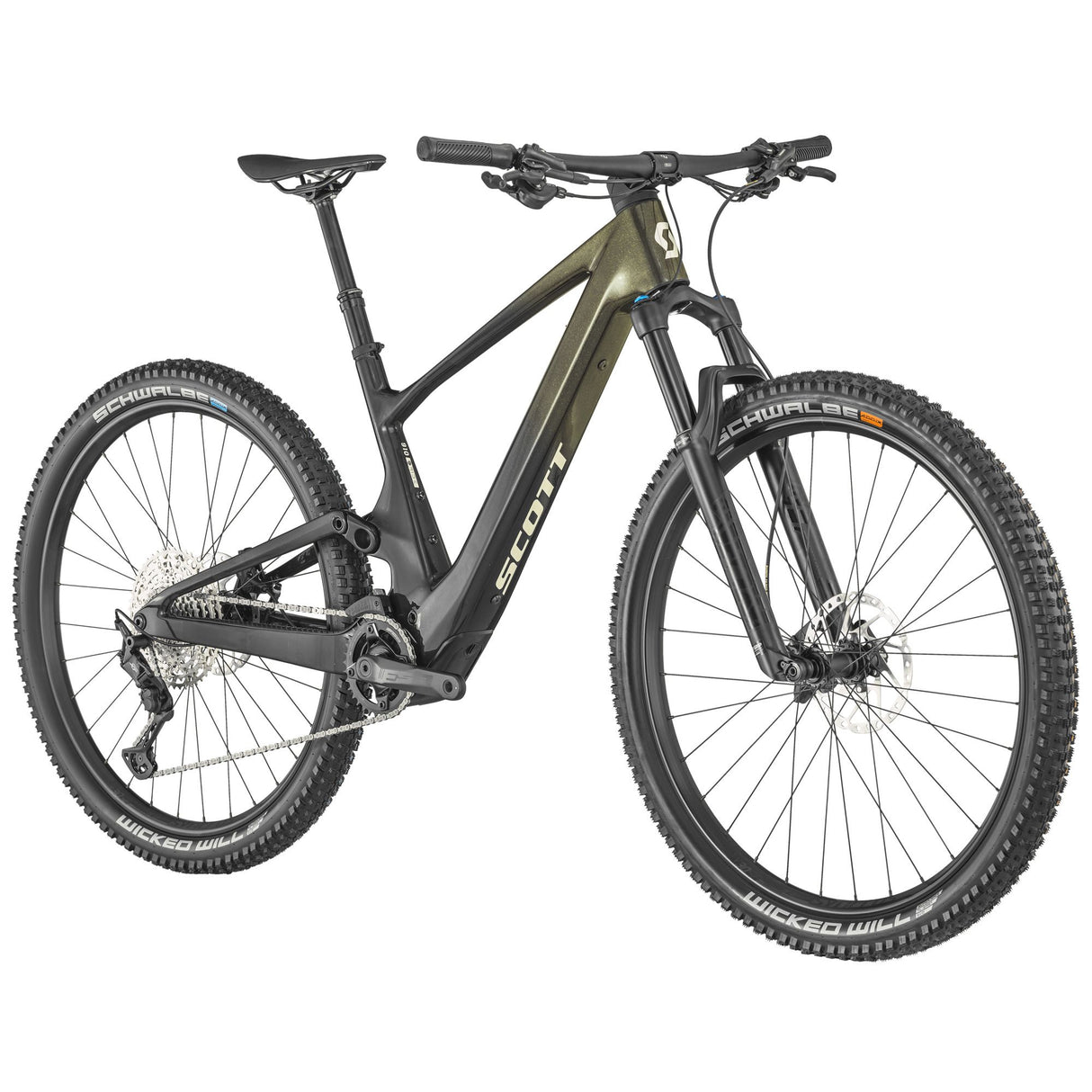

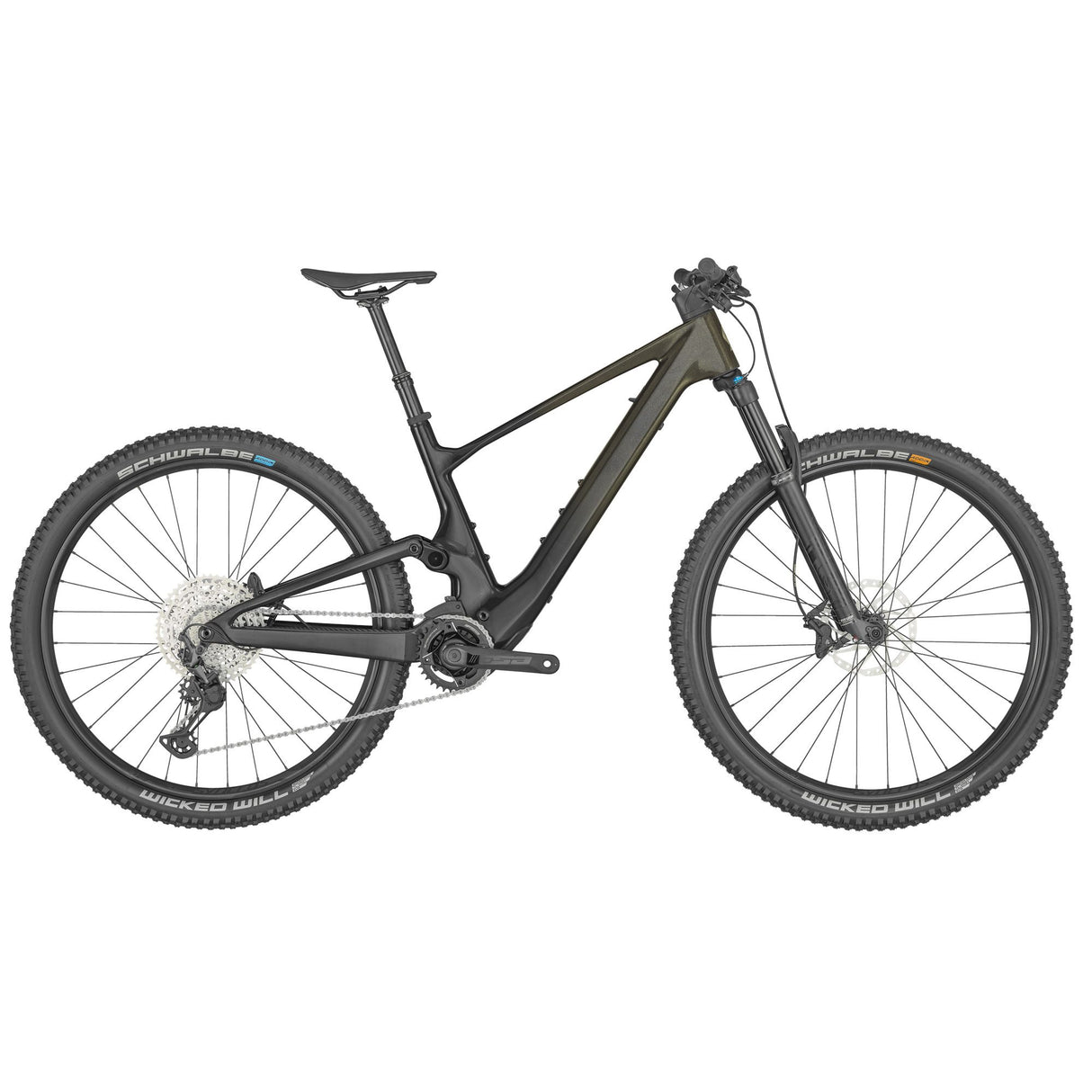

Scott Bike 910 Lumen E-Bike

An E-MTB with the weight of an MTB, only 17.6kg! Take the best Cross-Country/Trail platform to date, the Lumen 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA. You are ready to ride any trail at Nino’s speed.

• TQ HPR50 Motor
  TQ is a German company founded in 1994 that specialises in electric components across a range of industries. With the HPR50, they simply rewrote the rules, delivering an unprecedented weight/power ratio of 1.8 kg for 50Nm

• TQ HPR 360Wh Battery
  The Lumen features a 360Wh internal battery which can be further complemented by a 160Wh external range extender

• TQ HPR Display
  To maintain a clean cockpit, the TQ system puts the focus on a minimalistic display located in the top tube. At a glance, the LED display provides all the essential info, such as the battery level %, remaining KM range and even Watts, thanks to an integrated power meter.

• TQ HPR RANGE EXTENDER
  The Lumen features a 360Wh internal battery which can be further complemented by a 160Wh external range extender. Easily fixed to the front water bottle mount with our unique SCOTT-designed quick-release mount, the range extender features a slim design and low weight, meaning minimal impact on the bike’s handling.

• Lumen Dual Water Bottle
  Unlike most full suspension E-Bikes, on the Lumen, there is no need to choose between the range extender or a water bottle - between longer rides and staying hydrated.

• TQ HPR App
  The TQ app offers real benefit and is easy to use. It’s easy to connect, customize and control your TQ-powered e-bike with the TQ E-Bike app.

• Lumen Chain Line
  The TQ motor allows us to keep a standard Q-factor with a 55mm chain line – exactly the same as the Scott Spark.

• NUDE Suspension Technology
  Shocks with NUDE Technology have been integral to SCOTT Full suspension bikes for nearly two decades. Working closely with our suspension partners, we continue to improve upon this technology so that whether you're racing World Cup's at the highest level or out for a big day in the mountains.

• TwinLoc Suspension System
  With TwinLoc, a rider can effectively control the complete frame, fork, and shock as a system. Why does this matter? A bike with 150mm of suspension travel, correctly set up, has more sag than a bike with 130mm.

• 29 Wheels
  Improved roll-over is the most noticeable attribute when it comes to 29” wheels. The big wheels are great for rolling over nasty roots and rocky sections, essentially making it easier to ride these conditions.

• Frame: Lumen eRIDE Carbon HMX Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System TQ HPR50 UDH Interface / 12x148mm with 55mm Chainline

• Travel: Front: 130mm / Rear: 130mm

• Fork: FOX 34 Float Rhythm Air Grip 3-Modes / Kabolt 15x110mm axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 130mm travel
  Rear Shock: FOX NUDE 5T EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Reb. Adj. Travel 130-90-Lockout / T165X45mm

• Remote System: SCOTT TwinLoc Suspension System 3 modes front and rear / integ. Grip clamp

• Drive Unit: TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

• Battery: TQ Internal 360Wh

• Display: TQ HPR Bluetooth / ANT+ / Dedicated Smartphone app

• Charger: TQ 100-240V-4A

• Rear Derailleur: Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed

• Shifters: Shimano Deore SL-M6100-IR / Rapidfire Plus Ispec EV clamp

• Crankset: FSA Alloy crankset / 175mm / 34T

• Chainguide: e*thirteen / e*spec Slider

• Chainring: Scott custom spider / FSA 12Speed 34T chainring

• Chain: Shimano CN-M6100

• Cassette: Shimano CS-M6100 / 10-51 T

• Brakes: Shimano Deore M6120 4 Piston Disc

• Rotor: Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm

• Handlebar: Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm Syncros Performance XC lock-on grips

• H'stem: Syncros DC 2.0 Syncros Cable Integration System 0° rise / 6061 Alloy / 31.8mm / 1 1/8"

• Seatpost: Syncros Duncan Dropper Post 2.0 31.6mm / S & M size 125mm / L size 150mm / XL size 170mm

• Headset: Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB

• Front Hub: Formula CL-811 / 15x110mm

• Rear Hub: Formula CL-148M / 12x148mm / Micro Spline Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools

• Spokes: Stainless Black 15G / 1.8mm

• Rims: Syncros X-30SE / 32H / 30mm Tubeless ready

• Front Tire: Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft

• Rear Tire: Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Grip

• Approx weight in KG: 17.6 (Tubeless setup)

• Approx weight in LBS: 38.8 (Tubeless setup)

• Model: 421554
