HIGHLIGHTS
HIGHLIGHTS

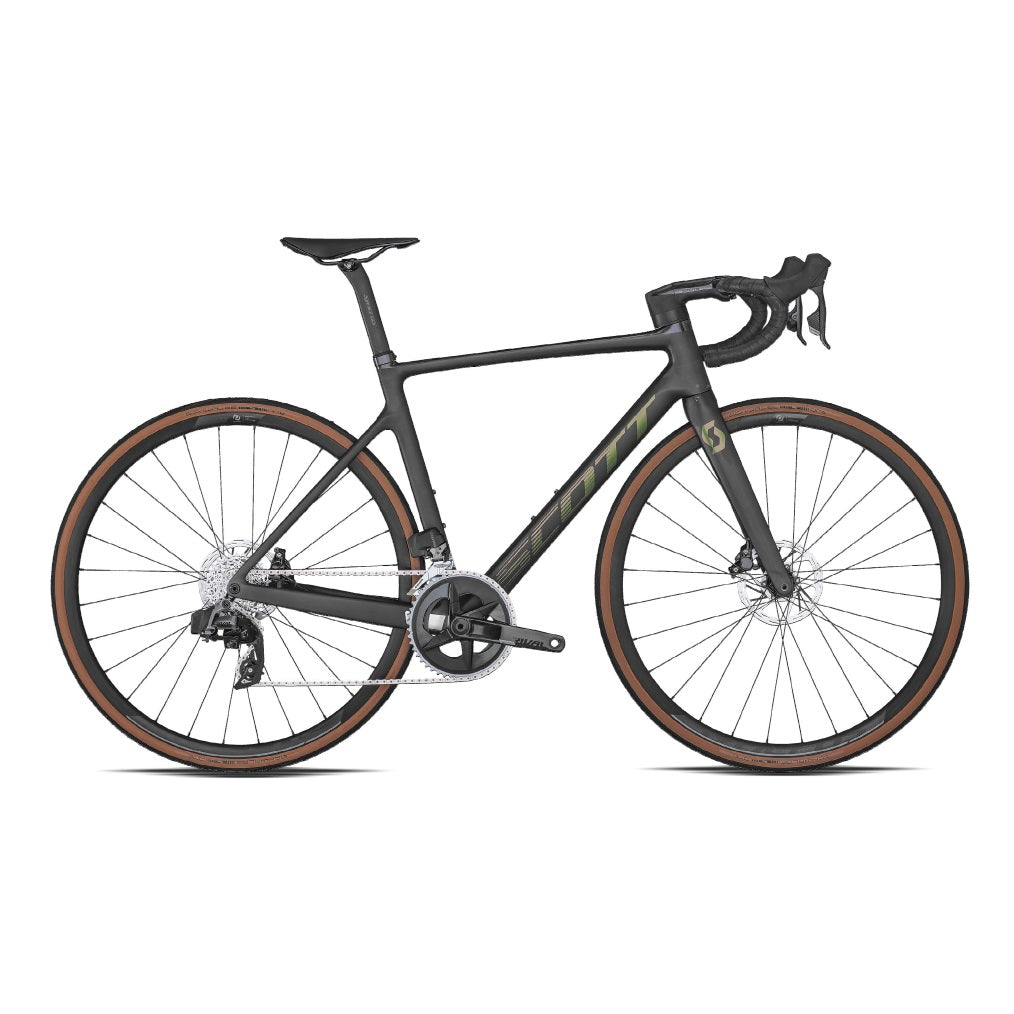

Light, fast, and ready to turn heads. The Addict RC 30 provides you with all of the competitive advantages you've ever dreamed of. Fully integrated cables and race-ready spec combine to give you the tool to sprint to a mountain top finish or win your local criterium.
TECHNOLOGY
TECHNOLOGY
-
Oversized Bottom Bracket Addict
In order to best manage power transfer our engineers developed a down tube and bottom bracket intersection that is the widest of any road bike currently on the market.
-
Hollow Structure
The complete frame set is built hollow and has never been cleaned inside to maximise the weight reduction.
-
Sandwich Dropouts
The Addict RC dropouts are designed to be integrated on the thru-axle system thanks to a hollow tube design that allows a simple and lightweight structure.
-

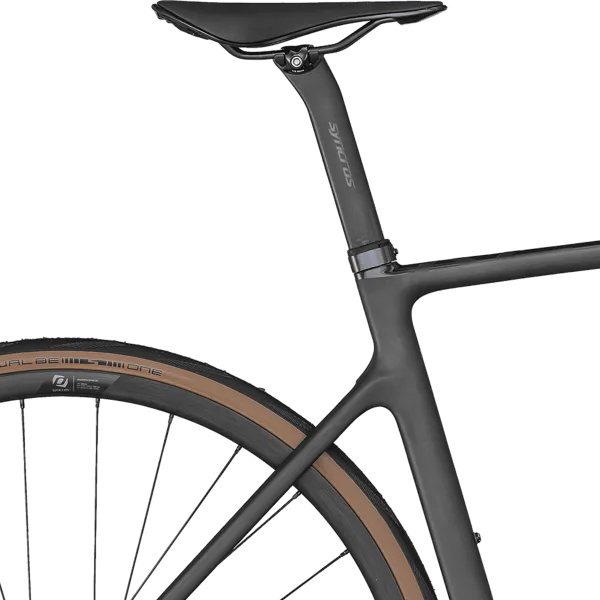

Seat clamp
Our new ultra-lightweight seat clamp weight just 12 grams and allows for a very carbon friendly clamp mechanism.
-
Evo-Lap technology
With the proper selection of materials, eighty percent of the work to create a frame is done. But the remaining twenty percent requires most of our efforts.
-
Integrated Cable Routing
The Addict RC and Foil come with completely integrated cable routing for both mechanical and electronical shifting.
SPECIFICATIONS
SPECIFICATIONS
-
Frame: Addict RC Disc HMX Road Race geometry / Replaceable Derailleur Hanger Internal cable routing
-
Fork: Addict RC HMX Flatmount Disc 1 1/4"-1 1/2" Excentric Carbon steerer
-
Rear Derailleur: Shimano 105 Di2 RD-R7150 24 Speed Electronic Shift System
-
Front Derailleur: Shimano 105 Di2 FD-R7150
-
Shifters: Shimano 105 Di2 ST-R7170 24 Speed Electronic Shift System
-
Crankset: Shimano 105 FC-R7100 Hollowtech II 50x34 T
-
BB-Set: Shimano BB-RS500-PB
-
Chain: Shimano CN-M6100-12
-
Cassette: Shimano CS-R7100 11-34
-
Brakes: Shimano BR-R7170 Hyd.Disc
-
Rotor: Shimano SM-RT70 CL rotor 160/F and 160/R
-

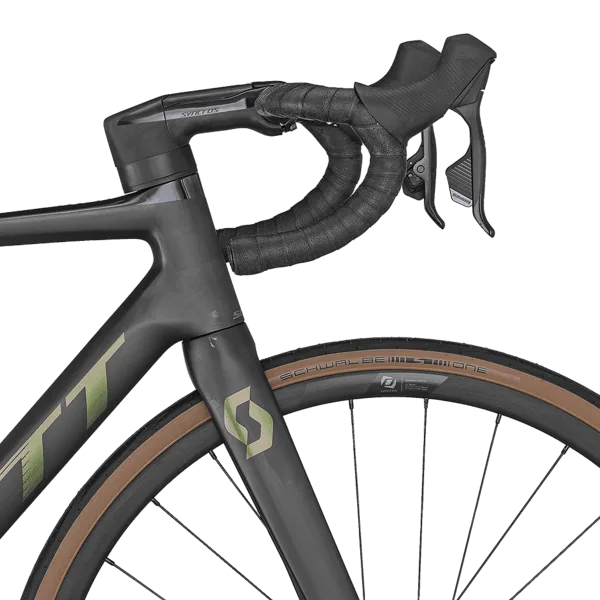

Handlebar: Syncros Creston 2.0 Compact Alloy
-
H'stem: Syncros RR 1.5 1 1/4"
-
Seatpost: Syncros Duncan 1.0 D-Shape
-
Seat: Syncros Belcarra Regular 2.0
-
Headset: Syncros Addict RC Integrated
-
Wheelset: Syncros RP2.0 Disc 28 Front / 28 Rear Syncros Axle / Removable Lever with Tool
-
Front Tire: Schwalbe ONE Race-Guard Fold 700x28C
-
Rear Tire: Schwalbe ONE Race-Guard Fold 700x28C
-
Approx weight in KG: 8.3
-
Approx weight in LBS: 18.30
- Max. System Weight: 120kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
- Model: 290354
GEOMETRY
GEOMETRY
