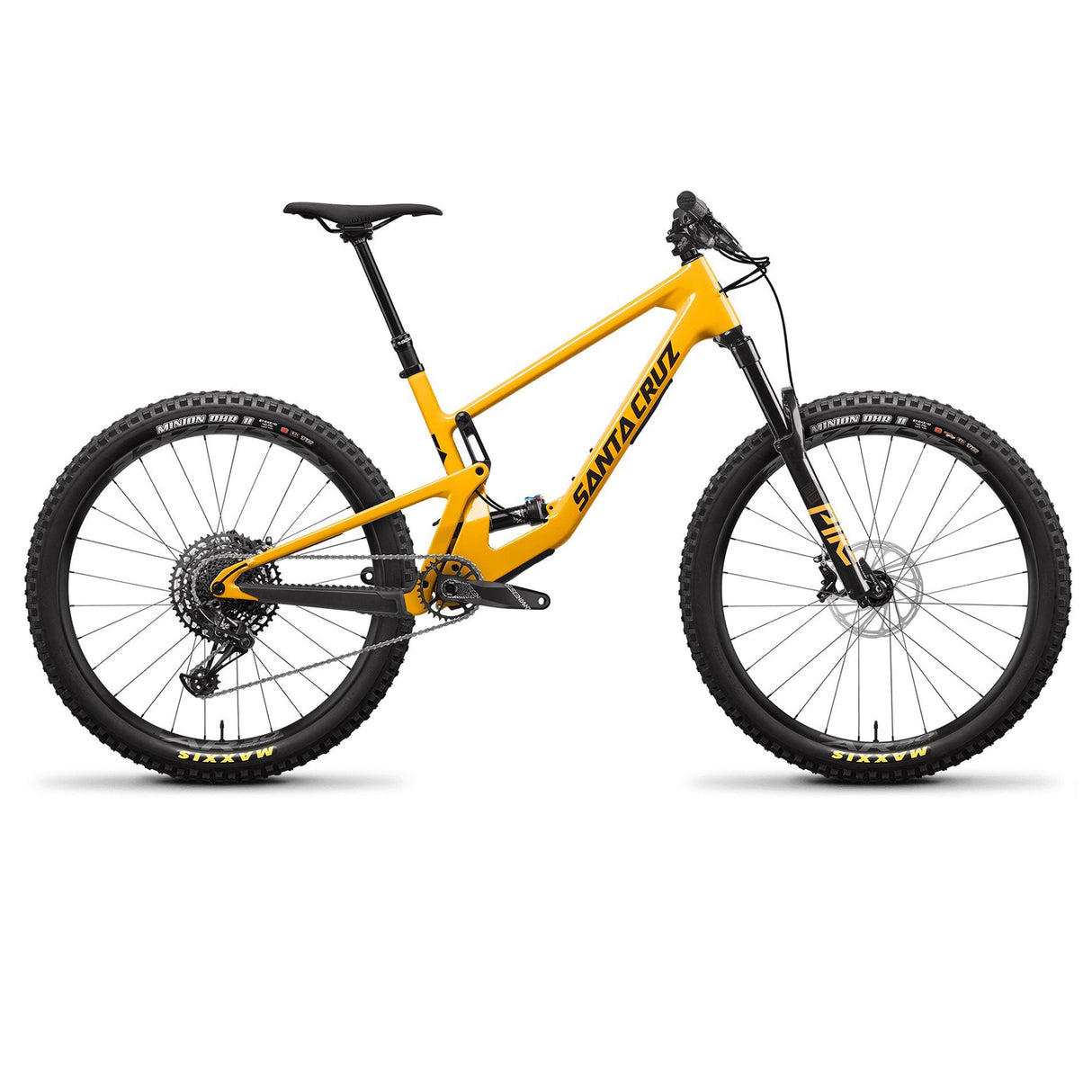

The 5010 is not just "the little bike" of our range. It makes even the most mundane trails feel like they're loaded with features to hop, skip and jump over. It's like having super-skills at your fingertips. The 5010 has always been more capable than many expected but with the traction-gaining 29-inch wheel up front and even more refined suspension the 5010 gives you a deft touch on the trails.
The 5010 turns obstacles into features. Its nimble, poppy feel makes even the most mundane rides feel like they're loaded with features to hop, skip, and jump over. It's the kind of bike that makes new trails feel as familiar as the back of your hand.
27.5 is the fun-sized wheel size. Smaller wheels provide an ideal balance between toughness and weight saving making them the most fleet-footed (or quick fingered) whether launching logs or weaving through stumps. With its quick and agile character, the 5010 has become a go-to plaything for progressive riders the world over and the only contender on any backyard trails.
It's a bike that goes harder than its vital stats may suggest. A 140mm-travel fork is paired with 130mm at the rear, the lower-link VPP configuration of which leaves you feeling there's a lot more travel at hand. And, you can choose how out of hand you want to get, as this pocket rocket fits all sizes and types of rear shocks.
It's no handful, either. The relatively slack head angle makes it predictable to steer, the relatively low BB height turns like it's on tracks, and the short chainstays make this plaything easy to pick up and throw around.
No matter how much of a big kid you are, the bike grows with you. We've tailored the geometry so frame size is matched to size-specific chainstay lengths and super-low standover heights make it feel (almost) like that BMX you had as a kid. Okay, perhaps that's a bit nostalgic, but the 5010's certainly a perfect gateway to the highs only proper mountain biking can offer.
The 5010's balance and poise can turn any rider from cautious neophyte into a full-fledged flyer. The legendary Santa Cruz fit, finish, and quality construction make this pocket rocket tougher than a Tonka toy. Fun and games are guaranteed, and the frame and linkages come with a lifetime warranty.
| Frame | Carbon C |
|---|---|
| Fork | RockShox Pike Select+, 140mm, 27.5" |
| Rear Shock | RockShox Super Deluxe Select+ |
| Rims | RaceFace AR Offset 30 27.5" Rims |
| Hubs | Front: DT Swiss 370, 15x110, Torque Cap, 6 bolt, 28h Rear: DT Swiss 370, 12x148, XD, 28h |
| Spokes | Sapim Race |
| Axles | Front: 110 x 15mm Rear: 148 x 12mm |
| Tires | Front: Maxxis Minion DHR II 27.5"x2.4", 3C, MaxxGRIP, EXO, TR Rear: Maxxis Minion DHR II 27.5"x2.4" 3C EXO TR |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Crankset | SRAM GX Eagle 148 DUB |
| Chainrings | 32t |
| Shifters | SRAM GX Eagle |
| Rear Derailleur | SRAM GX Eagle |
| Cassette/Freewheel | SRAM XG1275 Eagle 10-52T |
| Chain | SRAM GX Eagle 12 SPD |
| Brakes | SRAM G2 R |
| Rotors | Avid Centerline 180mm |
| Handlebars | Race Face ride bar 35x760mm (XS and S), Burgtec Alloy Bar, 800mm, 30mm Rise (M-XL) |
| Tape/Grips | Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar |
| Stem | Burgtec Enduro MK3, 42.5mm |
| Headset | Cane Creek 40 IS Integrated Headset |
| Seatpost | RockShox Reverb Stealth 31.6 |
| Saddle | WTB Silverado Pro Saddle or WTB Volt |
| Pedals | Sold separately |
* Subject to change without notice.
