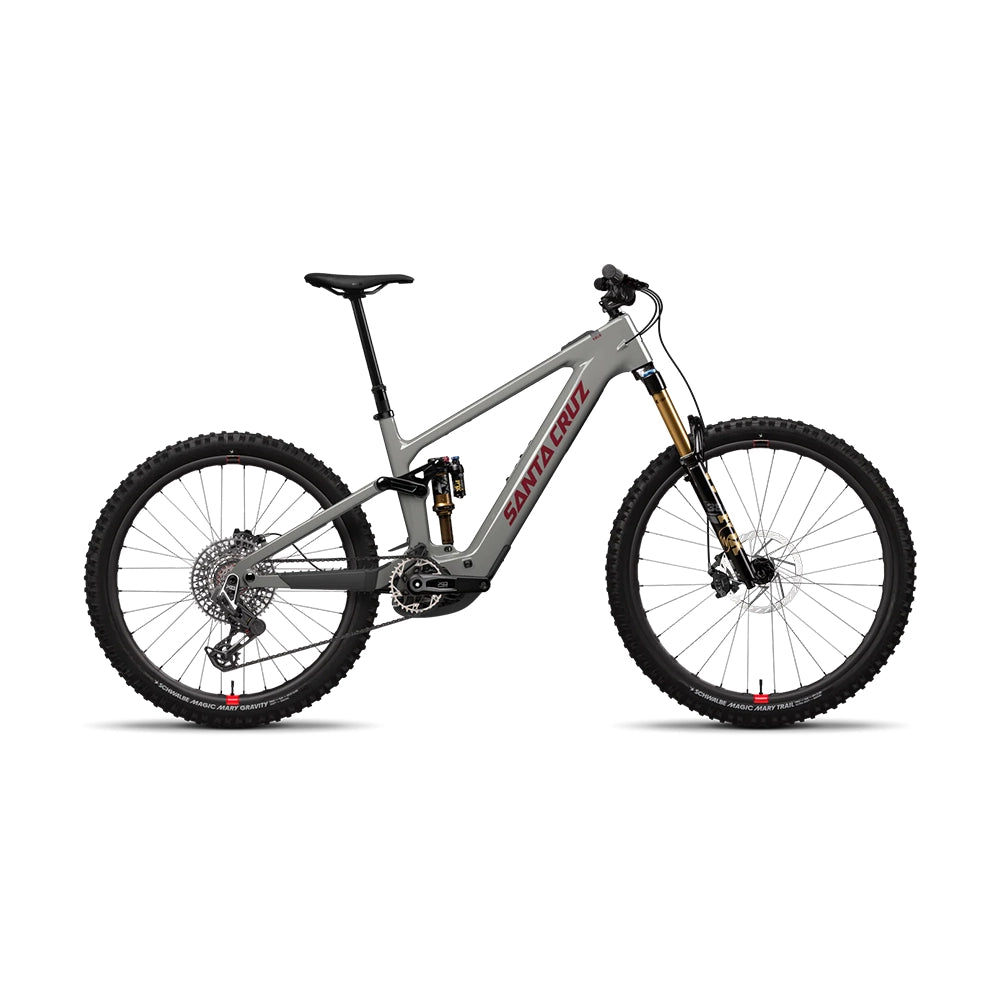

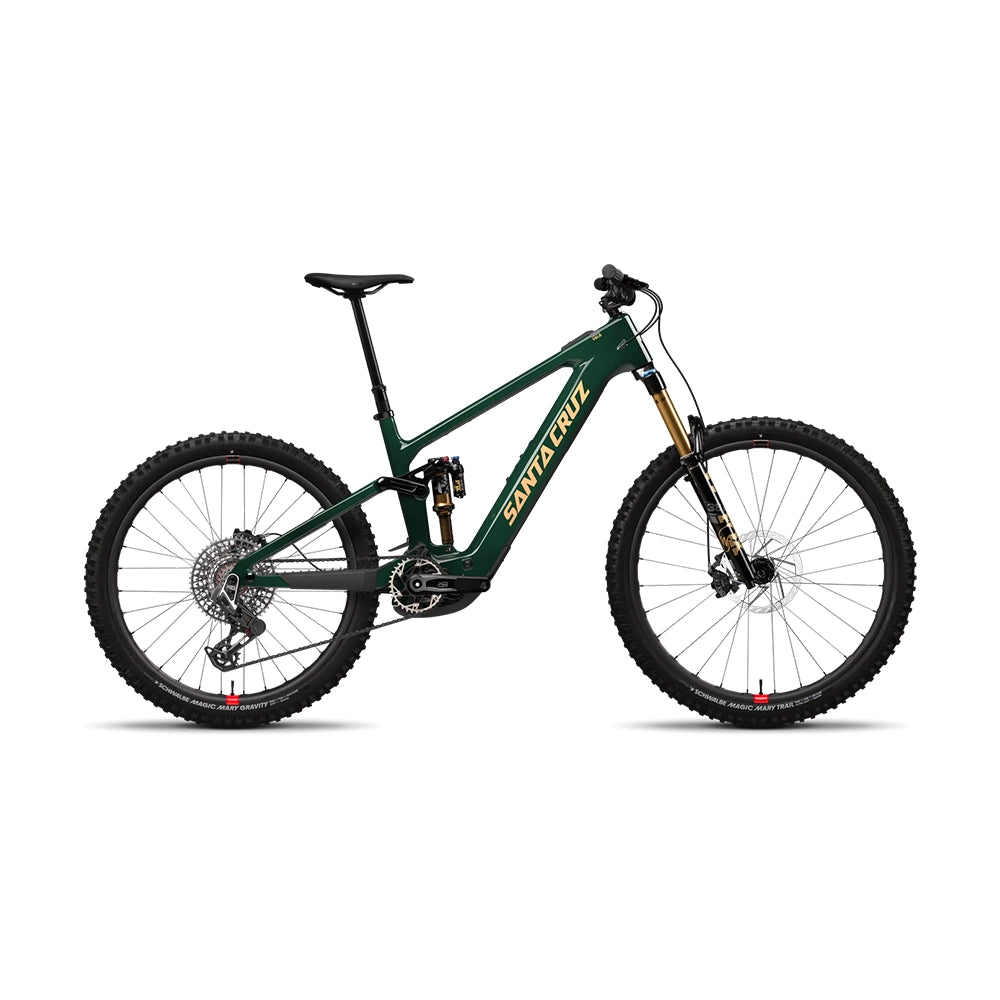

Santa Cruz Vala X0 AXS RSV Trail E-Bike

The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.

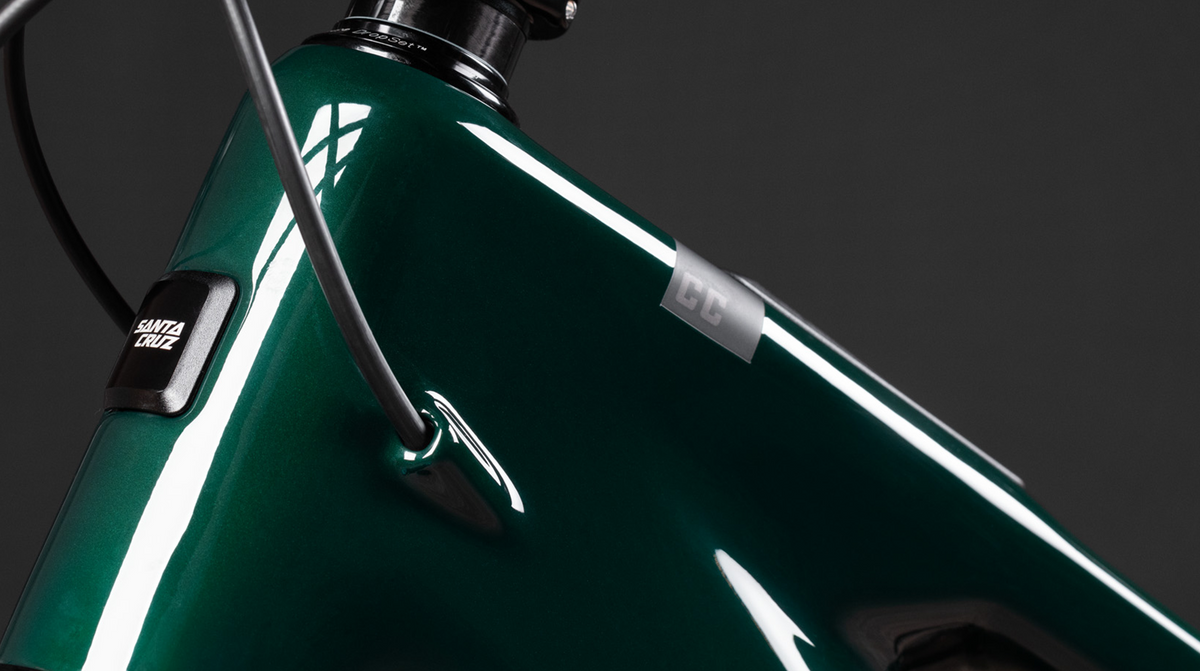

CC Carbon Frame

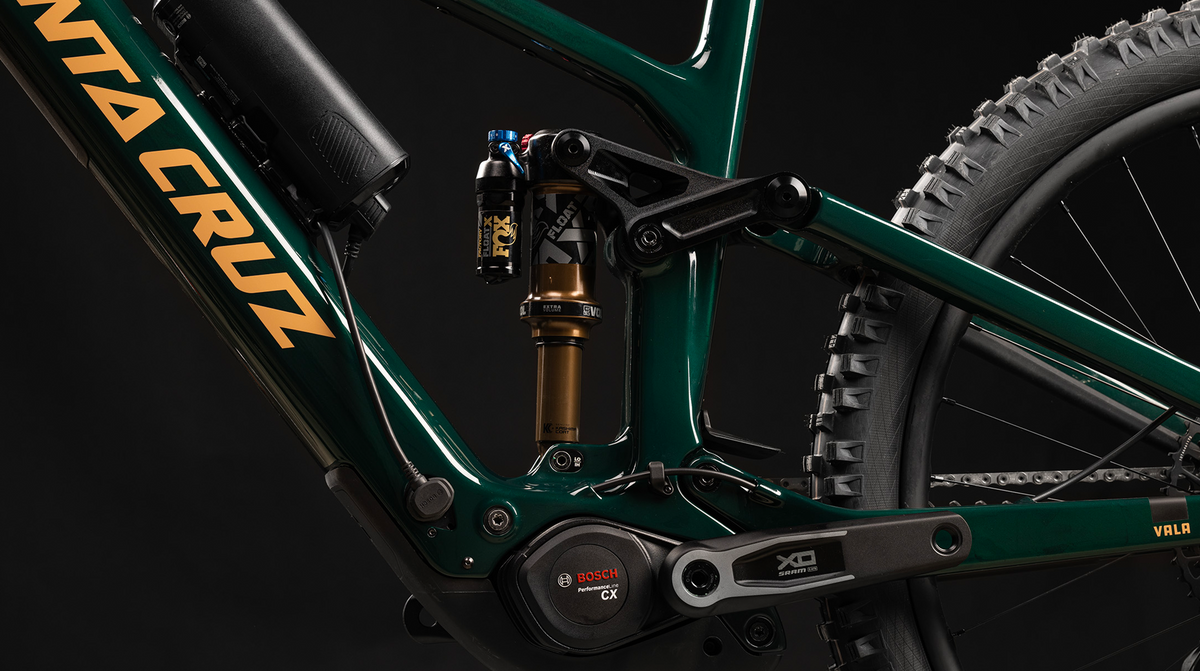

Four-bar Suspension

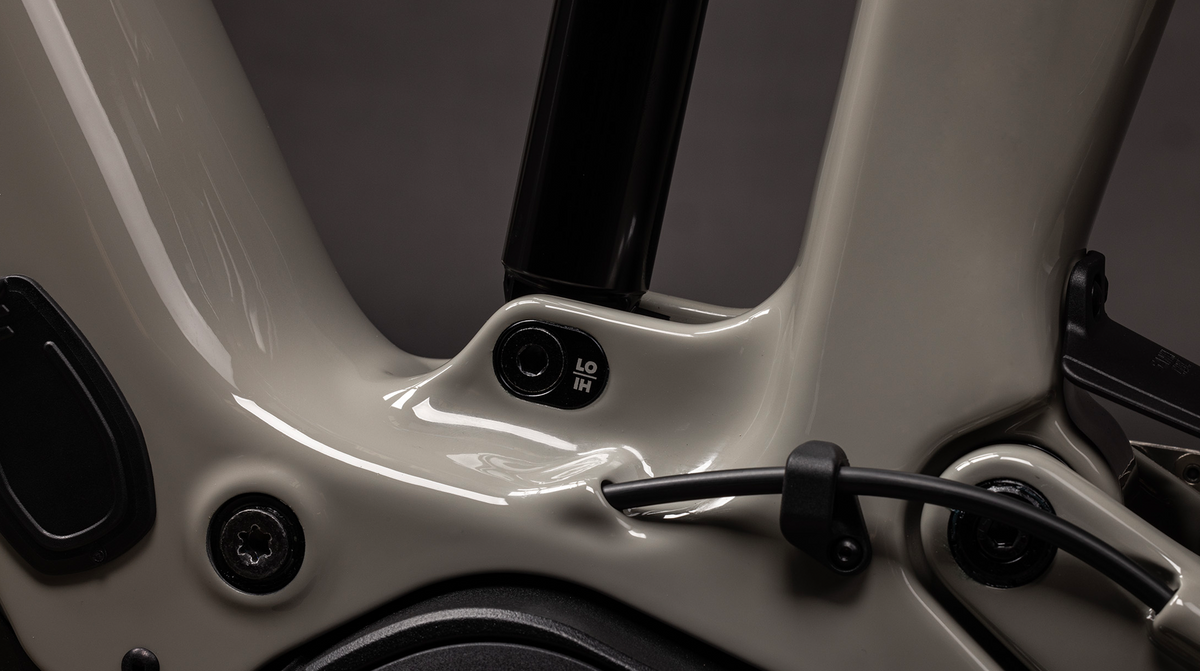

Independent Geo and Shock Rate Flip Chip

600 Wh Battery

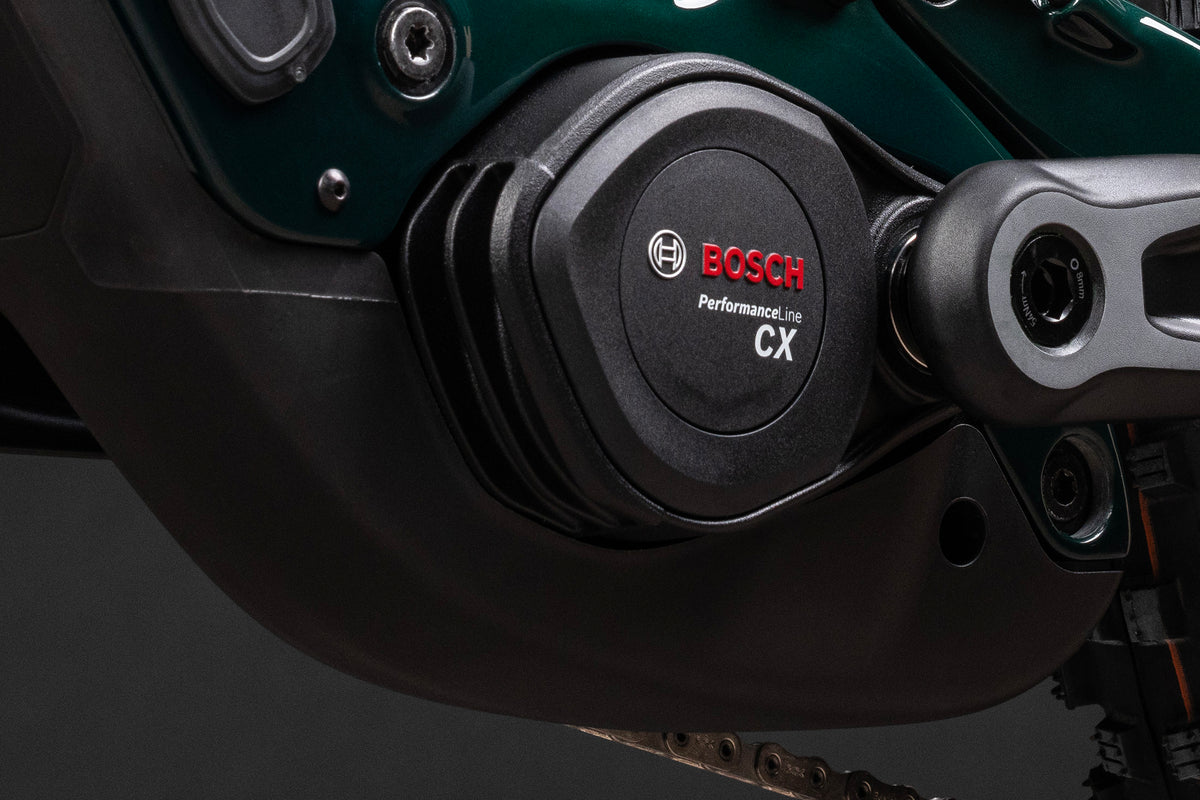

New Bosch Performance Line CX

FRAME

• Material: Carbon CC

• Travel: 150mm

• Weight: 47.46 lbs / 21.53 kg

• Wheel Size: MX


SUSPENSION

• Fork: FOX 38 Factory, Grip X2, 160mm

• Shock: FOX Float X Factory, 205x60


DRIVETRAIN

• Cassette: SRAM X0 Eagle T-Type, 10-52t

• Chain: SRAM X0 Eagle T-Type, Flattop, 12spd

• Crank Length: S/M/L/XL/XXL - 160mm

• Crankset: SRAM X0 Eagle Cranks, 160mm
• Rear Derailleur: SRAM X0 Eagle AXS T-Type, 12spd

• Right Shifter: SRAM AXS Pod Controller Rocker Paddle


BRAKES

• Brakes: SRAM Maven Silver Stealth

• Front Rotor: SRAM HS2 200mm

• Rear Rotor: SRAM HS2 200mm


COCKPIT

• Bar Width: S - 800mm, 20mm Rise M/L/XL/XXL - 80mm, 35mm Rise

• Dropper Length: S - 120mm, M - 180mm, L - 210mm, XL/XXL - 240mm

• Grips / Bar Tape: Santa Cruz Bicycles House Grips

• Handlebars: Santa Cruz 35 Carbon Bar, 800mm

• Headset: Cane Creek 50 IS Integrated Headset

• Saddle: WTB Silverado Medium Fusion, CroMo SL

• Seatpost: OneUp Dropper Post, 31.6

• Stem: OneUp Stem, 42mm -or- Burgtec Enduro Stem, 42mm

• Stem Length: S/M/L/XL/XXL - 42mm


WHEELS

• Front Rim: Reserve 30|HD Carbon

• Front Hub: DT Swiss 350, 15x110, 6-Bolt, 28h

• Front Tire: Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft

• Rear Rim: Reserve 31|DH Carbon

• Rear Hub: DT Swiss 350, 12x148, XD, 6-Bolt, 24t, 32h

• Rear Tire: Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft

• Valves: Reserve Fillmore Valves


E-BIKE

• Battery: Bosch PowerTube Battery 600Wh

• Drive Unit: Bosch Performance CX BDU38


SPECS

• Rear Brake Mount: 200mm PM

• Shock Length: 205mm

• Fork Offset: 44mm

• Front Derailleur Mount: No compatibility

• Headset: Integrated (IS41/52)

• Max Chainring Size: 36t

• Max Rotor Size: 220mm

• Max Tire Clearance: 2.5" (May vary according to tire and rim model)
• Recommended Sag: 30% (18mm)

• Seat Clamp Diameter: 36.4mm

• Seat Post Diameter: 31.6mm

• Shock Mounting Hardware Lower: 8x30

• Shock Mounting Hardware Upper: Trunnion

• Shock Stroke: 60mm

• Suspension System: Four-bar

• Water Bottle Mounts: 1
