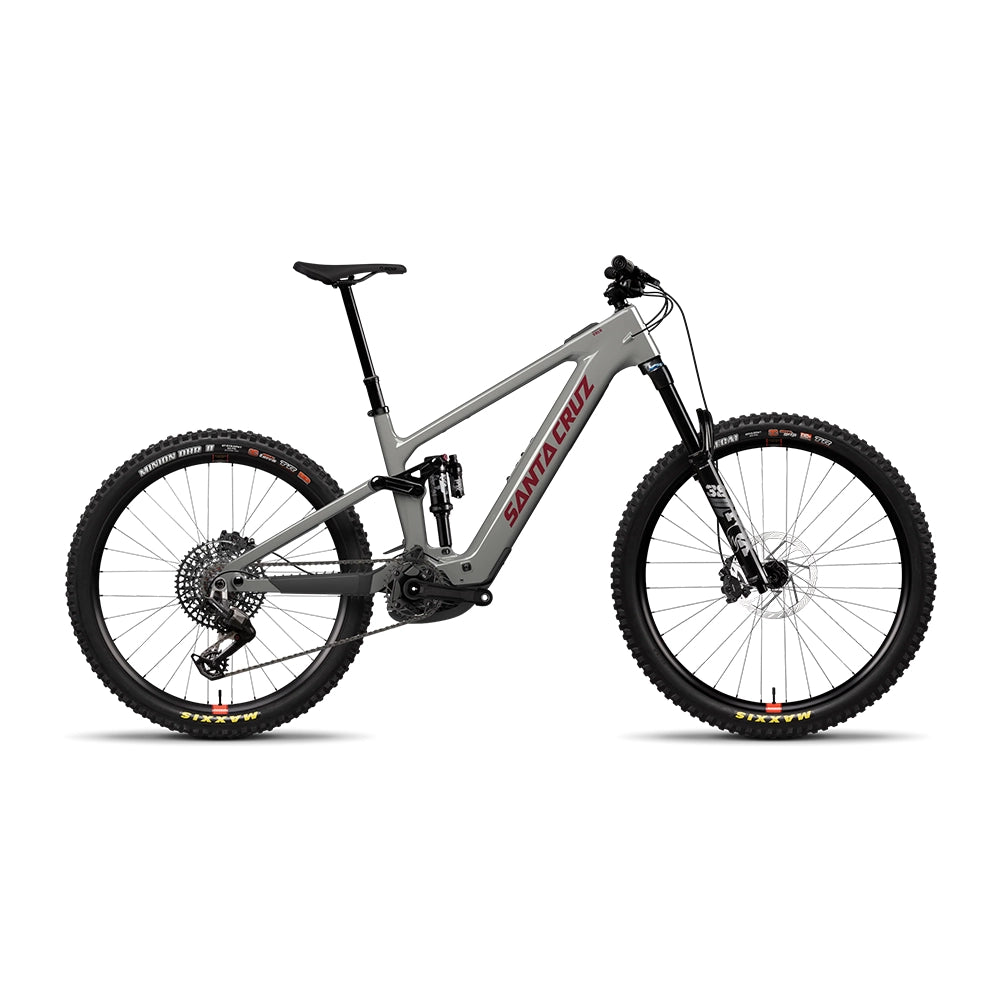

Santa Cruz Vala SRAM 90 Eagle Trail E-Bike

The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.

• SRAM T-Type 90
• NEW Bosch Performance Line
• 600 Wh Battery
• Independent Geo and Shock Rate Flip Chips
• Four-bar Suspension
• C Carbon Frame

FRAME

• Material: Carbon C

• Frame: Carbon C MX 150mm Travel, 4-Bar

• Travel: 150mm

• Weight: 48.93lbs / 22.19kg
• Wheel Size: MX


SUSPENSION

• Fork: FOX 38 Float Performance, Grip, 160mm

• Shock: FOX Float X Performance, 205x60


DRIVETRAIN

• Bottom Bracket: N/A

• Cassette: SRAM XS 1275 Eagle T-Type, 10-52t

• Chain: SRAM GX Eagle T-Type, Flattop, 12spd

• Chainguide: OneUp Chainguide

• Crankset: E13 Helix eSpec, 160mm

• Rear Derailleur: SRAM 90 Eagle T-Type, 12spd


BRAKES

• Brakes: SRAM Maven Base

• Front Rotor: SRAM HS2 200mm

• Rear Rotor: SRAM HS2 200mm


COCKPIT

• Grips / Bar Tape: Santa Cruz Bicycles House Grips

• Handlebars: OneUp Aluminum Bar

• Headset: Cane Creek 10 IS Integrated Headset

• Saddle: SDG Bel-Air V3, Max Lux-Alloy

• Seatpost: OneUp Dropper Post, 31.6
• Stem: OneUp Enduro Stem, 42mm

WHEELS

• Front Rim: Reserve 30|HD AL

• Front Hub: E13 SL, 15x110, 6-Bolt, 32h

• Front Tire: Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+

• Rear Rim: Reserve 30|HD AL

• Rear Hub: E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h

• Rear Tire: Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra DoubleDown
• Valves: Reserve Fillmore Valves

E-BIKE

• Battery: Bosch PowerTube Battery 600Wh

• Drive Unit: Bosch Performance CX BDU38


SPECS

• Bottom Bracket Shell: EMTB

• Rear Brake Mount: 200mm PM

• Shock Length: 205mm

• Fork Axle to Crown: 571mm

• Fork Offset: 44mm

• Front Derailleur Mount: No Compatibility

• Headset: Integrated (IS41/52)

• Max Chainring Size: 36t

• Max Rotor Size: 220mm

• Max Tire Clearance (May vary according to tire and rim model):  2.5"

• Rear Spacing: 148mm

• Rear Travel: 151mm

• Recommended Sag: 30%

• Seat Clamp Diameter: 36.4mm

• Seat Post Diameter: 31.6mm

• Shock Stroke: 60mm

• Suspension System: Four-bar

• UDH Compatible: Yes

• Water Bottle Mounts: 1
