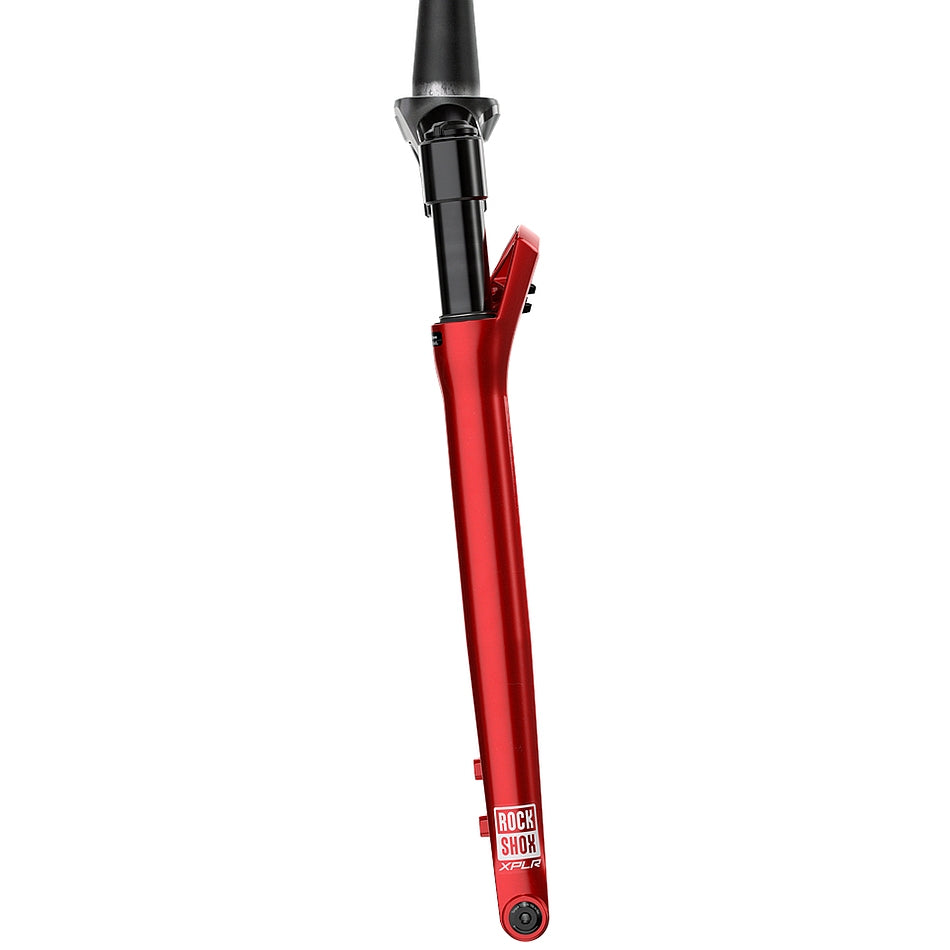

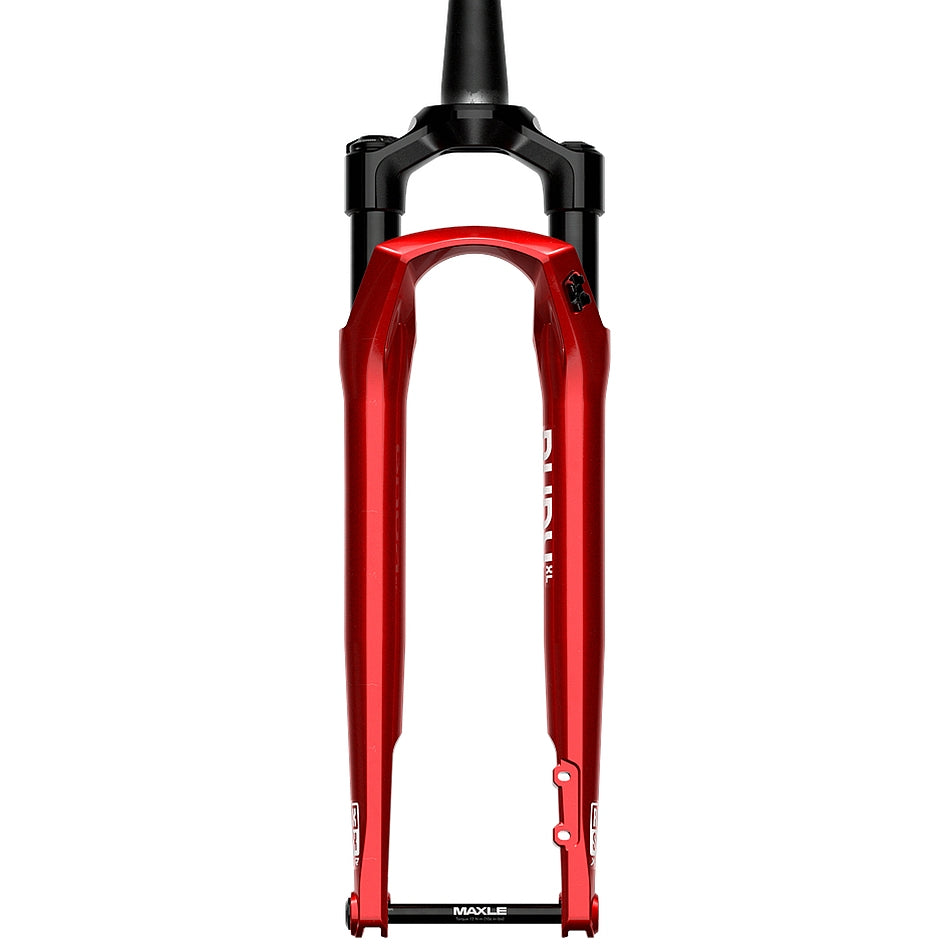

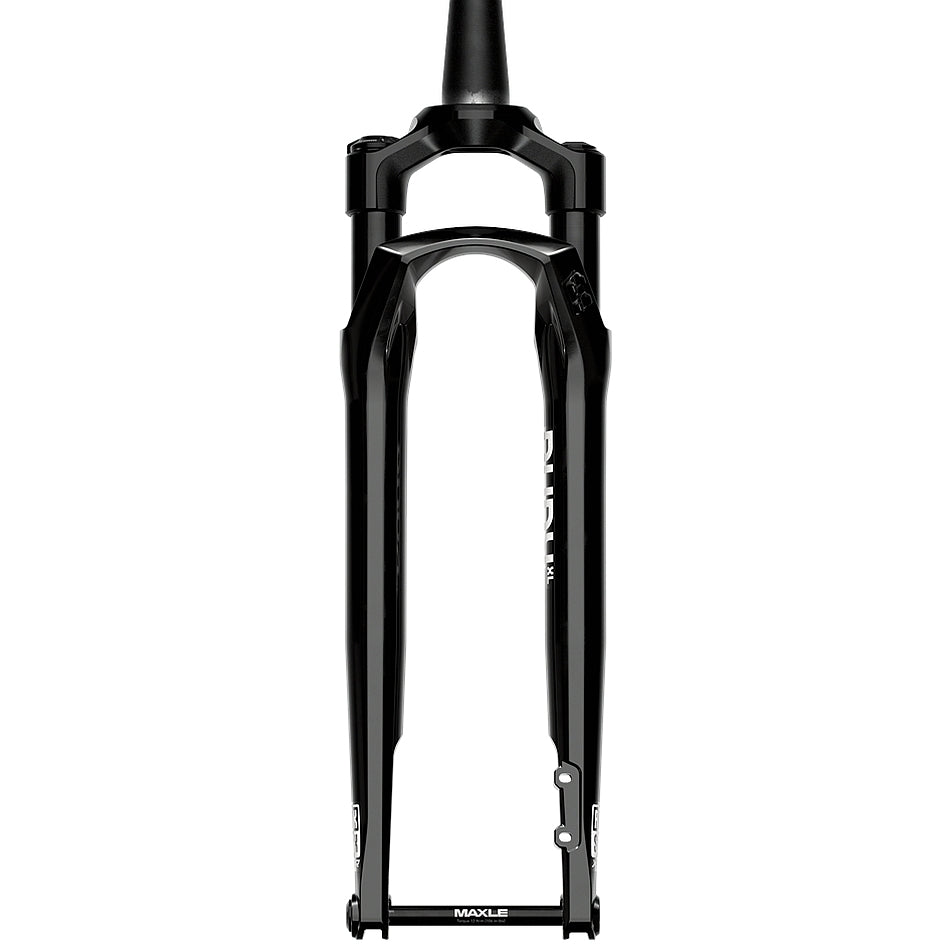

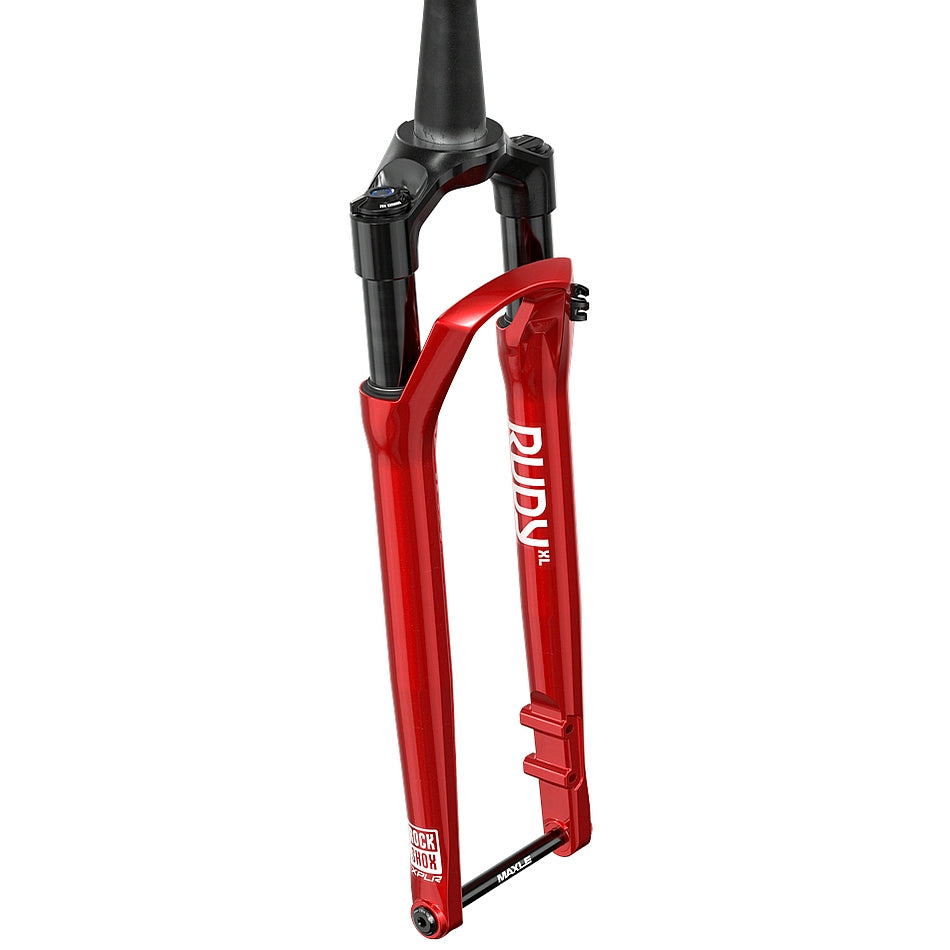

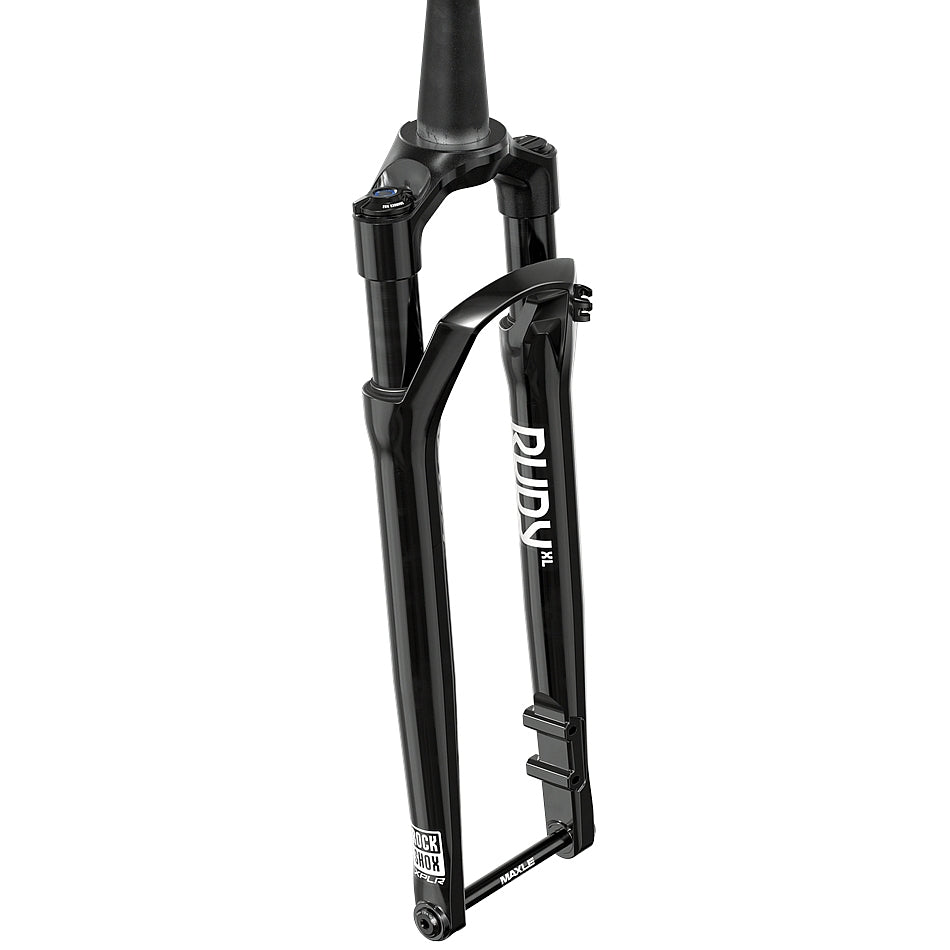

RockShox Rudy XL Ultimate Suspension Fork

Control and comfort when things get rough.

RockShox RUDY XL is here to take you to the edge of the dropbar domain. With up to 60mm of tuneable travel and more tyre clearance, it’s designed to add comfort and control to your gravel ride so you can unlock new terrain. With a Charger Race Day 2's rock-solid lockout in Rudy XL Ultimate, you can tackle rough paths comfortably without sacrificing tarmac efficiency.

• Purpose-built and laser-focused on gravel and e-gravel bikes
• Charger Race Day 2 damper - every detail perfected, every extra ounce shaved away
• Solo Air spring tuned for short travel
• Machined and anodised crown
• Maxima Plush Dynamic lower leg lube reduces friction and enhances fork performance ride after ride
• Maxima Plush damping fluid reduces friction and silences damper noise
• 2-bolt mounts to fit a short fender (RockShox fender sold separately)
• Minimum brake disc diameter: 160mm
• Maximum brake disc diameter: 180mm
• Maximum system weight: 135kg

• Product Name: RockShox RUDY XL Ultimate Suspension Fork| 45mm Offset

• Manufacturer: RockShox

• Activity: Cycling

• Usage bikesport: Allroad / Gravel

• Brake type: Disc Brake

• Wheel size: 28" (622mm)

• Travel fork: 50mm

• Axle standard: 12x100mm (FW)

• Rear Shock/Spring Version: Air Spring

• Fork/Shock Adjustability: Compression, Rebound, Lockout

• Fork length (axle to crown): 460mm

• Stanchion diameter: 30mm

• Suspension: Solo Air

• Damping: Charger Race Day 2

• Fork offset: 45mm

• Max tire width: 55.5mm

• Disc brake mount: Flatmount

• Max. disc diameter: 180mm

• Steerer material: Aluminium

• Model year: 2026

• Fork construction: Classic Suspension Fork

• Manufacturer item code: FS-RDYX-ULT-A1 | 00.4021.170.001

• Steerer Tube Ø - Top: 1 1/8“

• Steerer Tube Ø - Bottom: 1 1/2“

• Product Series: RockShox - Rudy
