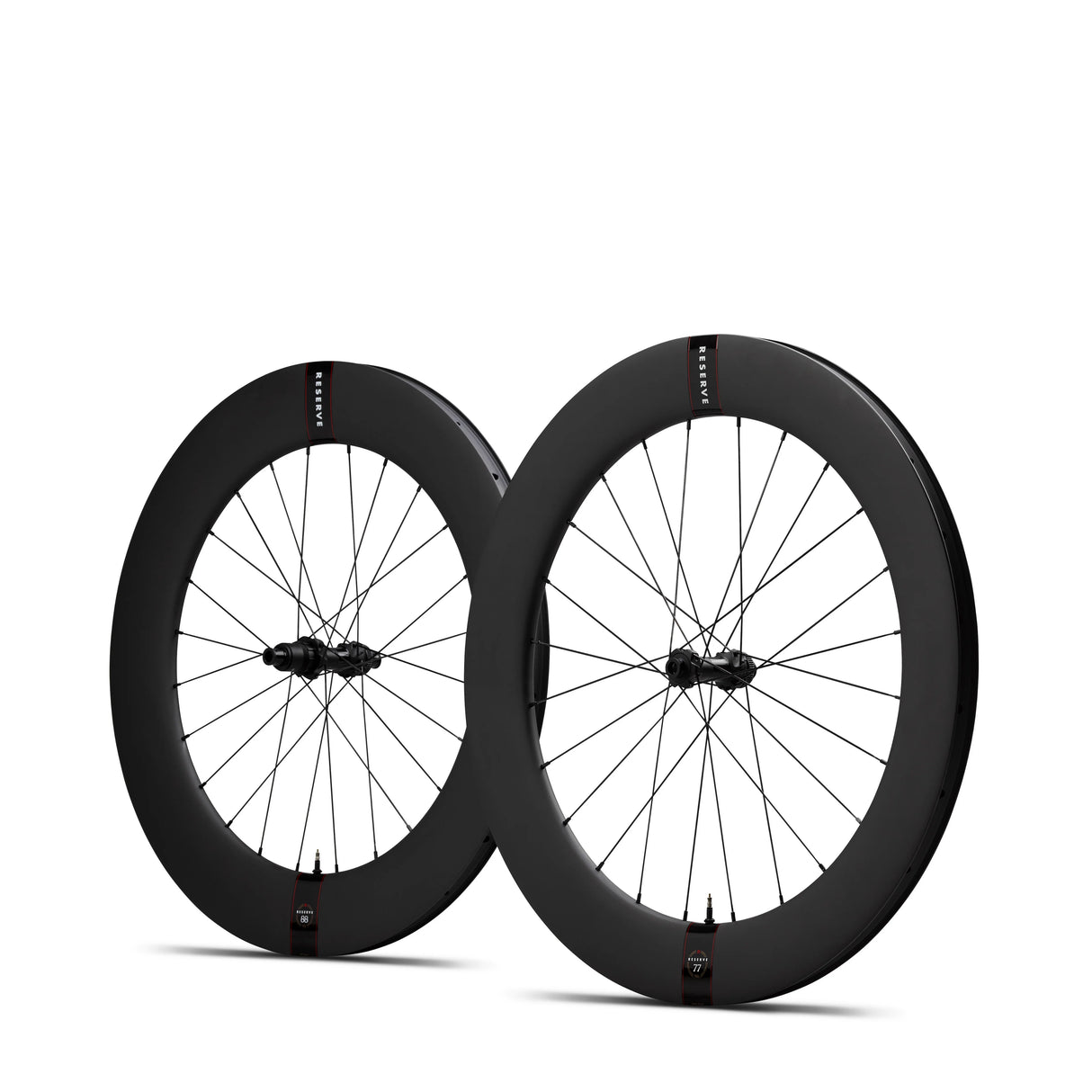

Reserve 77/88 DT 240 Road Wheelset

Whether you are planning to leave it all out there on Queen Ka’ahumanu Highway or just strutting your stuff at a local time trial, the Reserve 77|88 not only looks the part but delivers the speed. Developed using Turbulent Aero technology, the mixed profile front and rear setup of the 77|88 provides for maximum stability, lowest weight and optimised aerodynamics.

Turbulent Aero Technology
The 77|88 marks a milestone in the evolution of road wheel aerodynamics, where real-world data and Turbulent Aero technology are used to design the fastest, most stable wheelset for real riders in real-world conditions.
Mixed Profiles, Offset Rear
The mixed profile front and rear setup of the 77|88 provides for maximum stability, lowest weight and optimised aerodynamics. The rear wheel is asymmetrical, which creates a stronger, stiffer and more durable wheel.
Stable and Fast
For two years, we travelled the US, mapping different types of wind conditions, and then used this data to replicate real-world conditions in the wind tunnel. All this work culminated in the creation of the first wheelset designed with Turbulent Aero technology.

• Designed For: Time Trials & Triathlons

• Wheelset Weight: DT240 - 1833g

• ERD: Front 487mm, Rear 466mm

• Inner Width: Front 25mm Rear 24mm

• External Width: Front 31mm, Rear 30mm

• Rim Weights: Front 590g, Rear 600g

• Rim Weights: Front 590g, Rear 600g

• Depth: Front 77mm, Rear 88mm

• Recommended Tire Dimensions: 28 to 35mm

• Spoke Count: 24

• Hub Spacing: 12X100mm/12X142mm

• Freehub Options: XDR, HG-EV

• Disc Style Option: Centerlock

• Tire Compatibility: Tubeless, Clincher

• Rim Bead: Semi-hooked

• 1x Complete wheelset
• 29mm Reserve Rim Tape (installed)
• 2x Tubeless Valves (uninstalled)
• White Reserve Rim Decals (uninstalled)
• User Manual
