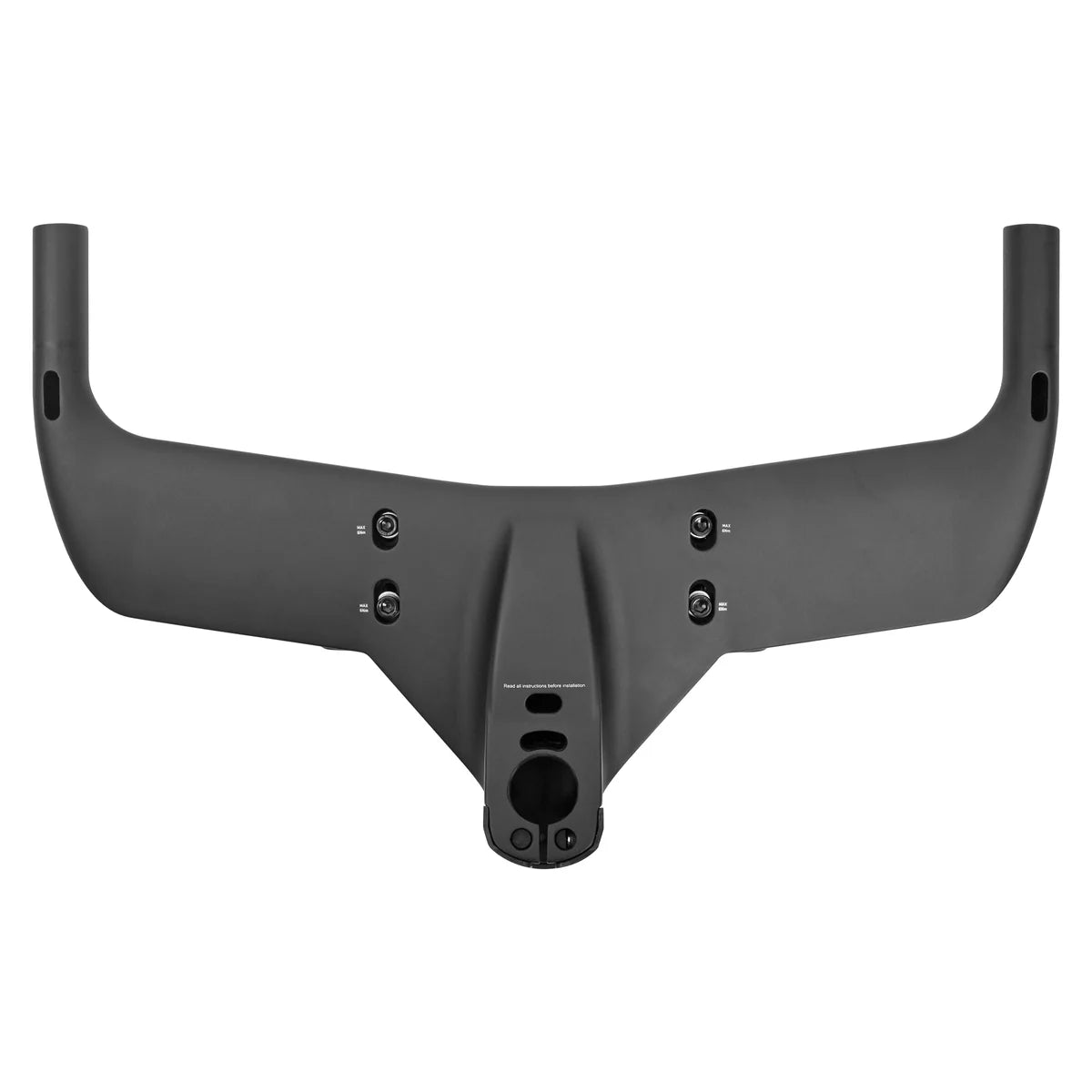

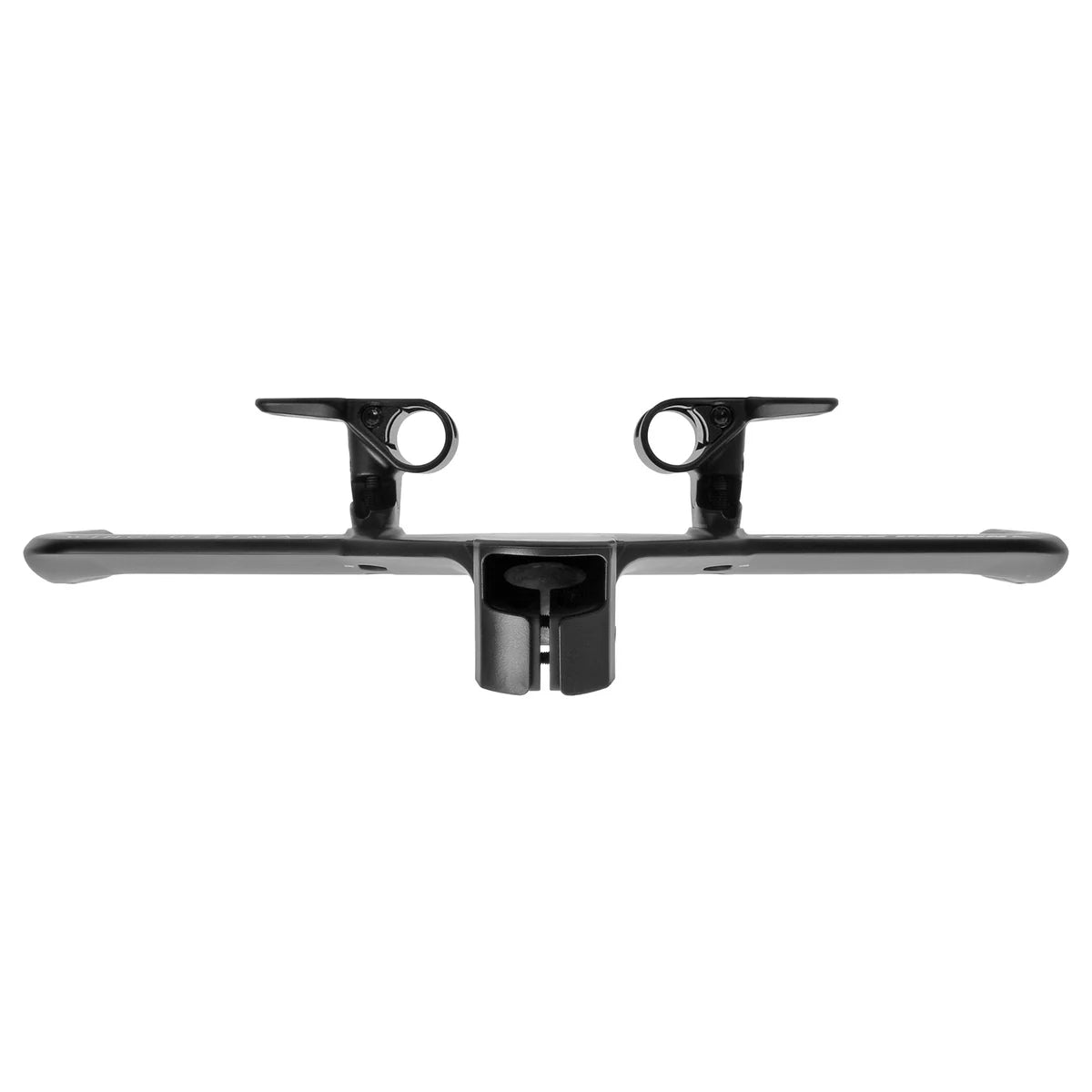

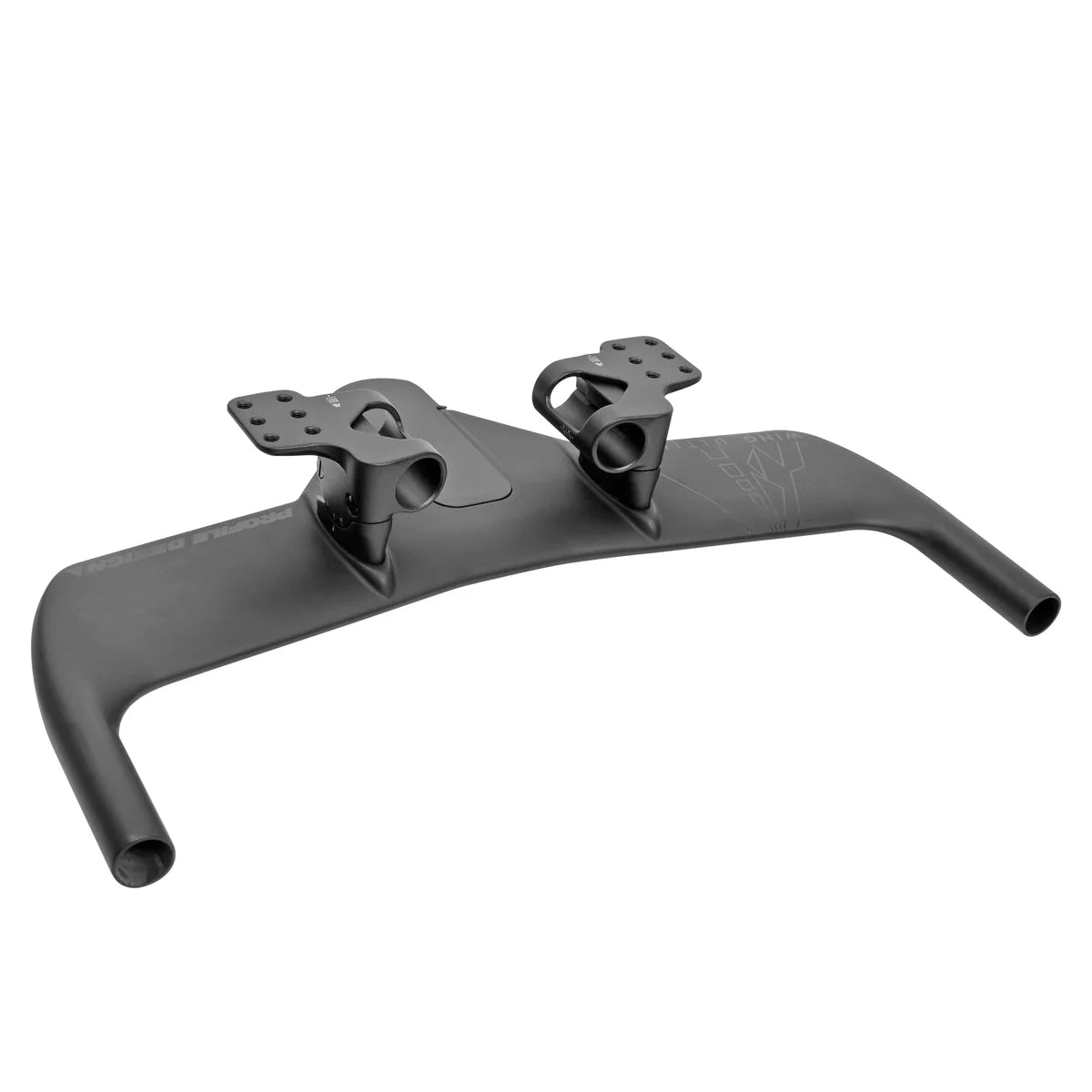

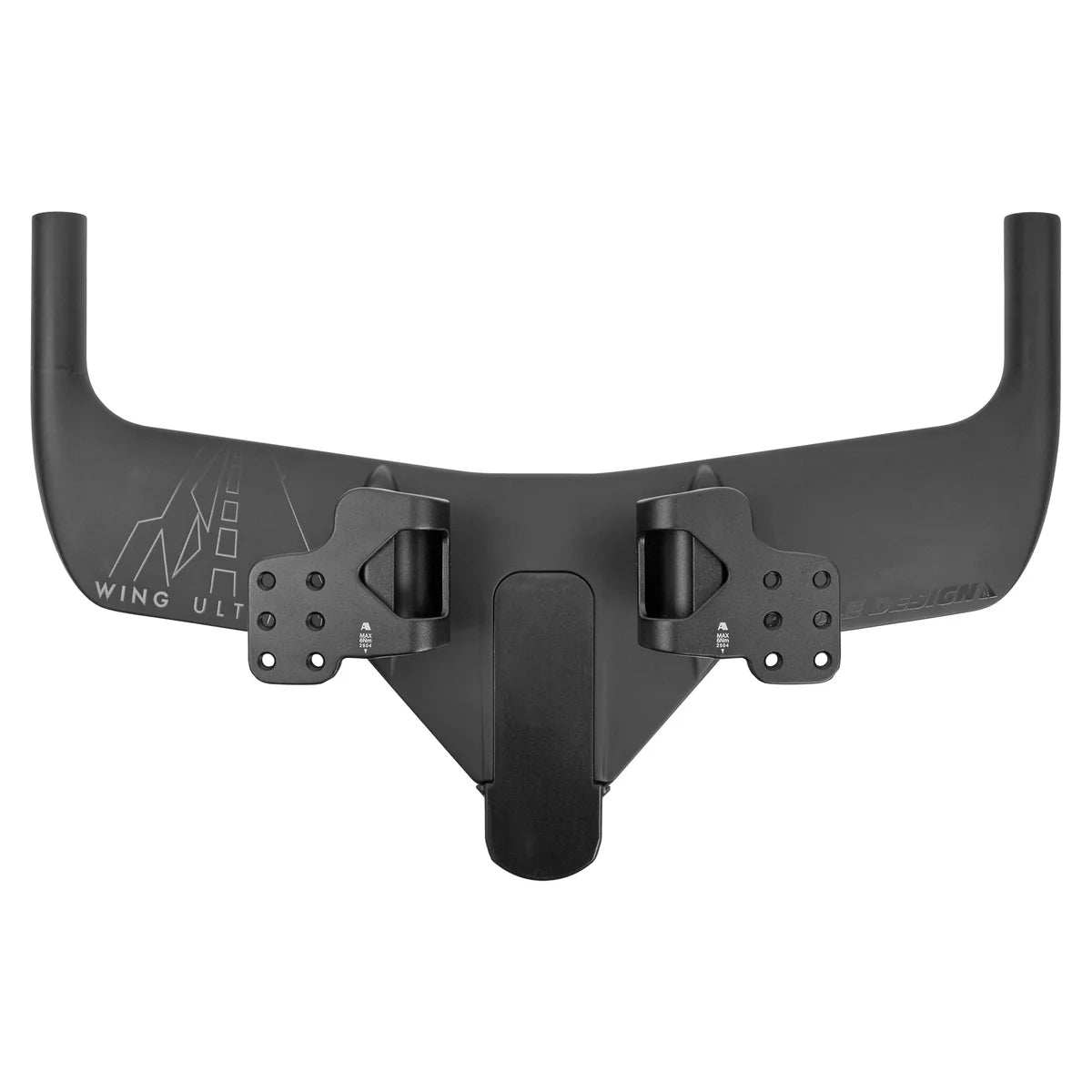

Profile Design Wing Ultimate S With A3 Bracket Base Bar

This Wing Ultimate S comes equipped with our new A3 bracket kit.

The A3 bracket delivers a new standard of adjustment and versatility for our integrated platform. Its reversible design and expanded tilt range now match the capabilities that previously required adaptors with the A2 bracket.

Key Benefits Include

• Independent adjustment of all components for precise tuning
• Effortless usability and proven reliability remain core strengths
• Native compatibility with A3 risers, and with A2 risers via an adaptor
• An extended reach of 30mm and an additional 15° of tilt for greater flexibility

Performance

The Wing Ultimate S offers a combination of aerodynamic integration and a supreme fit range. With the change in spec comfort, for most users will be increased alongside the performance advantage of lower weight.

Fit Data

• Armrest offset: -92.5mm to -10mm in 7.5mm steps
• Armrest Width: 124mm to 254mm in 18.5mm steps
• Armrest Stack: The minimum is 64mm to 84mm


• Effective stem length: 89.6mm
• Effective bar reach: 142.4mm
• Basebar Width: 420mm (Centre-to-Centre)
• Steerer Tube Diameter:  1-1/8in (28.6mm)
• Stack of Bracket Mount: 44.3mm
• Stem Steerer Tube Stack Height: 32.5mm
• Stack of Grips: 0.5mm
• Internal Cable Routing: Yes
• Di2 Compatible: Yes
• Bracket: A3 Bracket Kit
• Armrest: Not Included
• Extensions: Not Included
• Extension Clamp Diameter: 22.2mm

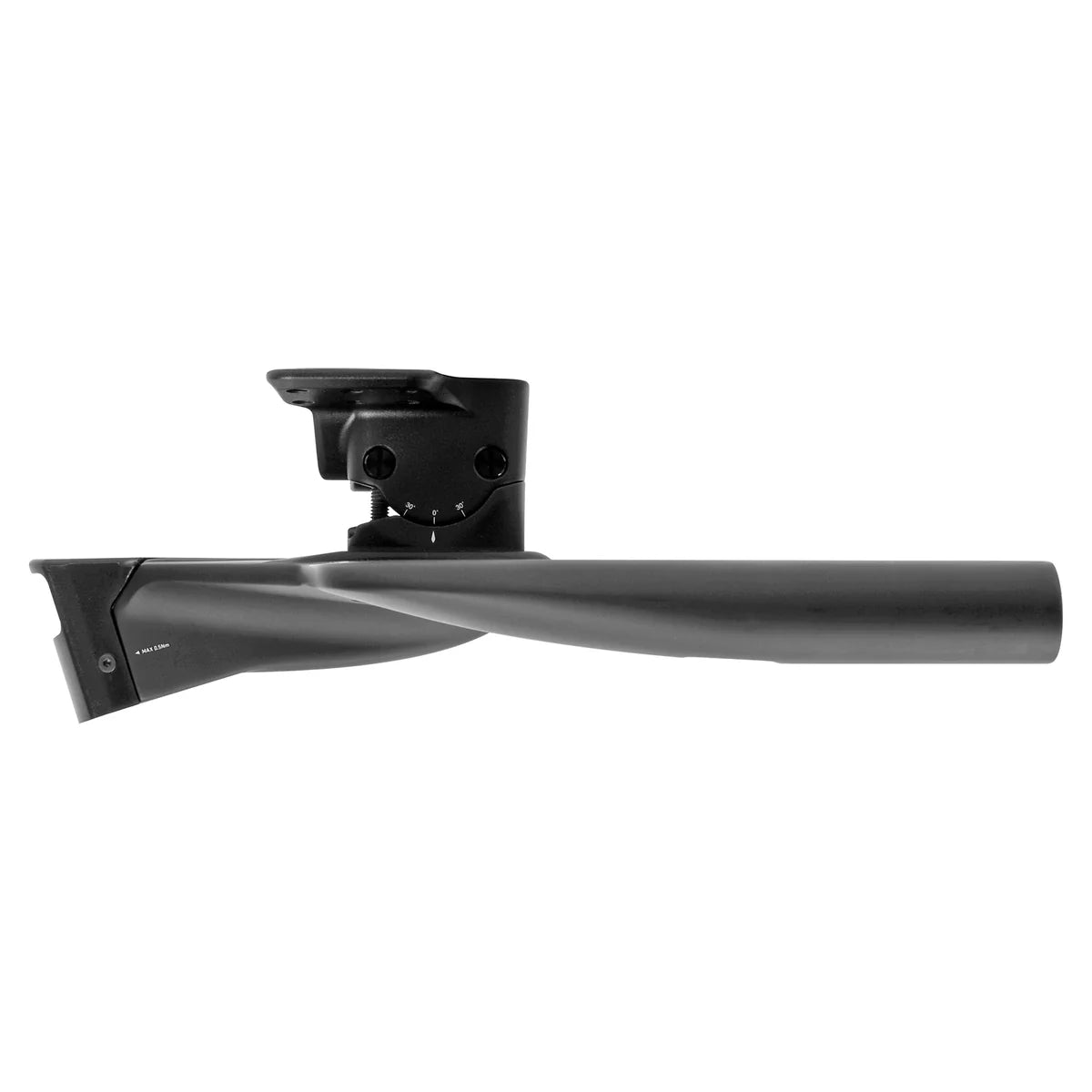

• Bracket Tilt Adjustment: 0-30°
• ASC Pro Compatible: Yes
• Pursuit OD/ID: 24 / 19.6mm
• Construction: Carbon
• Color: Matte Black
• Weight: 390g (bare basebar)

Torque Settings

• Extension Clamp: 5Nm
• Armrest Bolts: 4.7Nm
• Stem Clamp: 5Nm Max
• Stem Cover: 0.5Nm
