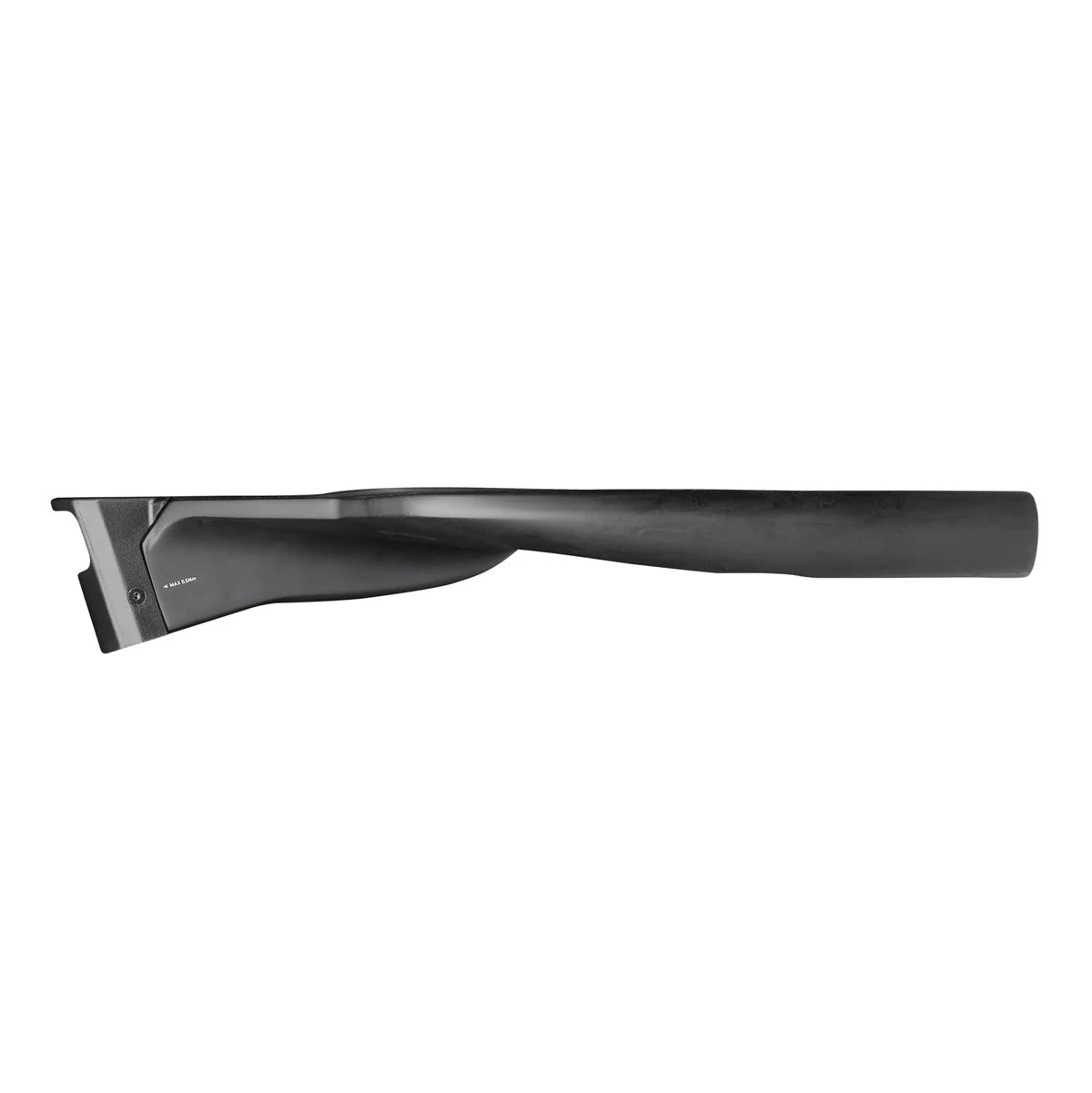

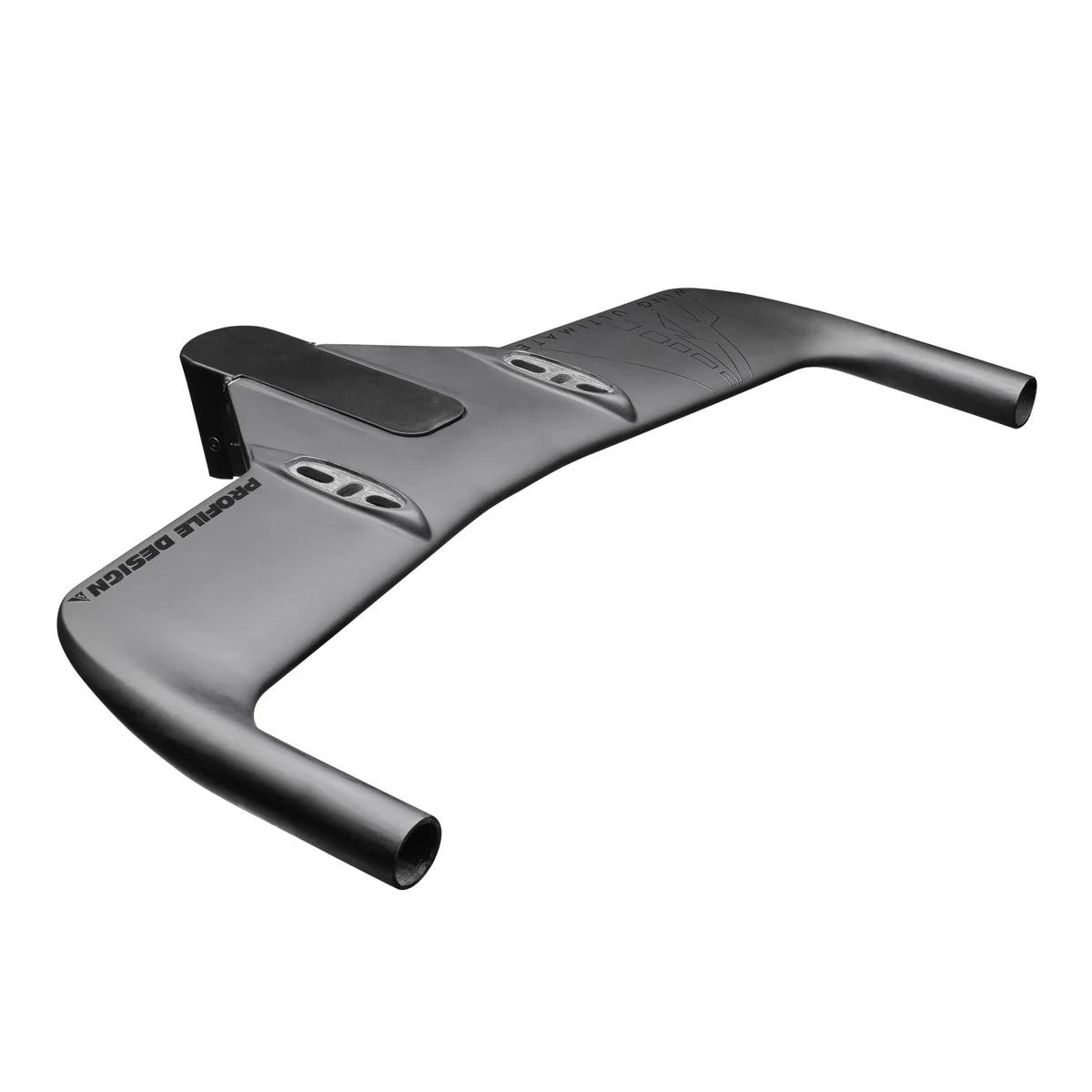

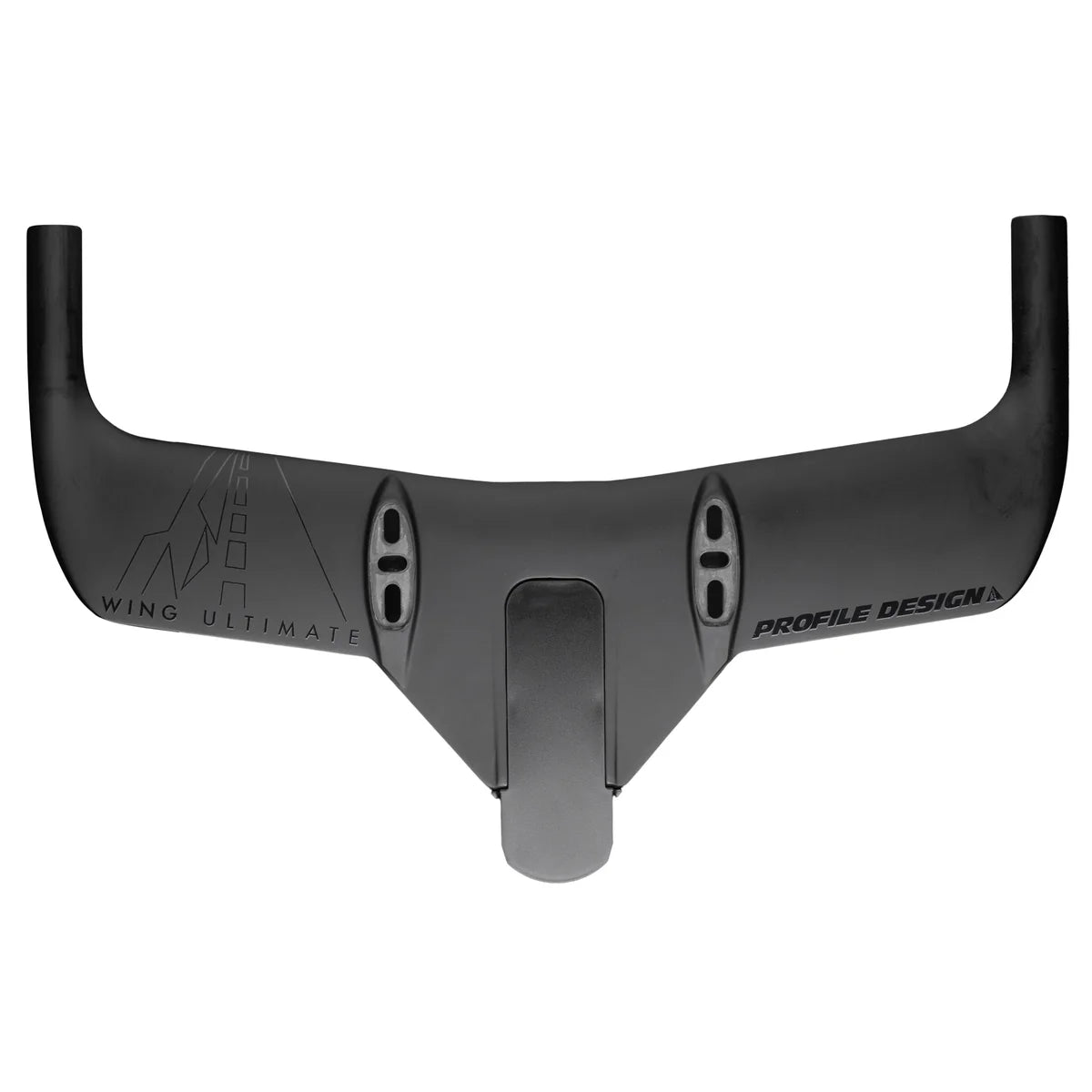

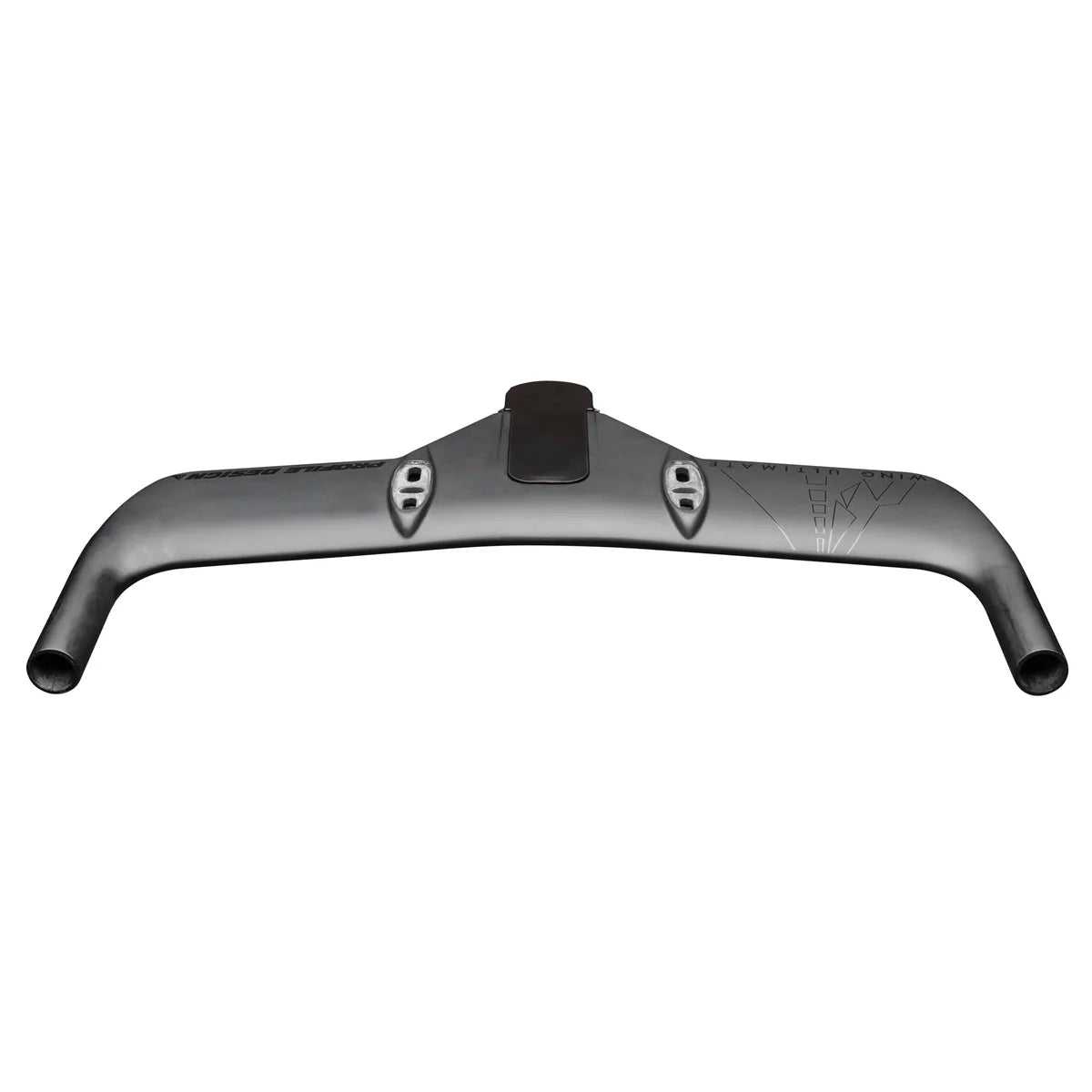

Profile Design Wing Ultimate S Base Bar

** This Wing Ultimate S is sold as a basebar only, allowing the rider to choose their optimum configuration from our extensive range of options.

Performance

The Wing Ultimate S offers a combination of aerodynamic integration and a supreme fit range. With the change in spec comfort for most users will be increased alongside the performance advantage of lower weight.

Fit Data

• Armrest offset: -92.5mm to -10mm in 7.5mm steps
• Armrest Width: 124mm to 254mm in 18.5mm steps
• Armrest Stack: The minimum is 64mm to 84mm

• Effective stem length: 89.6mm
• Effective bar reach: 142.4mm
• Basebar Width: 420mm (Centre-to-Centre)
• Steerer Tube Diameter:  1-1/8in (28.6mm)
• Stack of Bracket Mount: 44.3mm
• Stem Steerer Tube Stack Height: 32.5mm
• Stack of Grips: 0.5mm
• Internal Cable Routing: Yes
• Di2 Compatible: Yes
• Bracket: Not Included
• Armrest: Not Included
• Extension Length: Not Included
• Extension Clamp Diameter: 22.2mm
• ASC Pro Compatible: Yes
• Pursuit OD/ID: 24 / 19.6mm
• Construction: Carbon
• Color: Matte Black
• Weight: 390g (bare basebar)

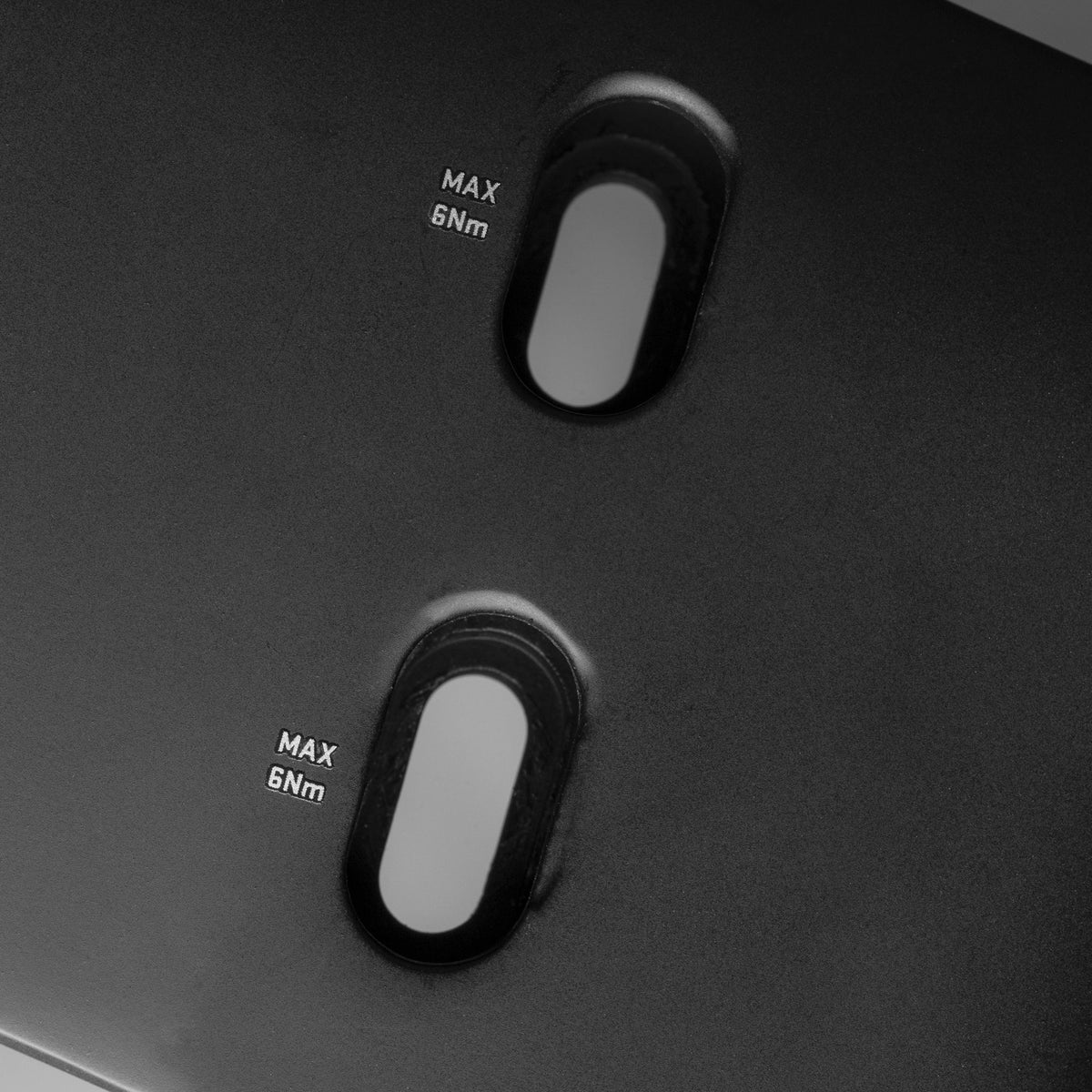

Torque Settings

• Extension Clamp: 5Nm
• Armrest Bolts: 4.7Nm
• Stem Clamp: 5Nm Max
• Stem Cover: 0.5Nm
