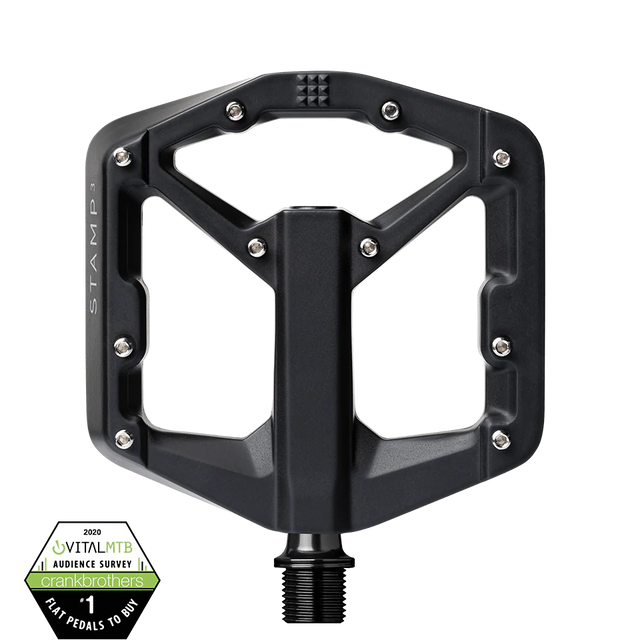

Crankbrothers Stamp 3 V2 Pedals

FEATURES

• Magnesium pedal body for weight reduction
• Optimal surface area
• Minimal body profile - 16mm thin
• Concave pin profile & 10 adjustable pins per side for grip
• Premium bearings & seal system
• Stamp small recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
• Stamp large recommended for shoe sizes: 10-15 (us) // 43-49 (eu)
• Serviceable, pedal refresh kit found here
• Owners Manual and Technical Documents here

SPECIFICATIONS

• BODY MATERIAL
• AM60B Magnesium Alloy


• FOOTPRINT
• 114mm x 111mm


• ADJUSTABLE PINS
• 10 per side


• INNER BEARING TYPE
• Igus Bearing


• OUTER BEARING TYPE
• Double Cartridge Bearing


• ENDCAP
• T15


• SPINDLE MATERIAL
• Forged SCM 415 Chromoly Steel


• MAX RIDER WEIGHT
• No restriction
•

• WEIGHT
• 386g per pair


• WARRANTY
• 5 years
