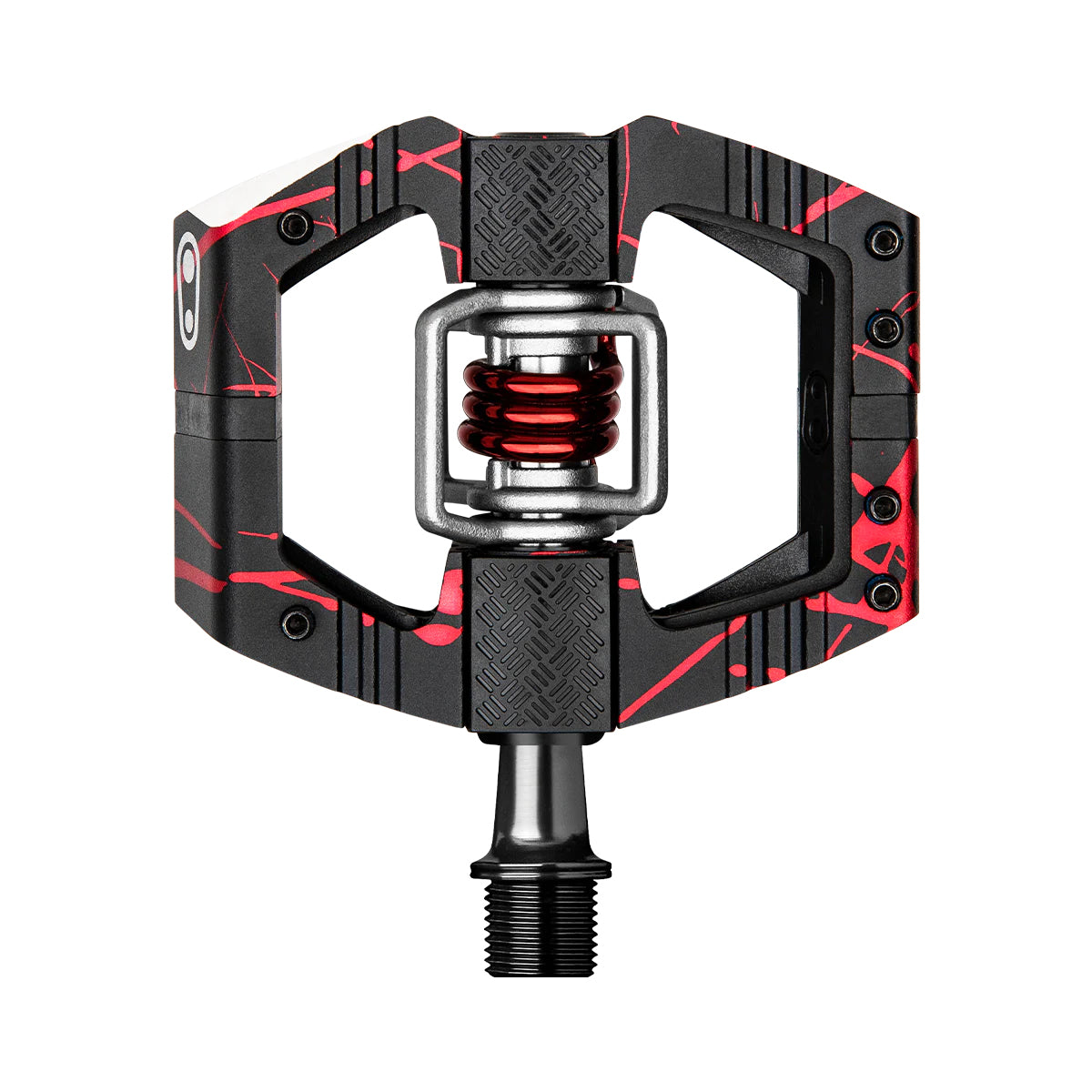

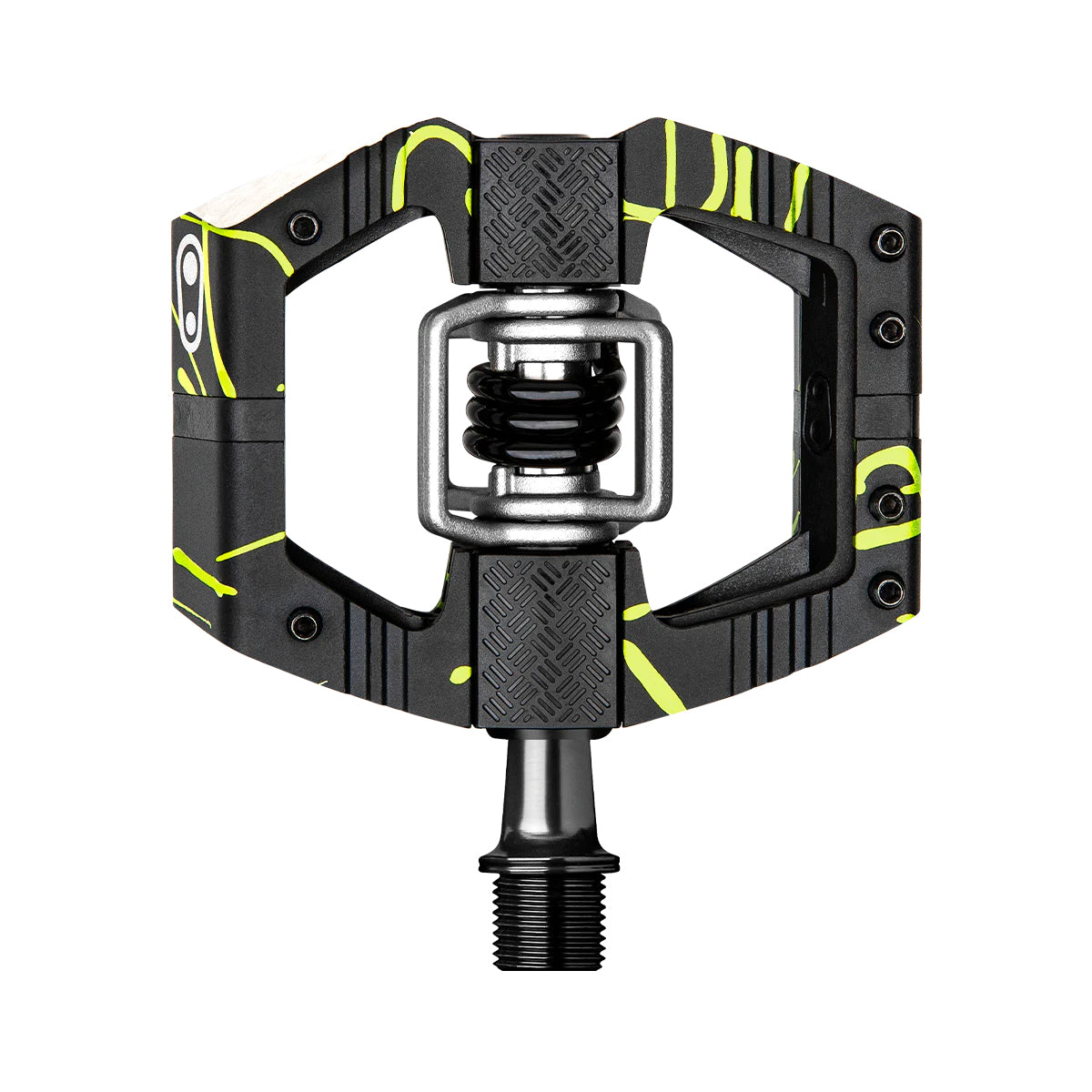

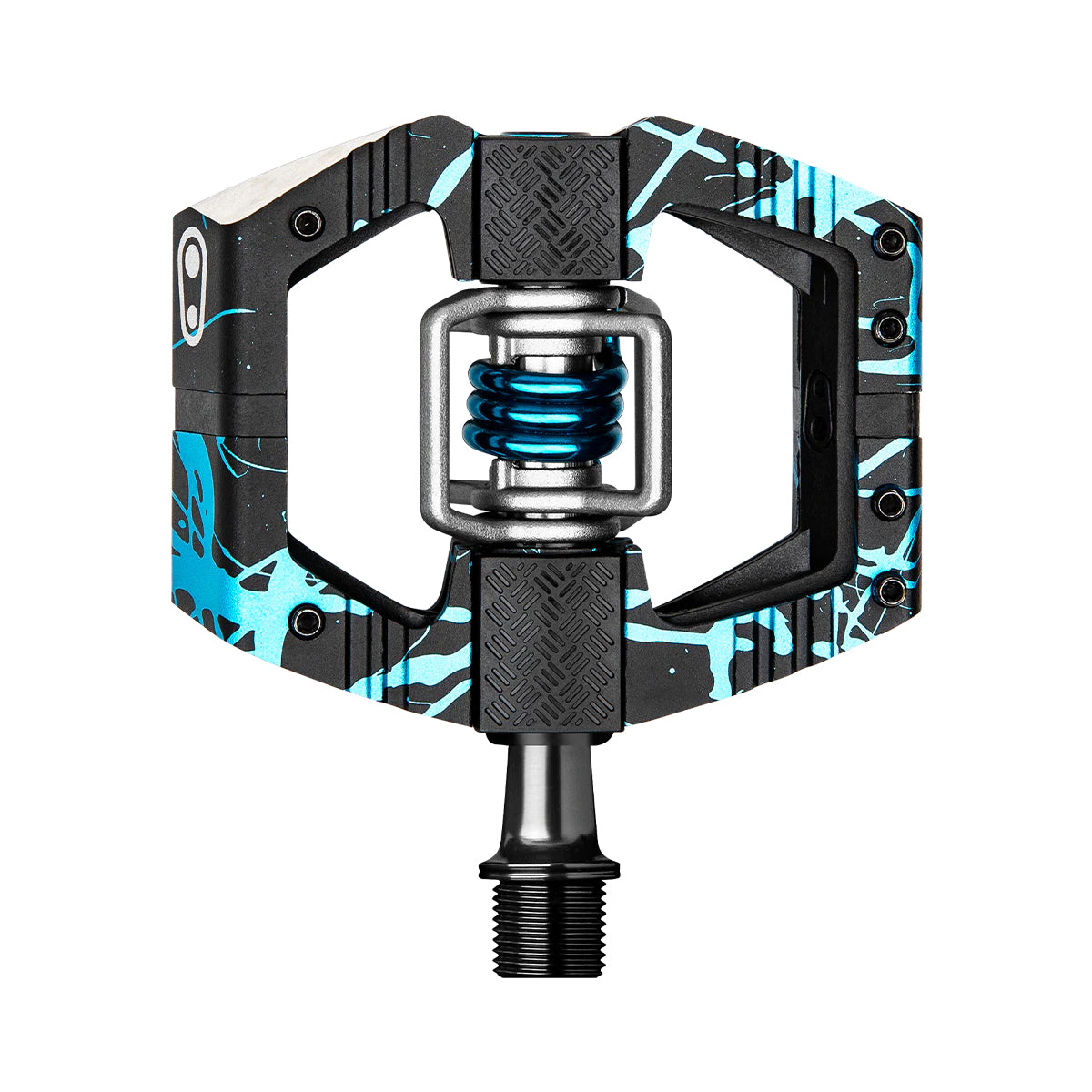

Crankbrothers Mallet LS Splatter Edition Pedals

FEATURES

• Concave platform for secure foothold
• 6 adjustable pins per side for grip
• Integrated traction pad technology to optimize the shoe/pedal interface
• Ribbed body for better traction when unclipped
• Chamfered edges to reduce rock-strikes
• 57mm q-factor for increased shoe clearance and control
• 4-sided entry / superior mud shedding
• Customizable float & release angle
• Premium bearing & double seal system

SPECIFICATIONS

• BODY MATERIAL: 6061-T6 Aluminum
• BODY DIMS (L X W): 94mm x 75mm
• WING MATERIAL: 17-4PH Stainless
• SPINDLE LENGTH: 57mm
• ADJUSTABLE PINS: 6 per side
• INNER BEARING TYPE: Igus LL-glide bearing
• OUTER BEARING TYPE: Enduro MAX cartridge bearing
• ENDCAP: Hex alloy
• SPINDLE MATERIAL: Forged SCM 435 Chromoly Steel
• SPRING MATERIAL: 300 series stainless steel
• MAX RIDER WEIGHT: No restriction
• WEIGHT: 424g per pair
• INCLUDED CLEAT TYPE: 15° / 20° Standard Release, 6° Float
• CLEAT NOTICE: Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.
• WARRANTY: 5 years
